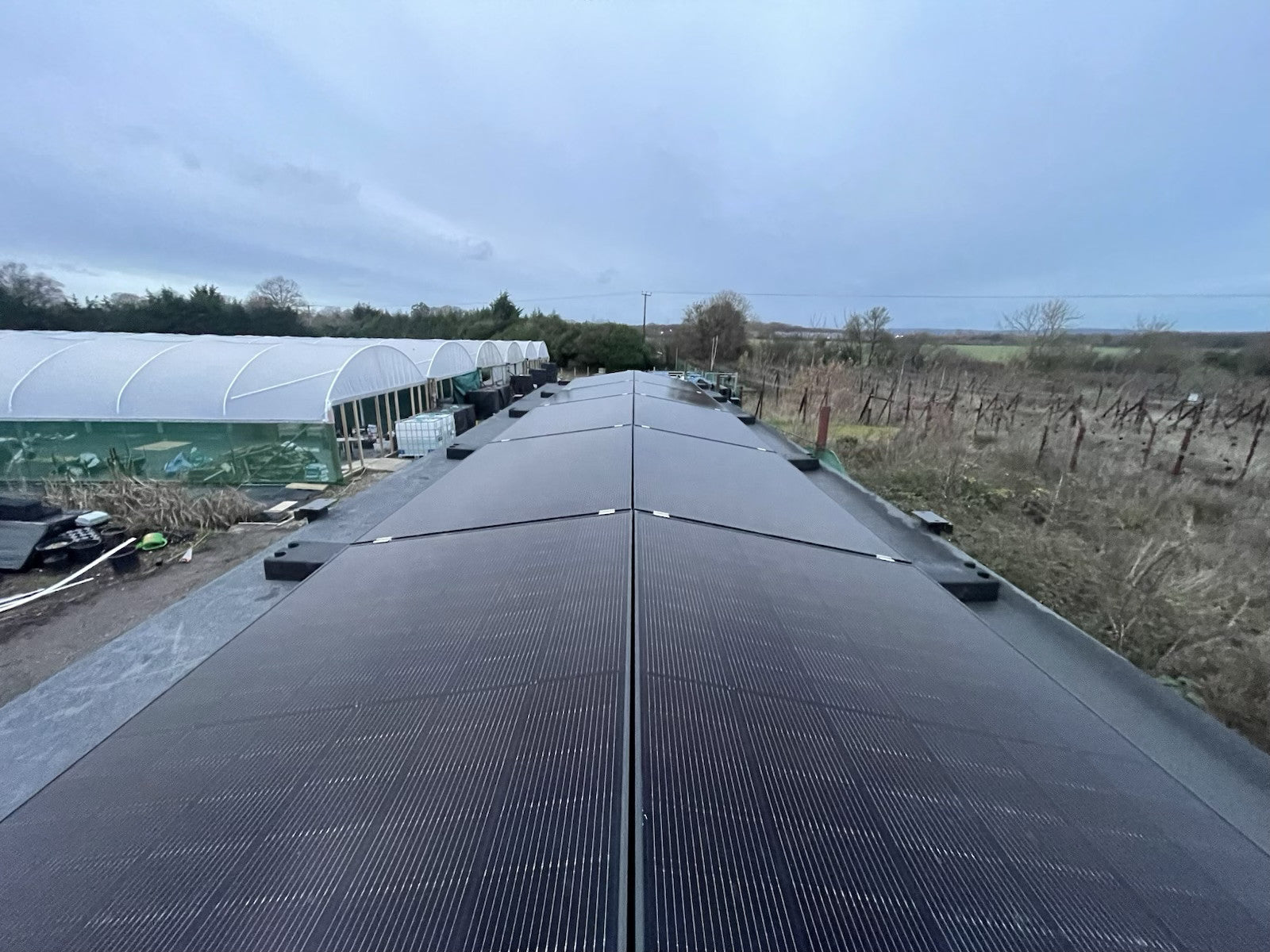

Gaia - Solar Panel Mounting System for East-West Orientation on Flat Roof - Recycled Rubber

Name: Gaia 10-Degrees Rubber Self-Ballasted Mounting System for Solar Panels East-West
Brand: Voltacon
SKU: G10DEG-2PV-30M-WE
Price: 185.0 GBP
Availability: InStock

Introducing the Voltacon rubber solar mounting system for roofs with east-to-west orientation. Equipped with leading-edge mounting gear, installers can quickly attach solar panels on flat roofs with 10° degrees inclination.

The unique, interlocking rubber base secures panels and keeps them aligned to capture early morning and late afternoon light.

NOTE: This is a system for West-East orientation, the equipment will support solar panels in back to back arrangement. 2 PV Modules means 2 solar panels back to back, 4 PV modules , 2 + 2 panels back to back ...etc.

We added more installation "ideas" and short video on our solar blog

Engineered for Solar Efficiency and Structural Integrity

Solar efficiency and structural integrity go hand in hand in this design. Manufactured with a 100% recycled rubber base, the system achieves corrosion-resistance with aluminium profiles.

Wind is no issue, as the components absorb vibrations. Out in the natural elements, they safeguard roof membranes. When temperatures change drastically, wear and tear is minimised.

This durability doesn't come at a cost. The system weighs just 10 kg per square metre, so it's lightweight yet incredibly strong.

Fast Installation and Lasting Results

When every minute counts, this mounting system enables installers and solar professionals to deliver more value in less time.

Quality matters, and that's why it comes with a 25-year warranty and meets strict European standards.

Better output for east-west roofs starts here. Shop the solar panel mounting system for roofs with east-west orientation today.

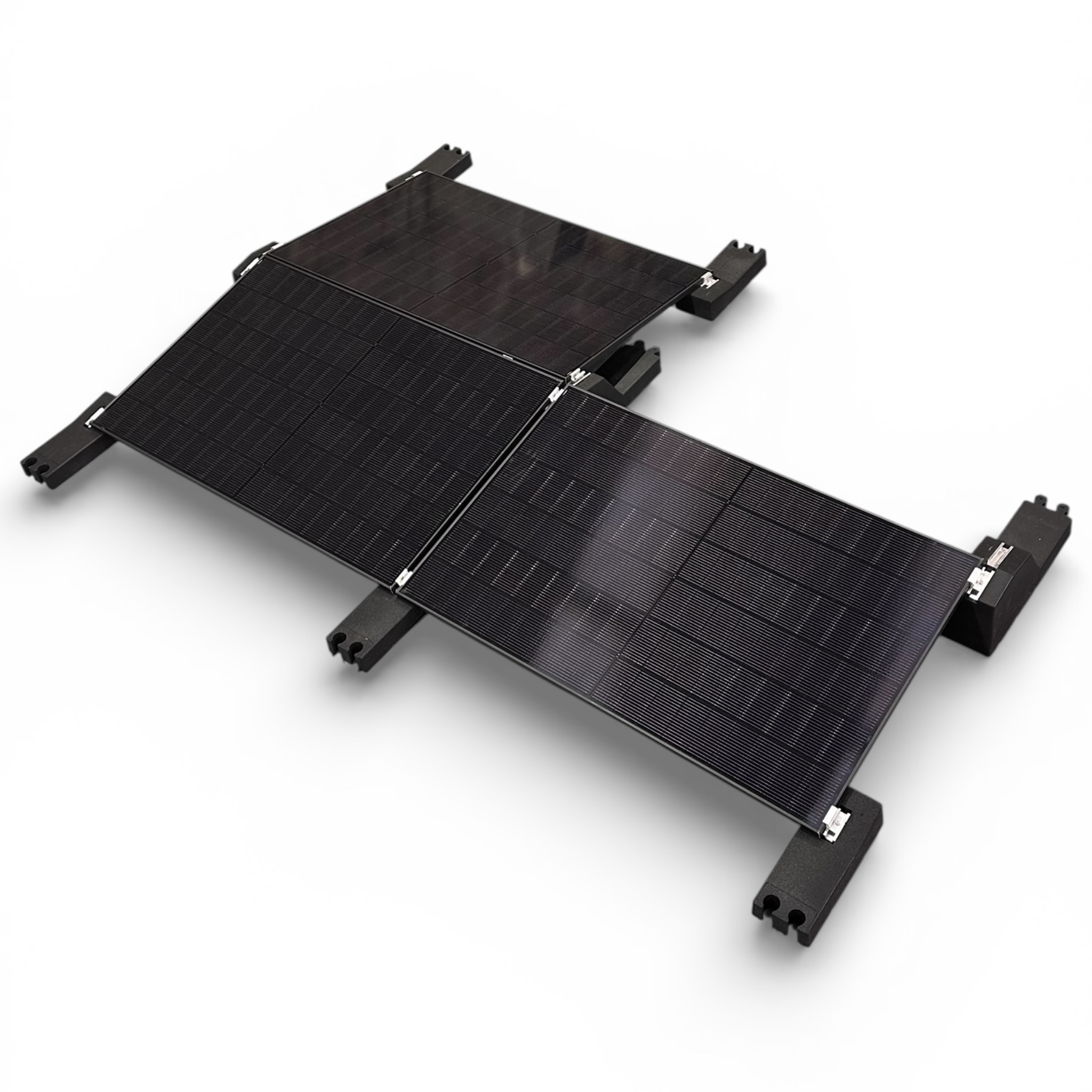

10° Rubber Self-Ballasted Mounting System for Solar Panels

Key Features of the Voltacon Ballasted PV Structure

Dual configuration options: suitable for both south-facing and east-west solar panel layouts
Fixed 10° tilt angle for optimal solar exposure and energy yield
Made from 100% recycled rubber and high-quality aluminium profiles
Lightweight design (10–11 kg/m²) reduces structural load
Fast, tool-free installation with interlocking rubber base
Non-slip surface with excellent vibration and impact absorption
Withstands wind speeds up to 145 km/h (40 m/s)
Temperature-resistant from -40°C to +80°C
Compatible with all standard photovoltaic modules
Maintenance-free system with 25-year manufacturer warranty

Product Installation Video

Technical Specifications

Specification	South-Facing System	East-West System
Panel Orientation	Landscape	Landscape
Tilt Angle	10 degrees	10 degrees
Materials	Recycled Rubber & Aluminium	Recycled Rubber & Aluminium
System Weight	11 kg/m²	10 kg/m²
Roof Inclination Range	0° to 5°	0° to 5°
Wind Load Capacity	Up to 145 km/h	Up to 145 km/h
Operating Temperature	-40°C to +80°C	-40°C to +80°C
Warranty	25 Years	25 Years

All components comply with European standards: EN AW-6060 aluminium profiles with thermal treatments and stainless steel fasteners (DIN ISO standards). For aggressive environments, optional A4 stainless steel and unique surface treatments are available upon request.
