Description
xGrowatt SPF5000-ES 5kW Off-Grid Solar Inverter Charger | 48V | 100A MPPT | Wi-Fi

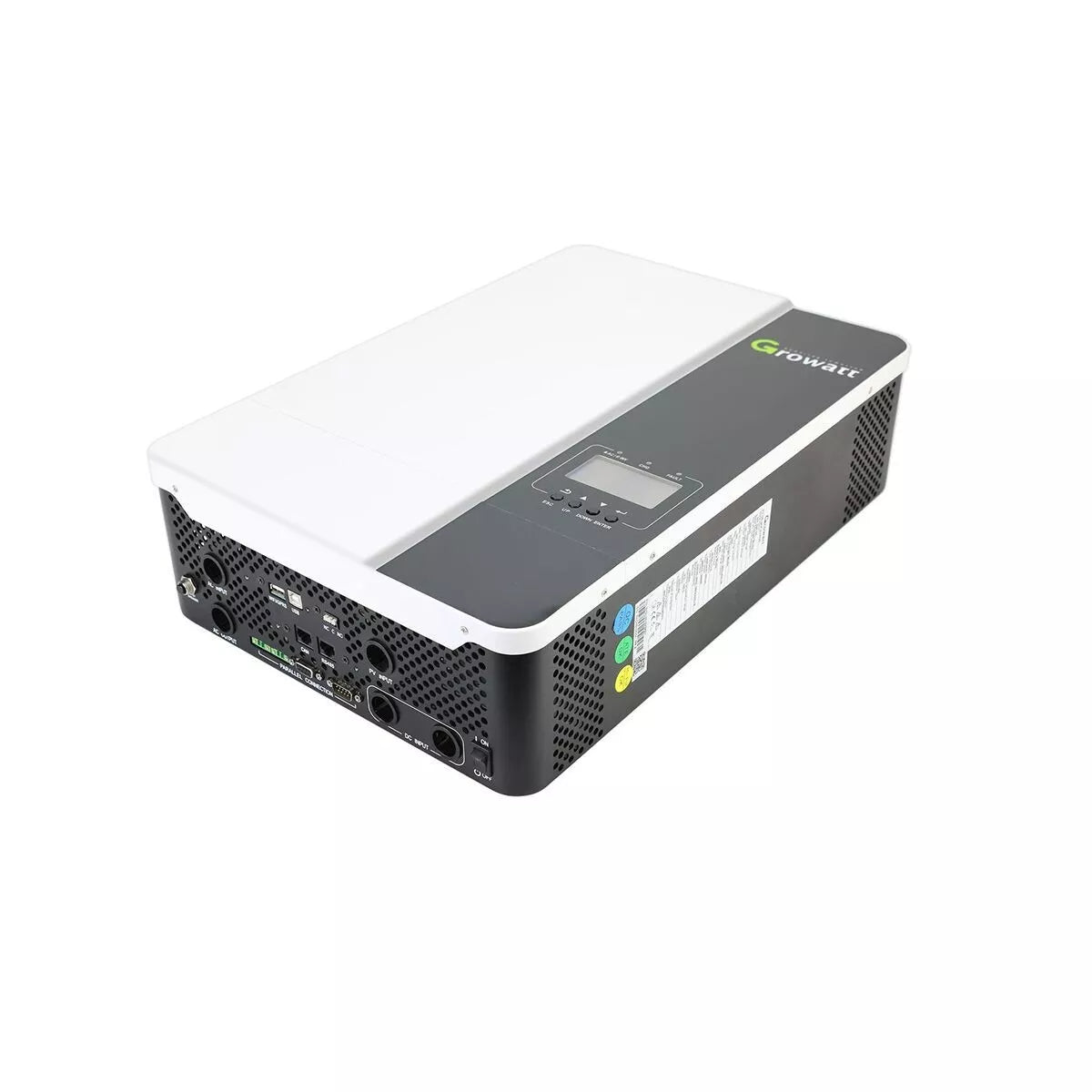

The Growatt SPF5000-ES is a 5kW off-grid solar inverter and battery charger with 100A MPPT, up to 450V DC PV input, battery-independent operation, and Wi-Fi monitoring included. A unique feature of the SPF5000-ES is its ability to supply AC loads in parallel from solar, grid, and battery simultaneously without dropping to bypass mode when energy reserves are low. Parallel operation for up to 6 units (30kW). Scheduled charging via built-in timer.
Key Features
- 5kW continuous off-grid output
- 100A integrated MPPT solar charger
- Maximum PV input voltage: 450V DC
- MPPT operating window: 120V to 450V DC
- Battery-independent operation: runs from solar without a battery bank
- Supplies AC loads from solar, batteries, and grid simultaneously
- Does not drop to bypass when energy reserves are low: continues supplying from combined sources
- Wi-Fi monitoring module included
- Parallel operation: up to 6 units (30kW total)
- Configurable grid or solar input priority
- Scheduled charging with built-in timer for economy tariff use
- Battery equalisation function to extend battery life
Product Overview
The SPF5000-ES operates at higher PV string voltages than many comparable 48V off-grid inverters, with an MPPT operating window from 120V up to 450V. A minimum of six 300-500W panels in series is recommended to maintain the inverter in the correct operating range. A healthy system typically operates between 300V and 350V under normal conditions.
The key practical advantage of the SPF5000-ES over conventional off-grid inverters is its ability to combine solar, battery, and grid power to supply loads simultaneously. Rather than switching to bypass mode when the battery is low, the inverter draws from whichever combination of sources is available, maximising use of available solar and minimising grid consumption.
The scheduled charging timer allows batteries to be charged from the grid during off-peak hours overnight, ensuring the battery bank enters each day fully charged when solar generation will cover the daily demand.
For 0% VAT supply and installation enquiries, please contact us.
Technical Specifications
| Parameter | Value |
| Rated Output Power | 5000W (5kW) |
| Battery Voltage | 48V DC |
| Solar Charger | 100A MPPT |
| MPPT Operating Range | 120V to 450V DC |
| Max PV Input Voltage | 450V DC |
| Recommended Min Panels | 6 x 300-500W in series |
| Battery Independent | Yes |
| Parallel Units | Up to 6 (30kW total) |
| Monitoring | Wi-Fi (module included) |
| SKU | 002359 |
Applications
- Off-grid homes and properties requiring high PV string voltage operation
- Installations requiring simultaneous solar, battery, and grid supply to loads
- Scalable off-grid systems expandable via parallel operation
- Systems with overnight scheduled battery charging at economy tariff
Installation and Safety Notes
Must be installed by a qualified electrician or solar installer. PV string voltage must not exceed 450V DC under any conditions including cold weather open-circuit voltage. Calculate the open-circuit voltage for the coldest expected temperature before commissioning. Battery systems must comply with BS EN 62619 and local building regulations.
Specifications
x| Model | GROWATT 5KW |
| Rated Power | 5000VA/5000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) / 90-280 VAC (For Home Appliances) |
| Frequency Range | 55 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Overload capacity | 5s @≥150% load; 10s @110%-150% load; 100ms @≥200% load |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (Personal Computers) / 20 ms (Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 5000 W |
| MPPT Range @ Operating Voltage | 120 VDC ~ 430 VDC |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maximum Solar Charge Current | 100 A |
| Maximum AC Charge Current | 100 A |
| Solar Charger Type | MPPT |
| PHYSICAL | |

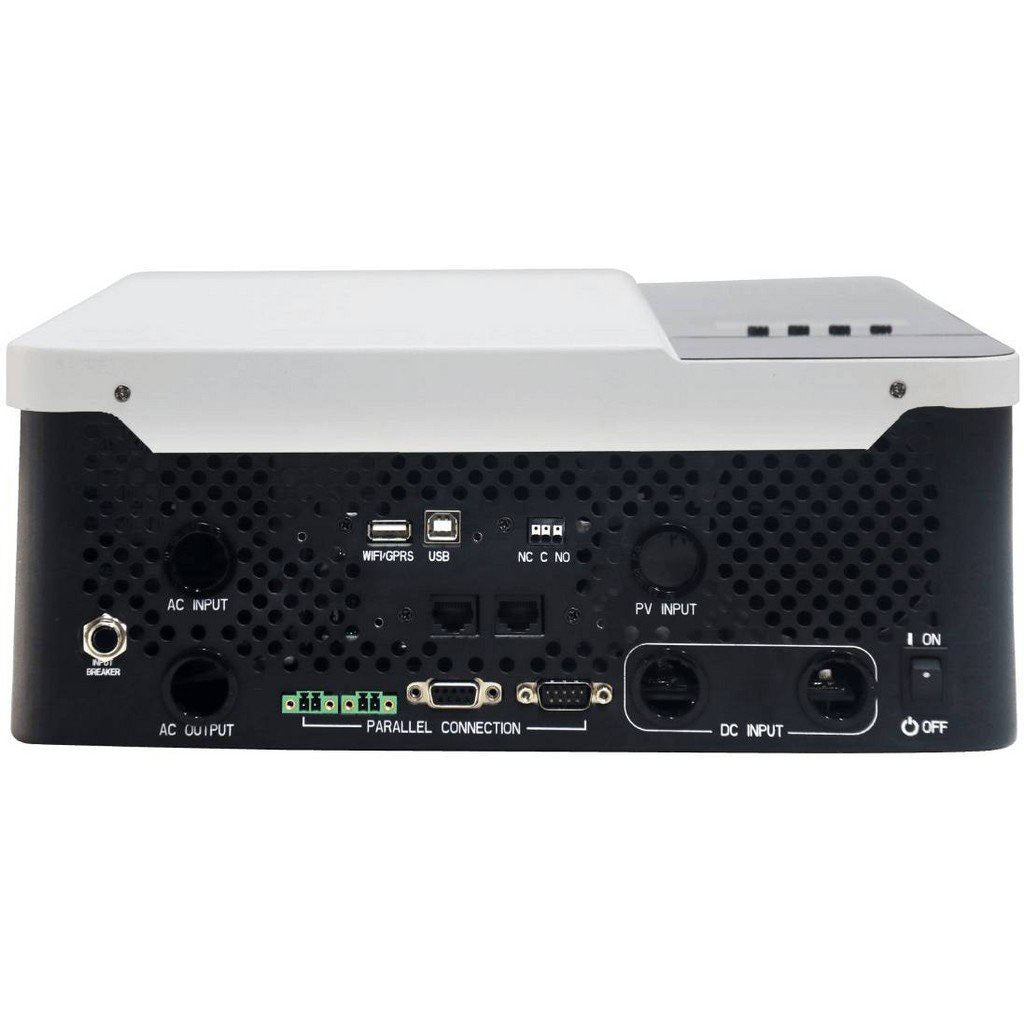

| Communication interface | USB, RS232, RS485, Bluetooth |
| Dimension, D X W X H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12 |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% RH (Non-condensing) |
