Description

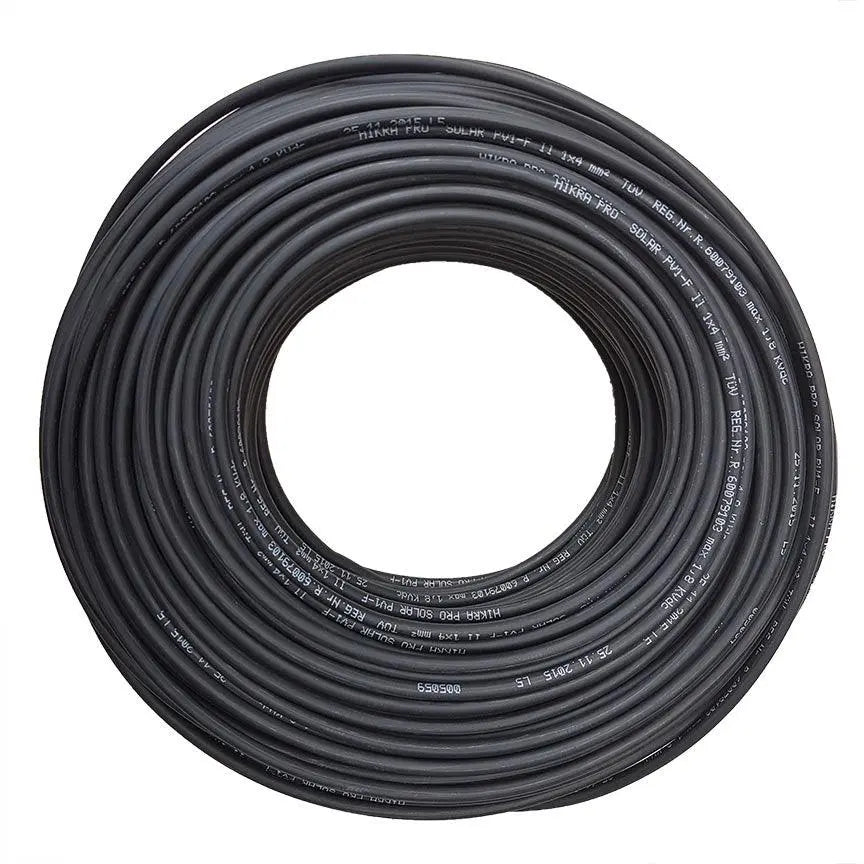

xSolar cable HIKRA-Sol. A drum of 50 meters 6mm2. Black insulation layer. TUV, IEC certified. Durable cable for all photovoltaic installations.
We supply free 5 pairs of MC4-compatible cable connectors.
When you select solar cables for your photovoltaic system, it is important to calculate the right cross-section with the lowest power losses. Our cables have TUV and VDE certification along with the highest manufacturing standards. Solar cables of any diameter from 2.5mm2 up to 1x95mm2 are made in Germany.
The cables are suitable for indoor and outdoor solar applications. The layers of insulation are distinguished by colour for improved and safer handling.
We supply only colour-coded cables for safe and easy installation. The red cables are intended for use in positive (+) DC voltage and the black cable is used for negative (-) DC voltage.
TECHNICAL DATA
- Flame-resistant, halogen-free
- Temperature range -40oC to +90oC
- Excellent abrasion resistance
- It stands for high mechanical stress
- 25- years warranty to match the warranty of your solar panels
Nominal voltage according VDE Vo/V 600/1000Vac or 1800V DC
CABLE CONSTRUCTION
- Tin-plated copper strand, fine wire as per IEC 60228 class 5
- Double insulated
- Special chemical compound for insulation
LOW LOSSES IN EVERY PART OF YOUR SOLAR SYSTEM
The solar off-grid or grid-tied system must be carefully designed with a target overall efficiency around 95%. To reach this target, we should not underestimate how important the selection of cables is.
Maximum conductor resistance (Ω/m) 5mΩ/meter.
