Description

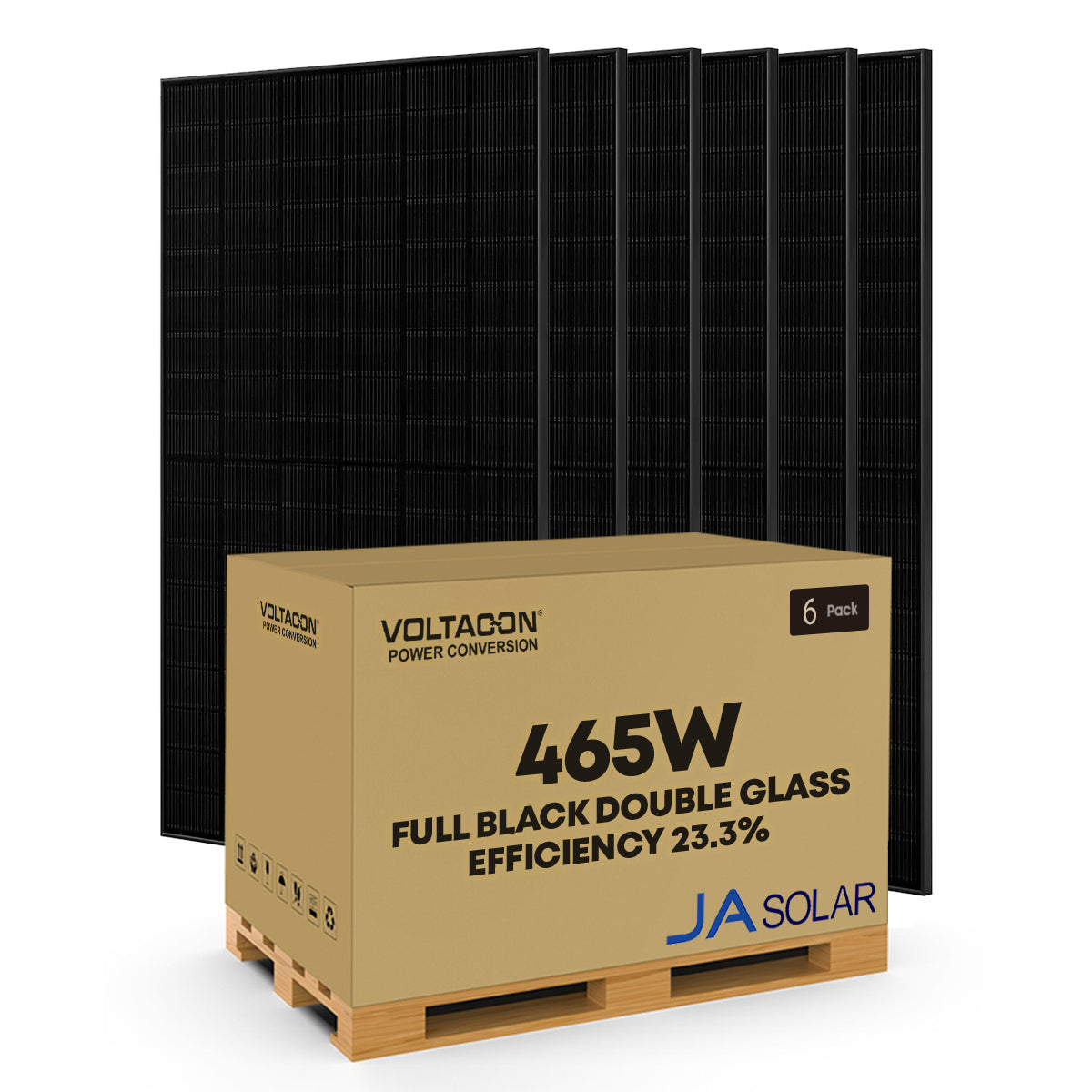

x6 x JA Solar 465W Full Black N-Type Double Glass Solar Panels – JAM54D41-465/LR
Pack of 6 JA Solar JAM54D41-465/LR full black solar panels. Total installed capacity of 2.79kW. Each module delivers 465W at 23.3% efficiency using N-type monofacial dual glass construction, fitted with Stäubli MC4-EVO2 connectors and 1200mm cables. Free UK delivery included.
Key Features
- 6 x JA Solar JAM54D41-465/LR 465W full black panels
- Total pack output: 2.79kW
- 23.3% module efficiency
- N-Type monofacial cell technology
- Dual glass construction: improved mechanical strength and UV resistance
- First-year degradation: approx. 1% / annual thereafter: 0.4% over 30 years
- Snow load: 5400 Pa / wind load: 2400 Pa
- Stäubli MC4-EVO2 connectors with 1200mm positive and negative cables
- MCS certified: BABT 8515 R37
- 25-year product warranty / 30-year linear power output warranty
- Free UK delivery
Product Overview
The JAM54D41-465/LR is a full black monofacial panel. The all-black frame, backsheet and cell appearance suits visible rooftop installations where aesthetics matter. The dual glass construction replaces the conventional plastic backsheet with a second glass layer, which resists moisture ingress, UV degradation and mechanical stress better over a long service life.
N-type cell technology gives lower long-term power degradation compared with older P-type monocrystalline panels. Over 30 years, the panel is rated to lose approximately 0.4% output per year after the first year, which is lower than standard monocrystalline panels of the same era.
Stäubli MC4-EVO2 connectors are factory fitted. These are a higher-specification connector than standard MC4, with a more secure locking mechanism and better resistance to vibration and water ingress.
Applications
- Residential rooftop solar systems
- Commercial rooftop solar installations
- Hybrid inverter and battery storage systems
- Off-grid solar power systems
- Projects requiring all-black panels for visible roof areas
What Is Included
- 6 x JA Solar JAM54D41-465/LR 465W full black dual glass panels
- Factory-fitted Stäubli MC4-EVO2 connectors and 1200mm cables
- Free UK delivery
Installation Notes
Installation must be carried out by a qualified MCS-accredited solar installer. String voltage must be calculated to confirm it does not exceed the inverter maximum input voltage under cold conditions. The 1500V system voltage rating gives flexibility for larger string designs but requires careful calculation. Maximum series fuse rating is 30A.
Specifications
xTechnical Specifications – JA Solar JAM54D41-465/LR
| Parameter | Value |
| Manufacturer | JA Solar |
| Model | JAM54D41-465/LR |
| Panel type | Monofacial, double glass, all black |
| Cell technology | N-type monocrystalline |
| Maximum power (Pmax) | 465W |
| Module efficiency | 23.3% |
| Power tolerance | 0 to +5W |
| Open circuit voltage (Voc) | 40.70V |
| Maximum power voltage (Vmp) | 34.02V |
| Short circuit current (Isc) | 14.46A |
| Maximum power current (Imp) | 13.68A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 30A |
| Cell configuration | 108 cells |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 22kg |
| Front glass | 1.6mm tempered |
| Rear glass | 1.6mm tempered |
| Junction box | IP68 |
| Connector | Stäubli MC4-EVO2 |
| Operating temperature | -40°C to +85°C |
| Temp. coefficient Pmax | -0.290% / °C |
| Temp. coefficient Voc | -0.250% / °C |
| Temp. coefficient Isc | 0.045% / °C |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| First year degradation | 1% |
| Annual degradation year 2 to 30 | 0.4% |
