xEasy Plan Light Bar Solar PV Mounting System
A lightweight aluminium flat roof mounting system for solar PV panels, available in landscape or portrait orientation. Screw-fixed design with a special profile bar that is both lighter and stronger than conventional mounting bars. Suitable for residential and commercial flat roof installations. Priced per module (1 to 10 modules available).
Key Features
- Available in landscape or portrait orientation (select via the option above)
- Lightweight aluminium profile bar: up to 4.5m maximum length per bar
- Screw-fixed design for a secure, stable installation
- Maximum distance between supports: 1m
- Weight: 1.38kg per m2
- Complete hardware kit included per module
- Scalable: order from 1 to 10 modules in a single purchase
Product Overview

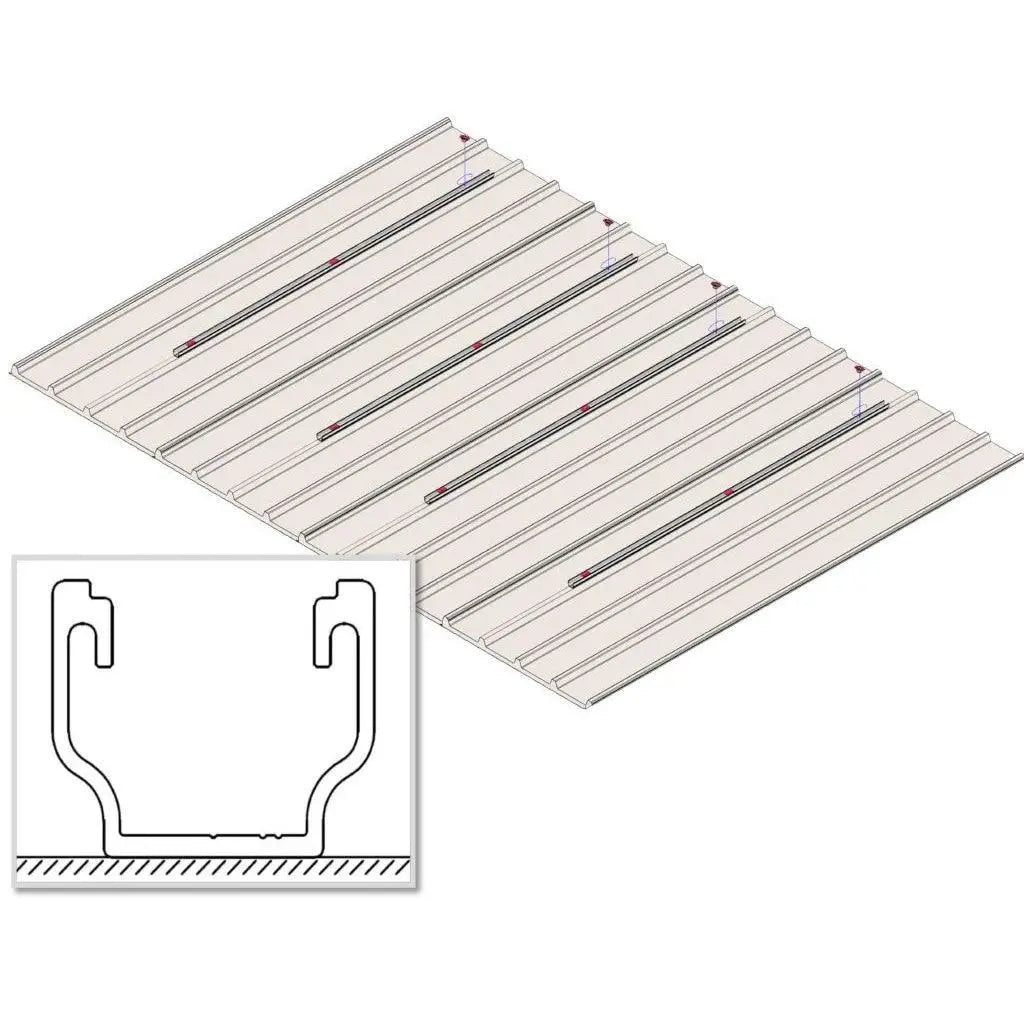

The Easy Plan Light Bar is a flat roof solar mounting system designed for both landscape and portrait panel orientations. The mounting bar profile has been engineered to reduce weight without sacrificing structural rigidity, making it well suited to roofs where load distribution is a consideration.
The screw-fixed connection provides a more positive engagement than clip-based systems, ensuring long-term stability in exposed conditions. The system can be configured for a single module or scaled up to a 10-module row in one order by selecting the appropriate quantity above.
Technical Specifications
| Parameter | Value |
| Orientation | Landscape (portrait available separately) |
| Max Bar Length | 4.5m |
| Max Support Spacing | 1m |
| Weight | 1.38 kg/m2 |
| Fixation Method | Screw fixed |
| Modules per order | 1 to 10 (select above) |
What Is Included (per module)
- Aluminium mounting bar (max 4.5m)
- Middle and end clamps (aluminium)
- Rail connector
- M8 nut with plastic clip (stainless steel A2)
- Allen bolt DIN 912 (stainless steel A2)
- Flanged nuts M10 (stainless steel)
- T-bolt (stainless steel A2)
Applications
- Flat roof solar PV installations on residential and commercial buildings
- Landscape or portrait panel array configurations
- Installations requiring a lightweight mounting solution with a low roof load
Installation and Safety Notes
The Easy Plan Light Bar mounting system must be installed by a qualified solar installer. Roof load capacity must be confirmed before installation. Ensure all screw fixings are sealed to maintain roof waterproofing. Panel clamps, ballast requirements, and structural design must be assessed for the specific site and wind load zone.
