xSolar Panel Tile Roof Mounting Kit | Hooks and Rails | Landscape
A complete coplanar mounting kit for solar panels on tiled roofs in landscape orientation. Adjustable stainless steel hooks lock onto the tile without drilling. Supplied with 1.2m aluminium rails, mid and end clamps, and all fixing hardware per module. Available from 1 to 10 modules.
Key Features
- Coplanar installation: panels sit flush to the roof pitch
- Adjustable stainless steel hooks for all standard tile profiles
- No drilling or cutting required
- AL6005-T5 anodised aluminium rails in natural colour
- Rails extend to any length using included connectors
- Mid and end clamps included per module
- Landscape orientation, 1 to 10 modules per order
Product Overview

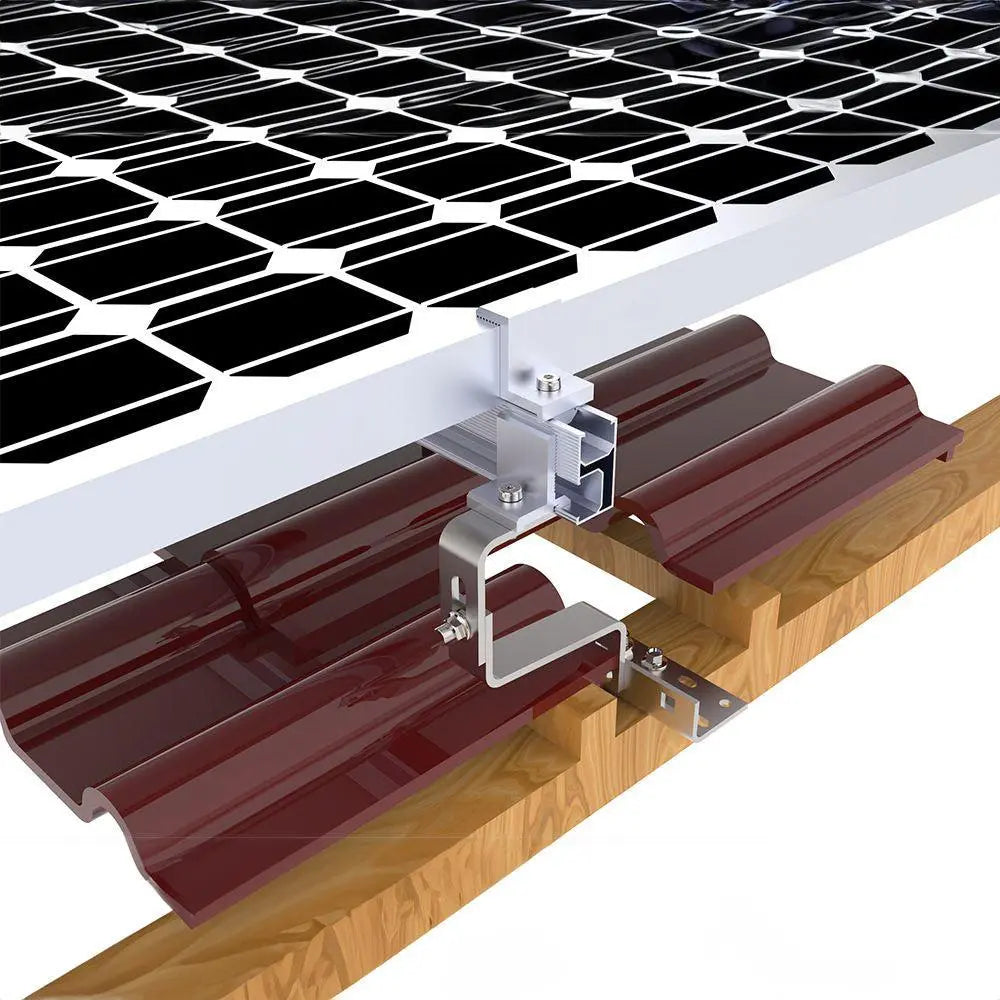

This coplanar tile roof mounting kit uses adjustable stainless steel hooks that slide under the tile and engage without requiring any penetration or drilling. The installer lifts the tile, positions the hook on the batten, and replaces the tile over the hook. The hook protrudes through the gap between tiles and the rail clips onto it using a rail clamp.
The modular rail system uses standard 1.2m aluminium profiles connected end-to-end with included rail connectors, making it straightforward to build rows of any length without cutting rails on site. All components are in natural anodised aluminium for long-term weather resistance.
Technical Specifications
| Parameter | Value |
| Orientation | Landscape |
| Hook Type | Adjustable stainless steel, coplanar |
| Rail Material | AL6005-T5 anodised aluminium |
| Rail Length | 1200mm per module |
| Drilling Required | No |
| Modules per order | 1 to 10 (select above) |
What Is Included (per module)
- 1x Easy Roof aluminium rail 1200mm
- Middle and end clamps (aluminium)
- Adjustable stainless steel hooks
- M8 nut with plastic clip (stainless steel)
- Allen bolt DIN 912 (stainless steel)
- Rail connectors
Applications
- Coplanar solar PV installations on standard interlocking tiled roofs
- Landscape orientation arrays from 1 to 10 modules
- Residential installations where a flush, low-profile mounting is required
Installation and Safety Notes
Must be installed by a qualified solar installer. Hooks must be fixed to sound, load-bearing roof battens. Verify that the hook profile is compatible with the specific tile type before installation. Do not use on roofs where battens are undersized or deteriorated.
