xSolar Panel Mounting Kit for Slate and Rosemary Tile Roofs | Landscape

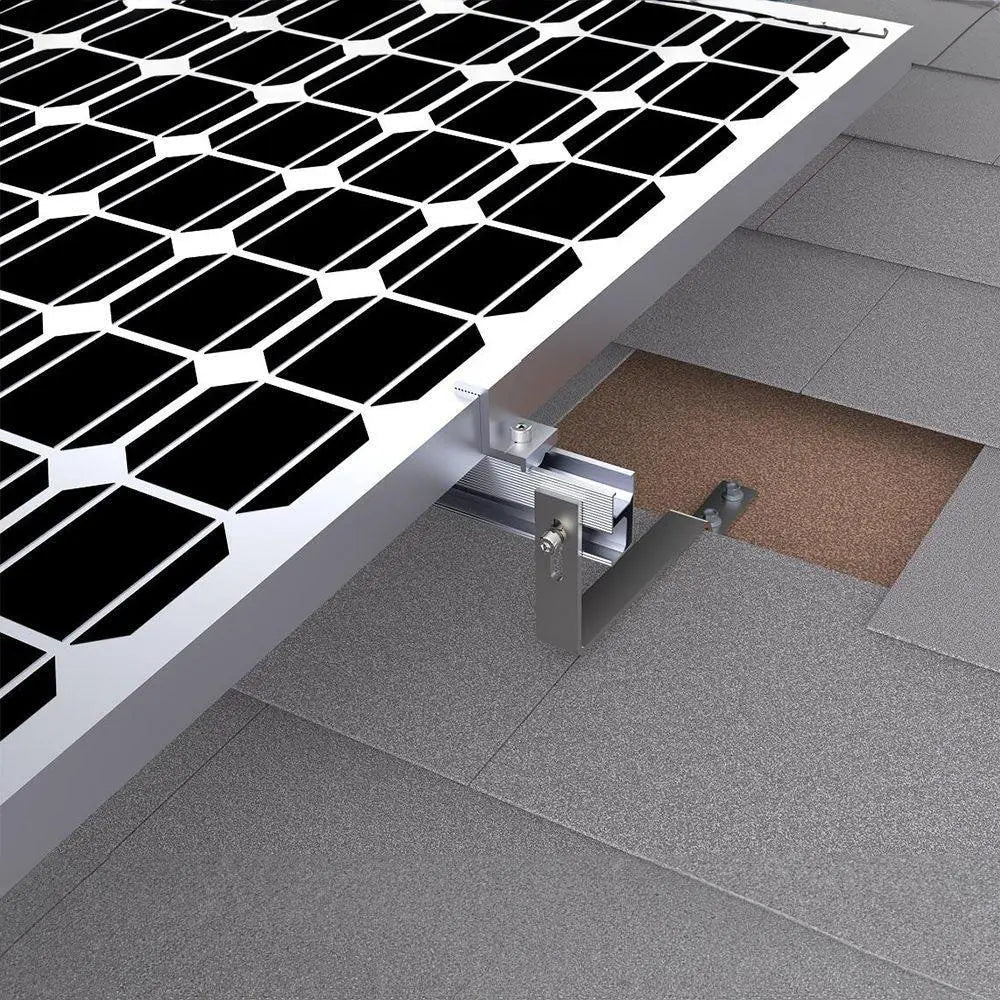

A complete per-module mounting kit for installing solar panels on rosemary-style and concrete tile roofs in landscape orientation. Specially angled stainless steel hooks eliminate the need to drill tiles, preserving roof integrity. All components are AL6005-T5 with an anodised finish. Available from 1 to 10 modules.
Key Features
- No tile drilling required: hooks locate under the tile edge without penetrating the surface
- 90-degree and 180-degree bend stainless steel hooks included
- AL6005-T5 anodised aluminium rails and clamps throughout
- 1.2m Easy Roof rail with special connector for easy extension to any length
- Compatible with all standard aluminium-framed solar panels
- Landscape orientation, 1 to 10 modules per order
Product Overview
Installing solar panels on rosemary or concrete tile roofs requires hooks with a specific profile and bend angle to engage under the tile without cracking or drilling it. This kit supplies everything needed per module in landscape orientation: the rail, clamps, hooks, screws, and connectors.
The rails connect end-to-end using the included rail connectors, allowing the array to be extended to any length without specialist cutting tools. All metalwork is AL6005-T5 aluminium with a natural anodised finish for long-term corrosion resistance.
Technical Specifications
| Parameter | Value |
| Orientation | Landscape |
| Rail Material | AL6005-T5 anodised aluminium |
| Rail Length | 1200mm per module |
| Hook Type | 90° and 180° bend stainless steel |
| Roof Type | Rosemary tile, concrete tile, slate |
| Tile Drilling Required | No |
| Modules per order | 1 to 10 (select above) |
What Is Included (per module)
- 1x Easy Roof aluminium rail 1200mm
- Middle and end clamps (aluminium)
- 90° and 180° stainless steel hooks
- Mounting screws with washers (wood-compatible)
- Rail connectors
- Rail clamps
Applications
- Residential rooftop solar PV on rosemary-style and concrete tiles
- Landscape orientation arrays from 1 to 10 modules
- Roofs where tile drilling is not permitted or desirable
Installation and Safety Notes
Solar panel mounting systems must be installed by a qualified solar installer in accordance with local building regulations. Verify hook compatibility with the specific tile profile before installation. Ensure all wood screws are correctly torqued into sound roof battens. Do not exceed the maximum rail span without additional support.
