Description

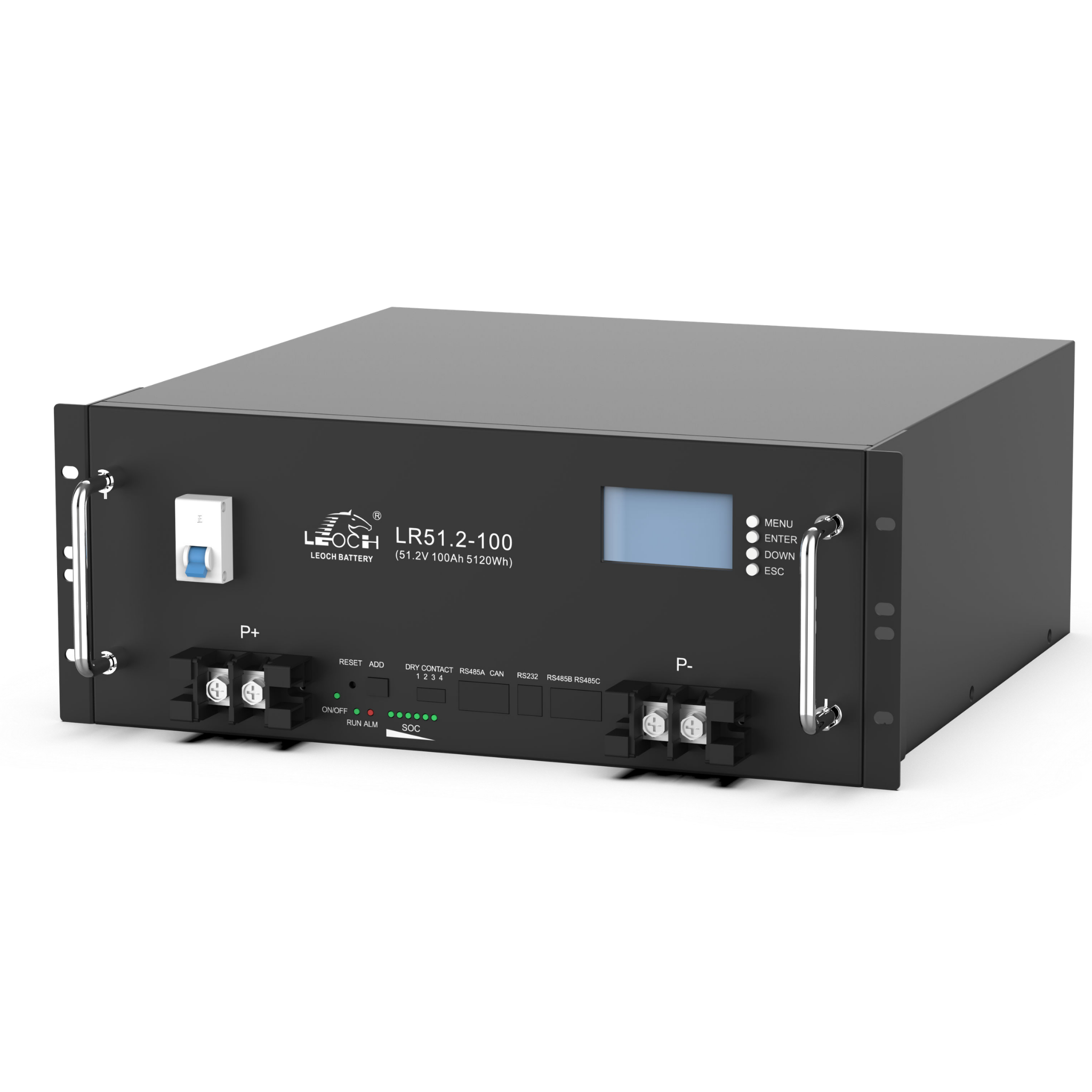

xLeoch LR51.2-100 5.12kWh 51.2V 100Ah Rack-Mounted LiFePO4 Battery
The Leoch LR51.2-100 (SKU: LFELI-48100-E16) is a 5.12kWh rack-mounted lithium iron phosphate battery for 48V solar energy storage systems. It has a built-in BMS, front LCD display and RS485/RS232/CAN communication interfaces. Up to 15 units can be connected in parallel for larger battery banks.
With a rated cycle life of more than 6000 cycles at 80% depth of discharge and a design life exceeding 15 years, this battery is suited to daily-use solar storage where longevity matters as much as capacity.
Key Features
- 5.12kWh usable capacity, 51.2V nominal, 100Ah rated
- More than 6000 cycles at 80% DoD
- More than 15 years design life
- Rack-mounted steel case, standard 19-inch rack compatible
- Built-in BMS with charge and discharge protection
- Front LCD display showing voltage, current and temperature
- RS485, RS232 and CAN communication interfaces
- Supports up to 15 batteries in parallel
- IP31 rated for indoor use
Product Overview
The rack-mounted format fits standard 19-inch server and battery cabinets, which keeps installations clean and organised. The front LCD gives a quick status read without needing to open the inverter app or monitoring software, which is useful during commissioning and service visits.
The built-in BMS handles overvoltage, undervoltage, overcurrent, short circuit and temperature protection. Communication with the inverter is via RS485, RS232 or CAN depending on the inverter make and model. The correct protocol and cable must be selected during installation.
Leoch lists compatibility with a wide range of inverter brands including Growatt, Sofar, GoodWe, Solis, Victron, Voltronic and others. This list is guidance only and does not constitute official approval from every manufacturer. Compatibility, firmware version and BMS protocol must be confirmed before installation.
Applications
- Residential solar battery storage
- Hybrid inverter battery systems
- Off-grid solar PV installations
- Backup power systems
- Rack-mounted 48V energy storage cabinets
- Expandable home and small commercial battery banks
What Is Included
- 1 x Leoch LR51.2-100 5.12kWh rack-mounted LiFePO4 battery
- Documentation and communication cables (check compatibility before ordering)
Installation Notes
This battery is rated IP31 and must be installed indoors in a suitable rack, cabinet or protected technical area. It is not suitable for outdoor or unprotected environments. Always follow the Leoch installation guide. Use appropriate DC fusing and cable sizing. Select the correct inverter battery communication protocol before commissioning. Installation must be carried out by a qualified installer.
Specifications
xTechnical Specifications – Leoch LR51.2-100
| Parameter | Value |
| Battery Model | LR51.2-100 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Installation Type | Rack-mounted |
| Rated Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Rated Energy | 5.12kWh |
| Discharge Cut-Off Voltage | 43.2V |
| Maximum Charge Voltage | 57.6V |
| Maximum Charge / Discharge Current | 100A |
| Communication Interface | RS485 / RS232 / CAN |
| Display | LCD display screen |
| Number of Parallel Connections | Up to 15 units |
| Cycle Life | >6000 cycles at 80% DoD |
| Design Life | >15 years |
| Ingress Protection | IP31 (indoor only) |
| Case Material | SPCC steel |
| Dimensions | 442 x 460 x 133mm |
| Weight | Approx. 43kg |
| Charging Temperature | 0°C to +45°C |
| Discharging Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
