Description
xVictron Lynx Distributor (M8) - Product Code: LYN060102000

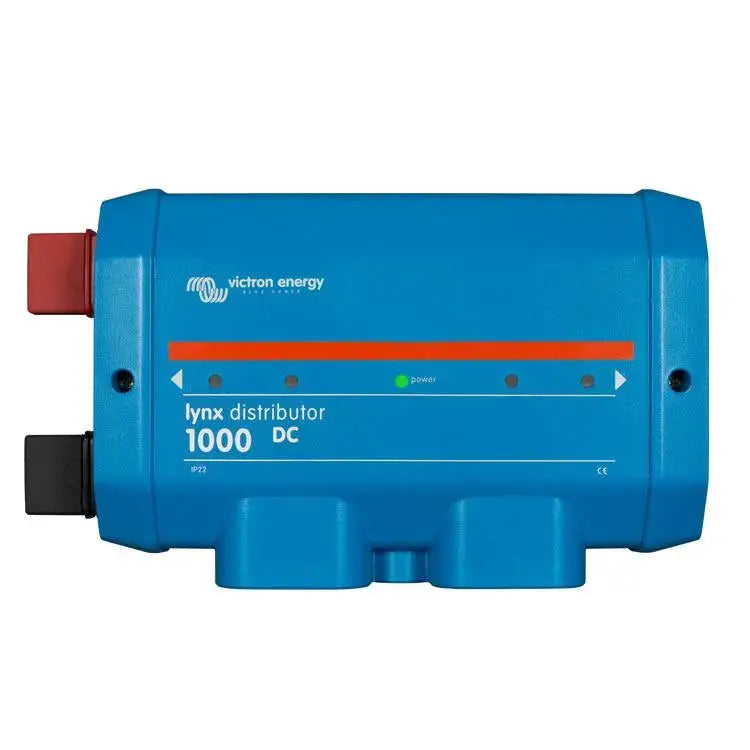

The Victron Lynx Distributor (M8) is a modular DC distribution system with four DC inputs and fused terminals, designed for efficient, safe distribution of power across battery banks and renewable energy systems. Ideal for solar and wind installations, this distributor supports large-scale DC systems with up to four linked distributors to meet expanding energy demands.
Efficient and Safe Power Distribution
This Lynx Distributor (M8) features a robust DC busbar with four fuse-protected connections on the positive busbar, each with individual fuse monitoring. LED indicators on the front panel monitor the status of each fuse, ensuring your power system’s safety and efficiency. The negative busbar also includes four connections and a ground connection, making this unit a core part of the Lynx Distribution System.
Product Features
- 4 Fused DC Connections: Each connection on the positive busbar includes fuse monitoring, with status indicators for quick assessment.
- Integrated Power LED and Fuse Status LEDs: Provides easy monitoring of the overall power supply and each individual fuse status.
- RJ10 Cable Connectivity: Ships with a 40cm RJ10 cable, used to power the fuse detection circuit from a Lynx Smart BMS or Lynx Shunt VE.Can.
- Expandable System: Link up to four Lynx Distributors for larger battery banks and complex solar or wind power setups.
- GTIN: 8719076022633
- Product Code: LYN060102000
Compatibility with Lynx Smart BMS
When connected to a Lynx Smart BMS, up to four Lynx Distributors can relay fuse status information, providing enhanced system monitoring and management. This feature, however, is not available when connected to the Lynx Shunt VE.Can.
Additional Specifications
- MEGA Fuse Compatible: Designed to hold MEGA fuses, sold separately.
- Powered via RJ10 Cable: The Lynx Distributor relies on external power from the Lynx Smart BMS or Lynx Shunt VE.Can through the RJ10 cable. If used independently, the unit requires an alternative power setup to operate the fuse detection circuit:
- Connect pin 1 of the RJ10 connector to 5V (4.5V-5.5V).
- Connect pin 4 to GND.
With its modular design, reliable fuse monitoring, and compatibility with larger systems, the Victron Lynx Distributor (M8) is essential for solar, wind, and hybrid power distribution, ensuring your system’s safety and operational efficiency.
