Description

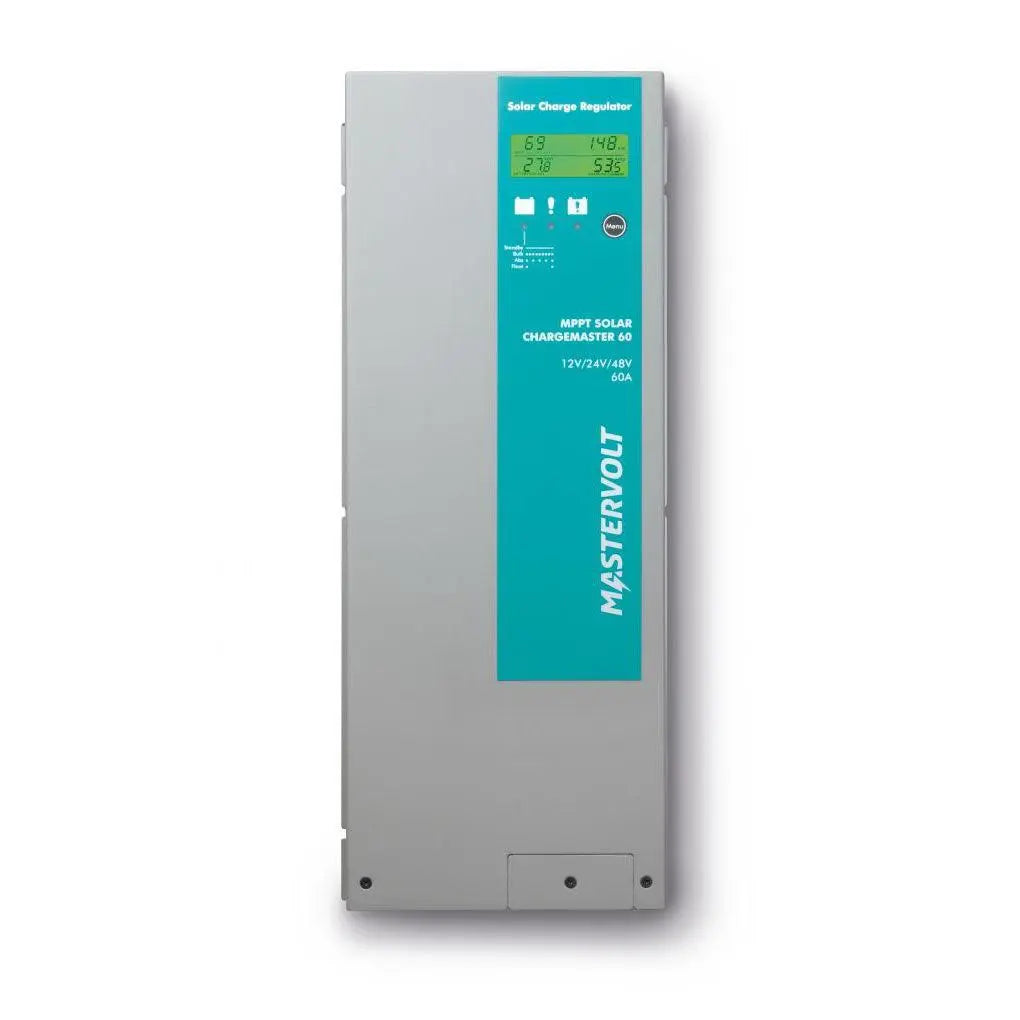

xA fast and accurate solar battery charger from Mastervolt, the SCM60 MPPT-MB charges from 600Wp to 3600 Wp solar panels. With an auto-sense function, it can be connected to 12V, 24V and 48-volt battery banks. Suitable for large and medium-sized solar off-grid systems
Compatible With 12V, 24V And 48V Battery Arrays. Autosense Function
You can expect to get more out of your ordinary solar panels, the advanced maximum power point tracker (MPPT) from MASTERVOLT will charge up to 30% faster than any battery type at any standard battery voltage. Another advantage of the SCM60 is the ability to charge your batteries using 36-cell, 72-cell and even 60-cell solar panels.
A SINGLE MPPT CHARGE REGULATOR FOR INEXPENSIVE SOLAR PANELS
You can connect multiple solar panels in series creating a DC bus of 145V. This voltage level requires shorter cable lengths and standard protection devices such as DC fuses and disconnectors. The voltage is also optimised for lower losses in the solar cables.
EASY TO INSTALL, SAFE AND FLEXIBLE
Buying an SCM60 MPPT charger is a real investment since you can harvest solar energy that can be stored in any battery including Lithium Ion. Mastervolt has pre-loaded all the charging profiles for gel, AGM, lead acid and lithium batteries that can be selected in the menu. There is a sharp, user-friendly display where all the parameters can be viewed and modified.
We want to protect you and your investment that's why this solar battery charger comes with protection against temperature, overload and high/low battery voltage. To make the installation even safer, we added a reverse polarity check because safety matters.
The robust casing of the SCM60 MPPT-MB in conjunction with the cooling system will protect the electronics from condensation and water spray.
THE MASTERBUS FOR MORE COMFORT AND INDEPENDENCE
Using standard RJ45 ethernet cable you can interconnect multiple Mastervolt devices and monitor your energy system. You can fully automate your solar system to suit your needs
The Algorithm Of Three Step Battery Charging
- BULK: At this stage, the charger generates its maximum current for quick charging from 0 to 80%
- ABSORPTION: The charger has reached the maximum charge voltage. Up to 100% the charge current will gradually decrease.
- FLOAT: The final stage begins once the battery is fully charged. The battery remains fully charged.
Specifications
x| General specifications | |
| Display/read-out | backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting |
| Dimensions |
398 x 168 x 104 mm |
| Weight |
5.5kg |
| Cooling | passive |
| Protection degree | IP23 |
| Grounding | (-) terminal |
| Technical specifications | |
| Technology | MPPT (Max. Power Point Tracker) |
| Temperature range (ambient temp.) |
-20 °C to 55 °C |
| Cable size | max. 35 mm² Litz wire |
| Protections | over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients |
| Relative humidity | 95% non-condensing |
| Specifications battery charger | |
| System voltage (battery) | Automatic 12/24/48 V detection |
| Battery types | AGM, gel, wet, Lithium Ion (MLI series) |
| Battery temperature sensor | Yes |
| Lithium Ion protection | via MasterBus connection |
| Max. charge current at 40 °C | 60 A |
| Energy consumption (night) | < 1 mA |
| Solar input (DC) specifications | |
| PV start voltage (12/24/48 V) | 15 V/27 V/51 V |
| Nom. PV current at 40 °C | 50 A |
| Nom. PV voltage (12 V) | 13.2-115 V |
| Nom. PV voltage (24 V) | 26.4-115 V |
| Nom. PV voltage (48 V) | 52.8-115 V |
| Max. PV voltage (Tmin) | 145 V |
| Max. PV power (12 V) | 900 Wp |
| Max. PV power (24 V) | 1800 Wp |
| Max. PV power (48 V) | 3600 Wp |
| Max. efficiency | > 98 % |
| Static MPP efficiency | 99.9 % |
