Description

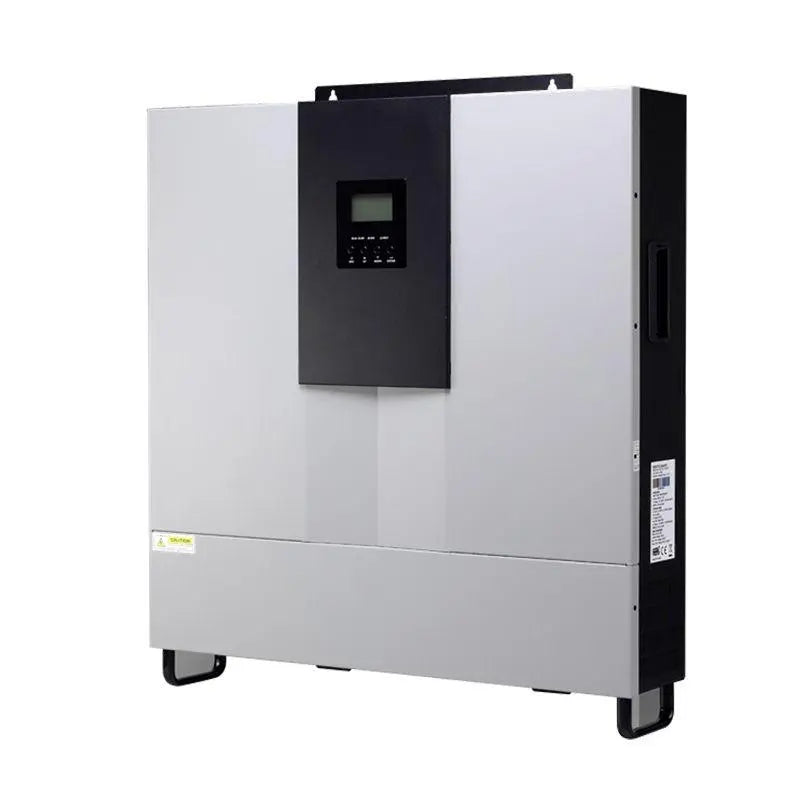

xKnowing well the power requirements in the USA, Puerto Rico and Canada, we developed a solar inverter with split-phase AC input and out at 110V to 120VAC. The inverter has also an integrated MPPT battery charger. With the parallel function that is now standard on this version (no need to purchase additional hardware), it is possible to expand the system to up to 18kW. That means 3 identical inverters may be connected in parallel.
We also increased the range of PV power from 4kW to 8kW with a dual MPPT PV input. Each solar inverter can accept up to 4000W of PV panels. Polycrystalline or monocrystalline panels from 100W to 400W are compatible with the inverter provided that the maximum voltage of 145V is respected.
The MLV6K is a true split-phase inverter without additional hardware the output voltages are 110V/120V L-N or L2-N-L2.
When the phase angle between L1 and L2 is 0°. L1-N and L2-N = 120V. L1-L2 = 0V
When the phase angle between L1 and L2 is 120°.L1-N and L2-N 120V. L1-L2 = 208V
When the phase angle between L1 and L2 is 180°. L1-N and L2-N 120V. L1-L2 = 240V
FUNDAMENTAL ELECTRICAL SPECIFICATIONS
- Battery voltage 48V (lead acid or lithium)
- Max PV power 8000W
- MPPT range 60-115V
- Max PV Input 145Vdc
- MPPT 80A solar
- Parallel function up to 3 inverters
- Dimensions 130x622x610mm
- USB, RS232, dry contact, SNMP, GRS, Wi-Fi
The MLV6K (6048) is a comprehensive unit with multiple AC output modes. It will satisfy all kinds of domestic power supplies in USA-style mains. The inverter is programmable in three modes:
Specifications
x| Conversol 6kW MLV Inverter/Charger Specification | ||||
| MODEL | CONVERSOL 6kVA 48VDC. 120/110VAC OUTPUT | |||
| Rated Power | 6000VA/6000W | |||
| INPUT | ||||
| Voltage | 110VAC / 120 VAC | |||
| Selectable Voltage Range |
95-140 VAC (For Personal Computers) |
|||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) | |||
| Surge Power | 10000VA | |||
| Efficiency (Peak) | 90% - 93% | |||
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|||
| Waveform | Pure sine wave | |||
| Parallel Operation | Yes up to 6 units | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 48 VDC | |||
| Floating Charge Voltage | 54 VDC | |||
| Overcharge Protection | 60 VDC | |||
| Maximum Charge Current | 80A x 2 | |||
| SOLAR CHARGER | ||||
| Maximum PV Array Power | 2x 4000 W |
|||
| MPPT Range @ Operating Voltage | 60 ~115VDC | |||
| Maximum PV Array Open Circuit Voltage | 145 VDC | |||
| Maximum AC Charging (Generator) | 60A | |||
| Maximum Charging Current | 220A | |||
| Maximum Efficiency | 98% | |||
| Standby Power Consumption | 2 W | |||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 130 x 622.6 x 610 | |||
| Net Weight (kgs) | 30KG | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
* There is charging current selection only available for 120/110VAC system.
Product specifications are subject to change without further notice
