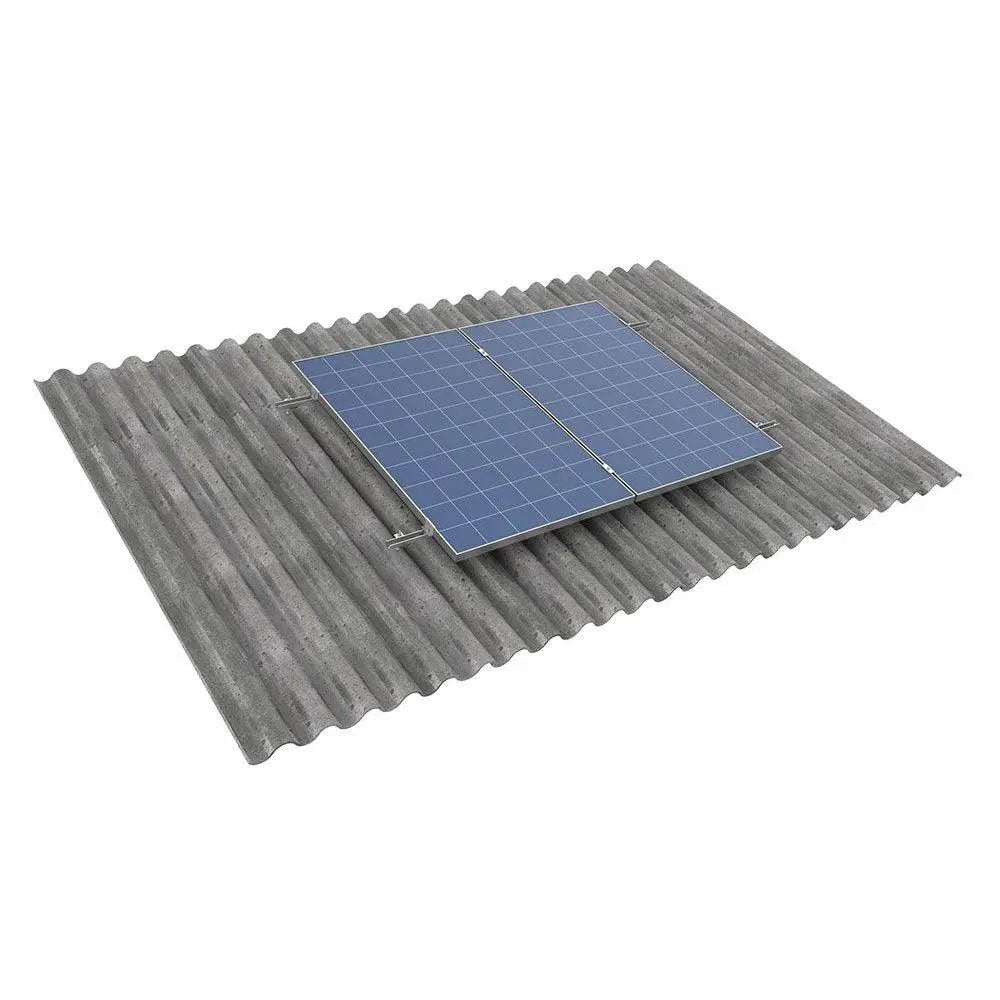

xSolar Panel Mounting Kit for Corrugated Cement Fibre Glass Roofs
A complete per-module mounting kit for installing solar panels directly onto corrugated fibre cement roofing sheets. The Easy Plan CRF system uses hanger bolts and mounting plates to attach the aluminium rail directly to the corrugated profile without the need for separate roof penetration brackets. Also compatible with plastic, metal, and ceramic tile roofs. Available from 1 to 20 modules.
Key Features
- Designed for direct installation on corrugated fibre cement roofing
- Also compatible with plastic, metal, and ceramic tile roof types
- Hanger bolt fixing method eliminates the need for separate roof brackets
- Water-tight screws with flanged EPDM seal at fixing points
- Anti-corrosion protection on all components
- Stainless steel A2 hardware throughout
- Complete kit per module including rail, clamps, bolts, and fixings
Product Overview
The Easy Plan CRF mounting system is a straightforward and cost-effective solution for roofs made from corrugated fibre cement, a material commonly found on agricultural buildings, industrial units, and older commercial properties. The hanger bolt screws through the crest of the corrugated sheet into the purlin below, with a flanged waterproof washer providing a weatherproof seal at the penetration point.
The aluminium rail then clips onto the mounting plate using T-bolts and flanged nuts, and the solar panel is clamped to the rail using the included mid and end clamps. The system is safe in all weather conditions and is fully corrosion resistant.
Technical Specifications
| Parameter | Value |
| Primary Roof Type | Corrugated fibre cement |
| Also Compatible With | Plastic, metal, ceramic tile roofs |
| Fixing Method | Hanger bolt with double thread and flanged EPDM seal |
| Hardware | Stainless steel A2 throughout |
| Modules per order | 1 to 20 (select above) |
What Is Included (per module)
- Easy Roof aluminium rail
- Middle and end clamps (aluminium)
- Fixing screws with double thread (hanger bolts)
- M8 nut with plastic clip (stainless steel A2)
- Allen bolt DIN 912 (stainless steel A2)
- T-bolt M10x20
- Flanged nut M10
Applications
- Solar PV on corrugated fibre cement roofs: agricultural buildings, industrial units, older commercial properties
- Plastic, metal sheet, and ceramic tile roofs requiring a hanger bolt fixing method
- Residential and commercial installations from 1 to 20 modules
Installation and Safety Notes
Must be installed by a qualified solar installer. Hanger bolts must be fixed into sound, load-bearing purlins or structural members. Verify roof structure integrity before installation. All penetrations must be sealed correctly to prevent water ingress. Do not fix into corrugated sheet alone without a purlin below.
