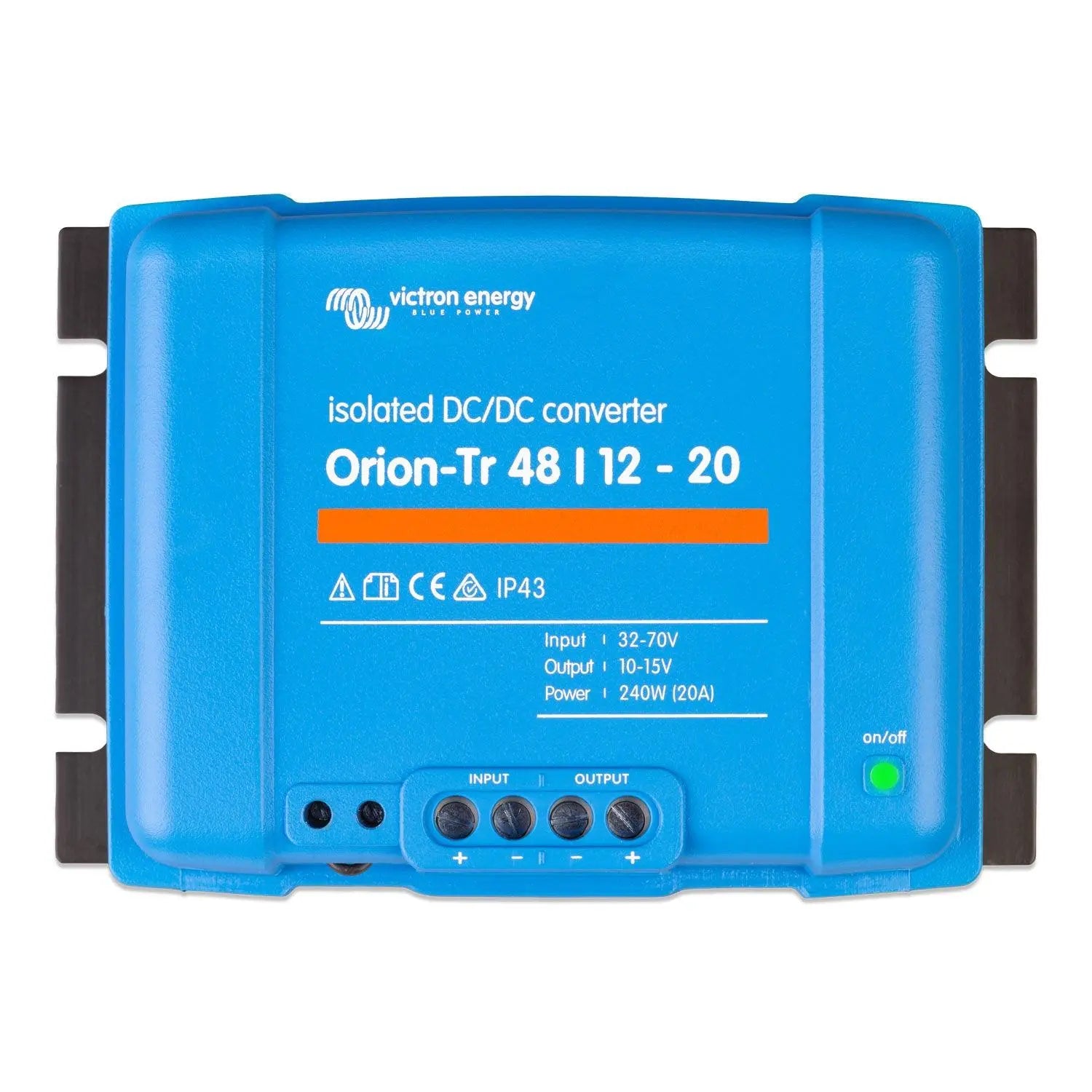

xVictron Orion-Tr 48/12-20A (240W) Isolated DC-DC Converter — ORI481224110
The Victron Orion-Tr 48/12-20A is a galvanically isolated DC-DC converter that steps a 48V DC input down to a regulated 12V DC output at up to 20A (240W). It is designed for professional installations where electrical isolation between two DC systems is required, such as powering 12V auxiliary loads from a 48V battery bank or vehicle system.
Key Features
- Galvanic isolation between input and output eliminates ground loop issues and protects sensitive equipment from voltage spikes on the source circuit.
- 48V input to 12V output conversion at 20A continuous, delivering up to 240W of regulated DC power.
- Wide input voltage range accommodates real-world battery voltage fluctuations across 48V systems.
- Compact, enclosed housing suitable for fixed installation in vehicles, vessels and off-grid enclosures.
- Output voltage is adjustable, allowing fine-tuning to suit specific load or charging requirements.
- High conversion efficiency reduces heat generation and minimises power loss in the conversion stage.
- Victron Orion-Tr range is widely used in marine, automotive and off-grid applications where dual-voltage DC architectures are common.
Product Overview
The Orion-Tr isolated DC-DC converters differ from non-isolated units in that the input and output circuits share no common ground. This matters in practice when integrating a 12V auxiliary system into a 48V main system, particularly on vessels or vehicles where chassis grounds, bonding requirements and sensitive electronics make ground loops a genuine risk. The galvanic isolation barrier prevents fault currents from passing between the two circuits and allows each side to be referenced independently.
At 240W output, this unit is capable of running 12V lighting circuits, control electronics, communication equipment, water pumps and similar auxiliary loads directly from a 48V battery bank. The output voltage can be adjusted from its nominal 12V setting, which is useful when the converter is used to top-charge a 12V battery rather than simply power a fixed load. The unit does not require a remote on/off connection to operate, though the Orion-Tr range supports this feature where wiring it in is practical.
Weighing 1.3kg, the unit is straightforward to mount in a panel, enclosure or under a dashboard. It carries Victron's standard build quality and is backed by their global support network, making it a practical choice for installers who need a reliable, isolated voltage conversion solution without over-specifying the installation.
Technical Specifications
| Parameter | Value |
| SKU | ORI481224110 |
| Input Voltage (nominal) | 48V DC |
| Output Voltage (nominal) | 12V DC |
| Output Current (maximum) | 20A |
| Output Power (maximum) | 240W |
| Isolation | Galvanic (isolated) |
| Weight | 1.3 kg |
| GTIN | 8719076035282 |
Applications
- Powering 12V auxiliary loads (lighting, pumps, control systems) from a 48V off-grid battery bank.
- Marine installations requiring galvanic isolation to prevent corrosion and protect onboard electronics.
- Electric vehicle or converted vehicle builds with a 48V main bus and 12V accessory circuits.
- Telecom and industrial enclosures where isolated DC power rails are required for control equipment.
- Backup power systems combining a 48V battery system with legacy 12V loads or instrumentation.
What Is Included
- 1 x Victron Orion-Tr 48/12-20A (240W) Isolated DC-DC Converter
Installation Notes
This converter should be installed by a qualified electrician or experienced systems integrator familiar with DC power systems. Ensure correct fusing on both the input and output sides in accordance with the wire gauges used. On marine installations, follow NMEA or flag-state wiring standards as applicable. The 48V input side should be treated as a hazardous voltage in all installation planning. Verify that the output voltage adjustment, if used, is set before connecting sensitive loads.
