Description

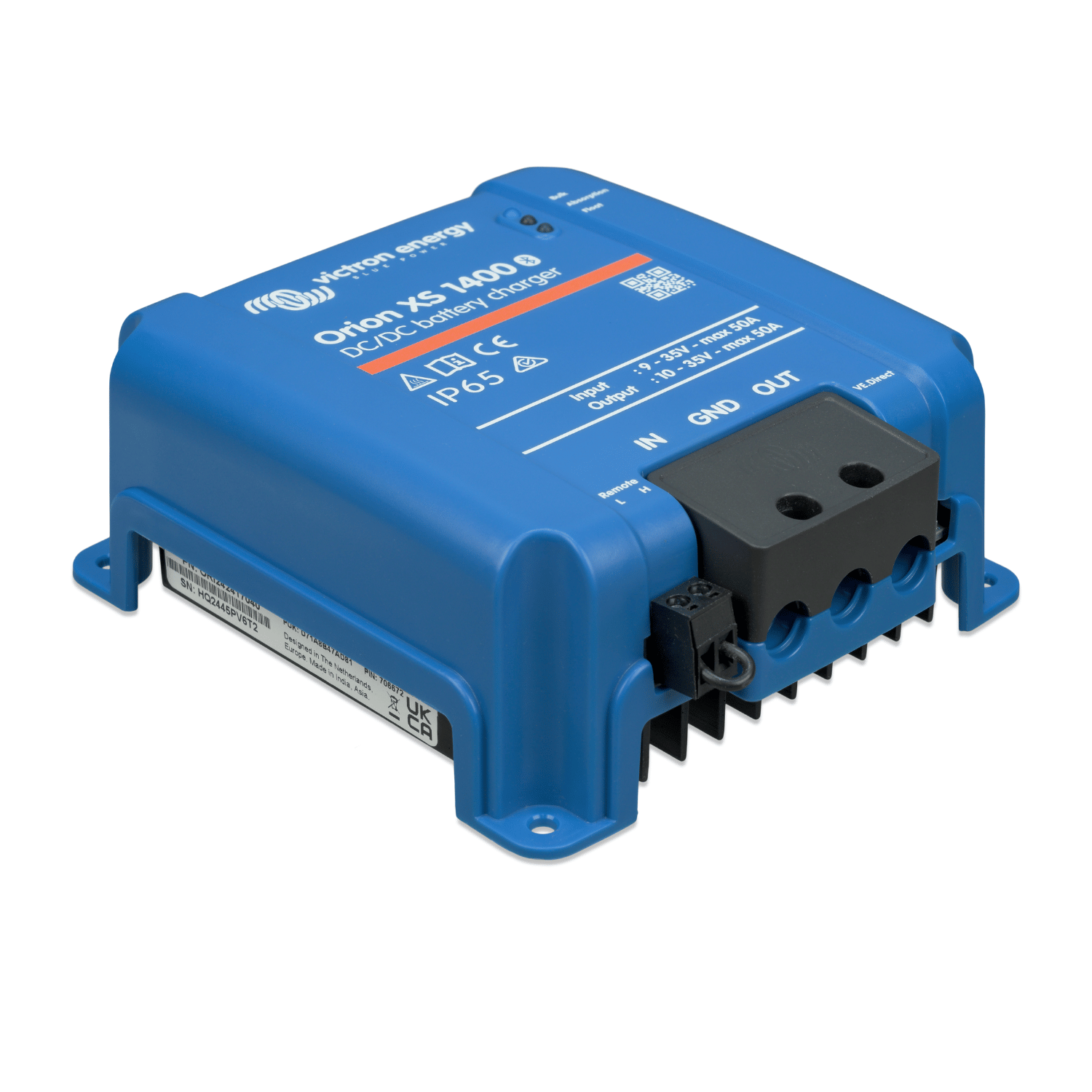

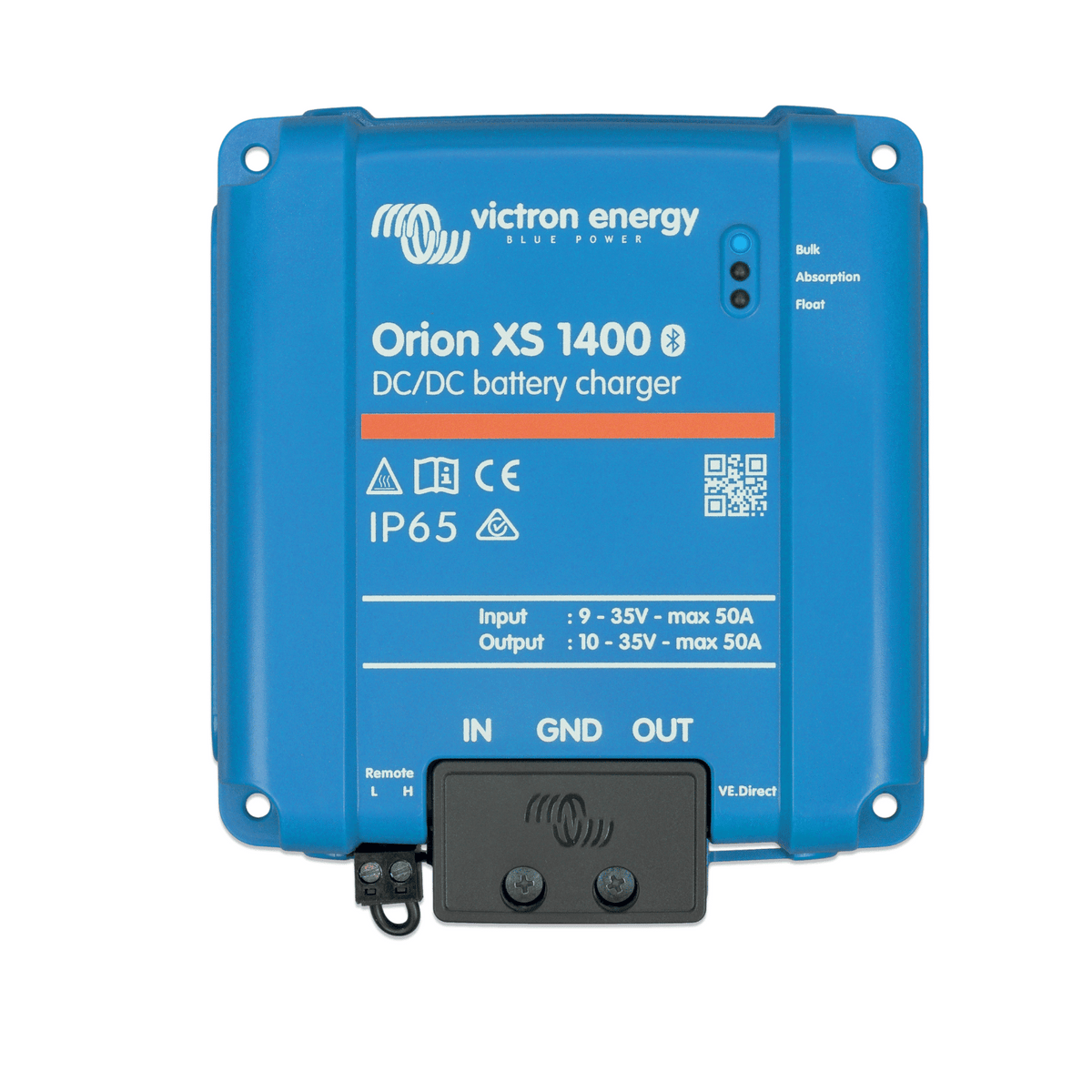

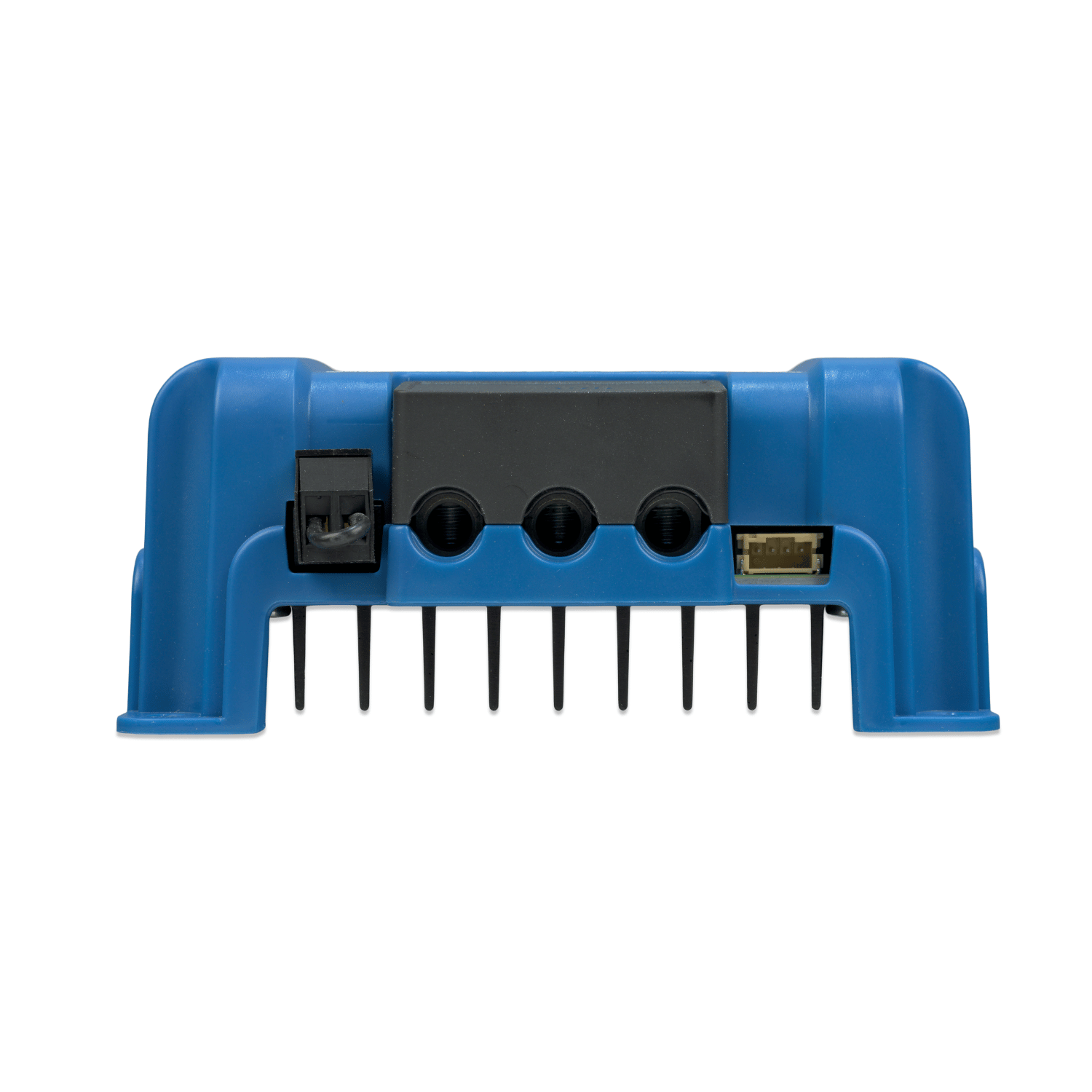

xVictron Orion XS 1400 DC-DC Battery Charger - ORI242417040.
The Victron Orion XS represents the next generation of adaptive DC-DC battery charging. Designed for dual battery systems powered by (smart) alternators, this charger ensures optimal performance, safety, and long-term battery health—whether you're on the road, at sea, or off-grid.
Expanding on the Orion XS 12/12-50A, the new Orion XS 1400 supports 12V and 24V systems. The Orion XS 1400 features automatic buck-boost control, allowing for 12V/24V input and 12V/24V output, and provides twice the charging power of the original XS in its 24V/24V configuration.
The Orion XS 1400 can be used as a battery charger or a power supply, delivering up to 1400W of continuous power at 28V. The output voltage is fully adjustable and remains independent of the input voltage, thanks to the automatic buck-boost control. This also ensures the current never exceeds the set value, even when the input voltage is higher than the output.
In power supply mode, the output voltage stays stable regardless of load or input fluctuations, within the specified range. In charger mode, the four-stage charge algorithm improves battery life through controlled charging.
As a key component of the Victron ecosystem, the Orion XS 1400 is configured and monitored via VictronConnect, locally via a GX device, such as the Cerbo GX, Ekrano GX, or remotely via the VRM Portal.
Key features:
• Engine shutdown detection with no external sensor required
• Smart four-stage charging algorithm
• Can be paralleled with no limit on number of units
• DVCC compatible via GX device via VE.Direct
• IP65 rated, dust-tight and protected against heavy rain
• Fanless, silent, and with up to 98.5% efficiency
Smart Charging for Modern Vehicles
- Engineered for Euro 5 & Euro 6 Alternators: Overcomes the low voltage output of smart alternators, ensuring your service battery receives a complete charge every time.
- Adaptive 4-Stage Algorithm: Automatically adjusts absorption time based on battery discharge depth—protecting against overcharging and improving battery lifespan.
- Fully Programmable: Choose from 8 battery presets or customise your own charging profile with the VictronConnect app.
Bluetooth & Remote Monitoring
- Bluetooth Smart Enabled: Monitor and configure your charger wirelessly via Apple or Android devices.
- VE.Smart Networking: Seamlessly integrates with SmartShunt, BMV, and Smart Battery Sense to fine-tune charging parameters.
- Instant Readout: Quickly access device data, alarms, and status without needing to connect.
Reliable Performance in Harsh Conditions
- IP65 Rated: Dust-tight and protected against heavy rain—perfect for marine, RV, and industrial environments.
- Overload & Thermal Protection: Automatically reduces output power or shuts down when critical thresholds are exceeded.
- Low-Temperature Shutdown: Protects lithium batteries by halting charge in sub-optimal conditions.
Customisable & Expandable
- Adjustable Charging Current: Set the charge current in 0.1A increments via the VictronConnect app.
- Remote On/Off: Easily control the device with a switch or via integration with a BMS.
- Parallel Operation: Combine multiple units for increased current—no hardware limits on expansion.
Advanced System Integration
For a wired connection to a GX device such as the Cerbo GX or Ekrano GX, PC or other devices. Enables advanced monitoring, control and diagnostics from anywhere (requires a GX device connected to the internet and VRM Portal) or locally via the Remote Console, as well as DVCC (Vsense, Tsense, Isense), system-wide charge current limit and BMS control.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ORI242417040 |
| Input Voltage Range | 9-35V |
| Output Voltage | 10-35V (adjustable) |
| Charge Current | Up to 50A 1400Watt |
| Parallel Capability | Yes, unlimited units |
| Protection | Overload, short-circuit, over-temp, input undervoltage |
| Ingress Protection | IP65 – Dust-tight, water-resistant |
| Connectivity | Bluetooth, VE.Direct, Remote On/Off |
Empower your mobile energy system with the intelligent, rugged, and versatile Victron Orion XS 12/12-50A—a must-have solution for any demanding 12V DC setup.
