Description

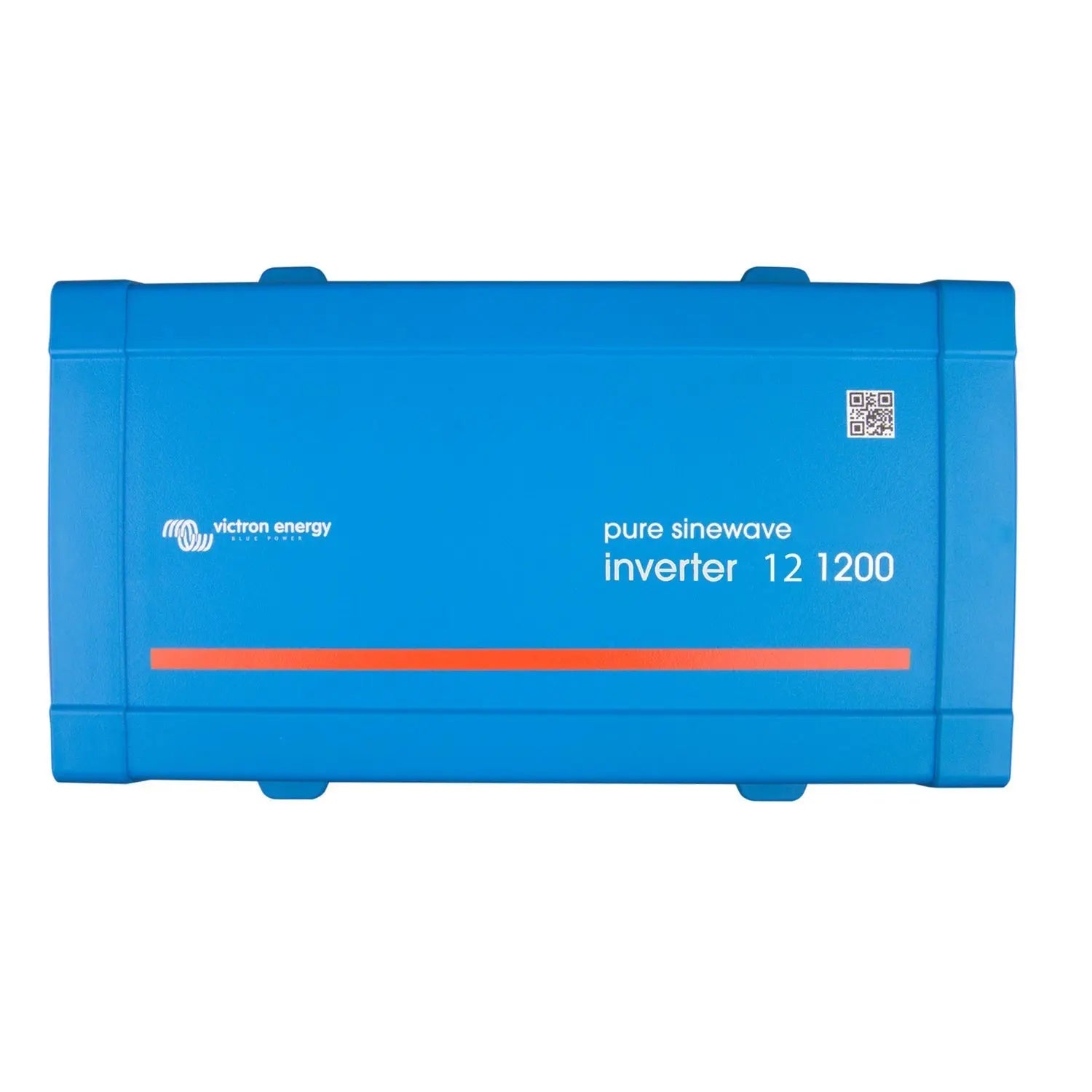

xVictron Phoenix Inverter 12/1200 230V VE.Direct - PIN122121410
The Victron Phoenix Inverter 12/1200 delivers reliable 230V AC power from a 12V battery source, designed for both domestic and professional applications. Built with proven Victron reliability, this inverter ensures safe, efficient and high-quality power conversion wherever it is needed.
Inverter Features
Proven Reliability
The inverter uses a full bridge with toroidal transformer topology that has proven its reliability over many years. It is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High Start-Up Power
Designed to handle demanding applications such as power converters for LED lamps, filament lamps and electric tools.

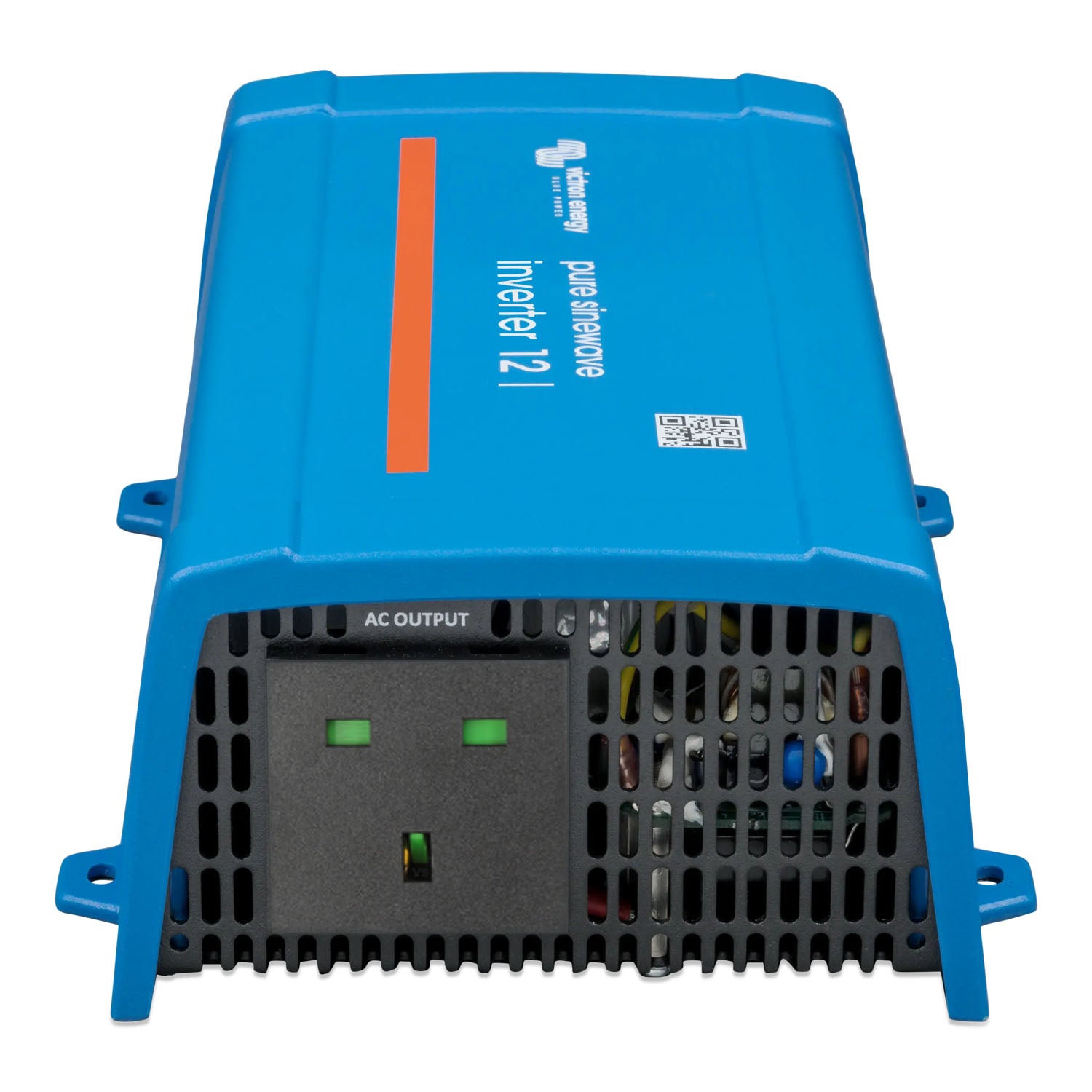

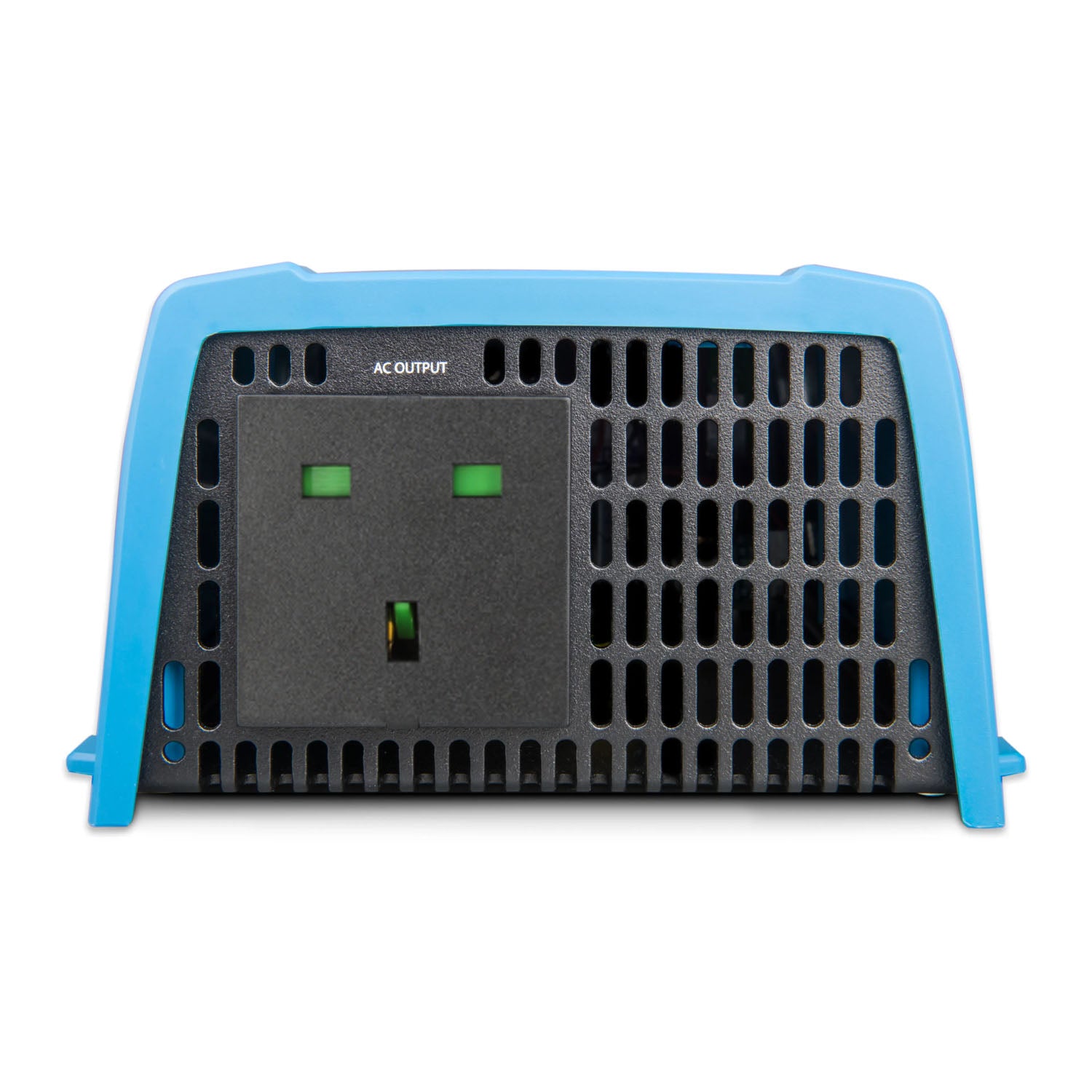

AC Output Socket Options
This inverter range is available with different AC output sockets: Schuko, UK, AU/NZ or IEC-320 (supplied with male plug).
ECO Mode
ECO mode reduces power consumption by up to 85% by placing the inverter in standby when loads are low. It automatically checks for load increases every few seconds and switches back to normal operation when needed. Sensitivity can be fully configured.
Fully Configurable
- AC output voltage and frequency
- Low battery voltage cut-off and restart levels
- ECO mode on/off and ECO mode sensitivity
Automatic Transfer Switch
We recommend pairing with the Filax2 Automatic Transfer Switch. With less than 20 milliseconds switchover time, sensitive electronics such as computers continue to run without interruption. Alternatively, consider an inverter/charger with a built-in transfer switch.
3.2 ON/OFF/ECO Switch
- ON – Powers the inverter on
- OFF – Switches the inverter off
- ECO – Activates ECO mode
3.3 LED Diagnosis & Monitoring
The inverter provides operational status and alarms through onboard LEDs:
- Inverter state
- Overload warnings
- Over temperature alarms
- Low battery voltage alarms
- High DC ripple warnings
Additional parameters available via VictronConnect:
- Battery voltage
- AC output voltage
- Percentage of nominal AC load
- Warnings and alarms
3.4 The VictronConnect App
Monitor, control and configure the inverter with the VictronConnect app, available for Android, iOS, Windows and macOS. Communication is possible via Bluetooth (with dongle) or USB to VE.Direct. Download the app from the VictronConnect product page.
3.5 Bluetooth
This inverter does not have built-in Bluetooth. For wireless communication, use the optional VE.Direct Bluetooth Smart dongle. This allows seamless connection with the VictronConnect app.
3.6 VE.Direct Port
The VE.Direct port allows multiple connection options:
- VictronConnect app via USB interface
- VictronConnect app via Bluetooth Smart dongle
- GX devices such as Cerbo GX (VE.Direct cable required)
- GlobalLink 520 (VE.Direct cable required)
3.7 Remote On/Off Control
The inverter can be controlled remotely using:
- The VictronConnect app
- An optional external switch
- The optional Inverter Control VE.Direct panel
- A BMS (Battery Management System)
- GX devices and the VRM portal
