Description
x800W Plug In Solar Panel Kit for Balcony, Garden and Patio with 2 x JA Solar 465W Full Black Panels
Generate your own electricity without scaffolding, roof work or a full solar PV system design. This complete plug in solar kit pairs two premium JA Solar 465W full black panels with an 800VA dual MPPT micro inverter, giving you a compact, self contained solar system for a balcony, garden, patio, terrace, garage or garden office.
Plug in solar became legal for domestic use in Great Britain on 27 August 2026. This kit is built around that framework: 930W of solar panel capacity behind an 800VA AC output, connected through a single fixed socket outlet.
ENA Connect Registration: VOLTD/21572/V1/A2
ENA registered: view the micro inverter on the ENA type test register
Key Features
- 2 x JA Solar 465W full black solar panels, 930W total solar panel capacity
- 800VA maximum AC output, within the GB plug in solar limit
- Two independent MPPT trackers, one dedicated to each panel
- 230V single phase AC output at 50Hz
- Maximum AC output current of 3.5A
- Anti islanding protection: the inverter disconnects automatically if the mains supply fails
- IP67 weather resistant micro inverter enclosure
- Low voltage DC connection between the panels and the inverter
- Solar panel mounting brackets included
- Wi-Fi monitoring with mobile app
- Solar only system: no battery storage required, and none may be connected
Product Overview
Most households that want solar are blocked by the roof, the building or the tenancy. Flats, rented homes, shaded roofs and north facing pitches all rule out a conventional installation. A plug in kit removes that barrier. The panels are mounted on a balcony, wall, flat roof or ground frame, the micro inverter converts the DC output to mains voltage AC, and the kit connects into your existing electrical supply through a single socket outlet.
Every unit of electricity the panels produce while you are consuming power is a unit you do not buy from your supplier. Fridges, freezers, routers, standby loads, home offices and daytime appliance use are all offset directly. Anything you do not use is exported automatically, and anything you need beyond what the panels produce is drawn from the grid as normal, with no switching and no interruption.
Generation varies according to geographical location, panel direction, mounting angle, shading, weather conditions and the amount of electricity being consumed while the panels are generating. This kit is sized to make the most of a small, often imperfect space rather than to replace a full rooftop system.
Why 930W of Panels Behind an 800VA Inverter
Running 930W of panel capacity behind an 800VA inverter is deliberate. The extra DC headroom means the system reaches its full AC output earlier in the morning, holds it later into the afternoon and performs noticeably better on overcast days, which is where most British generation actually happens.
Two Independent MPPT Controllers
The micro inverter contains two independent Maximum Power Point Tracking controllers. Each 465W solar panel is connected to its own MPPT input.
This module level arrangement allows each panel to operate at its own optimum voltage and current. If one panel receives less sunlight, faces a different direction or is affected by partial shading from a railing, downpipe, tree or neighbouring building, the second panel continues working independently instead of being dragged down to the weaker panel's output. On a balcony or in a garden, where shading is rarely even and orientation is rarely ideal, this is the single most useful feature in the system.
Premium JA Solar Full Black Panels
JA Solar is one of the largest and most established panel manufacturers in the world, and these are the same tier of module used on full residential rooftop installations. The two 465W panels provide a combined rated output of 930W.
The full black finish matters more than it sounds. Balcony and garden panels sit at eye level, in view of neighbours, landlords and management companies. A uniform black module with black frame and black backsheet reads as considered rather than improvised, which makes permission easier to obtain and the installation easier to live with.
Technical Specifications
| Specification | Detail |
|---|---|
| System type | Plug in solar kit, solar only, grid connected |
| Solar panels | 2 x JA Solar 465W full black |
| Total solar panel capacity | 930W DC |
| Panel dimensions | 1762 x 1134 x 30mm |
| Panel weight (each) | 22kg |
| Micro inverter | ZJBENY 800W dual MPPT input micro inverter |
| Maximum AC output | 800VA |
| Maximum AC output current | 3.5A |
| AC output voltage and frequency | 230V single phase, 50Hz |
| MPPT trackers | 2 independent, one per panel |
| Inverter protection rating | IP67 |
| Grid protection | Anti islanding, automatic disconnection on loss of mains |
| Connection method | Direct to a fixed 13A socket outlet using the supplied lead |
| Monitoring | Wi-Fi with mobile app |
| Battery storage | Not supported and must not be connected |
Using This Kit in Great Britain
Plug in solar is now a recognised, legal route for domestic generation in England, Scotland and Wales. The rules are specific, and it is worth reading them before you order.
- Plugs into a fixed socket. The kit connects to an existing fixed 13A socket outlet, with no consumer unit or fixed wiring work. If you are unsure about the condition of the socket or circuit, have it checked by a qualified electrician first.
- Extension leads are not permitted. The kit must plug directly into a fixed socket. Extension leads, cable reels, multi way adaptors and travel adaptors must not be used under any circumstances.
- One device per household. Only a single plug in solar device may be connected at a property.
- Notify your network operator. You must notify your Distribution Network Operator within 28 days of connection under Engineering Recommendation G98. This is a free notification and is made after installation, not before.
- No battery connection. The plug in solar rules cover solar generation only. This kit must not be connected to, or used with, a battery energy storage system.
- Savings come from reduced import. Plug in devices sit outside MCS certification and are currently not eligible for the Smart Export Guarantee. The financial benefit comes from the electricity you no longer buy, so the more daytime consumption you have, the better the return.
- Planning. In England, most plug in solar installations are permitted development provided projection limits are respected. Fixing panels to a wooden fence, gate or garden wall does not qualify as permitted development. Check first if you live in a listed building or conservation area, and get consent from your landlord or freeholder where required.
- Building restrictions apply. Plug in solar must not be installed on timber balconies, timber cladding, aluminium or metal composite cladding, high pressure laminate cladding, or on any building undergoing external wall or building safety remediation. Panels must not obstruct escape routes.
Suitable Applications
- Balconies with structurally suitable, non combustible mounting points
- Gardens and ground mounted installations
- Patios, terraces and courtyards
- Flat roofs with ballasted or fixed mounting
- Garages and workshops on the household supply
- Garden offices and outbuildings on the household supply
- Flats and rented properties where a rooftop system is not possible
- Households with high daytime electricity consumption

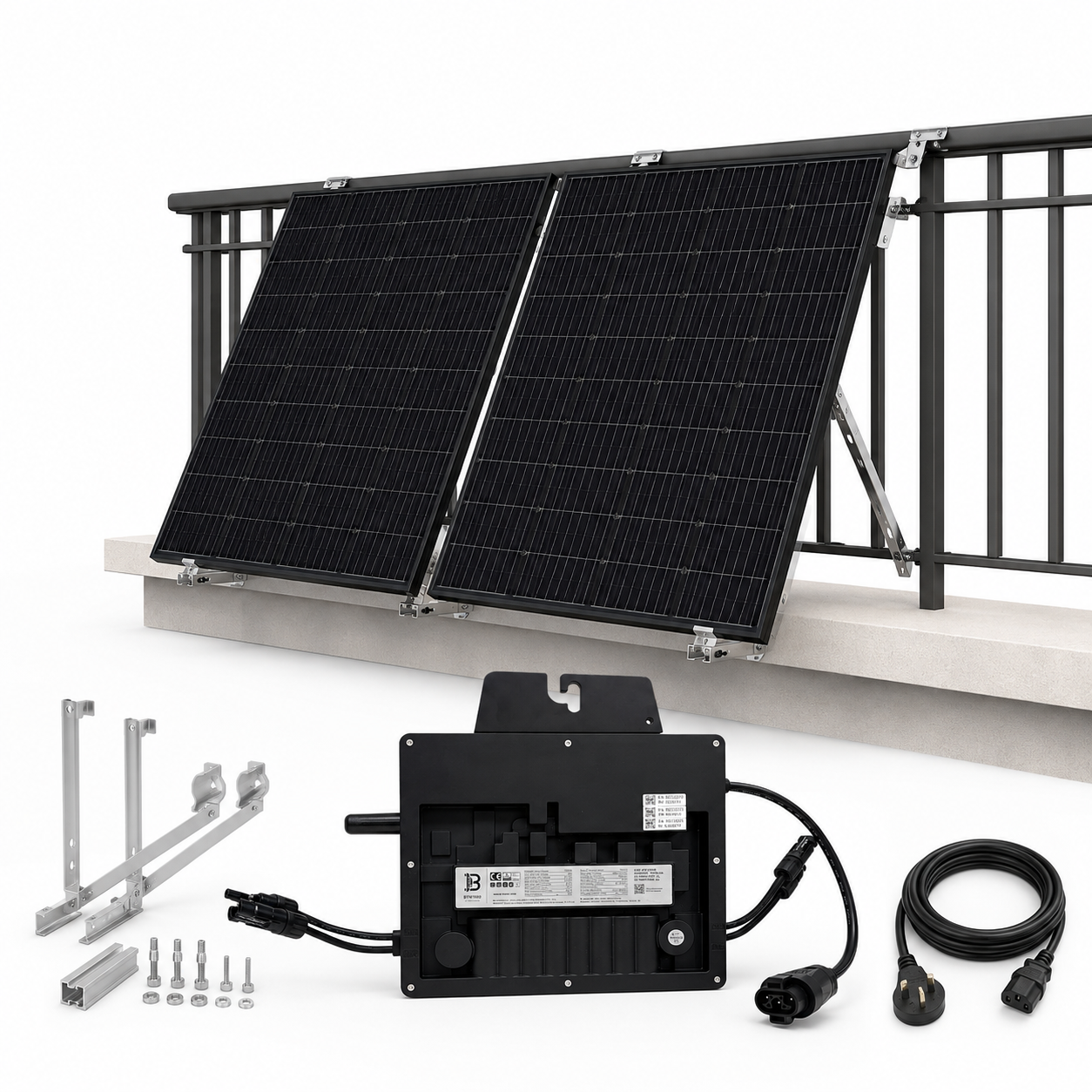

What Is Included
- 2 x JA Solar 465W full black solar panels
- 1 x 800VA dual input micro inverter with two independent MPPT trackers
- 1 x AC connection lead
- DC extension cables for the panel to inverter connection
- Solar panel mounting brackets
- All required panel to inverter connection components
Need a different mounting arrangement? Please contact us before ordering. Subject to availability, the mounting brackets can be changed to suit a garden, wall, balcony, flat roof or ground mounted installation.
Installation and Safety Notes
Mount the panels securely and within the building restrictions above, and check the structure can take the load (each panel weighs 22kg) and wind exposure. Route cables so they cannot be trapped, damaged or become a trip hazard. Never open the micro inverter or modify the plug or lead. If you are unsure about mounting, the socket or your wiring, use a qualified electrician or solar installer.
