Description
xSuitable for solar inverters with 2 independent MPPT trackers, up to 600V, 2ways in, 2ways output. Matches the Conversol Max 8kW, 11kW, and all the inverters with dual input. SPD, fuse terminals, DC isolator, IP65 box.
Why do I need a combiner box? First of all for protecting the installer and later the users. During the installation of solar panels or when maintenance is required, the strings of solar panels carry up to 25Amps at voltages that are lethal for humans (up to 550Vdc).
Before a high-voltage PV array is connected to the inverter, it is important to install fused terminals and DC isolators that will give adequate protection against short circuits and surge voltages.

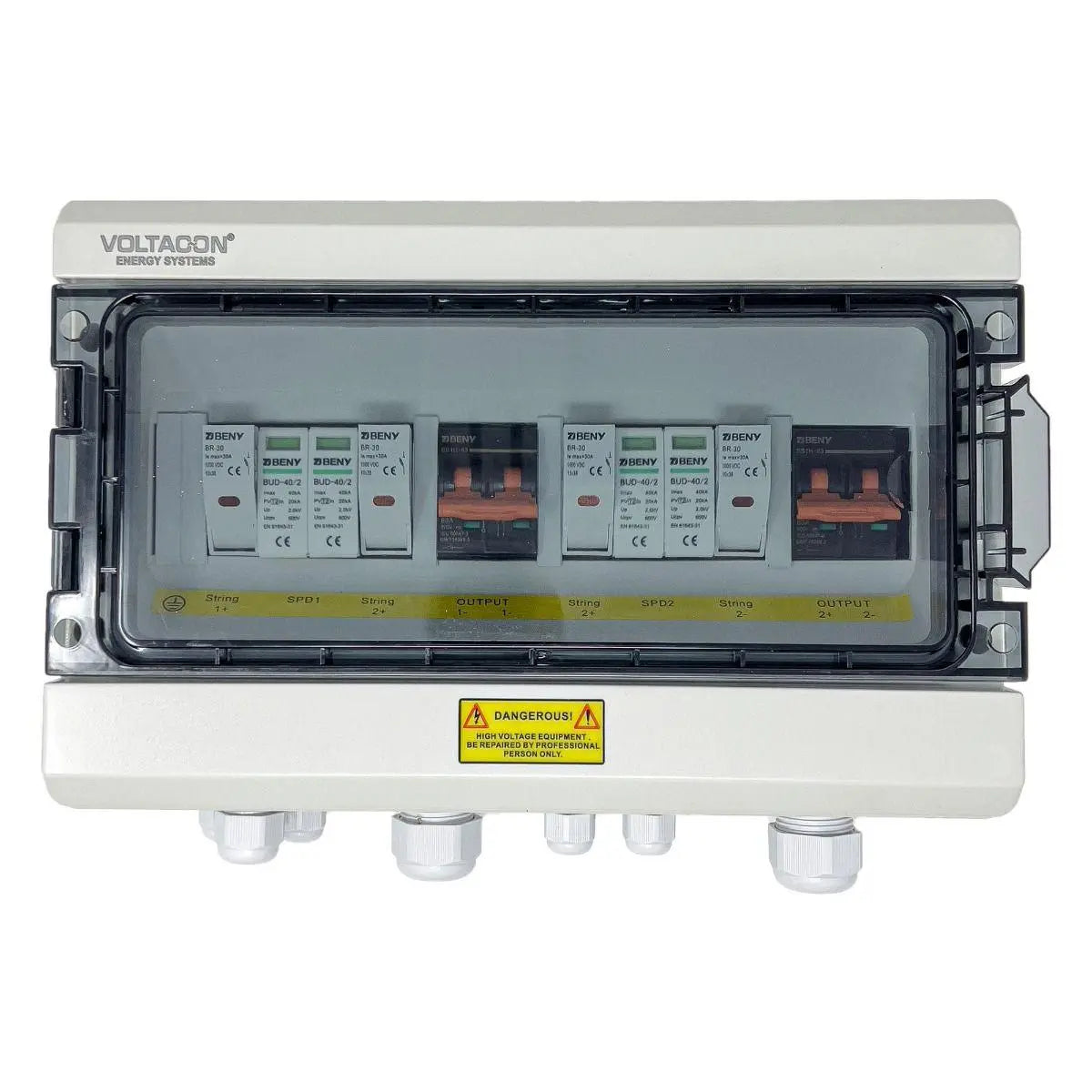

The 2/2-600V is a waterproof combiner enclosure with two fully protected independent solar strings and two independent outputs. The PV input with a maximum of 25A, 550V goes into the box and the same strings is connected to the MPPT charger of the inverter.
LIST OF MATERIALS
|
DC Isolator |
BB1H-63, 2P 600V 63A: 2pcs |
|
DC SPD |
BUD-40/2, 2P 600V 40kA: 2pcs |
|
DC Fuse Holder |
BR-30, 1P 1000V: 4pcs |
|
DC Fuse Link |
OSPV-20A: 4pcs |
|
Cable Gland |
PG21, sealing range 13-18mm: 2pcs |
|
Cable Gland |
PG13.5, sealing range 6.7-12mm: 1pc |
|
Cable Gland |
PG9, sealing range 4-8mm: 4pcs |
|
Other Components |
1set |
Specifications
x- Rated Insulation Voltage: 600V
- Rated Current: 63A
- Category: DC21B/PV2
- Standard Compliance with: IEC 60947-3
- Certification: UL, TUV, KEMA, SAA, CE
DC FUSE HOLDER
- LED Indicator
- Rated working voltage 1000V
- 4x Fuse Link: 10x38mm, ABB 30A
- Certification UL, CB, CE
INSTALLATION ENVIROMENT
- Operating temperature: -20°C~+60°C
- Humidity 99%
- Altitude: 2000M
- Installation wall mounting
DC SURGE ARRESTER
- Max operating voltage 600V
- Standard compliance EN 50539 Type 2
- Maximum Discharge Current 40kA
- Certification TUV/CE
