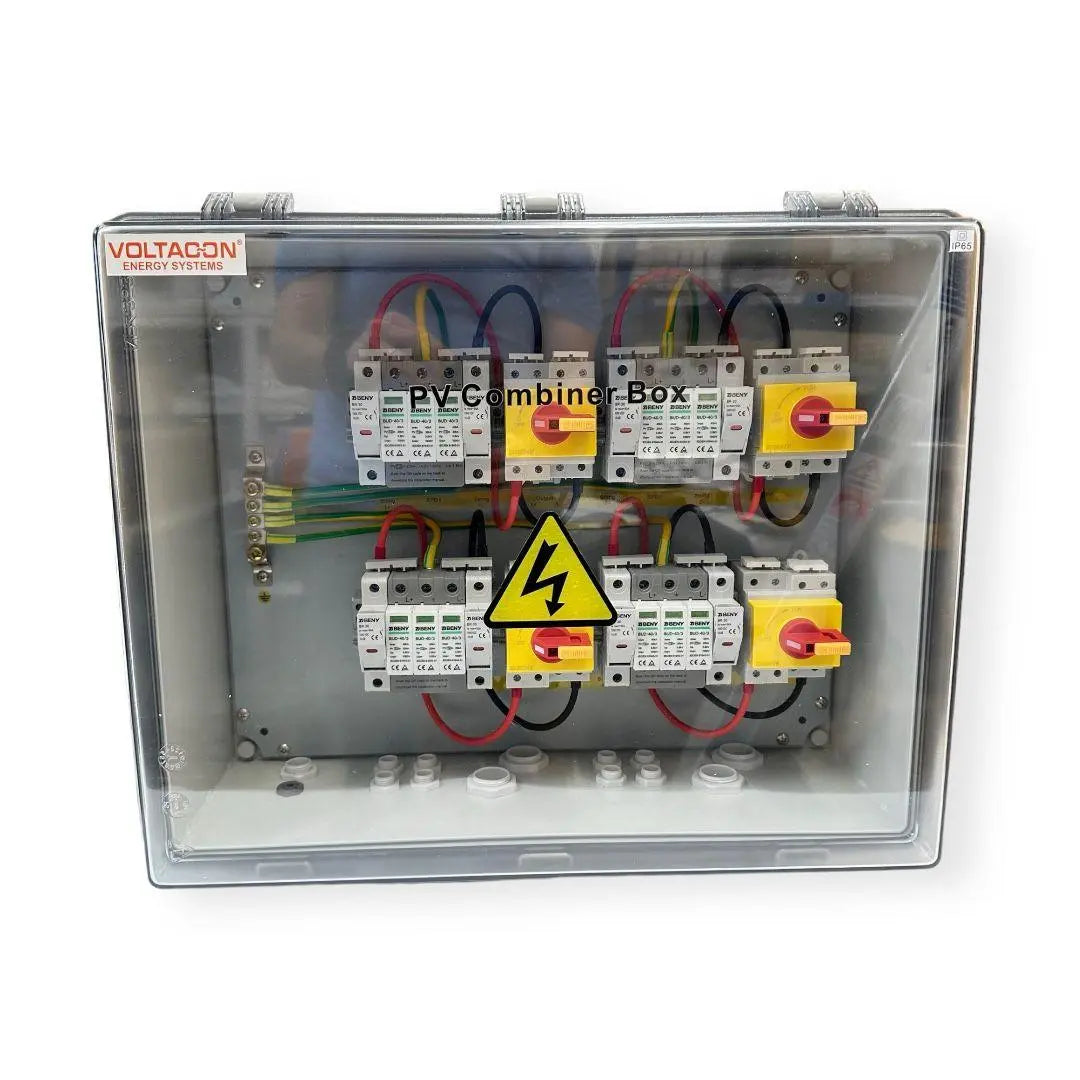

xSolar Panel Combiner Box 4-In 4-Out – 1000V DC with Surge & Overcurrent Protection
Essential Safety for Your Solar PV System
Protect your solar installation and ensure the safety of both your equipment and installers with our pre-wired 4-way PV Combiner Box. Designed for professional and residential use, this enclosure combines high-voltage DC protection, surge protection, and overcurrent safeguards in one compact, weatherproof unit. Perfect for hybrid, off-grid and grid-tied systems.
Key Features
- Safe Power Consolidation: Combines up to 4 solar panel strings into one output, simplifying wiring and reducing cable clutter.
- Integrated 1000V DC Breaker: Quickly disconnects power during maintenance or emergencies.
- Surge Protection: Built-in SPD (Surge Protection Device) shields your system from lightning and voltage spikes.
- Overcurrent Protection: Each input string is independently fused to prevent overload and minimise fire risk.
- LED Status Indicators: Instantly identify faulty strings with visible LED fault indicators.
- Weatherproof Construction: IP65-rated enclosure suitable for outdoor or indoor installation in all climates.
- Installer-Friendly Design: Safe and convenient checkpoint for voltage testing, current measurement and isolation.
Technical Specifications
| Model | BHS-4/4 |
| Inputs / Outputs | 4 Inputs / 4 Outputs |
| Maximum Voltage | 1000V DC |
| Maximum Breaker Voltage | 1200V DC (63A each) |
| Fuse Rating | 20A per input string |
| Surge Protection | Integrated SPD 1000V |
| LED Indicators | Fault indication per string |
| Enclosure Size | 400 x 500 x 200 mm |
| Material | UV-resistant plastic with metallic hinges & waterproof seal |
| Mounting | Indoor / Outdoor (IP65 Weatherproof) |
| Compatible Systems | Hybrid, Off-Grid and Grid-Tied Inverters |
Package Includes
- 1 x Pre-wired 4-In / 4-Out PV Combiner Box
- Built-in 1000V DC Isolator & SPD
- Fuses Installed per Input String
- LED Indicators for Fault Detection
Applications & Compatibility
- Supports 4 MPPT Inputs or 2 Inverters with dual MPPT inputs each.
- Can also be used with 4 independent inverters with one MPPT per inverter.
- Ideal for medium-scale solar PV systems and multi-string installations.
Why Use a Solar Combiner Box?
A solar photovoltaic combiner box is a crucial safety component in every PV system. It consolidates multiple solar strings into one output, simplifies wiring, and protects both the panels and the inverter from electrical faults. By housing breakers, surge arresters, and fuses in one enclosure, it ensures safe operation, easy maintenance, and system longevity.
If a fuse blows, the LED indicator lights up to help installers locate the problem quickly. This makes fault detection fast and safe, even in large solar installations. Built to last, the weatherproof enclosure can withstand outdoor conditions, ensuring reliable long-term performance.
Make your PV system safer, easier to maintain, and better protected — choose the Voltacon 4-Way Combiner Box for professional-grade solar protection.
