Description

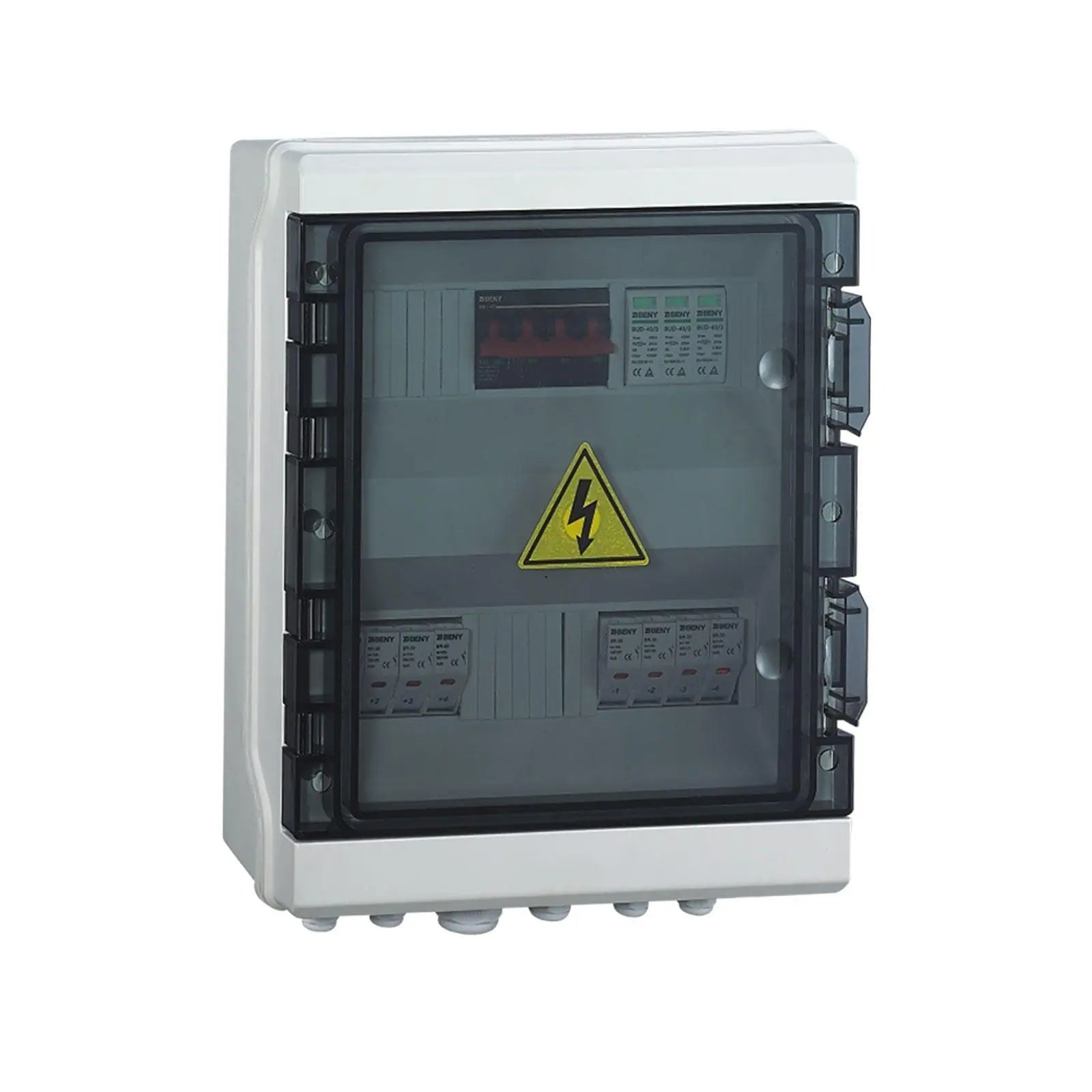

xThe combiner boxes should be installed in any solar installation for off-grid, grid-tie, and hybrid photovoltaic installations. The users/installers have a safe access point to measure and monitor the performance of their solar panels. According to the electrical code for safety, the enclosures offer the following protection features.
1. Lightning protection on the DC side
2. Overvoltage and Over Current protection
3. DC breaker isolator.
4. Fuse installation on the positive and negative terminal of the solar panel.
The enclosure is IP65 protected and can be installed indoors or outdoors.
Notice: Please check the nominal operating voltage of your solar panels in series. There are 4 classifications for MPPT voltage in the solar industry: 100V, 150V, 500V, 1000V. A solar installation will not be protected if the PV string voltage is 145V for example but the selected surge protection device is 500V.
GENERAL ELECTRICAL CHARACTERISTICS
- Input 6 strings
- Output 1 strings
- Maximum Voltage 1000V
- Max DC short circuit current 15A (changeable)
- Maximum Current Output 125A DC Breaker
ENCLOSURE
- Polycarbonate/ABS
- IP65 ingress protection
- IK10 resistance to impacts
- Dimensions: 292x370x132mm
-
Cable entry: PG09 Cable Gland, 2.5-16mm2
MPN Code: SPV-6-1-500V-80A
Bill of material
| Configuration | BHS-6/1 (DC1000V, BH-250, BR-30, T2 SPD) | F |
| Enclosure | Plastic, 450*350*200mm, IP65: 1pc | |
| DC Isolator | BH-250, 2P 1000V 250A: 1pc | |
| DC SPD | BUD-40/3, 3P 1000V 40kA: 1pc | |
| DC Fuse Holder | BR-30, 1P 1000V: 12pcs | |
| DC Fuse Link | OSPV-15A: 12pcs | |
| Cable Gland | PG29, sealing range 18.5-25mm: 1pc | |
| Cable Gland | PG13.5, sealing range 6.7-12mm: 1pc | |
| Cable Gland | PG9, sealing range 4-8mm: 12pcs | |
| Other Components | 1set |
.
Specifications
x- Rated Insulation Voltage: 1000V
- Rated Current: 80A
- Category: DC21B/PV2
- Standard Compliance with: IEC 60947-3
- Certification: UL, TUV, KEMA, SAA, CE
DC FUSE HOLDER
- LED Indicator
- Rated working voltage 1000V
- Fuse Link: 10x38mm, ABB 15A
- Certification UL, CB, CE
INSTALLATION ENVIROMENT
- Operating temperature: -20°C~+60°C
- Humidity 99%
- Altitude: 2000M
- Installation wall mounting
DC SURGE ARRESTER
- Max operating voltage 1000V
- Standard compliance EN 50539 Type 2
- Maximum Discharge Current 40kA
- Certification TUV/CE
