Description

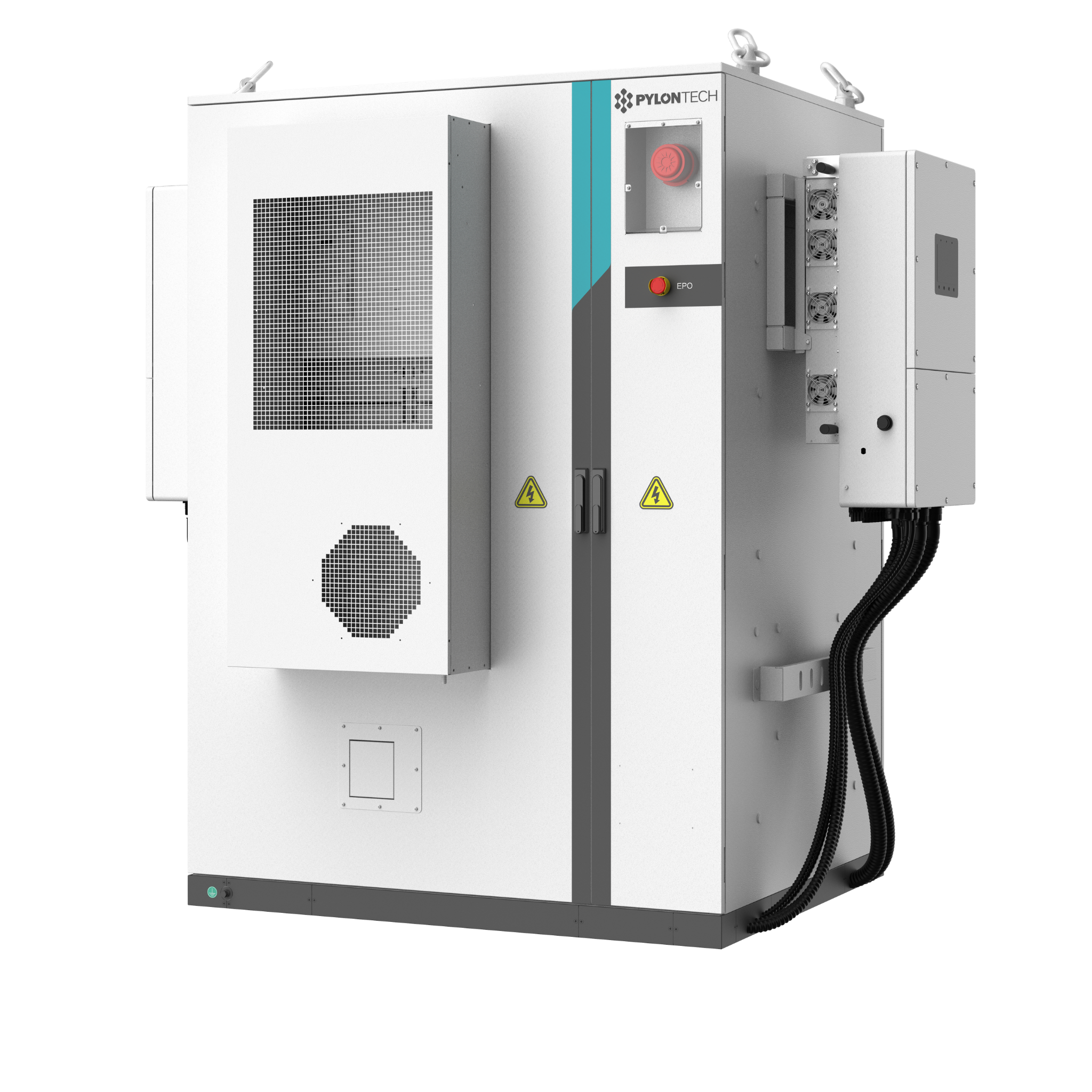

xOPTIM US A300 HY 216kWh Hybrid Energy Storage System
The OPTIM US A300 HY 216kWh Hybrid Energy Storage System is a complete commercial battery storage solution designed for businesses that need reliable power, reduced electricity costs and improved energy independence.
This system is supplied as a pre-made, factory assembled battery cabinet, making installation faster, cleaner and easier compared with a system built from separate components on site. It can be configured with 1 or 2 hybrid inverters, depending on the required site power, charge and discharge performance, and backup requirement.
Complete 216kWh Turnkey Energy Storage Solution
Built with advanced LFP lithium battery technology, intelligent energy management and integrated safety protection, the A300 HY is ideal for commercial and industrial applications where dependable power and long service life are essential.
The large 216kWh battery capacity provides a strong energy reserve for peak shaving, solar self-consumption, electricity arbitrage and long duration backup power. Energy can be stored when solar production is high or when electricity prices are lower, then used during peak tariff periods or grid outages.
Suitable Applications
- Commercial buildings
- Warehouses and factories
- Farms and agricultural sites
- EV charging locations
- Solar PV systems
- Microgrid and off-grid applications
- Backup power for critical loads
1 or 2 Hybrid Inverter Configuration
The OPTIM US A300 HY can be supplied with 1 or 2 hybrid inverters, giving excellent flexibility for different project sizes and site requirements.
- Single inverter configuration: suitable for standard commercial energy storage, solar self-consumption and backup applications.
- Dual inverter configuration: ideal for higher power sites requiring stronger backup capability, faster charging and greater peak load support.
Designed for Commercial and Industrial Environments
The system is housed inside a robust IP55 outdoor rated cabinet with controlled cooling, fire protection and smart monitoring. This makes it suitable for demanding commercial and industrial environments where safety, reliability and performance are critical.
Key Benefits
- Complete 216kWh commercial battery storage system
- Pre-made and factory assembled for faster installation
- Available with 1 or 2 hybrid inverters
- Advanced LFP lithium battery technology
- Designed for peak shaving and solar self-consumption
- Supports electricity arbitrage and backup power
- IP55 outdoor rated battery cabinet
- Integrated cooling, monitoring and safety protection
- Ideal for commercial, industrial, agricultural and EV charging sites
Professional Battery Storage for Energy Independence
The OPTIM US A300 HY 216kWh Hybrid Energy Storage System is a professional turnkey solution for businesses looking to reduce energy bills, maximise solar power usage and secure reliable backup power.
With its large battery capacity, flexible inverter configuration and factory assembled design, the A300 HY provides a powerful and practical energy storage solution for modern commercial energy systems.
Specifications
xTechnical Specifications
General Data
| Model | M5 300kWh 1000V |
| Dimensions (W x D x H) | 1500 x 1300 x 2200 mm (without inverter) |
| Weight | 3.5 tons |
| Working Temperature Range | -20°C to 55°C (derating below 10°C or above 40°C) |
| Protection Class | IP55 |
| Altitude | ≤3000 m |
| Humidity | 0 to 95% |
| Fire Extinguishing | Aerosol |
| Cooling System | Air Cooling |
| Cooling Consumption (Cooling/Heating) | 5 kW / 6.4 kW |
| Auxiliary Power Consumption (continuous/peak) | 2.35 kW / 4 kW (incl. HVAC) |
| Max Parallel Systems | 5 |
| Anti Corrosion | C3 |
Battery Data
| Battery Type | Li-ion (LFP) |
| Nominal Capacity | 313 kWh |
| Continuous Operation C-rate | 0.5C |
| Max Operation Current | 180 A x 2 |
| Depth of Discharge | 98% (single string) |
| Cycle Life | >7000 |
| DC Voltage Range | 560 to 720 Vdc (single string) |
| Nominal Operation Current | 122.5 A x 2 |
| Round-trip Efficiency @ 0.5C | 96% |
Hybrid Inverter Data (On-grid Mode)
| Rated AC Power | 50 kW / 100 kW |
| Rated AC Output Voltage | 400 Vac |
| Rated AC Output Frequency | 50 / 60 Hz |
| Max AC Current | 76 A (linear load) |
| Overload Capacity | 110% |
| AC Power Factor | >0.99 (0.8 leading to 0.8 lagging) |
| CEC Efficiency | 97.4% (max 97.8%) |
| Isolation Type | Non isolation |
| Response Time (on-grid to off-grid) | <10 ms |
Communication and Operation
| Communication Type | RS485 (Modbus RTU) / LAN (Modbus TCP/IP) / CAN |
| Operation Logic | Peak Shaving, Energy Shifting, Self-consumption, Backup |
Certifications
| UN38.3, UN 3480, IEC62619, IEC62040-1, CE, UKCA (EMC/RED), VDE2510-50, UL1973, UL9540A, G99, VDE-AR-N 4105, EN 50549-1, EN 50549-10, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 |
