xPylontech FH10050 5.12kWh High Voltage LiFePO4 Battery Module
The Pylontech FH10050 is a high voltage lithium iron phosphate battery module designed for Pylontech Force H3 and Force H3X energy storage systems. With 5.12kWh of battery energy, 102.4V nominal voltage and a modular stackable design, it is ideal for residential and small commercial solar battery storage installations. This is a wire free concept with the batteries being interconnected with an internal bus-bar system for vertical intergration without external cable.
Built with safe and reliable LFP battery technology, the FH10050 offers long service life, strong cycle performance and flexible system expansion. Multiple modules can be stacked together to create larger high voltage battery banks for solar self-consumption, backup power and hybrid energy storage applications.
Key Features
- 5.12kWh high voltage battery module for Pylontech Force H3 and Force H3X systems
- Lithium iron phosphate battery technology for safety, stability and long service life
- 102.4V nominal battery module voltage
- 50Ah battery module capacity
- Stackable modular design for expandable energy storage systems
- Suitable for residential solar battery storage and small commercial ESS installations
- Designed for use with compatible Pylontech high voltage controllers and hybrid inverter systems
- Long design life of 15+ years
- Up to 8,000 cycle life under defined operating conditions
- Compact 540 x 350 x 170mm module size
Designed For High Voltage Solar Battery Storage

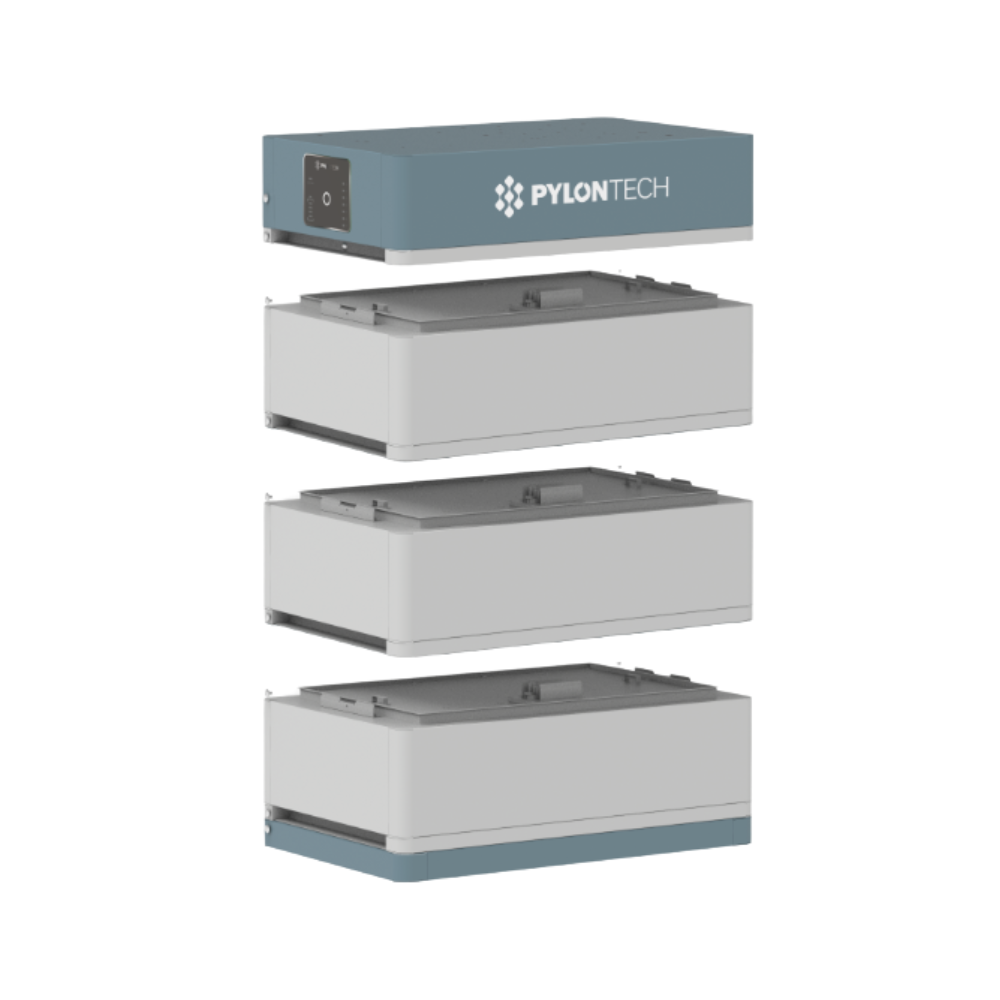

The FH10050 module forms part of the Pylontech Force H3 high voltage battery platform. Each module provides 5.12kWh of energy and can be combined with additional modules to build a larger battery stack, depending on the approved system configuration and compatible inverter or controller.
This makes the FH10050 suitable for homes and businesses that need a clean, compact and expandable battery storage solution for storing solar energy during the day and using it later in the evening, during peak tariff periods or during backup operation where supported by the inverter system.
Applications
- Solar PV self-consumption systems
- Hybrid inverter battery storage systems
- Residential energy storage
- Small commercial energy storage
- Time-of-use tariff energy storage
- Backup power systems when used with a compatible inverter
- Battery expansion for approved Pylontech Force H3 / H3X systems
A BMS system is required and works direclty with the following range of Pylontech inverters
FH3X-8K-HY-1P-EU
FH3X-10K-HY-3P-EU
FH3X-12K-HY-3P-EU
FH3X-15K-HY-3P-EU
The external BMS FH2 (FC0500M) is required for stand alone energy storage with Solis or other compatible inverter.
Important Installation Note
This is a high voltage battery module and must only be installed as part of a compatible Pylontech Force H3 or Force H3X system. It is not a standard 48V low voltage battery and must not be connected directly to low voltage inverters. Installation must be carried out by a qualified installer in accordance with the official Pylontech installation manual and the approved inverter compatibility list.
What Is Included
- 1 x Pylontech FH10050 high voltage battery module
- Manufacturer documentation where supplied
Please note: Battery controller, inverter, base, power cables and communication accessories may be required depending on the complete system configuration and are not included unless stated in the product options.
Specifications
xPylontech FH10050 5.12kWh High Voltage LiFePO4 Battery Module
The Pylontech FH10050 is a high voltage lithium iron phosphate battery module designed for Pylontech Force H3 and Force H3X energy storage systems. With 5.12kWh of battery energy, 102.4V nominal voltage and a modular stackable design, it is ideal for residential and small commercial solar battery storage installations.
Built with safe and reliable LFP battery technology, the FH10050 offers long service life, strong cycle performance and flexible system expansion. Multiple modules can be stacked together to create larger high voltage battery banks for solar self-consumption, backup power and hybrid energy storage applications.
Key Features
- 5.12kWh high voltage battery module for Pylontech Force H3 and Force H3X systems
- Lithium iron phosphate battery technology for safety, stability and long service life
- 102.4V nominal battery module voltage
- 50Ah battery module capacity
- Stackable modular design for expandable energy storage systems
- Suitable for residential solar battery storage and small commercial ESS installations
- Designed for use with compatible Pylontech high voltage controllers and hybrid inverter systems
- Long design life of 15+ years
- Up to 8,000 cycle life under defined operating conditions
- Compact 540 x 350 x 170mm module size
Designed For High Voltage Solar Battery Storage
The FH10050 module forms part of the Pylontech Force H3 high voltage battery platform. Each module provides 5.12kWh of energy and can be combined with additional modules to build a larger battery stack, depending on the approved system configuration and compatible inverter or controller.
This makes the FH10050 suitable for homes and businesses that need a clean, compact and expandable battery storage solution for storing solar energy during the day and using it later in the evening, during peak tariff periods or during backup operation where supported by the inverter system.
Applications
- Solar PV self-consumption systems
- Hybrid inverter battery storage systems
- Residential energy storage
- Small commercial energy storage
- Time-of-use tariff energy storage
- Backup power systems when used with a compatible inverter
- Battery expansion for approved Pylontech Force H3 / H3X systems
Technical Specification
| Manufacturer | Pylontech |
| Model | FH10050 |
| Battery Series | Force H3 / Force H3X compatible high voltage battery module |
| Battery Chemistry | Lithium Iron Phosphate, LiFePO4 / LFP |
| Battery Module Energy | 5.12kWh |
| Nominal Voltage | 102.4V DC |
| Battery Capacity | 50Ah |
| Usable Battery Capacity | 47.5Ah |
| Serial Cell Quantity | 32 cells |
| Battery Cell Voltage | 3.2V DC |
| Battery Cell Capacity | 50Ah |
| Standard Charge Current | 10A |
| Rated Charge Current | 50A |
| Maximum Charge Current | 55A for 15 minutes |
| Dimensions | 540 x 350 x 170mm |
| Weight | 39kg |
| Design Life | 15+ years |
| Cycle Life | Up to 8,000 cycles under defined operating conditions |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Transport Certification | UN38.3 |
Important Installation Note
This is a high voltage battery module and must only be installed as part of a compatible Pylontech Force H3 or Force H3X system. It is not a standard 48V low voltage battery and must not be connected directly to low voltage inverters. Installation must be carried out by a qualified installer in accordance with the official Pylontech installation manual and the approved inverter compatibility list.
What Is Included
- 1 x Pylontech FH10050 high voltage battery module
- Manufacturer documentation where supplied
Please note: Battery controller, inverter, base, power cables and communication accessories may be required depending on the complete system configuration and are not included unless stated in the product options.
