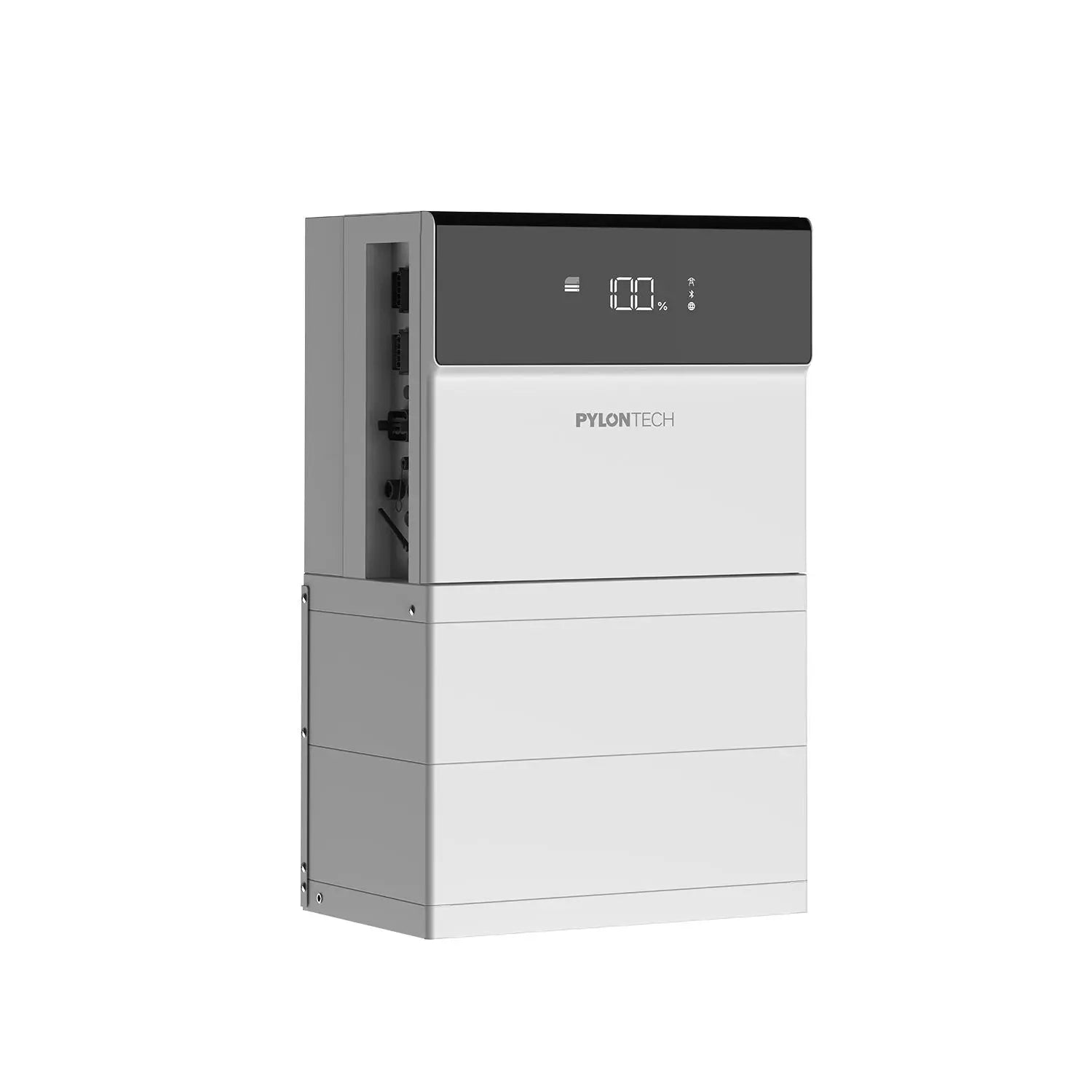

xPylontech Force H3X 6kW Hybrid Solar Inverter and Lithium Battery System
The Pylontech Force H3X combines a 6kW hybrid inverter with vertically stackable LiFePO4 battery modules in a single integrated stack. Storage starts from 5.12kWh per module and is expandable to 35kWh in one stack, with a maximum system capacity of 210kWh across multiple groups. The inverter mounts directly on top of the battery stack, keeping the total footprint under 2 square metres for a full 35kWh system.
The battery module reference is FH10050. The system is certified to G98/G99 (UK) and complies with European installation standards. Both indoor and outdoor installation are supported.
Key Features
- 6kW hybrid inverter with grid-parallel and off-grid operation
- LiFePO4 battery modules, expandable from 5.12kWh to 35kWh per stack
- Maximum system capacity: 210kWh
- Inverter mounts on top of the battery stack, under 2m² for a full 35kWh system
- Indoor and outdoor installation supported
- Pylontech Dynamic Control EMS for intelligent energy optimisation
- Free mobile app for remote monitoring and control
- Certified G98/G99 (UK) and EU standards compliant
Product Overview
The integrated stack design is the key practical advantage of the H3X platform. By mounting the inverter directly on the battery tower rather than on a wall next to it, the system reduces cable runs, simplifies installation and keeps the total installation footprint compact. A 35kWh system occupies less than 2 square metres of floor space.
Pylontech’s Dynamic Control EMS monitors energy flows in real time and adjusts charging and discharging patterns to maximise self-consumption and reduce grid import. The system operates in parallel with the grid during normal conditions and switches to off-grid mode automatically during a grid outage.
Applications
- Residential solar energy storage with space constraints
- Small commercial ESS installations
- Grid-connected self-consumption and backup power systems
- Scalable installations where storage capacity may need to grow over time
Installation Notes
Grid connection requires G98 or G99 compliance (UK) depending on system size. The battery stack must be installed on a level, solid floor capable of supporting the full loaded weight. All electrical connections must be made by a qualified installer following the Pylontech Force H3X installation guide.
EAN Code : 0646051175016 (15kWh Version + 6kW Inverter)
