Description

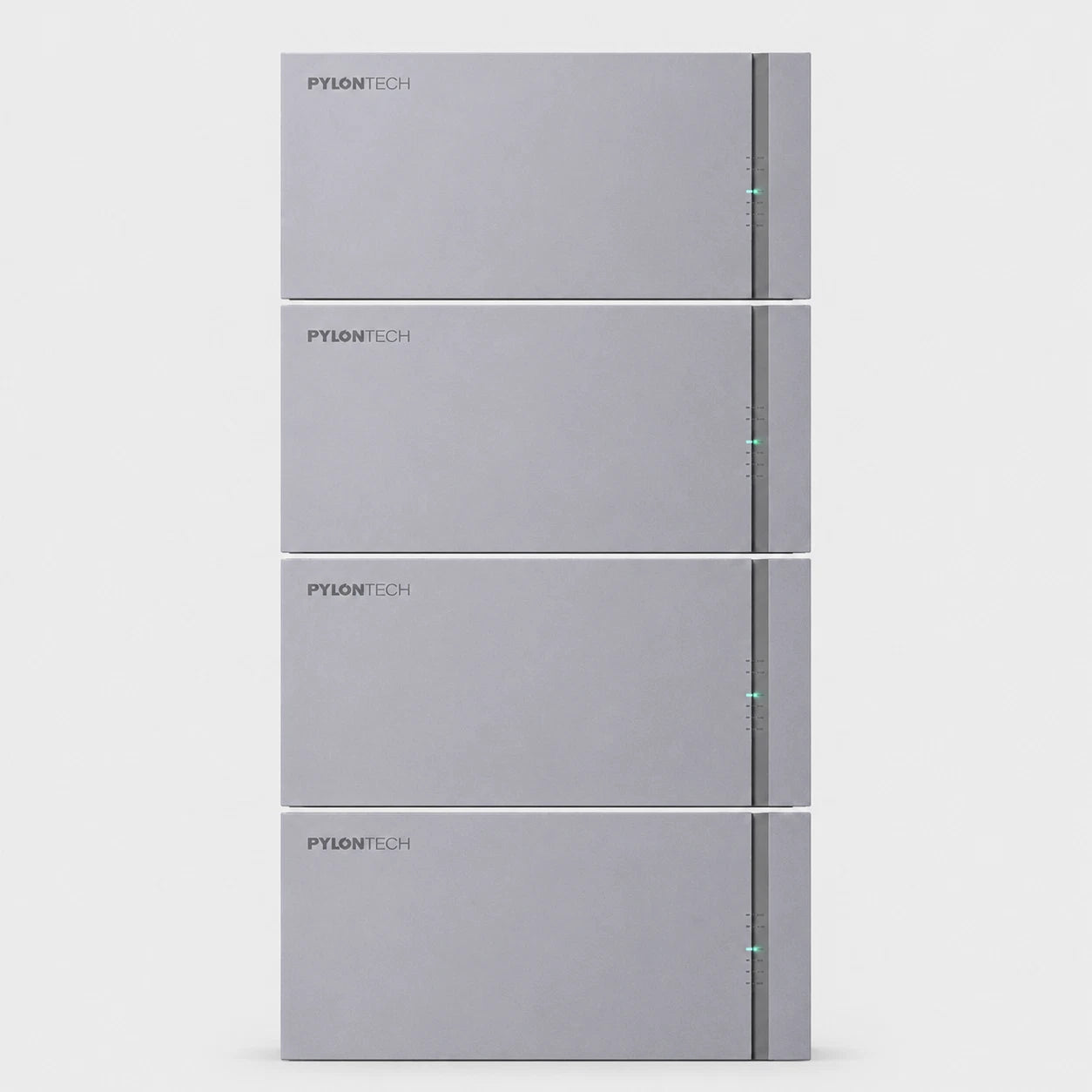

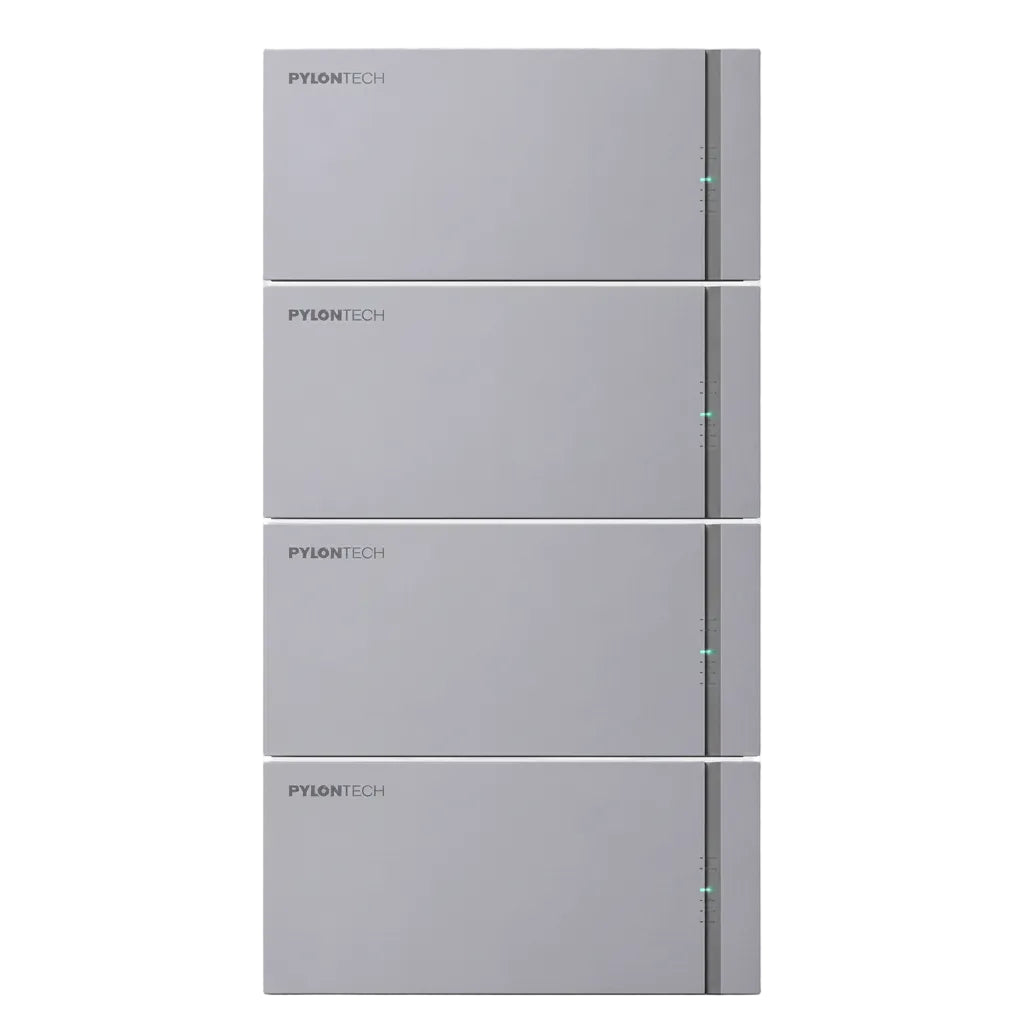

xPylontech Fidus Pro 20kWh LiFePO4 Battery System- WiFi
4 x 5.12kWh Pylontech Fidus Pro Batteries with Self Heating, Wi-Fi Monitoring and IP65 Housing
The Pylontech Fidus Pro is the advanced evolution of the well known Pylontech US5000 and US5000C battery concept. This new generation low voltage LiFePO4 battery is designed for more demanding installations, offering a stronger IP65 housing, C5-M anti-corrosion protection, integrated Wi-Fi monitoring support and a smart self-heating function for cold weather operation.
With 20kWh total nominal storage capacity from 4 x 5.12kWh batteries, this system is ideal for residential solar battery storage, off-grid systems, hybrid inverter installations, backup power and larger expandable energy storage projects.
What Is Included In The Box
Complete 20kWh Energy Storage Battery Package
- 4 x Pylontech Fidus Pro 5.12kWh LiFePO4 Batteries
- Link power cables and communication cables
- 2 metre power cables for connection from the batteries to the inverter
- Wi-Fi module for access to the Pylontech App
- Ground metal mounting bracket
Key Features
- 20kWh total nominal battery capacity using 4 x 5.12kWh battery modules
- 51.2V low voltage LiFePO4 battery technology
- Pro version with integrated smart self-heating function
- Operating temperature range from -20°C to 55°C
- IP65 rated enclosure for indoor, outdoor and harsher environments
- C5-M anti-corrosion protection for improved durability
- Wi-Fi monitoring support for remote visibility and battery data upload
- CAN and RS485 communication for compatible hybrid and off-grid inverters
- Advanced BMS protection with cell balancing and active safety management
- 100A continuous charge and discharge current per battery
- Peak charge and discharge support up to 120A for 2 minutes and up to 200A for 15 seconds
- Expandable design with up to 20 batteries in one string
- Up to 6 strings supported with suitable system design and communication hub
- 8000 cycle life at 25°C / 0.5C according to manufacturer data
Advanced Version Of The Popular Pylontech US5000C Concept
The Fidus Pro takes the proven Pylontech low voltage battery platform to the next level. Compared with traditional indoor rack batteries, Fidus Pro is designed for real world installations where moisture, dust, cold temperatures and harsher site conditions may be a concern.
It combines high capacity lithium storage with a durable IP65 enclosure, C5-M anti-corrosion protection, smart heating and modern monitoring support. This makes it a strong choice for installers looking for a reliable battery solution for both indoor and protected outdoor applications.
Smart Self-Heating For Cold Weather Operation
The Fidus Pro model includes a built-in self-heating function. When low temperature conditions are detected, the battery can automatically manage heating to help maintain stable operation in cold climates.
The heating system is designed to support operation down to -20°C. According to manufacturer data, the battery can heat from -20°C to at least 5°C in approximately 2 hours, depending on available system power and site conditions.
IP65 Housing For Indoor, Outdoor And Harsh Environments
The Fidus Pro battery is built with an IP65 rated enclosure, helping protect the battery against dust and water ingress. This makes it suitable for garages, utility rooms, outbuildings, workshops, plant rooms, covered outdoor areas and dusty or humid environments where standard indoor-only batteries may not be ideal.
The C5-M anti-corrosion protection gives additional confidence in challenging environments, especially where humidity or corrosive conditions may affect standard battery housings over time.
Ideal Applications
- Residential solar battery storage
- Hybrid inverter systems
- Off-grid solar PV systems
- Backup power systems
- Garage, plant room and outbuilding installations
- Dusty, humid and harsher environments
- Commercial self-consumption systems
- Expandable battery banks for larger energy storage projects
Specifications
xTechnical Specifications – Pylontech Fidus Pro (FB-L-5.12-EU-Pro)
| Parameter | Value |
| Model | FB-L-5.12-EU-Pro |
| Battery chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal capacity | 5.12kWh |
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Cycle life | 8000 cycles at 80% DoD |
| IP rating | IP65 |
| Anti-corrosion | C5-M |
| Self-heating | Yes (Pro version) |
| Operating temperature (with heating) | -20°C to +55°C |
| Communication | CAN, RS485 |
| Monitoring | Wi-Fi, LED, Bluetooth |
| Installation type | Floor-mounted vertical stack |
