Description

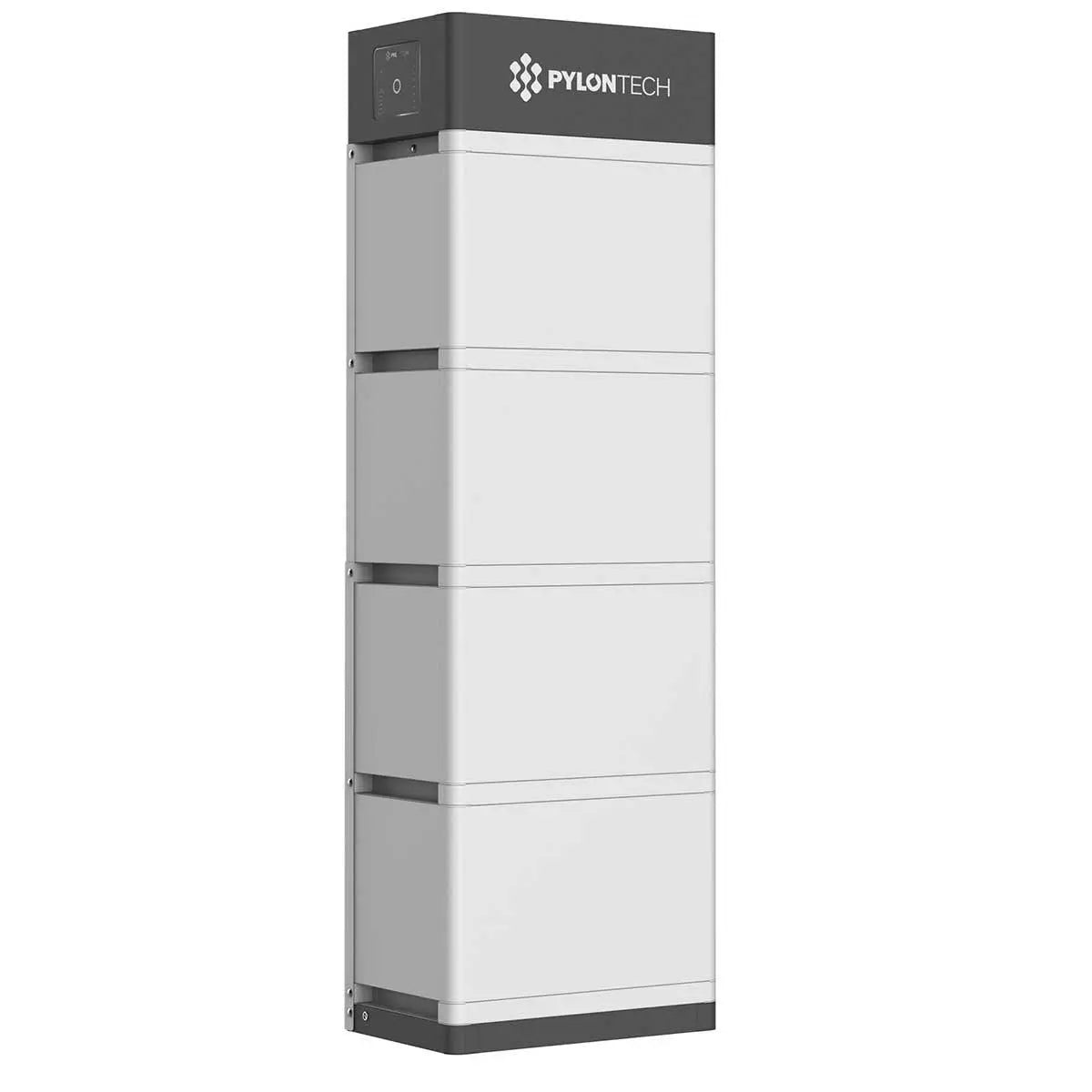

xLi-Iron LFP High Voltage Vertically Stacked Batteries H2 / FH2
Residential and commercial energy storage that adapts high voltage batteries, improving the efficiency of the system and lowering the discharge current. Compact design, easy to install with lightweight battery modules. It is expandable from 7.1kWh to 85.2kWh
Price is per module of 3.55kWh
Up to 4 batteries stack one controller FC0500M is required (sold separately)
The system begins with two 96V lithium batteries, each with an energy capacity of 3.55kWh, stacked in series. On top of the two batteries, there is a controller, Wi-Fi communication, display with the status of the battery and all the power and communication ports.
Using the entry set-up, with one FC0500M controller, there is room for 2 more batteries, raising the capacity to 14.2kWh vertically integrated. The methodology is to create clusters of 4 batteries with a high voltage battery DC-bus at 386Vdc
Multiple stacks of 17.75kWh can be added to the same system (max 5 stacks) with total energy storage of 106.2kWh
- Battery part number: Rechargeable Li-ion Battery / FH9637M - FH2
- Control unit: Battery Controller FC0500M-40S - FH2
FEATURES
- Flexibility and modular design
- Secured by self-developed cells, modules and BMS
- Reliable performance
- 95% depth of discharge
- 10 years of proven technology
- Expandable to 85.2kWh
- Suitable for indoor and outdoor use
- Quick installation with pre-installed matching connectors.
Specifications
xSpecification Table: Force H2 Battery Module FH9637M (96V, 37Ah)
| Force H2 Basic Parameters (Battery Module: FH9637M) | |||
|---|---|---|---|
| Battery Module | FH9637M | Battery Module Voltage (Vdc) | 96 |
| Battery Module Capacity (Ah) | 37 | Depth of Discharge | 95% |
| Battery Module Qty (Optional) | 2, 3, 4, 5 | Multi-group Max. | 6 systems in parallel |
| Communication | CANBUS / Modbus RTU | IP Rating | IP55 |
| Working Temperature (°C) | 0 to 50 | Shelf Temperature (°C) | -20 to 60 |
| Humidity | 5% to 95% (without condensing) | Altitude | < 2000 |
| Design Life | 15+ years (25°C / 77°F) | Cycle Life | > 8,000 (25°C) |
| Certification | VDE-AR-E 2510-50, IEC62619, IEC63056, IEC62040-1, CEC, CE | ||
| System Configurations Using FH9637M (Force H2) | |||
| Modules per Stack | Battery System Voltage (V) | Battery System Capacity (kWh) | Dimensions (W x D x H mm) / Weight (kg) |
| 2 | 192 | 7.1 | 450 x 296 x 822 / 82 |
| 3 | 288 | 10.65 | 450 x 296 x 1118 / 117.5 |
| 4 | 384 | 14.21 | 450 x 296 x 1414 / 152 |
| 5 | 480 | 17.75 | 450 x 296 x 1710 / 188.5 |
| Charge and Discharge Current (A) | |||
| Recommended (A) | 2, 3, 4 | Max (A) | 5 |
