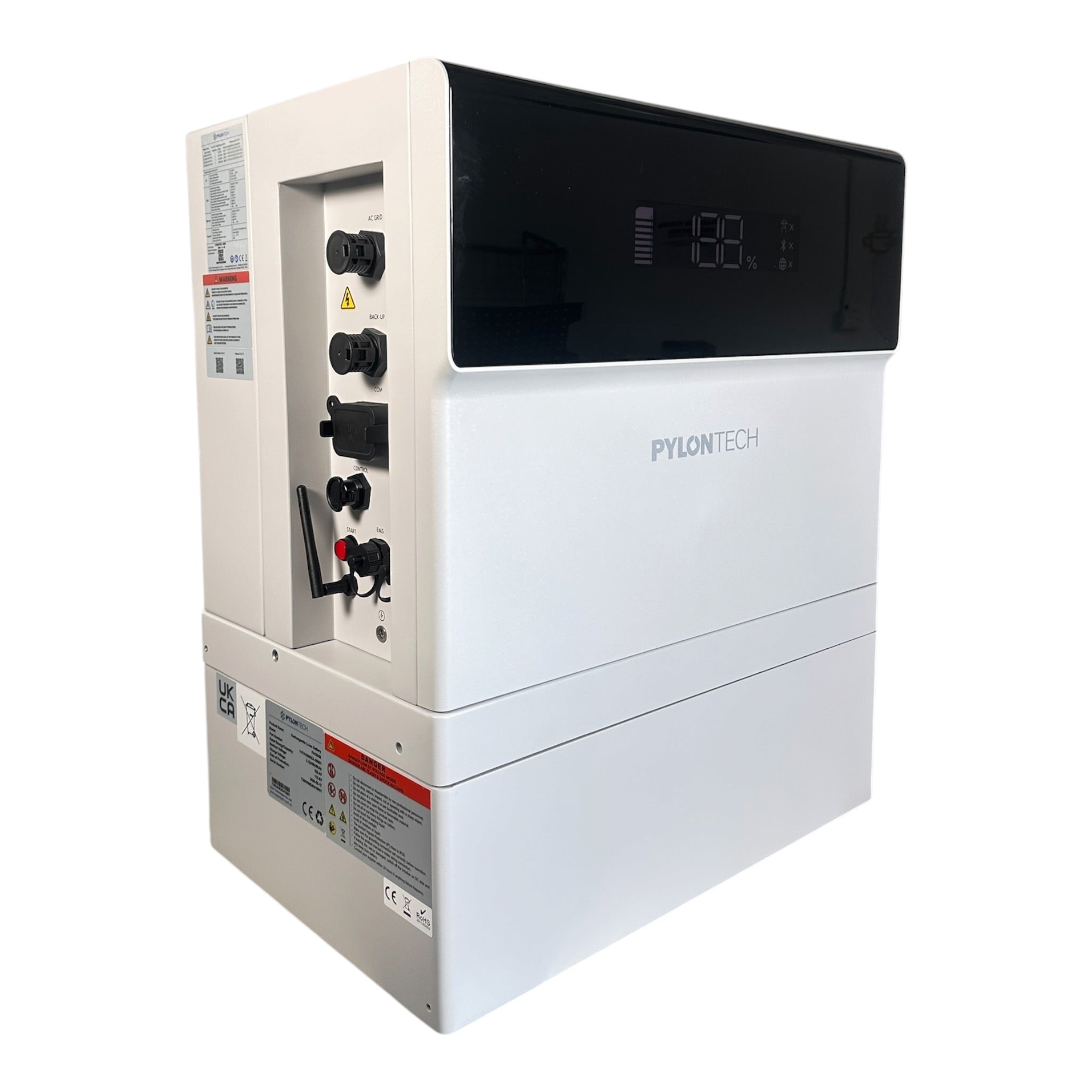

xPylontech Force H3X 6kW Hybrid Inverter and High Voltage Battery Storage System
Product Code: FH3X6K-HY-1P
The Pylontech Force H3X FH3X6K-HY-1P is a high performance single phase hybrid inverter and battery storage system designed for solar self-consumption, grid import and export, smart energy tariffs and backup power applications.
This 6kW hybrid inverter operates in parallel with the grid, allowing it to supply household appliances, charge the battery from solar panels and export surplus energy back to the grid. Using the dedicated backup power port, the inverter can also operate as a UPS style backup supply or off-grid power source for selected essential loads during a mains power cut.
Super Fast Installation in 15min
The Force H3X system is designed for simple installation and fast commissioning, with Pylontech promoting a simplified installation process of around 15 minutes when the site is correctly prepared by a qualified installer.
The inverter, BMS and energy management system are highly integrated into one compact unit. This reduces installation time, removes unnecessary external wiring and creates a clean, safe and professional energy storage system for modern homes.
High Voltage FH10050 Battery System
The FH3X6K-HY-1P works with Pylontech FH10050 high voltage lithium battery modules. These 100V class LiFePO4 battery modules are stacked vertically below the inverter and communicate through the built-in BMS system.
For this single phase 6kW model, the battery storage can be configured using FH10050 modules to create a compact, scalable high voltage battery system. The wider Force H3X platform supports larger battery groups and can be expanded for residential and small commercial applications, subject to system design and manufacturer limits.
Wire Free Battery Installation
One of the key advantages of the Force H3X system is the wire-free battery connection design. The battery modules are mounted vertically under the inverter and connected through an internal bus bar system.
This means there is no need to wire separate battery power cables or external BMS communication cables between the inverter and battery modules. The main incoming connections are from the solar panels and the 230V grid supply, making the installation cleaner, faster and safer.
Complete Energy Solution for Import and Export
The Force H3X can be integrated with the home electrical supply using a current transformer (CT clamp). The CT allows the inverter to monitor grid import and export power, helping the system automatically adjust charging, discharging and export behaviour according to the property's energy demand.
An external Eastron meter is not normally required for standard CT operation, although it can still be used where the installer or system design requires it. The installer simply connects the CT two-wire output to the inverter communication terminal.
This makes the system suitable for solar self-consumption, grid export and smart energy tariffs, including time-of-use tariffs from suppliers such as Octopus Energy and E.ON where supported by the system setup.
Intelligent Dynamic Mode Summary
Intelligent Dynamic mode is designed to optimise battery charging and discharging according to electricity tariff changes. With the correct Pylontech app version, Force H3X BMS firmware and tariff settings, the system can use time-of-use pricing or automated tariff synchronisation to adjust its energy strategy. During high tariff periods, solar PV and battery power support the home first, then charge the battery and export surplus energy. During mid tariff periods, PV power is prioritised for household loads while the battery is preserved where possible. During low tariff periods, the system can charge the battery from the grid when electricity is cheaper. This helps homeowners make better use of solar energy, battery storage and smart import tariffs.
Key Benefits
- 6kW single phase hybrid inverter and battery storage system
- Designed for solar self-consumption, grid export and backup power
- Works with Pylontech FH10050 high voltage LiFePO4 battery modules
- Wire-free vertical battery stack with internal bus bar connection
- Built-in inverter, BMS and energy management system
- CT based import and export monitoring
- Suitable for smart tariffs and time-of-use electricity pricing
- Backup power port for selected essential loads
- Clean all-in-one design with fewer external components
- Expandable Force H3X platform for residential and small commercial systems
Ideal Applications
- Home solar battery storage
- Solar self-consumption
- Smart import and export tariffs
- Backup power for essential circuits
- Small offices, warehouses and commercial buildings
- Modern high voltage battery storage installations
Professional Installation Required
This product must be installed by a qualified and competent installer. Grid connection, backup wiring, CT connection, DNO notification and all electrical protection must be completed according to local regulations and the manufacturer installation manual.
Specifications
xPylontech Force H3X FH3X6K-HY-1P Specification Table
Single phase hybrid energy storage system with 6kW nominal power, designed for use with FH10050 battery modules.
Technical Specification
| Specification | FH3X6K-HY-1P |
|---|---|
| Main System Data | |
| Battery Module | FH10050 |
| Number of Battery Modules | 1 / 2 / 3 / 4 |
| System Nominal Capacity | 5.12 / 10.24 / 15.36 / 20.48kWh |
| System Nominal Power | 6kW |
| DC Parameter, PV Side | |
| Maximum Power | 9.6kW |
| Maximum Input Voltage | 600Vdc |
| Start Up Voltage | 80Vdc |
| MPPT Voltage Range | 80 to 550Vdc |
| MPPT Full Load Voltage Range | 190 to 520Vdc |
| Number of MPPT | 2 |
| Number of PV Strings Per MPPT | 1 |
| Maximum Current | 16A |
| Short Circuit Current Per MPPT | 25A |
| Surge Protection | Type II |
| DC Parameter, Battery Side | |
| Maximum Continuous Charge / Discharge Current | 40A |
| Maximum Charging Power with One Battery | 2.5kW |
| Maximum Discharging Power with One Battery | 2.5kW |
| Maximum Charging Power with More Than One Battery | 8kW |
| Maximum Discharging Power with More Than One Battery | 6kW |
| AC Parameter, Grid Side | |
| Nominal Grid Voltage | 1/N/PE a.c. 230V |
| Nominal Grid Frequency | 50 / 60Hz |
| Maximum Nominal Continuous Current to Grid | 26.1A |
| Nominal Active Power to Grid | 6000W |
| Maximum Nominal Apparent Power to Grid | 6000VA |
| Maximum Nominal Continuous Current from Grid | 39.1A |
| Nominal Active Power from Grid | 9000W |
| Maximum Nominal Apparent Power from Grid | 9000VA |
| Power Factor Range | -0.8 to +0.8 |
| THDi | <3% |
| AC Parameter, Back-up Side | |
| Nominal Voltage | 1/N/PE a.c. 230V |
| Nominal Output Frequency | 50 / 60Hz |
| Maximum Nominal Continuous Current | 26.1A |
| Maximum Nominal Apparent Power | 6000VA |
| Peak Off-Grid Power, 60s Estimate | 6200VA |
| Power Factor Range | -0.8 to +0.8 |
| On / Off-Grid Switching Time | <=10ms |
| THDv | <3% |
| Efficiency | |
| Maximum Efficiency | 98% |
| European Efficiency | 97.5% |
| Protection | |
| Anti-Islanding Protection | Yes |
| AFCI | 2.0 @ IEC63027 |
| Insulation Resistor Detection | Yes |
| Residual Current Monitoring Unit | Yes |
| Output Over Current Protection | Yes |
| Output Short Protection | Yes |
| Output Overvoltage Protection | Yes |
| DC Switch | Yes |
| DC Reverse Polarity Protection | Yes |
| DC / AC Surge Protection | Type II |
| PV Overvoltage Protection | Yes |
| General Data | |
| Dimensions, W / H / D | 540 x 665 / 835 / 1005 / 1175 x 350mm |
| Weight | 77 / 116 / 155 / 194kg |
| Topology | Transformerless |
| Operating Temperature Range | -10 to 55°C |
| System Working Humidity Range | 0 to 100% |
| System Working Altitude | <4000m |
| Common Noise Level, 1 metre | <29dB |
| Maximum Parallel | 6 |
| Protective Class | I |
| Overvoltage Category | DC II / AC III |
| Ingress Protection | IP55 |
| System Salt Spray Level | C5-M |
| Cooling | Natural Cooling |
| Standby Consumption, Night | <15W |
| Communication Portal | WIFI / WLAN / Bluetooth |
| Display | LED |
| EPO | Installed |
| Standard Compliance | |
| Battery and System Standards | UN38.3 / IEC61000-6 / VDE-AR-E-2510-50 2017-05 / IEC62619:2022 / IEC60730-1 / ISO13849 / IEC62477-1:2022 |
| Electrical Safety Standards | EN 62477-1:2012+A12:2021 / IEC62109-1:2010 / IEC62109-2:2011 |
| Grid Compliance | VDE-AR-N-4105:2018 / DIN VDE V 0124-100:2020 / EN50549-10 / EN50549-1 / PPDS Annex:2022+EN50549-10 / C10/11+EN50549-10 / EIFS+EN50549-10 / CEI0-21 / RD1699 RD661 RD413 / UNE 217002:2020 / NTS Version 2.1:2021 / UNE 217001:2021 / AS 4777.2 / AS60947.3 / G98 / G99 / TOR |
Notes: When the ambient temperature exceeds 45°C, the PCS will reduce the power. When the altitude exceeds 2000m, the PCS will degrade the power.
