Description

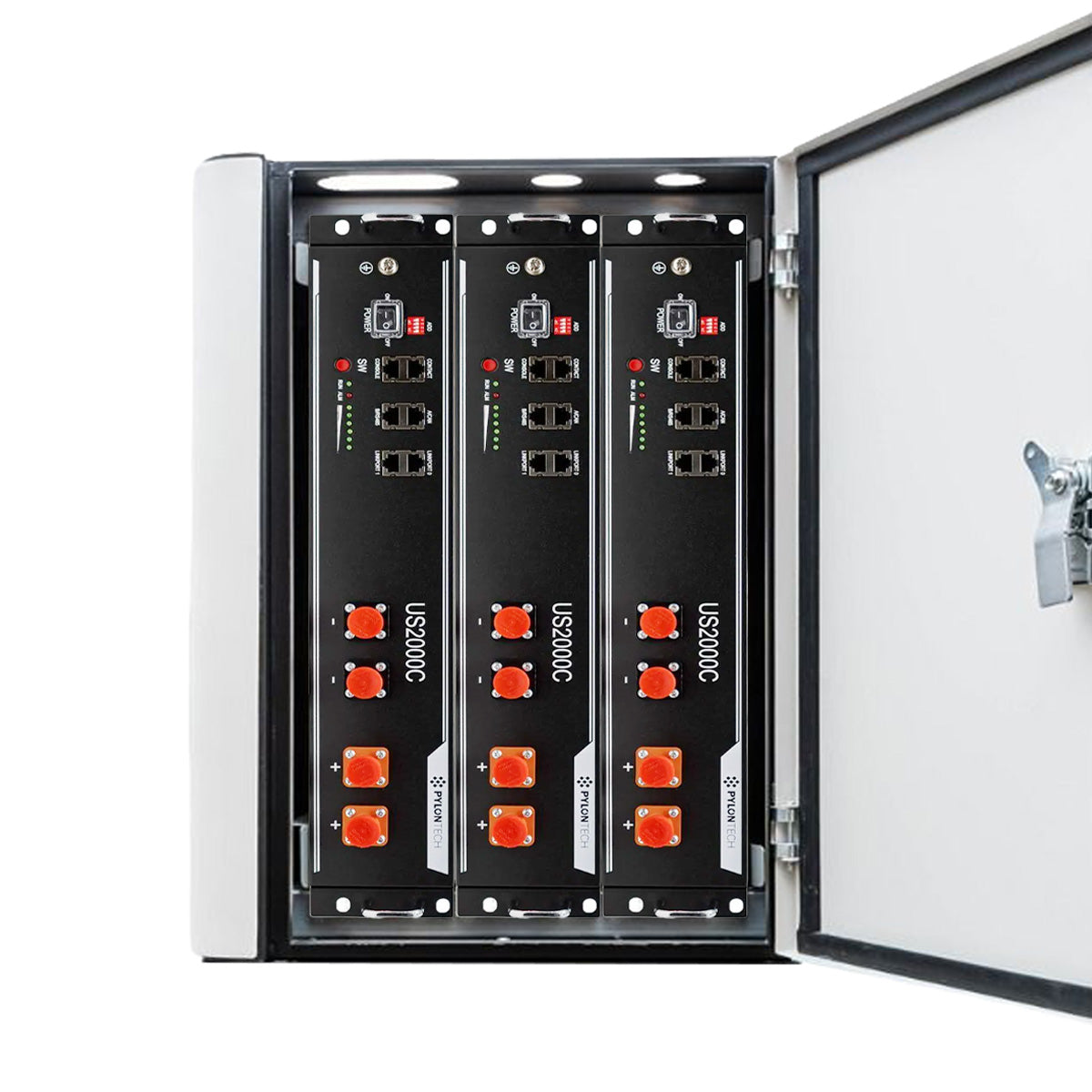

xPylontech US2000C Lithium Battery Storage Set With White Metal Cabinet
This complete battery storage set includes 3 x Pylontech US2000C 48V lithium iron phosphate batteries, a white metallic battery cabinet, link cables, fuses and the required accessories for a professional battery installation.
The Pylontech US2000C is a reliable and widely used LiFePO4 battery module designed for solar energy storage, backup power and hybrid inverter systems. Each battery provides 2.4kWh nominal capacity, giving this set a total nominal storage capacity of 7.2kWh.
The supplied white metallic cabinet keeps the batteries neatly organised and protected. It can be used indoors or outdoors, provided it is installed under a suitable cover and protected from direct rain and harsh weather exposure.
What Is Included
- 3 x Pylontech US2000C 48V 2.4kWh lithium batteries
- 1 x White metallic battery cabinet
- Battery link cables
- Battery fuses 100A mersen
- Communication and connection accessories
Key Features and Benefits
- Complete 7.2kWh Battery Storage Set: Includes three US2000C batteries, cabinet, cables, fuses and accessories.
- High Usable Capacity: Each battery offers 2.4kWh nominal capacity with 95% depth of discharge.
- Safe LiFePO4 Technology: Uses lithium iron phosphate cells for long life, stability and improved safety.
- Built In BMS Protection: The battery management system monitors voltage, current, temperature, state of charge and state of health.
- Scalable System: The US2000C can be connected in parallel for larger battery banks when required.
- Neat Cabinet Installation: The white metallic cabinet gives the system a tidy and professional finish.
- Indoor or Covered Outdoor Use: Suitable for indoor installation or outdoor installation under a protective cover.
Ideal Applications
- Solar battery storage systems
- Hybrid inverter installations
- Off grid and backup power systems
- Residential energy storage
- Small commercial battery storage
- Battery expansion for existing Pylontech systems
Seamless Inverter Compatibility
Pylontech US2000C batteries are widely supported by many leading inverter brands. Correct BMS communication is essential for safe and efficient operation, so the correct RJ45 communication cable and inverter settings must be used.
We recommend checking compatibility with your inverter supplier or installer before installation, especially when adding the batteries to an existing system.
Technical Specifications Per Battery
| Specification | Details |
|---|---|
| Battery Model | Pylontech US2000C |
| Battery Type | Lithium Iron Phosphate LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 2400Wh |
| Usable Capacity | 2280Wh |
| Total Set Capacity | 7.2kWh nominal capacity from 3 batteries |
| Dimensions Per Battery | 442 x 410 x 89mm |
| Weight Per Battery | 24kg |
| Discharge Voltage | 44.5V to 53.5V |
| Charge Voltage | 52.5V to 53.5V |
| Charge and Discharge Current | 25A recommended, 50A max, 90A peak |
| Communication Port | RS485 and CAN |
| Parallel Connection | Up to 16 batteries in a single string |
| Working Temperature | 0°C to 50°C |
| Design Life | 15 years at 25°C |
| Cycle Life | More than 6000 cycles at 25°C |
| Approvals | IEC62619, CE, UN38.3 |
Important Installation Note
The white metallic cabinet is suitable for indoor use or outdoor use only when installed under a cover. It should not be exposed directly to rain, standing water or extreme weather conditions. Installation must be carried out by a competent person following the battery and inverter manuals.
Professional Battery Storage Solution
This Pylontech US2000C battery set is a practical choice for customers who need a clean, expandable and reliable lithium battery storage solution. With three batteries, a dedicated cabinet, link cables, fuses and accessories included, it provides a complete package for solar storage and backup power applications.
Specifications
x| Specification | Details |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity | 2400Wh |
| Usable Capacity | 2280Wh |
| Dimensions | 442 x 410 x 89mm |
| Weight | 24kg |
| Discharge Voltage | 44.5-53.5V |
| Charge Voltage | 52.5 - 53.5V |
| Charge/Discharge Current | 25A, 50A (Max), 90A Peak |
| Communication Port | RS485, CAN |
| Single String | Up to 16 batteries |
| Working Temperature | 0-50℃ |
| Design Life | 15 years at 25℃ |
| Cycle Life | >6000 cycles, 25℃ |
| Approvals | IEC62619 / CE / UN38.3 |
