Description
xThe superior performance bifacial panel generates energy from both sides, 580 watts from the top glass and an additional 115 watts from the bottom. Ideal for projects. Free delivery is included. Trade Price
Tier-1 Bloomberg - Quality Assurance

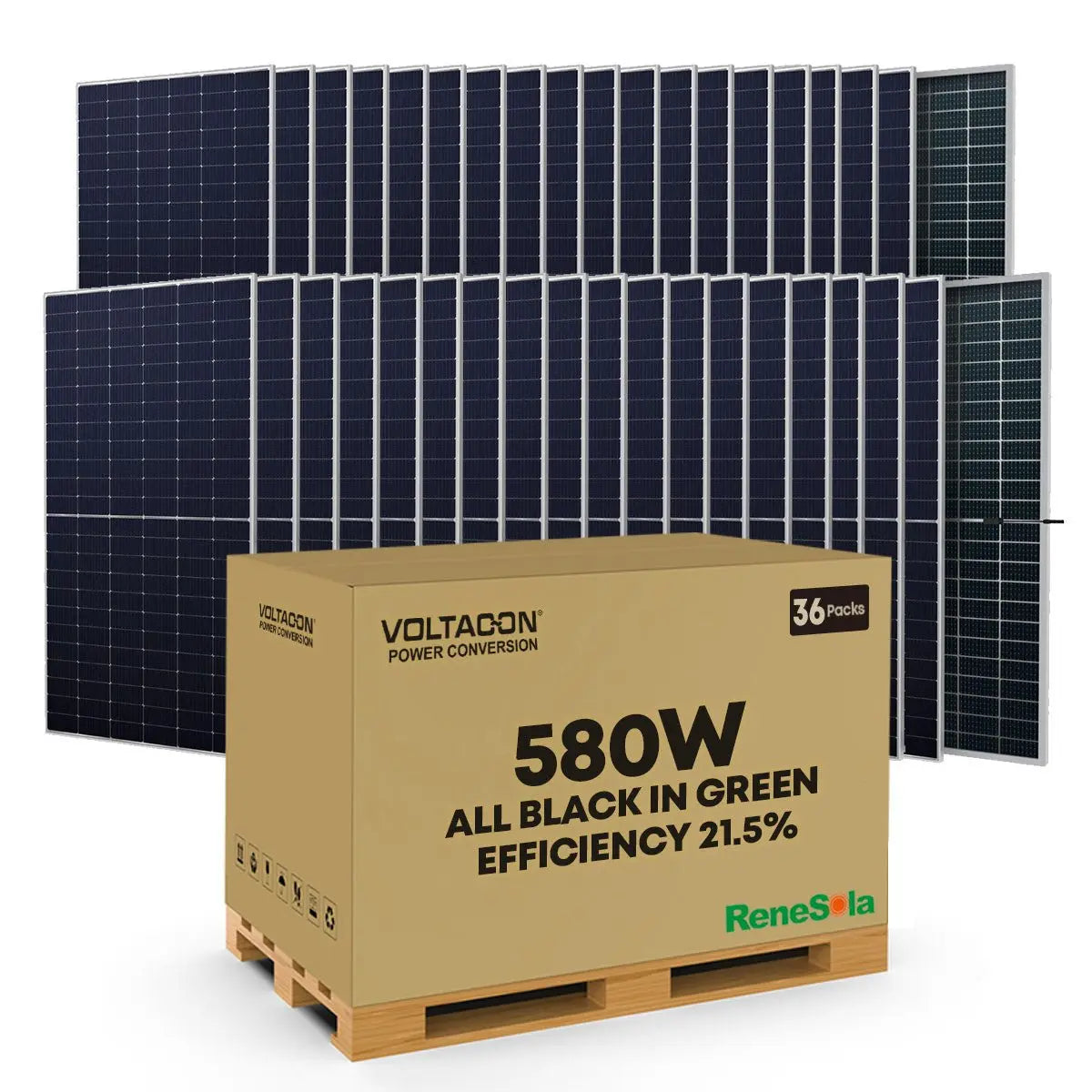

Renesola Saturn - Bi-Facial 580W+115W Solar Panel - Full Pallet
This option is recommended for projects on the roof or ground. The pallet of 36 panels is packed in the factory and arrives with the "flash report" of this particular batch. Each solar panel has a unique serial number.
The bifacial panel will catch the sun rays from different directions, the back side of the glass can absorb the light from reflection and generate up to 115W additional energy.
The unique feature of these panels is the additional energy production from the back side due to the radiation being reflected on the ground. The amount of energy depends on the following factors:
Albedo Factor is the amount of sunlight diffusely reflected by an object and varies according to the time of year, the season and the material covering the ground.
Solar Panel Features
- Bifacial technology enables additional energy production from the rear side of the panel by up to 20%
- Glass-to-glass lamination extends the product life to 30 years with annual power degradation of less than 0.4%
- The hot spot risk is reduced which is the main cause for early failures. The power and heat are evenly distributed on both sides of the panel.
- Half-cut solar panels have 50% shorter internal wiring, hence 50% lower resistance losses.
- Thinner inter-cell busbars mean more sunlight can be absorbed.
- Work at different angles even at 90 deg (vertical, for example on a fence) as long as they face the equator.
P-Type /Positive power tolerance of 0~+3%/Max module efficiency 21.48%
Notice: Ideal for ground mounting installation and flat roofs
Dual Glass Solar Panel- Befit and Key Features
- Module type: Bifacial+dual glass
- Cell size: 182*182mm
- Module dimension: 2278*1134*30mm
- Linear performance for 30 years
- The panel will preserve 85% of the original performance
- Warranty 12 years for the parts including frame, cells, diodes, and junction box.
- Module peak power: 550W(front side)+115W(21% increased from back side), in total 665.5W
Thermal Factor for double glass PV
The dual-glass modules have also better thermal conductivity compared to the conventional back sheet. The thermal resistance of dual glass is slightly lower than that of ordinary modules. The smaller the thermal resistance, the better the heat conduction.
The thermal diffusivity of glass is significantly higher than that of the back plate.
Thermal diffusion coefficient α=λ/ρ C: The larger the value, the faster the heat diffusion inside the module, and the better the temperature uniformity of the module.
Uniform temperature can also reduce mismatch and hot spots, bringing more power generation
Specifications
xElectrical Characteristics at Standard Test Conditions
| Maximum power Pmax | 580Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 21.48% |
| Maximum Power Current | 13.19A |
| Maximum Power Voltage | 42.10V |
| Short Circuit Current Isc | 13.98A |
| Open Circuit Current Voc | 49.80V |
Electrical Characteristics with 21% rear side power gain
| Maximum Power | 666Watt |
| Maximum Power Current Imp | 15.88A |
| Maximum Power Voltacon Vmp | 41.95V |
| Short Circuit Current Isc | 16.92A |
| Open Circuit Voltacon Voc | 49.80V |
Mechanical Characteristics
| Cell Type | Mono P-Type, 182x182mm, 144 (6x24) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission , Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 2278 x 1134 x 30mm |
| Output cable | 4mm2 |
| Weight | 32.8kg |
| Installation Hole Location | See drawing in downloads |
