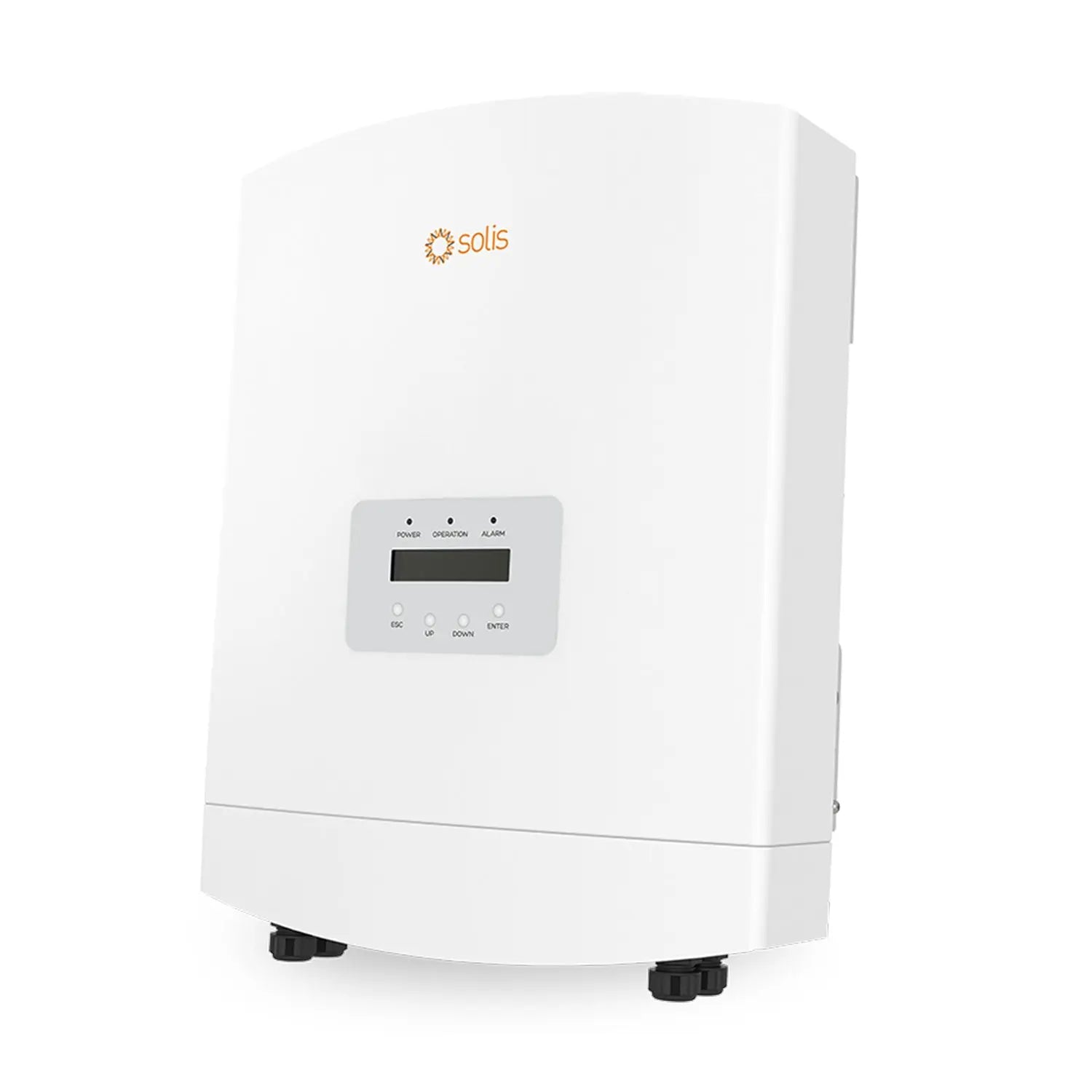

xSolis 3kW AC Coupled Inverter and Charger for Energy Storage – S5-EA1P3K-L
The Solis S5-EA1P3K-L is a 3kW single phase AC coupled inverter designed to add battery storage to an existing grid-tied solar PV system or to charge batteries directly from the mains grid. It does not require solar panels to operate and works with both lithium-ion and lead-acid batteries. A CT current transformer is included for managing grid power flow.
Key Features
- 3kW single phase AC coupled inverter and battery charger
- Works with any existing grid-tied PV system for energy storage upgrading
- Compatible with lithium-ion and lead-acid batteries (40–60V, 50–2000Ah)
- Max charge/discharge current: 60A
- CAN communication for lithium battery BMS
- Multiple operating modes for different application scenarios
- Natural convection cooling, no external fan
- Intelligent commissioning app with one-click inverter configuration
- CT current transformer included
- G98/G99 compliant for UK grid connection
- Dimensions: 405 x 510 x 150mm, weight: 12.1kg
Product Overview
The S5-EA1P3K-L allows homeowners and businesses with an existing grid-tied solar installation to add battery storage without replacing their current inverter. It connects on the AC side of the existing system, charging the battery from solar generation or from the grid on an off-peak tariff, and discharging to supply loads during peak periods or during a grid outage.
For properties without solar panels, the inverter can charge the battery bank purely from the mains at a low-cost overnight tariff and discharge during peak hours, reducing electricity costs with no PV installation required. Solar panels can be added at any time.
The unit operates using natural convection cooling with no external fan, reducing noise and removing a common source of mechanical failure in inverter-chargers.
Applications
- Adding battery storage to an existing grid-tied solar PV system
- Off-peak tariff charging and peak-hour discharge without solar panels
- Self-consumption and backup power for residential and commercial properties
- AC coupling with any brand of existing grid-tied inverter
Installation and Safety Notes
This inverter must be installed by a qualified electrician or MCS-accredited solar installer. G98 or G99 notification and DNO approval must be obtained before connection to the grid. AC wiring, battery connections, and earthing must comply with IET Wiring Regulations and the Solis installation manual. CAN communication between inverter and lithium battery BMS must be correctly configured before operation.
Specifications
x| Parameter | Value |
| Model | Solis S5-EA1P3K-L |
| Rated Output Power | 3 kW |
| Max Apparent Output Power | 3 kVA |
| Operation Phase | 1/N/PE (single phase) |
| Rated Grid Voltage | 220 V / 230 V |
| Grid Voltage Range | 184–264 V |
| Rated Grid Frequency | 50 Hz / 60 Hz |
| Rated Grid Output Current | 13.6 A / 13 A |
| Max Output Current | 20 A |
| Power Factor | >0.99 (0.8 leading to 0.8 lagging) |
| THDi | <3% |
| Battery Type | Li-ion or lead-acid |
| Battery Voltage Range | 40–60 V |
| Battery Capacity Range | 50–2000 Ah |
| Max Charge / Discharge Current | 60 A |
| Battery Communication | CAN |
| Max Battery Charge Efficiency | 94.0% |
| Max Battery Discharge Efficiency | 94.5% |
| Dimensions | 405 x 510 x 150 mm |
| Weight | 12.1 kg |
| Grid Connection Standard | G98/G99 (UK), VDE-AR-N 4105, EN 50549-1 and others |
