Description

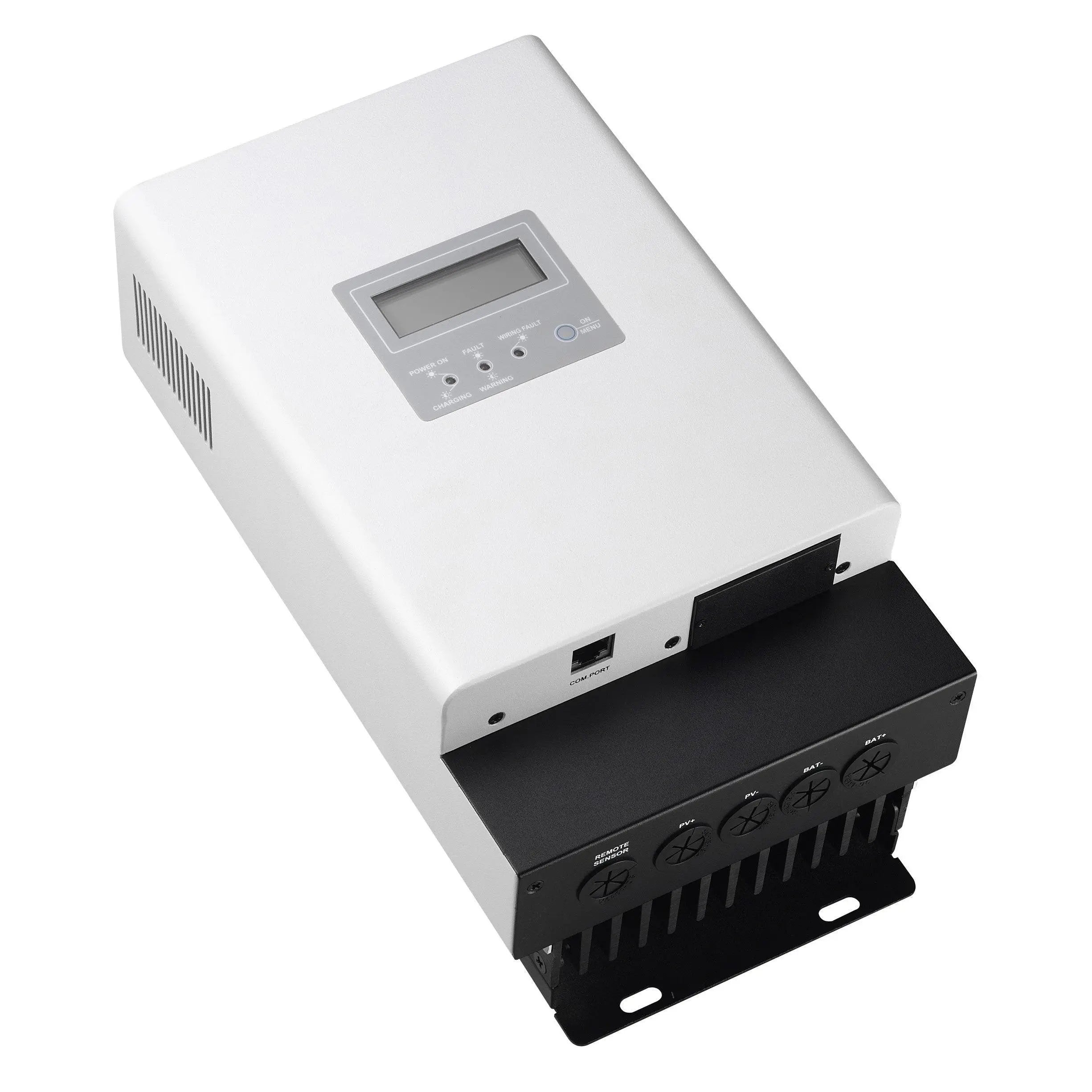

xWith advanced maximum-power-tracking technology, the SCC-MPPT series ensures maximum performance from your solar array at all times and in all weather conditions. It’s compatible with 4 different battery types, sealed lead acid, vented, gel and NiCd.
A universal solar charger for a wide range of batteries (Lithium, GEL, AGM, Flooded). Which ever the battery voltage of your solar system is, the Conversol SCC (Solar Charge Controller), it will automatically be adapted to the voltage of your batteries.
According to the selected voltage (12V, 24V, 48V), the maximum power from solar panels is adjusted accordingly to 800W, 1600W & 3200W.
The charger adapts to the voltage of the solar panel, you are not restricted to 12V or 24V solar panels, the intelligent MPPT algorithm with auto-adjust the output voltage and current of the charger and optimise the charging process. Conversol maximises the energy harvest, operating it smartly to achieve full charge in the shortest possible time.
Panels compatible: monocrystalline and polycrystalline technology up to 320Watt.
Service & Technical Support
We are a company that is based in the UK and offer 2 year warranty. If there is any issue outside the warranty period, we offer service and spare parts at very competitive prices. We want to make sure that you will always be able to generate electricity without interruption
Parallel Configuration
Using the communication cards (SNMP or Modbus) multiple solar chargers (SCC-MPPT) will share information between them to establish parallel operation. As a result, the 3kW-MPPT charger can be used to power up even large battery systems
MAIN FEATURES
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Compatible for PV systems in 12V, 24V or 48V
- Three-stage charging optimizes battery performance
- Maximum charging current up to 60A
- Maximum efficiency up to 98%
- Battery temperature sensor (BTS) automatically provides temperature compensation
- Support a wide range of lead-acid batteries including wet, AGM, and gel batteries
- Multifunction LCDs detailed information
Parallel Operation for increased charging current and large battery bank. The MOD-BUS card is installed on each charger.
EAN Code: 0610877900787
Specifications
x| MODEL | SCC-MPPT 3KW | ||
| PV INPUT | |||
| MPPT Range | 60 VDC ~ 115 VDC | ||
| Maximum PV Array Open Circuit Voltage | 145VDC | ||
| Maximum PV Array Power | 800W | 1600W | 3200W |
| Maximum Input Current | 50 A | ||
| BATTERY | |||
| Nominal Battery Voltage | 12 V | 24 V | 48 V |
| Connected Battery Type | Sealed lead acid, AGM or Gel | ||
| Maximum Charge Current | 60 A | ||
| Maximum Efficiency | 98% | ||
| Charging Method | Three stages: bulk, absorption and floating | ||
| PHYSICAL | |||
| Dimension, D x W x H (mm) | 315 x 165 x 128 | ||
| Net Weight (kgs) | 4.5 | ||
| Type of Mechanical Protection | IP 31 | ||
| COMMUNICATION | |||
| Standard | RS-232 and Dry contact | ||
| Optional | USB, Modbus and SNMP | ||
| ENVIRONMENT | |||
| Humidity | 5 ~ 95% RH (No condensing) | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||
