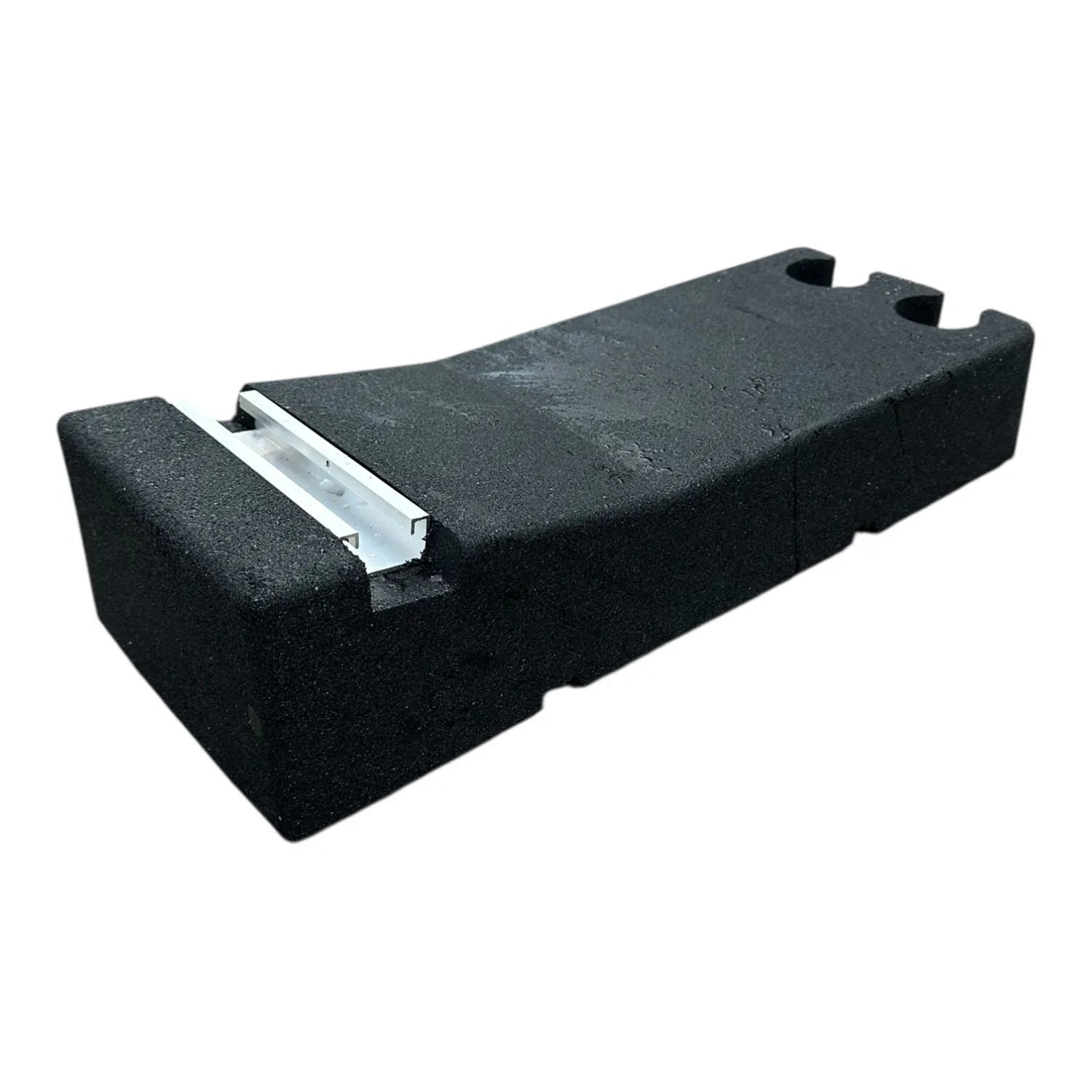

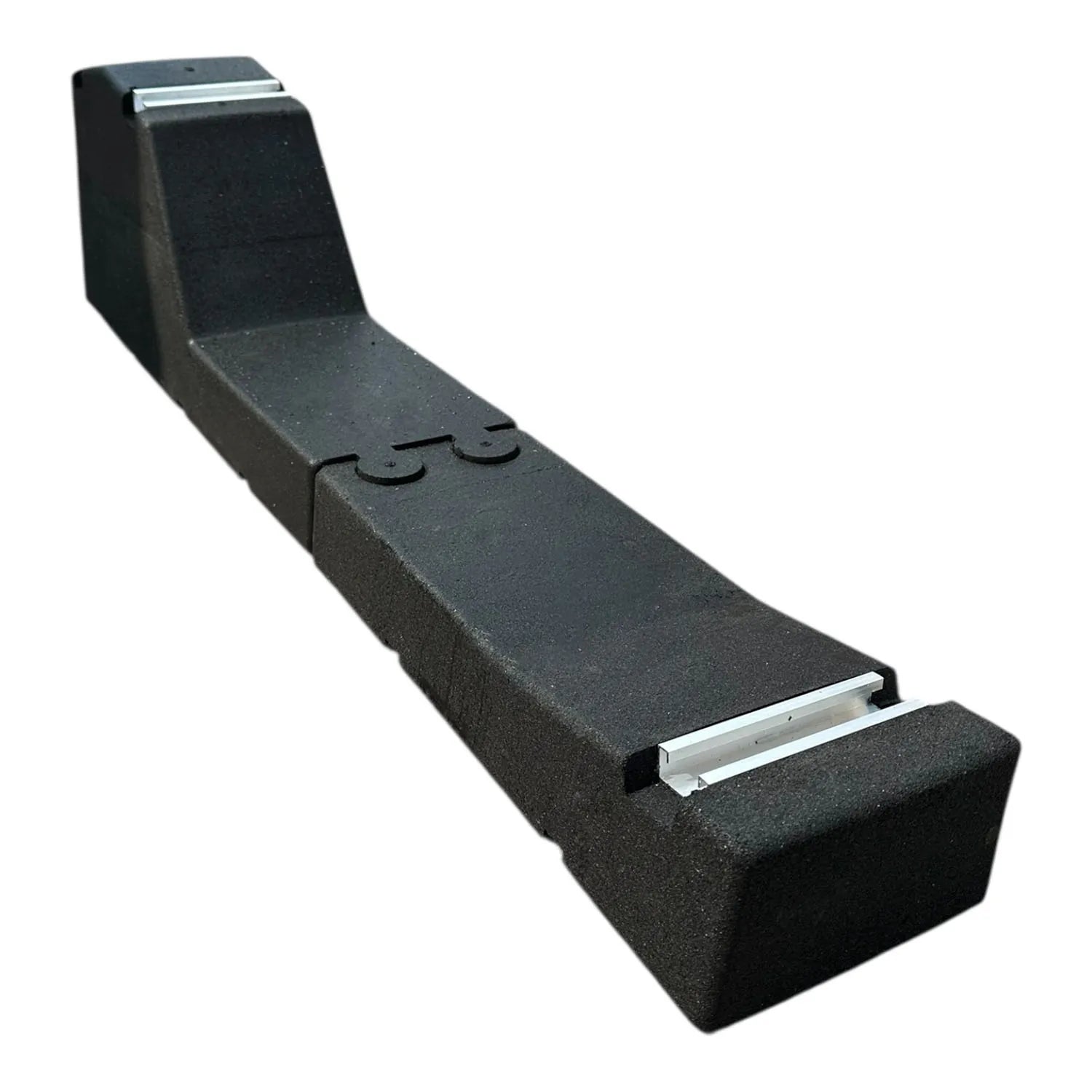

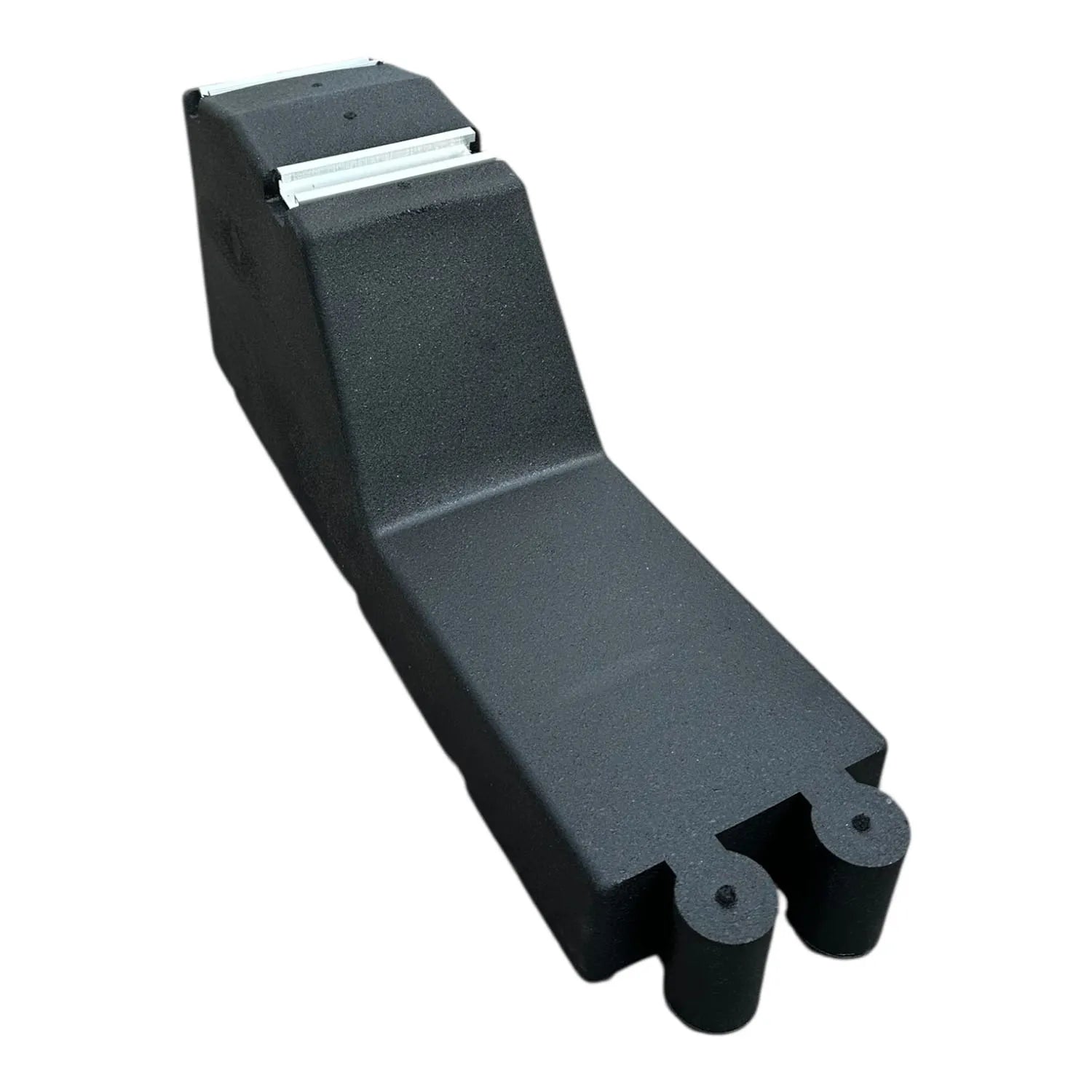

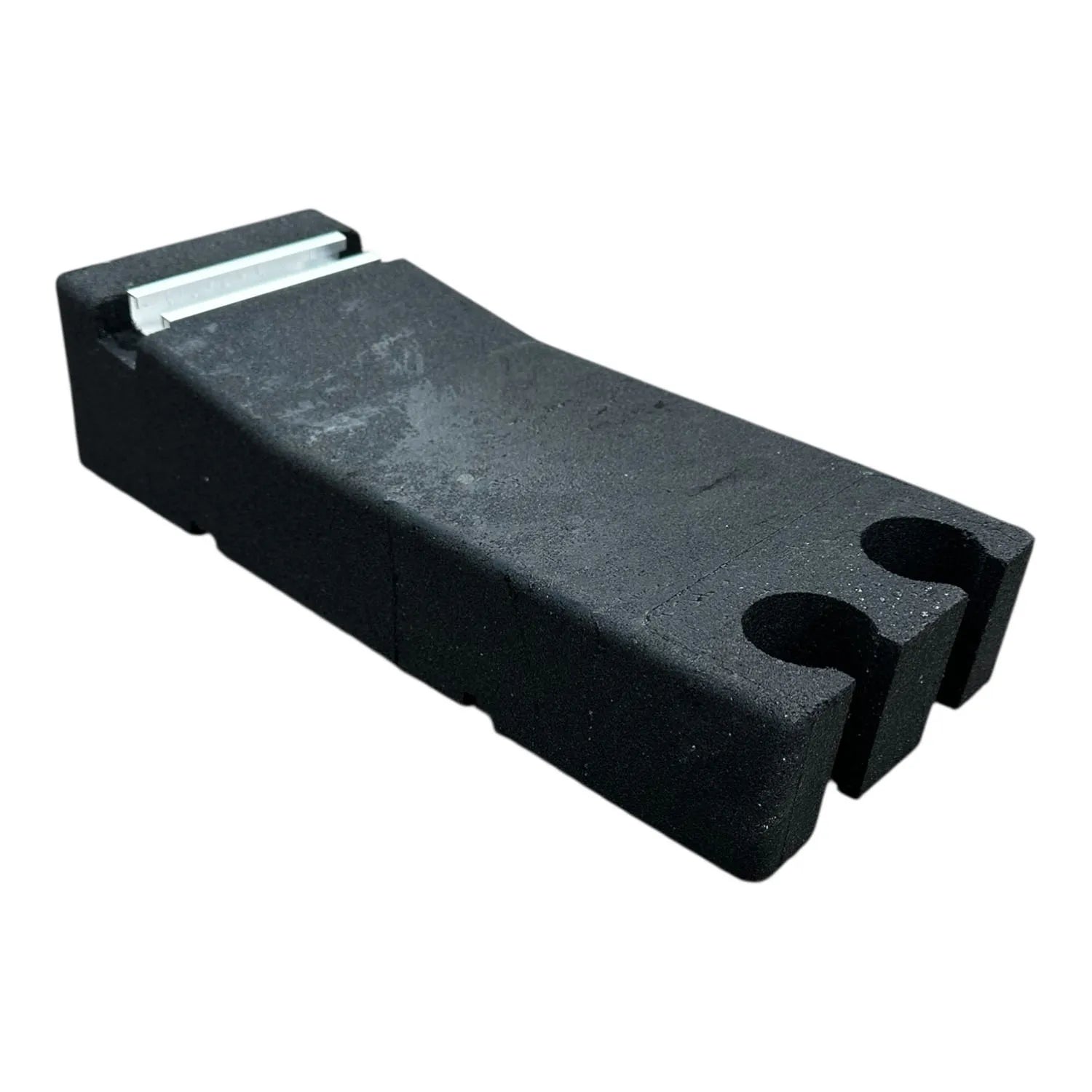

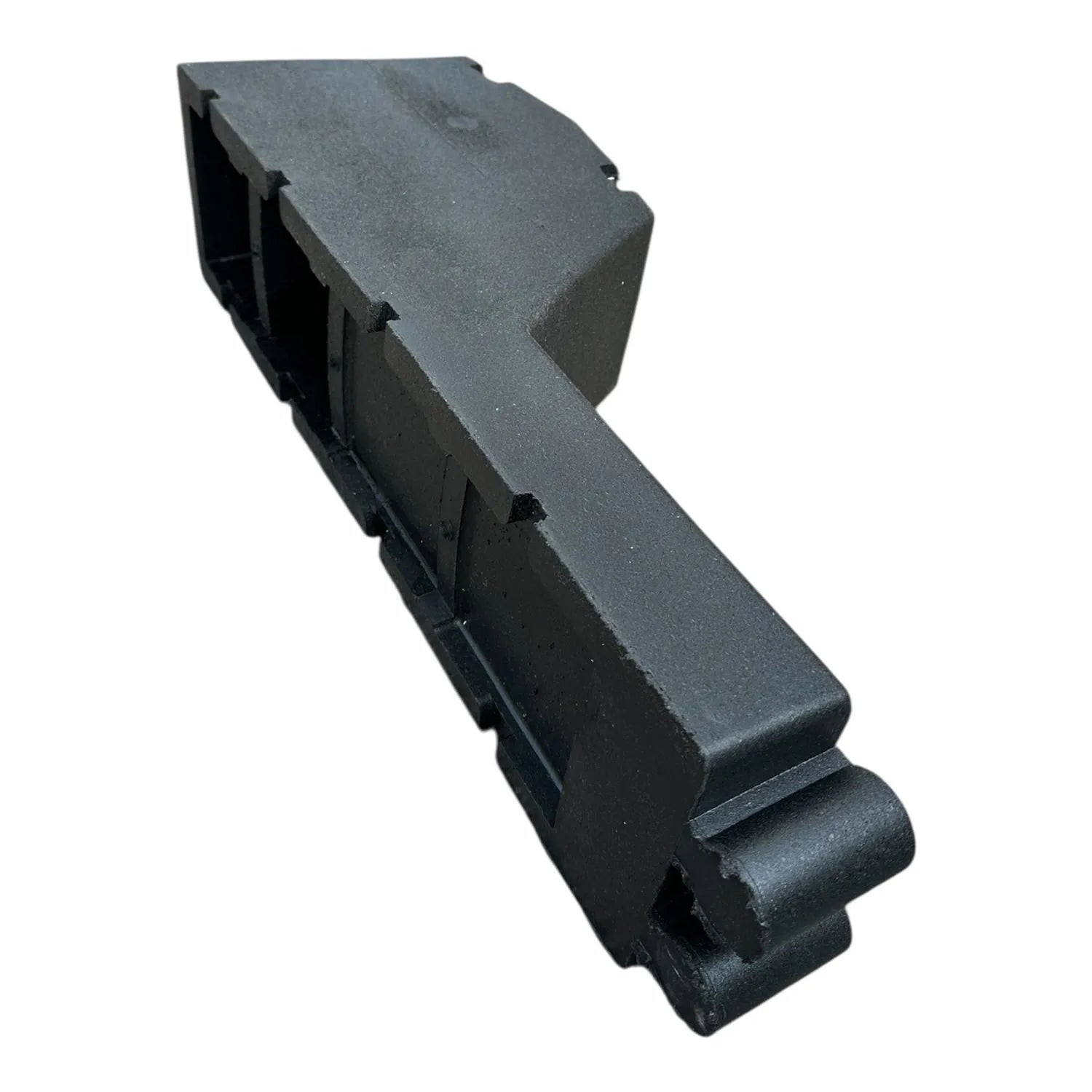

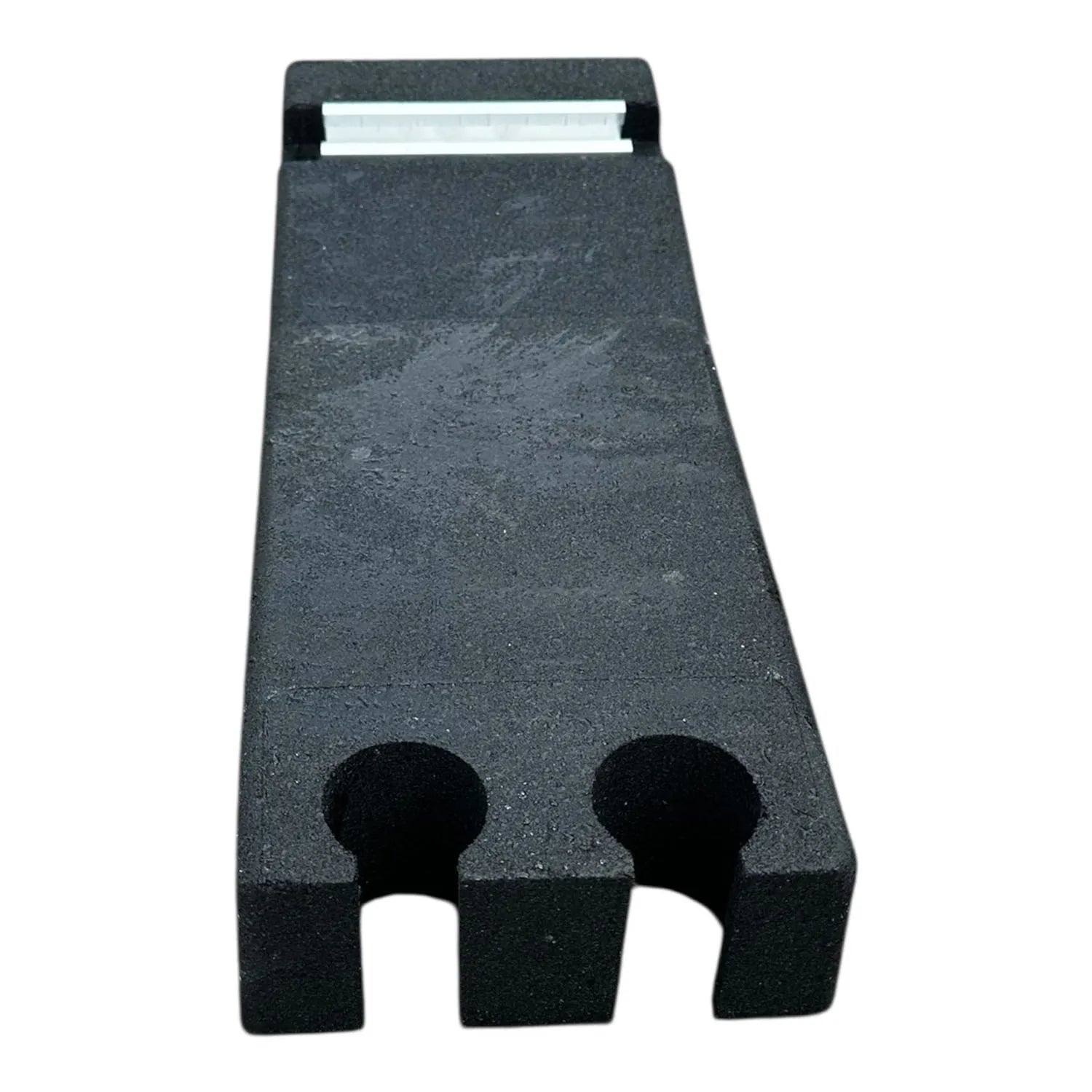

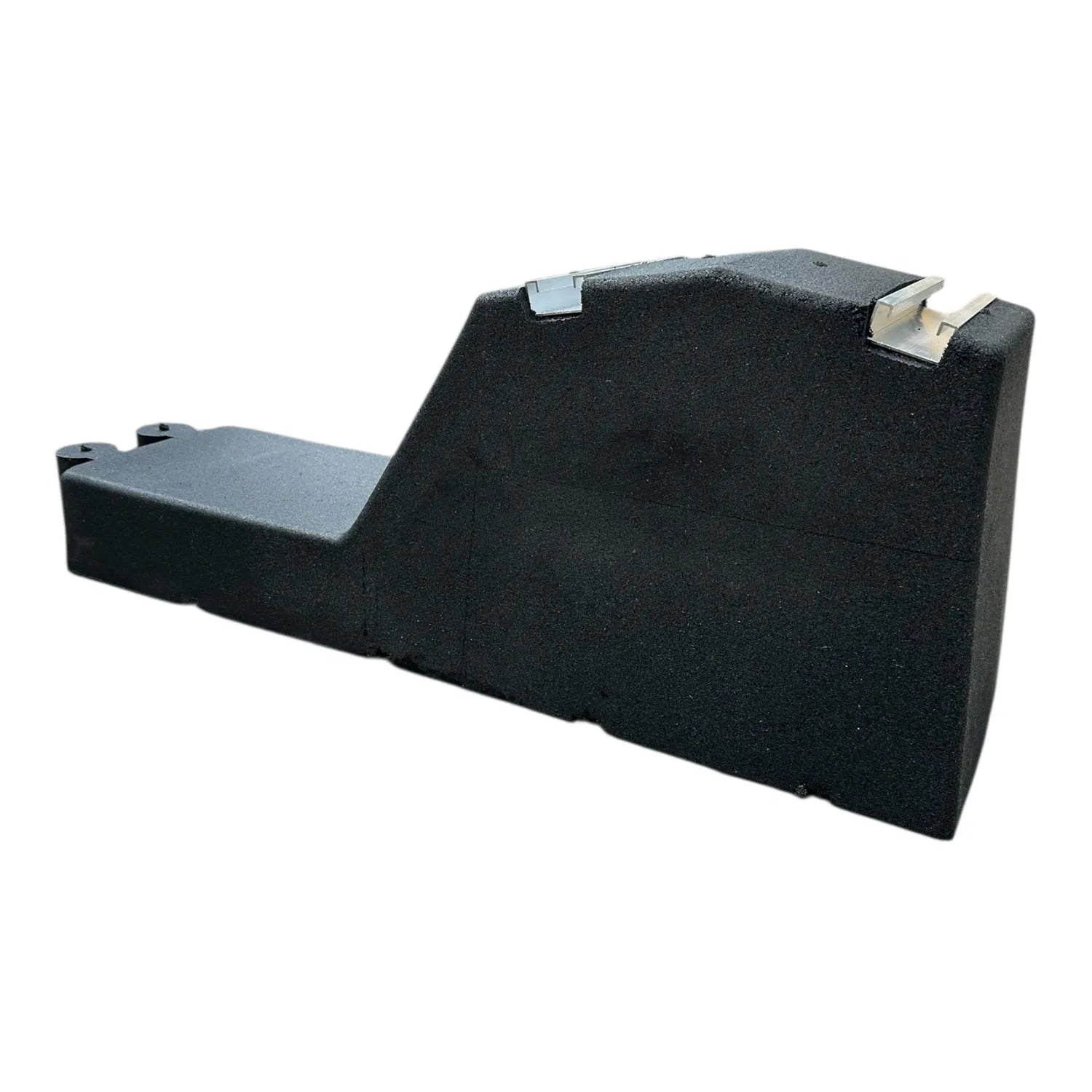

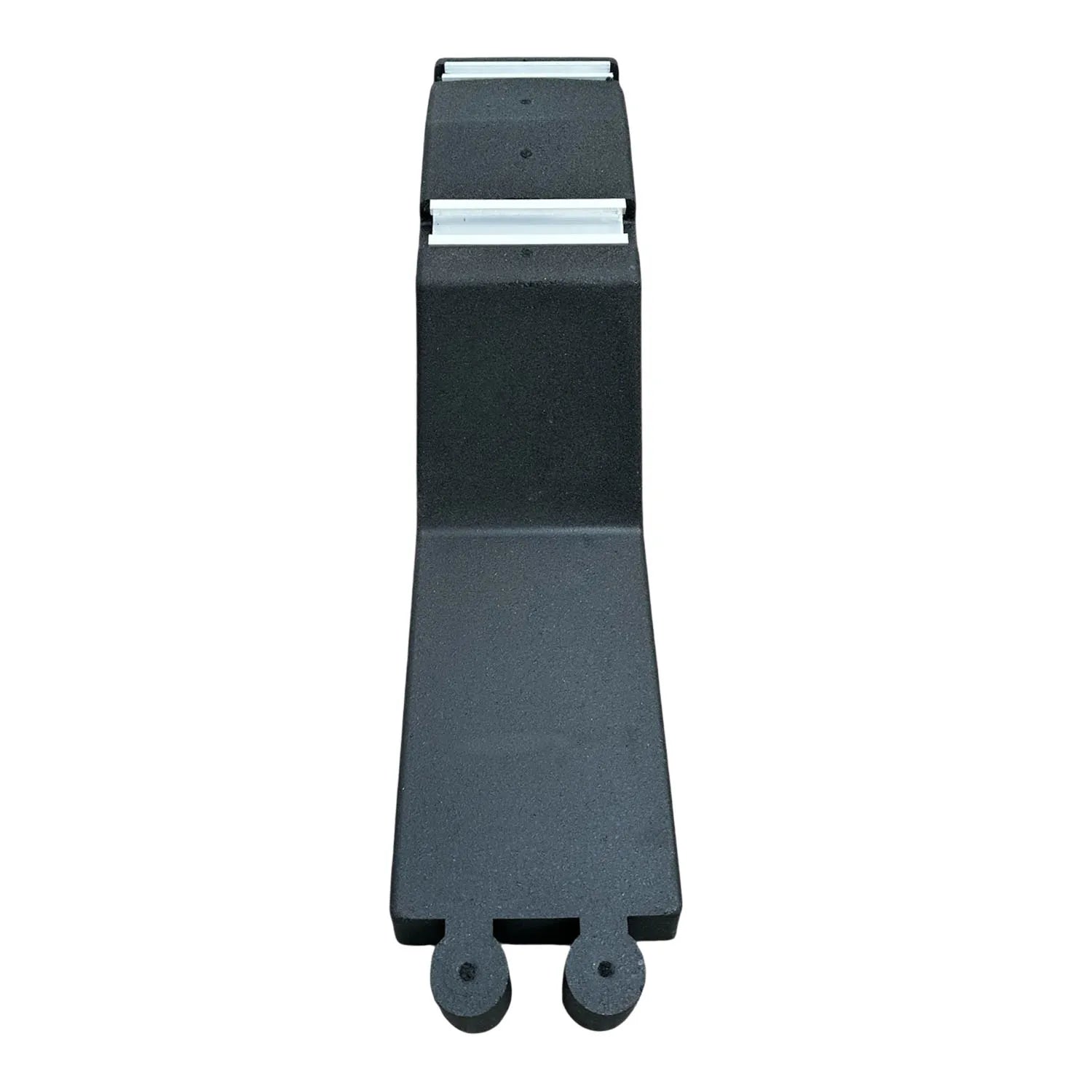

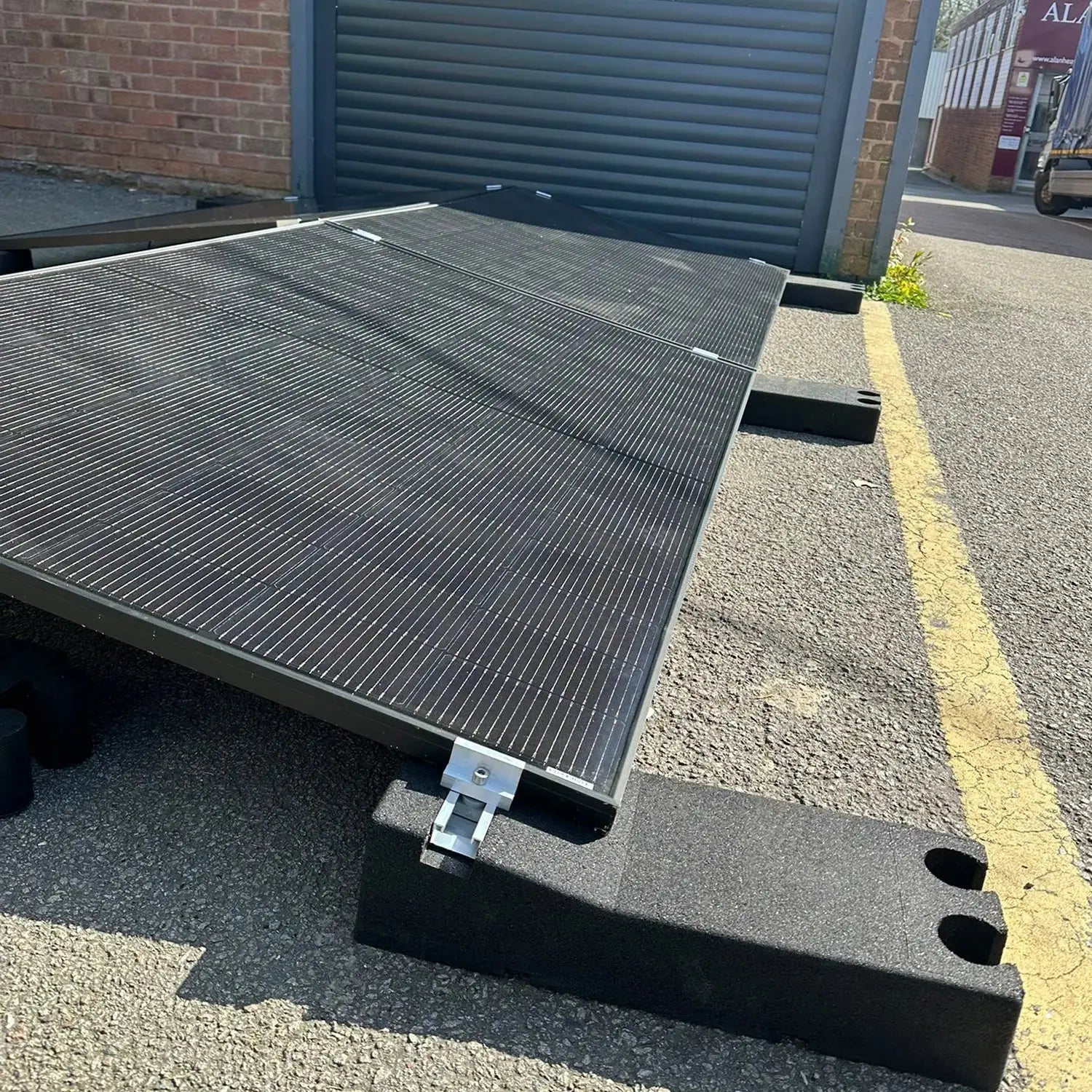

xVoltacon 10° Rubber Self-Ballasted Mounting System for Solar Panels
Innovative PV Mounting for South-Facing Installations
Voltacon introduces a high-performance 10° rubber ballasted structure for south-facing and east-west photovoltaic installations. This next-generation mounting solution provides installers and solar professionals with a fast, safe, and eco-friendly way to deploy solar panels on flat roofs with zero penetration.
Engineered for simplicity and strength, the system is ideal for commercial and residential rooftops with inclinations between 0° and 5°. Its interlocking rubber base allows for quick alignment and secure positioning, significantly reducing labour time and the need for additional ballast.
We added more installation "ideas" and short video on our solar blog
Quick and Clean Solar Panel Mounting
The 10° ballasted structure is developed for maximum installation efficiency. The use of 100% recycled rubber and corrosion-resistant aluminium ensures long-term durability in various weather conditions. The system’s anti-slip, high-friction base ensures panel stability without damaging roofing membranes.
Thanks to the modular interconnection between rows, installers can minimise added weight on the roof while maintaining robust wind resistance and structural integrity. It’s an ideal solution for installers looking to avoid roof perforation, waterproofing complications, and corrosion concerns.
Key Features of the Voltacon Ballasted PV Structure
-
Dual configuration options: suitable for both south-facing and east-west solar panel layouts
-
Fixed 10° tilt angle for optimal solar exposure and energy yield
-
Made from 100% recycled rubber and high-quality aluminium profiles
-
Lightweight design (10–11 kg/m²) reduces structural load
-
Fast, tool-free installation with interlocking rubber base
-
Non-slip surface with excellent vibration and impact absorption
-
Withstands wind speeds up to 145 km/h (40 m/s)
-
Temperature-resistant from -40°C to +80°C
-
Compatible with all standard photovoltaic modules
-
Maintenance-free system with 25-year manufacturer warranty
Product Installation Video
Technical Specifications
| Specification | South-Facing System | East-West System |
|---|---|---|
| Panel Orientation | Landscape | Landscape |
| Tilt Angle | 10 degrees | 10 degrees |
| Materials | Recycled Rubber & Aluminium | Recycled Rubber & Aluminium |
| System Weight | 11 kg/m² | 10 kg/m² |
| Roof Inclination Range | 0° to 5° | 0° to 5° |
| Wind Load Capacity | Up to 145 km/h | Up to 145 km/h |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C |
| Warranty | 25 Years | 25 Years |
All components are compliant with European standards: EN AW-6060 aluminium profiles with thermal treatments, and stainless steel fasteners (DIN ISO standards). For aggressive environments, optional A4 stainless steel and special surface treatments are available upon request.
A Smarter Choice for Flat Roof Solar Systems
Voltacon’s rubber ballasted mounting structure is engineered to eliminate common installation challenges. It avoids penetration of waterproof membranes, reduces ballast requirements, and accelerates system deployment. This makes it the ideal mounting solution for flat roof solar PV systems where structural limitations or waterproofing are a concern.
Whether for large-scale commercial arrays or smaller residential systems, this system helps installers deliver safe, neat, and long-lasting solar energy solutions — with confidence and speed.
