Description

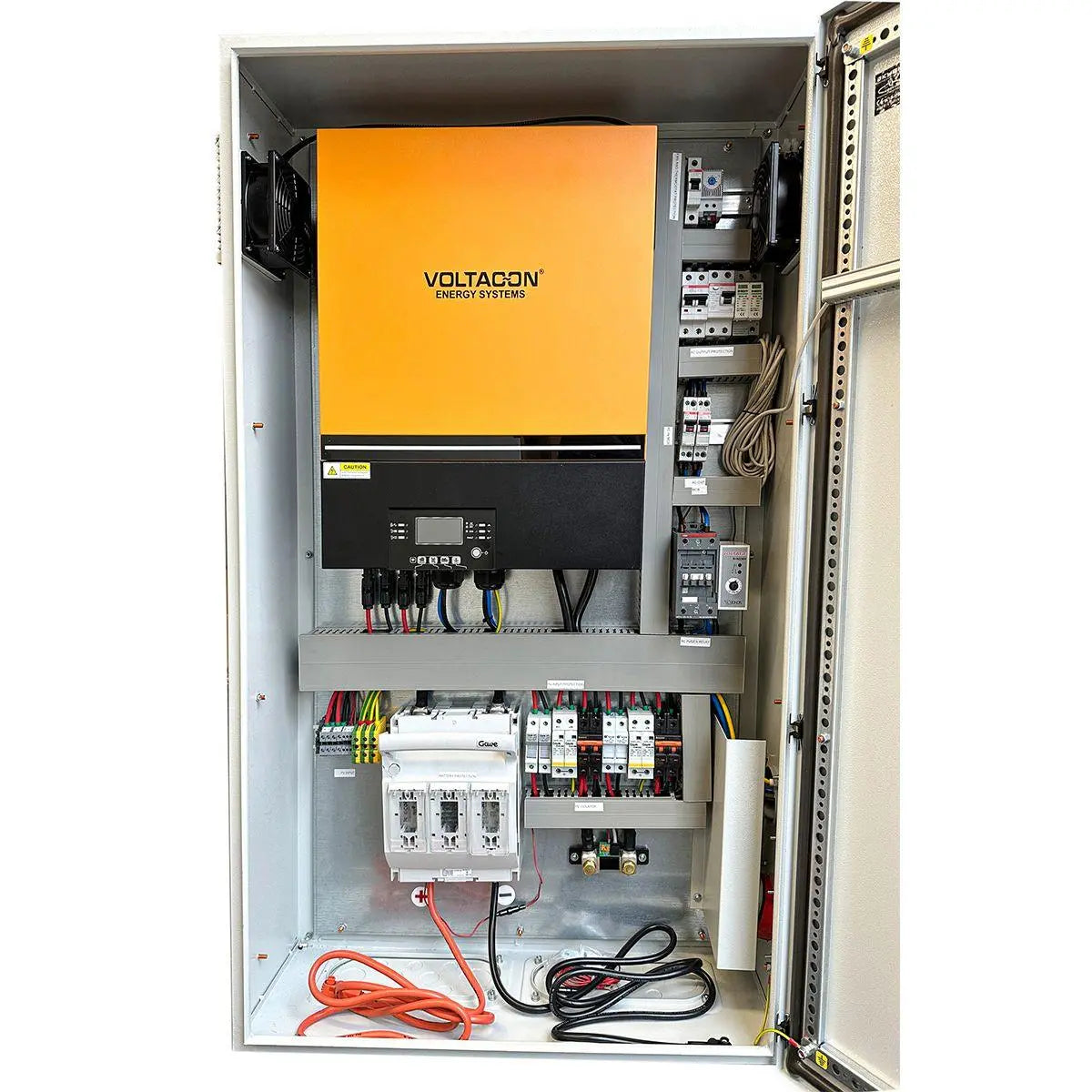

x11kW Conversol Off Grid System - Wired & Tested 230V Single Phase
Pre-wired, factory-tested control cabinet with 11kVA inverter, MPPT charger, data logger and fully protected input and output power terminals
Discover the All-in-One Silent Power Cabinet 11kW, the ultimate off-grid powerhouse for single-phase applications. Crafted with precision by skilled engineers in the United Kingdom, this plug-and-play cabinet from Voltacon sets the standard for excellence. We meticulously test and pre-install software tailored to your needs, leaving you minimal on-site wiring tasks.
Commissioning the Silent Power (SP) cabinet is a breeze, requiring only basic skills and standard tools. The solar panel cables effortlessly connect to fused-protected terminals featuring surge protection and convenient LED indicators. Managing the battery terminals is easy and simple, thanks to clear signage showing the positive and negative poles.
Equipped with high-current DC bus bars and mega-fuses, the cabinet allows straightforward battery bank expansion by adding more lithium-ion batteries in parallel without electrical panel modifications. Monitor the battery's energy flow with the Smart Shunt Victron resistor, which connects to the Victron app via Bluetooth.
You can operate the industrial cabinet in any climate with confidence. The cooling fans enable efficient operation with closed doors, even in humid and hot environments. Benefit from advanced monitoring software, Solar-Assistant, which stores data for over ten years.
The 11kW single-phase cabinet integrates with the grid or generator backup, ensuring a 24/7, uninterrupted power supply. Utilise the AC charger timer to optimise charging hours, taking advantage of affordable grid electricity.
Plus, enjoy peace of mind with a 1-year warranty, extendable to 3 or 5 years. Embrace the All-in-One Silent Power Cabinet 11kW and experience unrivalled off-grid energy independence.
Features
- 11kVA/11KW AC Output
- Dual MPPT Battery Charger 11500Watt
- 48V Battery Connection - Compatible with Lithium/AGM/Flood
- AC Timer for charging from the mains
- External Generator 230V for Back-Up.
- Solar Assistant monitoring - Available from October 2024 onwards
Dimensions 10cm height. 75cm wide. 25cm depth.
Specifications
x| MODEL | Axpert MAX E-11000 |
| Rated Inverter Power | 11000VA/11000W |
| PARALLEL CAPABILITY | YES, 6 units |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 22000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <70W |
| Dual Outputs | YES |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 11000W |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maxmum Solar Charge Current | 150A |
| Maximum AC Charge Current | 150A |
| Maximum Charge Current | 150A |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 147.4 x 432.5 x 553.6 |
| Net Weight (kgs) | 18.4 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 60℃ |
| STANDARD | |
| Compliance Safety | CE |
