xComplete Off-Grid Solar Photovoltaic Kit. It includes Inverter with Charger, PV Cables and Protection Accessories. Easy and Safe Set Up.
Skip the complications and head straight for the comfort and freedom of a complete energy system. This multifunctional energy system brings together a powerful sine wave inverter, a sophisticated battery charger, a high-speed AC transfer switch and AC distribution in a single lightweight and compact enclosure, which cuts down on the time required to install and eliminates pesky technical procedures that could crop up for the novice installer. The result is a seamless installation process with a control cabinet that works hard -- though you'd never be able to guess!
Every Silent Power Off-Grid Photovoltaic Control Cabinet is designed with a state-of-the-art battery monitoring system with added Bluetooth connectivity. Access temperature and energy status update and avoid premature failures via any Android-based mobile phone.
To get started, simply connect the solar panel and battery cables to the protected power terminals of the cabinet. The Silent Power Off-Grid Photovoltaic Control Cabinet is a complete system that focuses on energy but keeps the user at the centre of its design.
Voltacon develops plug'n'play off grid control cabinets that are made in UK for continuous 230VAC power supply. The main power conversion system is our Conversol inverter/charger with active output power 3000VA/3000W, the MPPT 60A solar charger and the battery monitor from Victron (BMV-712).

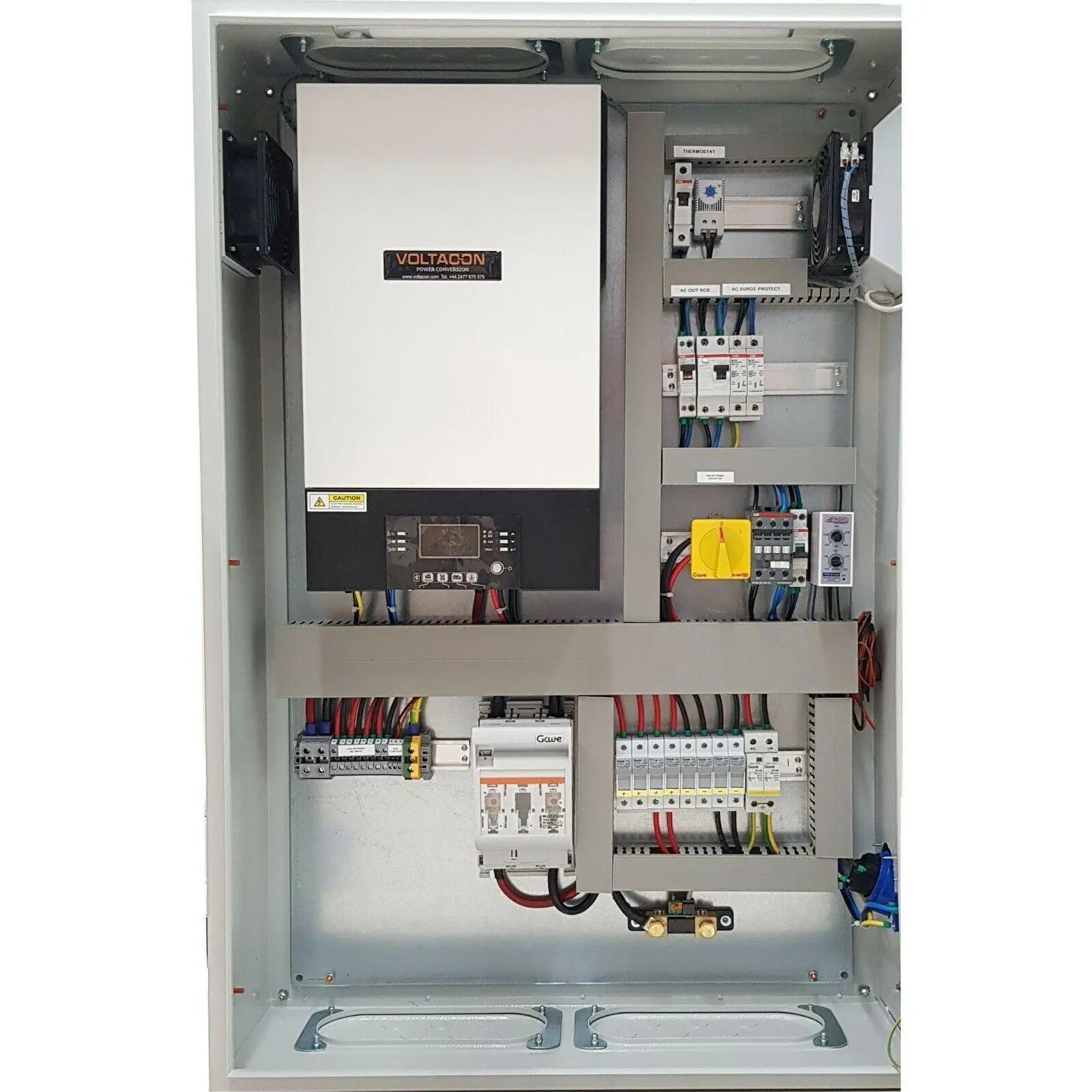

THE POWER STATION CONTAINS
- Solar Inverter 3000W with MPPT Battery Charger
- AC Output Terminals 230VAC
- AC Circuit Breaker & RCD
- AC Output Terminal for an external generator
- AC Output breaker and soft start for generator
- Victron BMV-712 with Bluetooth, battery monitoring.
- Integrated PV Combiner with fused terminals
- DC Disconnector for the solar panels
- DC Disconnector for the batteries
DIMENSIONS OF SILENT POWER SP-3024-S-P
- 900mm height x 600mm width x 250mm depth
Specifications
x| MODEL | Conversol 3K-24 Super S3 | |||
| Rated Power | 3000VA/3000W | |||
| INPUT | ||||
| Voltage | 120 VAC or 230 VAC | |||
| Selectable Voltage Range | 95-140 VAC or 170-280 VAC (For Personal Computers) 65-140 VAC or 90-280 VAC (For Home Appliances) |
|||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) or 230VAC ± 5% | |||
| Surge Power | 6000VA | |||
| Efficiency (Peak) | 90% - 93% | |||
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|||
| Waveform | Pure sine wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 24 VDC | |||
| Floating Charge Voltage | 27VDC | |||
| Overcharge Protection | 34VDC | |||
| Maximum Charge Current | 80A +60A from AC Generator | |||
| SOLAR CHARGER | ||||
| Maximum PV Array Power | 1500 W | |||
| MPPT Range @ Operating Voltage | 30 ~ 115 VDC | |||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||
| Maximum Charging Current | 60A | |||
| Maximum Efficiency | 98% | |||
| Standby Power Consumption | 2 W | |||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 140 x 300 x 512 | |||
| Net Weight (kgs) | 11.5 | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
