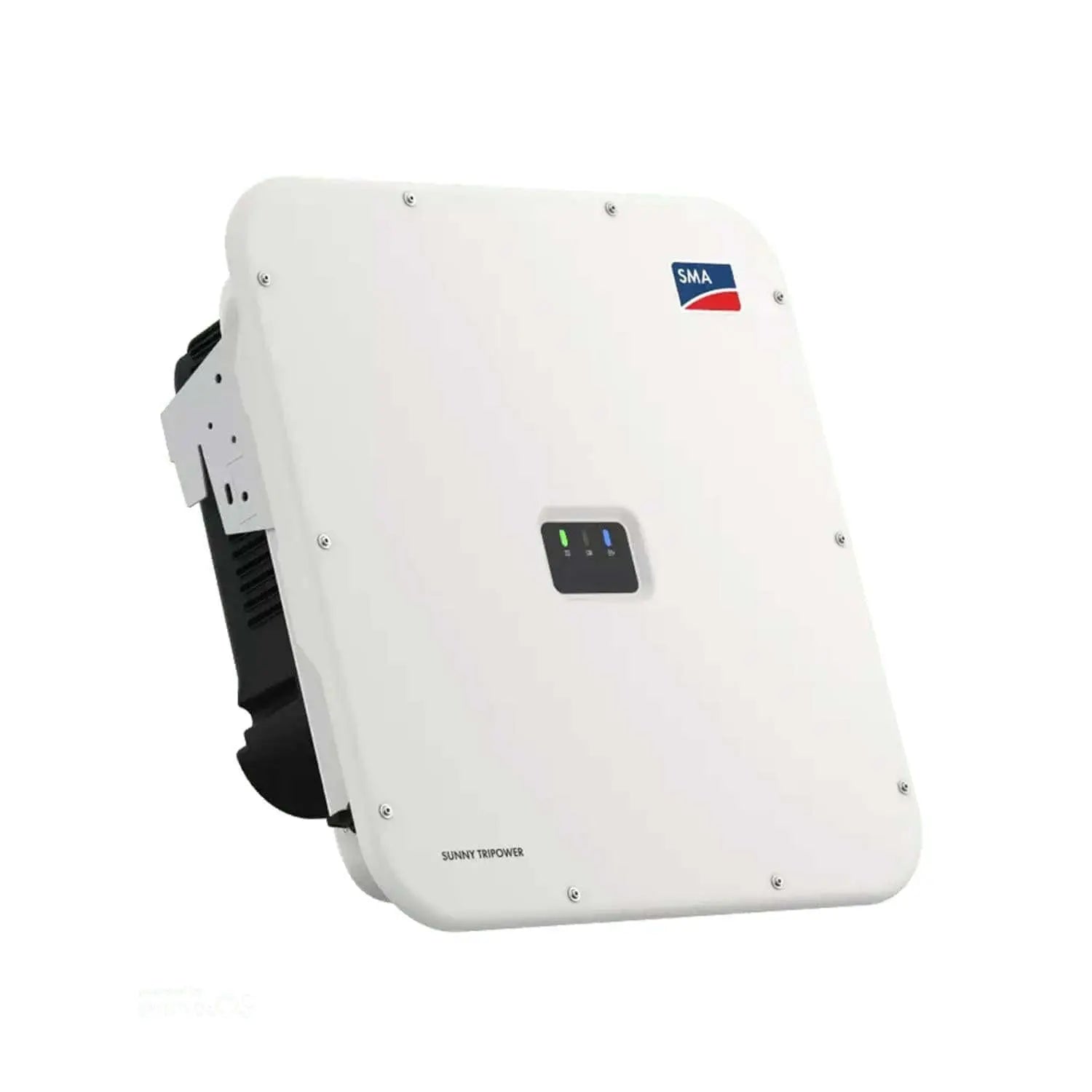

xSMA Sunny Tripower X 20kW 3 Phase Grid-Tied Solar Inverter
The SMA Sunny Tripower X 20kW is a three phase grid-tied solar inverter designed for commercial PV systems and large residential installations. With three independent MPP trackers, a maximum input voltage of 1000VDC, IP65 enclosure, and integrated system manager functionality, it provides a capable and well-specified platform for professional solar installations.
Key Features
- 20kW rated AC output at 230V, 50Hz
- Three independent MPP trackers
- Maximum input voltage: 1000VDC
- Maximum usable input current per MPP tracker: 24A
- MPP voltage range: 345 to 800V
- Maximum efficiency: 98.2%
- European efficiency: 97.9%
- IP65 enclosure suitable for outdoor installation
- SMA ShadeFix for improved yield under partial shading
- SMA ArcFix integrated arc-fault circuit interrupter
- Integrated system manager: monitors and controls up to 5 SMA inverters and one energy meter
- SMA Dynamic Power Control for active and reactive power management
- Ethernet, local WLAN, and RS485 communication
- SMA Modbus and SunSpec Modbus data protocols
- Direct access to Sunny Portal powered by ennexOS
- OptiCool thermal management for efficient cooling and long service life
Product Overview
The Sunny Tripower X 20kW is available in 12kW, 15kW, 20kW, and 25kW variants within the same product family, sharing a common platform and installation footprint. The three MPP trackers allow independent string management across different roof orientations or shading conditions, maximising energy yield in complex PV layouts.
The integrated system manager function removes the need for a separate monitoring device in smaller commercial systems, handling dynamic power control and feed-in management for up to five inverters totalling up to 135kVA. Direct connection to Sunny Portal via ennexOS provides remote monitoring and data analysis without additional hardware.
SMA ShadeFix uses an advanced optimisation algorithm to maximise energy yield during partial shading events, operating at the inverter level without requiring module-level optimisers. SMA ArcFix provides active detection of DC arc faults to reduce fire risk in the PV array.
Applications
- Commercial rooftop and ground-mounted solar PV systems
- Large residential solar installations
- Multi-inverter systems with centralised monitoring
- Sites with partial shading or multiple roof orientations
Installation and Safety Notes
This inverter must be installed by a qualified electrical engineer or MCS-accredited solar installer. G99 notification and DNO approval are required for connection to the UK distribution network at this power level. DC wiring, string fusing, AC protection, and earthing must comply with IET Wiring Regulations and SMA's installation manual. Commissioning via SMA commissioning tools is required before operation.
Specifications
x| Parameter | STP-X 12kW | STP-X 15kW | STP-X 20kW | STP-X 25kW |
| Max PV Array Power | 18000 Wp | 22500 Wp | 30000 Wp | 37500 Wp |
| Max Input Voltage | 1000 V | |||
| MPP Voltage Range | 210–800 V | 260–800 V | 345–800 V | 430–800 V |
| Rated Input Voltage | 580 V | |||
| Min / Initial Input Voltage | 150 V / 188 V | |||
| Max Input Current per MPP Tracker | 24 A | |||
| Max Short-Circuit Current per MPP Tracker | 37.5 A | |||
| Number of MPP Trackers / Strings per Tracker | 3 / 2 | |||
| Rated Output Power | 12000 W | 15000 W | 20000 W | 25000 W |
| Rated / Max Apparent Power | 12000 VA | 15000 VA | 20000 VA | 25000 VA |
| Nominal AC Voltage | 220/380 V; 230/400 V; 240/415 V | |||
| AC Voltage Range | 176–275 V / 304–477 V | |||
| Grid Frequency / Range | 50 Hz / 44–56 Hz; 60 Hz / 54–66 Hz | |||
| Rated Output Current | 17.4 A | 21.7 A | 29 A | 36.2 A |
| THD | <3% | |||
| Max Efficiency / EU Efficiency | 98.2% / 97.6% | 98.2% / 97.8% | 98.2% / 97.9% | 98.2% / 98.0% |
| Ingress Protection | IP65 | |||
| Dimensions (W x H x D) | 728 x 762 x 266 mm | |||
| Weight | 35 kg | |||
| Operating Temperature | -25°C to +60°C | |||
| Max Noise Emission | 59 dB(A) | |||
| Self-Consumption (Night) | <5 W | |||
| Topology / Cooling | Transformerless / OptiCool | |||
| Communication | Ethernet, local WLAN, RS485 | |||
| Data Protocols | SMA Modbus, SunSpec Modbus, Speedwire | |||
