Description
xSolar Panel 465W & Micro Inverter Kit
Plug & Play Solar Power for Homes, Balconies and Small Installations
Start generating your own clean electricity with this compact Plug & Play Solar Kit, designed for small-scale solar installations, balcony systems, garden buildings, sheds, garages, free-standing PV setups and home self-consumption.
The kit includes a high-efficiency 465W JA Solar panel, a 600W Voltacon WiFi micro inverter and a 5m AC cable with a UK 13A plug. Simply connect the solar panel to the micro inverter, plug into a suitable 13A wall socket and begin using solar energy during daylight hours.
No contracts, no complex installation and no large rooftop project. This is a simple way to start producing your own green electricity for direct self-consumption.

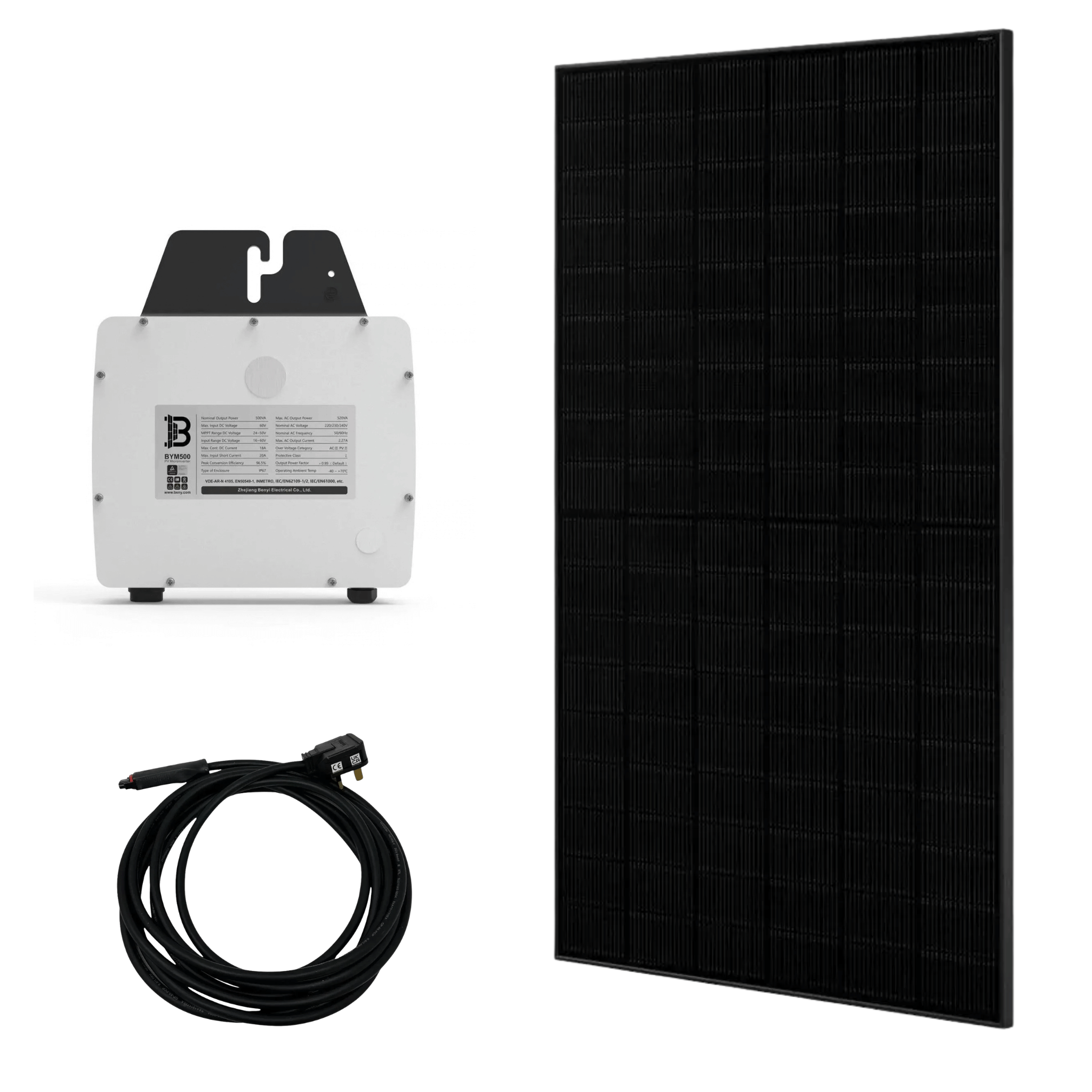

What Is Included
- 1 x 465W JA Solar Monocrystalline Dual Glass Solar Panel
- 1 x 600W Voltacon Micro Inverter with built-in WiFi monitoring
- 1 x 5m AC power cable with UK 13A plug
European plug options are available on request. Please contact us and we will provide the correct cable for your region.
Ideal for Small Solar Installations
- Balcony solar systems
- Free-standing PV installations
- Garden rooms, sheds and garages
- Small home energy systems
- Single-panel or expandable solar arrays
Micro inverters are ideal for compact solar systems because each panel operates independently. This helps improve energy production where shading, panel angle or orientation may vary.
Smart 230V AC Output
The Voltacon micro inverter converts solar panel DC power into 230V AC pure sine wave output, ready for direct home self-consumption when installed and used according to the relevant instructions and local requirements.
Key Benefits
- Simple plug & play solar solution
- Designed for connection via a suitable 13A wall socket
- Built-in WiFi monitoring
- Individual panel-level power optimisation
- Helps reduce losses caused by shading or panel mismatch
- Can harvest up to 30% more energy per panel compared with non-optimised systems
- 25-year solar panel performance warranty
- 10-year warranty on inverter components
- Suitable for homes, balconies, sheds, garages and small PV systems
WiFi Monitoring
Monitor your solar energy production in real time using the BPVB Cloud app on Android or iOS. View live output, performance data and device status directly from your smartphone.
A Simple Way to Start with Solar
The 465W Solar Panel and Voltacon Micro Inverter Kit is an easy and practical way to begin generating your own electricity. It is ideal for reducing daytime energy consumption, powering small loads and starting your solar journey without committing to a full rooftop installation.
Specifications
xTechnical specification
| Manufacturer | JA Solar |
| Model | JAM54D41-465/LR |
| Panel type | Monofacial, double glass, all black |
| Cell technology | N-type monocrystalline |
| Maximum power (Pmax) | 465W |
| Module efficiency | 23.3% |
| Power tolerance | 0 to +5W |
| Open circuit voltage (Voc) | 40.70V |
| Maximum power voltage (Vmp) | 34.02V |
| Short circuit current (Isc) | 14.46A |
| Maximum power current (Imp) | 13.68A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 30A |
| Cell configuration | 108 cells |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 22kg |
| Front glass | 1.6mm tempered glass |
| Rear glass | 1.6mm tempered glass |
| Junction box | IP68 rated |
| Output cable | 4mm², portrait installation 300mm / landscape installation 1200mm |
| Connector | QC 4.10-35I or MC4-EVO2A |
| Operating temperature | -40°C to +85°C |
| Temperature coefficient of Pmax | -0.290% / °C |
| Temperature coefficient of Voc | -0.250% / °C |
| Temperature coefficient of Isc | 0.045% / °C |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| First year degradation | 1% |
| Annual degradation from year 2 to 30 | 0.4% |
