xSunsynk & Deye Solar Assistant Monitoring Kit – Fully Assembled Raspberry Pi 4
Smart Monitoring for Your Solar System
Gain full visibility and control of your solar installation with our ready-to-use Solar Assistant kit. Designed for Sunsynk, Deye, Sol-Ark, and Fusion Hybrid inverters, this solution offers real-time performance data, dynamic charts, and remote access via browser, Android, or iPhone – all with no subscription or maintenance fees.
Plug-and-Play Installation

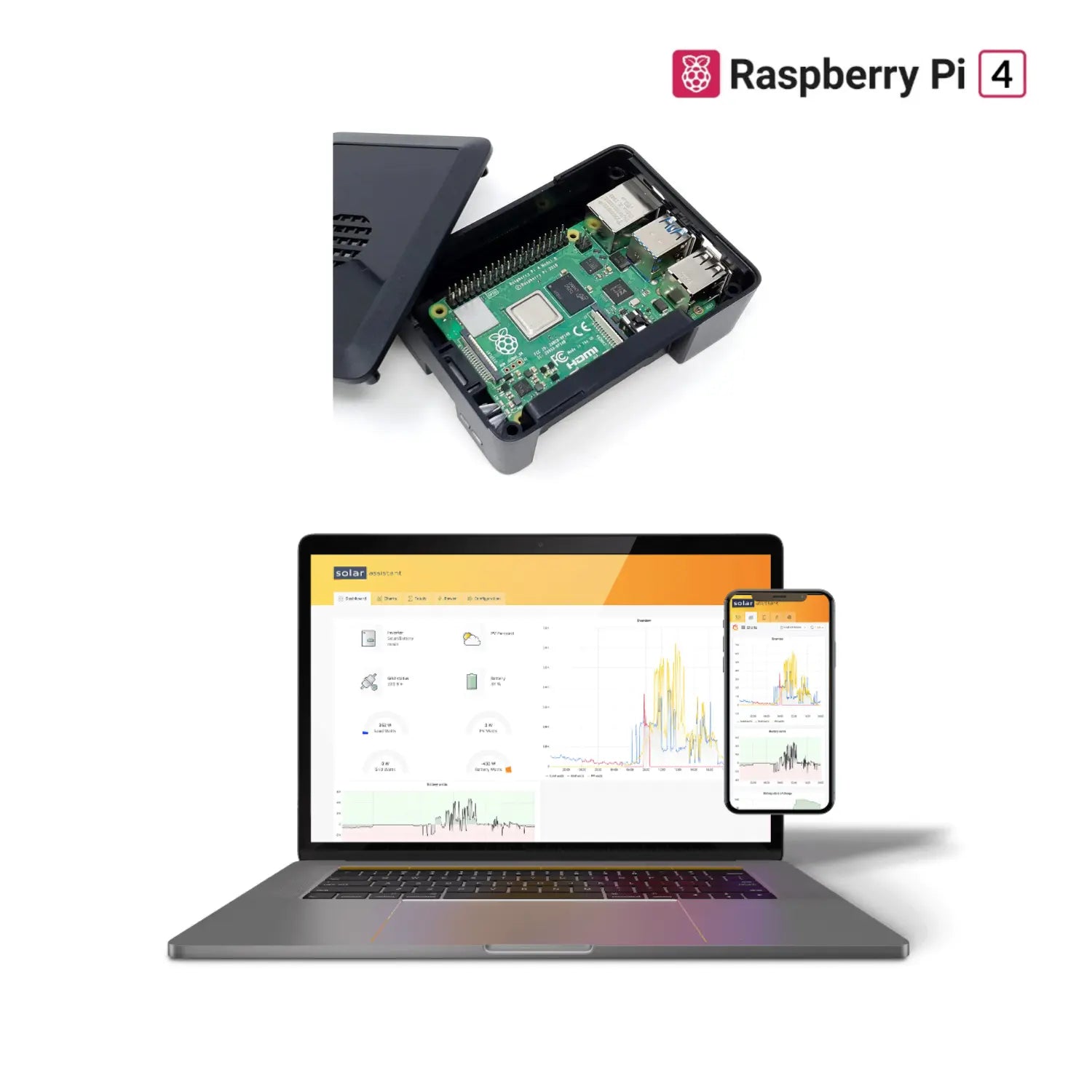

The Solar Assistant kit comes fully assembled with a Raspberry Pi 4 Model B (2GB) housed in a durable case. It’s pre-loaded with Solar Assistant software, and includes an RJ45 to USB cable compatible with Voltacon inverters. No configuration required – just connect, power on, and start monitoring!
What’s Included
- Raspberry Pi 4 – 2GB RAM, 1.8GHz CPU
- Pre-installed Solar Assistant software
- 32GB Lexar Micro SD Card
- Official Raspberry Pi USB-C 5V Power Supply
- RJ45 to USB RS485 communication cable
- Pre-configured plastic enclosure with full port access and cooling fan
- Step-by-step instructions and an online video guide
User-Friendly Data & Graphs
All key metrics are displayed in an intuitive dashboard. Dynamic charts are easy to read and require no technical background. Set up your online account in minutes – login details and instructions are included.
Compatible Inverter Models
This system supports monitoring via the RS485 port when the RS232 or WiFi ports are already in use. Ensure your inverter's RS485 port is available before installation. One cable per inverter is required for parallel or 3-phase systems.
- Sunsynk
- Deye
- Sol-Ark
- Fusion Hybrid
RJ45 Splitter for BMS Port (Optional)
For users of Deye/Sunsynk/Sol-Ark inverters, we offer a specialised RJ45 splitter that separates the CAN and RS485 communication lines correctly. Unlike generic splitters designed for Ethernet networks, this splitter ensures proper operation and prevents communication conflicts with your battery.
Specifications of communication cables - See recommended items below not included in this listing.
- 1x RJ45 input (pin 1–5)
- 1x CAN RJ45 socket (pin 4–5)
- 1x RS485 RJ45 socket (pin 1–3)
- Length: 50cm
- Shielded for noise protection
Raspberry Pi Case – Connectivity & Cooling
- All ports remain fully accessible
- Clear view of LED indicators through light pipes
- Dedicated cut-outs for GPIO, CSI, and DSI cables
- Built-in SD card holder
- Optional fan mount with GPIO pin connection (red = 5V, black = GND)
- Cooling fan on the case is pre installed.
Watch Before You Buy
We’ve prepared an online demonstration video showing how to connect and operate the Solar Assistant with your inverter and peripherals. A full set of instructions is included with every kit.
Product Dimensions
104mm (L) x 74mm (W) x 36mm (H)
Specifications
xTechnical Specifications:
- 1.5GHz 64-bit quad-core CPU
- Available with 1GB, 2GB, 4GB or 8GB RAM (select above)
- 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Gigabit Ethernet
- 2x USB 3.0 ports; 2x USB 2.0 ports.
- Raspberry Pi standard 40 pin GPIO header
- 2 × micro-HDMI ports (up to 4kp60 supported)
- 2-lane MIPI DSI display port
- 2-lane MIPI CSI camera port
- 4-pole stereo audio and composite video port
- 265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- OpenGL ES 3.0 graphics
- Micro-SD card slot for loading operating system and data storage
- 5V DC via USB-C connector (minimum 3A*)
- 5V DC via GPIO header (minimum 3A*)
- Power over Ethernet (PoE) enabled (requires separate PoE Hat)
