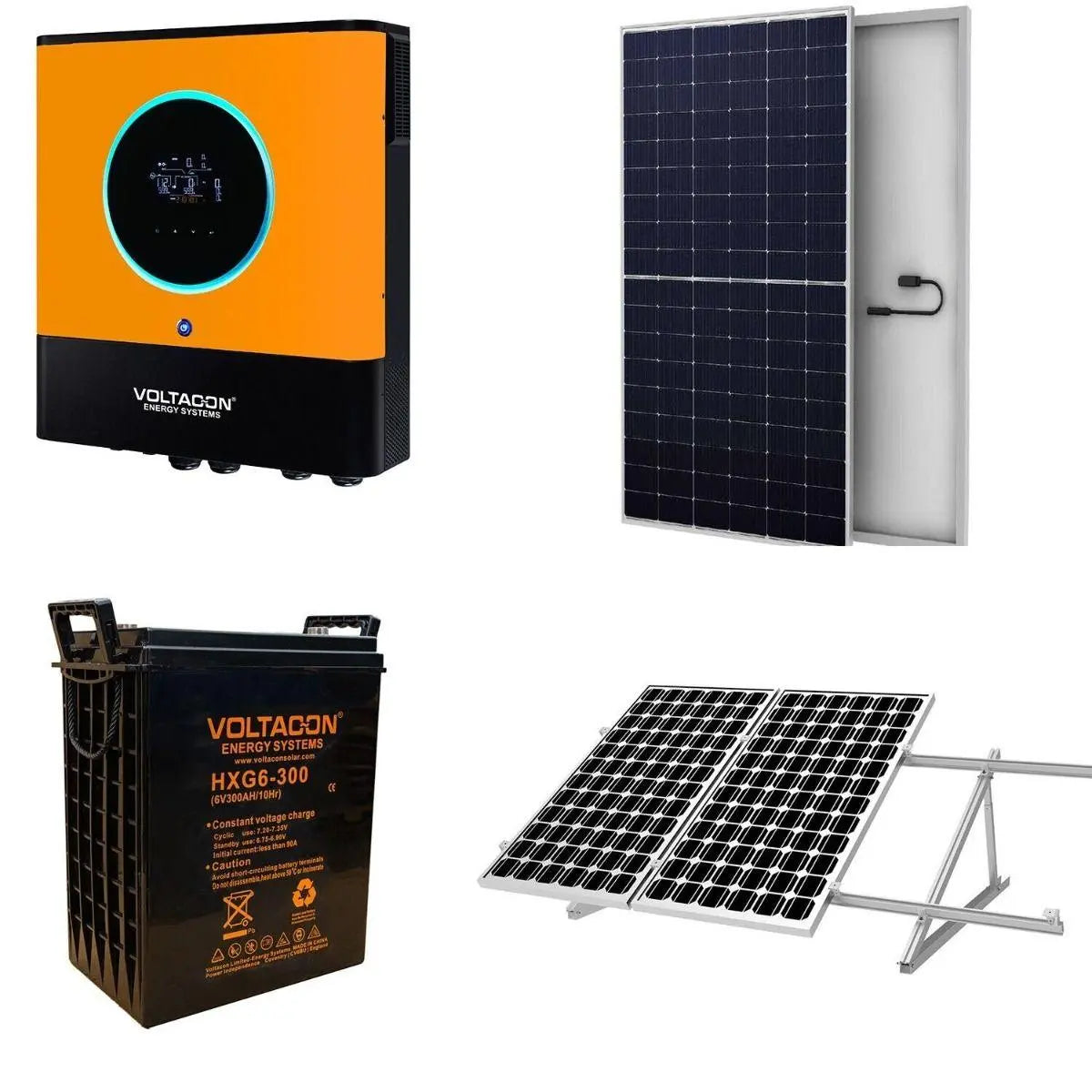

xVoltacon 8kW Off-Grid Solar Kit – 14.4kWh AGM/GEL Batteries, 10x 430W Panels
This complete Voltacon off-grid solar kit is built around a Conversol MAX-II 8kW dual-MPPT inverter-charger, 8x 300Ah 6V AGM/GEL batteries providing 14.4kWh of energy storage, and ten 430W half cut monocrystalline solar panels. Designed, assembled, and tested by Voltacon in the UK, the kit is supplied palletised with a wiring diagram, full component list, and UK technical support included.
Key Features
- Conversol MAX-II 8kW inverter with dual independent MPPT chargers
- 8x 300Ah 6V AGM/GEL maintenance-free batteries, 14.4kWh total storage
- Batteries mounted on steel racks in two shelves of four
- 10x 430W half cut monocrystalline solar panels, 4,300W total PV
- Expandable: inverter accepts up to 8kW PV, system scalable to 48kW with 6 parallel units
- Solar Assistant monitoring with Orange Pi controller included
- Adjustable triangle mounting structure (30-degree ground or flat surface)
- 25m red and 25m black 6mm solar cable
- 200A fuse disconnector set
- Solar PV DC isolator and combiner box with inline fuses and surge protection
- 40A AC isolator
- Wiring diagram included
Product Overview
The dual MPPT design allows two independent solar string inputs to be connected to the inverter simultaneously. The kit includes enough panels for one MPPT input at 4.3kW, and a second PV string of up to 4kW can be added at any time without replacing any hardware.
The AGM/GEL battery bank uses sealed valve-regulated lead-acid technology, which is maintenance-free and does not require electrolyte checking or topping up. The battery bank is expandable by adding an identical set of 8 batteries. Batteries are supplied filled and charged.
Off-grid solar systems of this type do not require a G98 or G99 notification to the DNO, as there is no grid export. This simplifies installation approval compared to grid-tied systems, though all electrical work must still comply with IET Wiring Regulations and be carried out by a qualified electrician.
The mounting structure included is an adjustable triangle bracket suitable for flat surface and ground installations at 30 degrees. Alternative mounting arrangements are available at no extra cost — contact us before ordering if a different mounting type is required.
What Is Included
- 1x Conversol MAX-II 8kW dual-MPPT inverter-charger
- 8x Voltacon 300Ah 6V AGM/GEL batteries on steel battery racks
- 10x 430W half cut monocrystalline solar panels
- Adjustable triangle mounting structure
- 1x Solar Assistant monitoring kit (Orange Pi)
- 1x 200A fuse disconnector set (48V)
- 1x Solar PV combiner box with DC isolator, 20A inline fuses and surge protection
- 1x 40A AC isolator
- 25m red and 25m black 6mm solar cable
- Wiring diagram and installation instructions
Applications
- Domestic off-grid properties and rural buildings
- Farm and agricultural off-grid power
- Remote site power for workshops, cabins, and outbuildings
- Generator-backup off-grid systems
Installation and Safety Notes
This kit must be installed by a qualified electrician. Battery connections, DC fusing, AC output wiring, earthing, and ventilation must comply with IET Wiring Regulations and the component manufacturers' installation guidelines. Do not attempt DIY installation of high-current DC or inverter systems.
