xRail-Free Solar Panel Mounting for Trapezoidal and Metal Roofs | 400mm Profile
A lightweight and economical rail-free mounting solution for solar panels on trapezoidal, corrugated tin, and flat metal roofs. Each 400mm aluminium profile replaces a full-length rail section, significantly reducing weight and installation time. EPDM rubber pads provide a weatherproof seal. Complete end and middle clamps included with every kit.
Key Features
- Short 400mm aluminium profile replaces full-length mounting rails
- Rail-free design suitable for trapezoidal, corrugated, and flat metal roofs
- Four-way, five-hole profile for flexible panel positioning
- EPDM rubber weatherproof pads at each fixing point
- Stainless steel screws (4 per profile)
- End and middle clamps included per kit
- Lightweight and fast to install
Product Overview

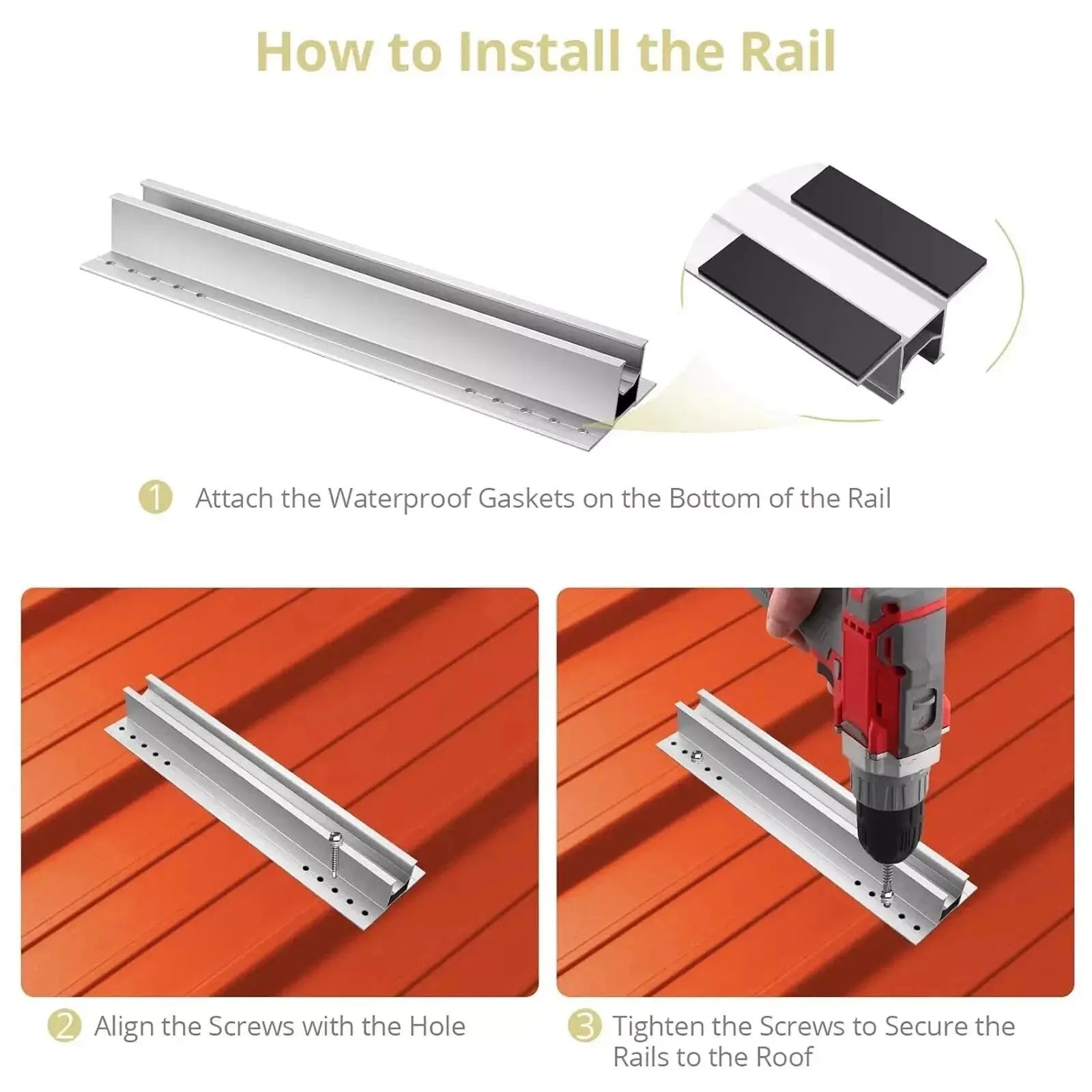

The 400mm rail-less mounting profile is designed for metal roofs where installing full-length aluminium rails is impractical or unnecessarily heavy. The short profile sits across the crest of a trapezoidal rib or corrugation and is fixed using four stainless steel screws, each sealed with an EPDM rubber pad to prevent water ingress.

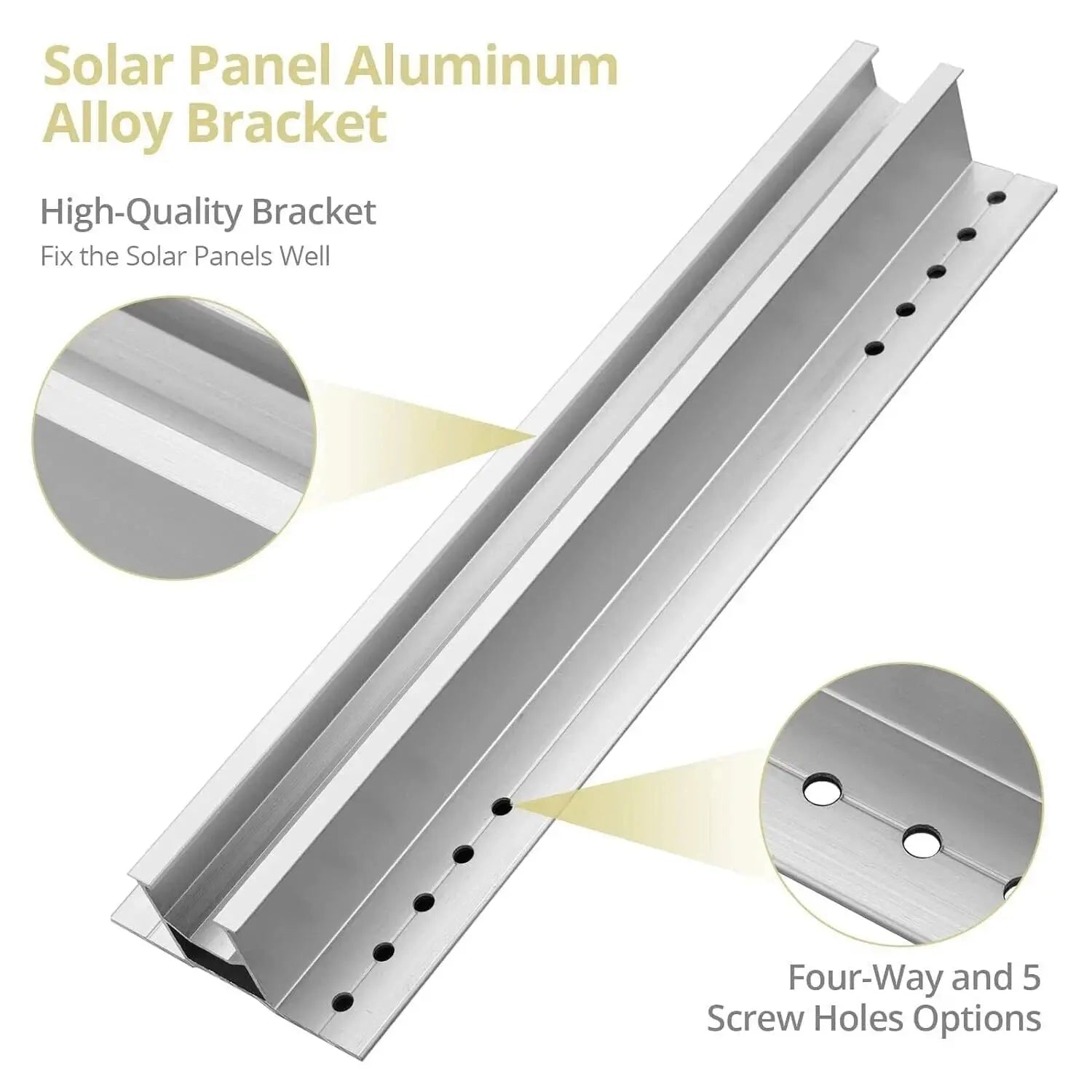

The four-way, five-hole pattern in the profile allows the solar panel position to be adjusted laterally during installation, providing flexibility on roofs where rib spacing may vary slightly. End and middle clamps are included with each kit, scaled to the number of modules ordered, so no additional accessories are required.
Technical Specifications
| Parameter | Value |
| Profile Length | 400mm |
| Fixing Holes | 4-way, 5-hole pattern |
| Screws per profile | 4x stainless steel |
| Weatherproofing | EPDM rubber pads (4 per profile) |
| Compatible Roofs | Trapezoidal metal, corrugated tin, flat metal |
| Modules per order | 1 to 15 (select above) |

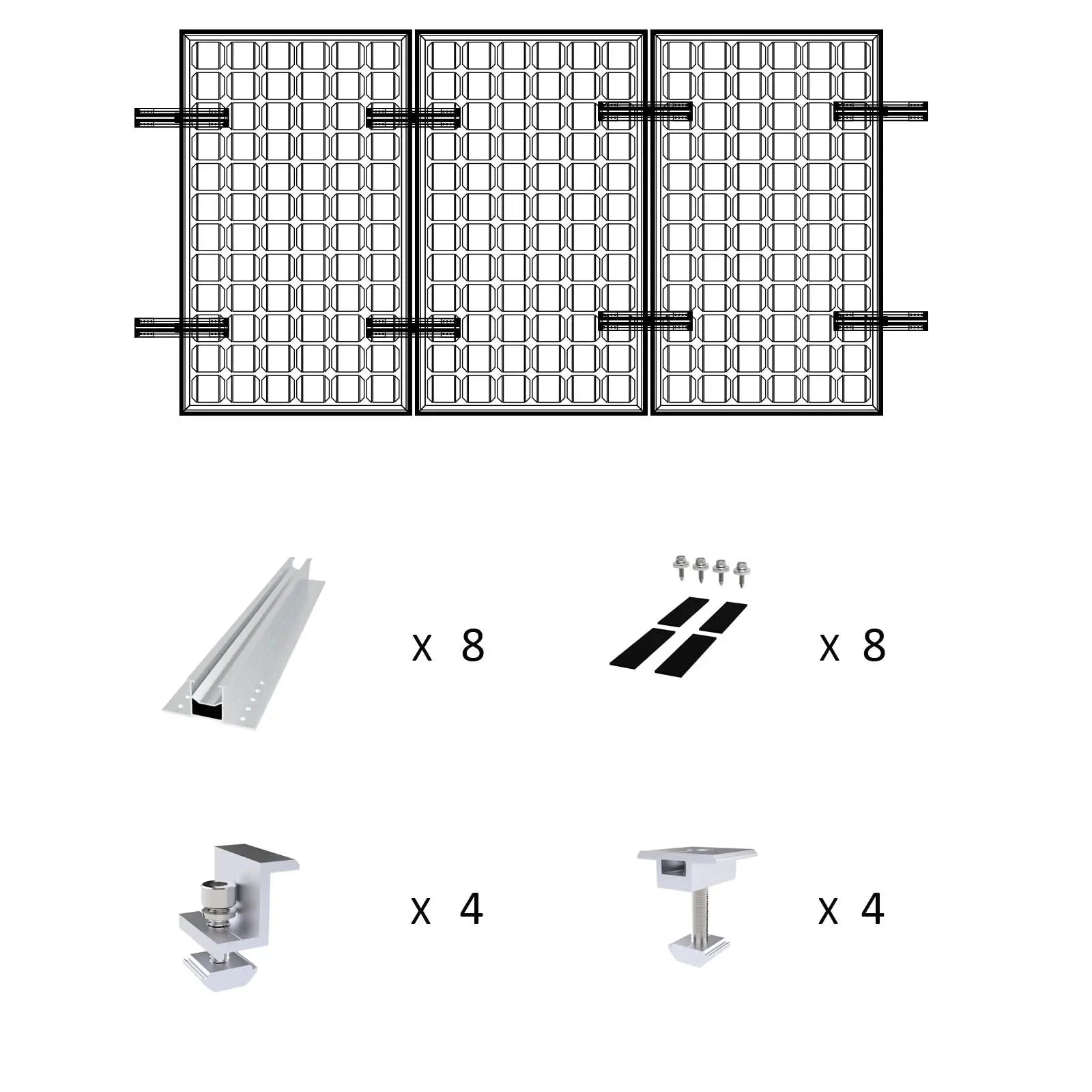

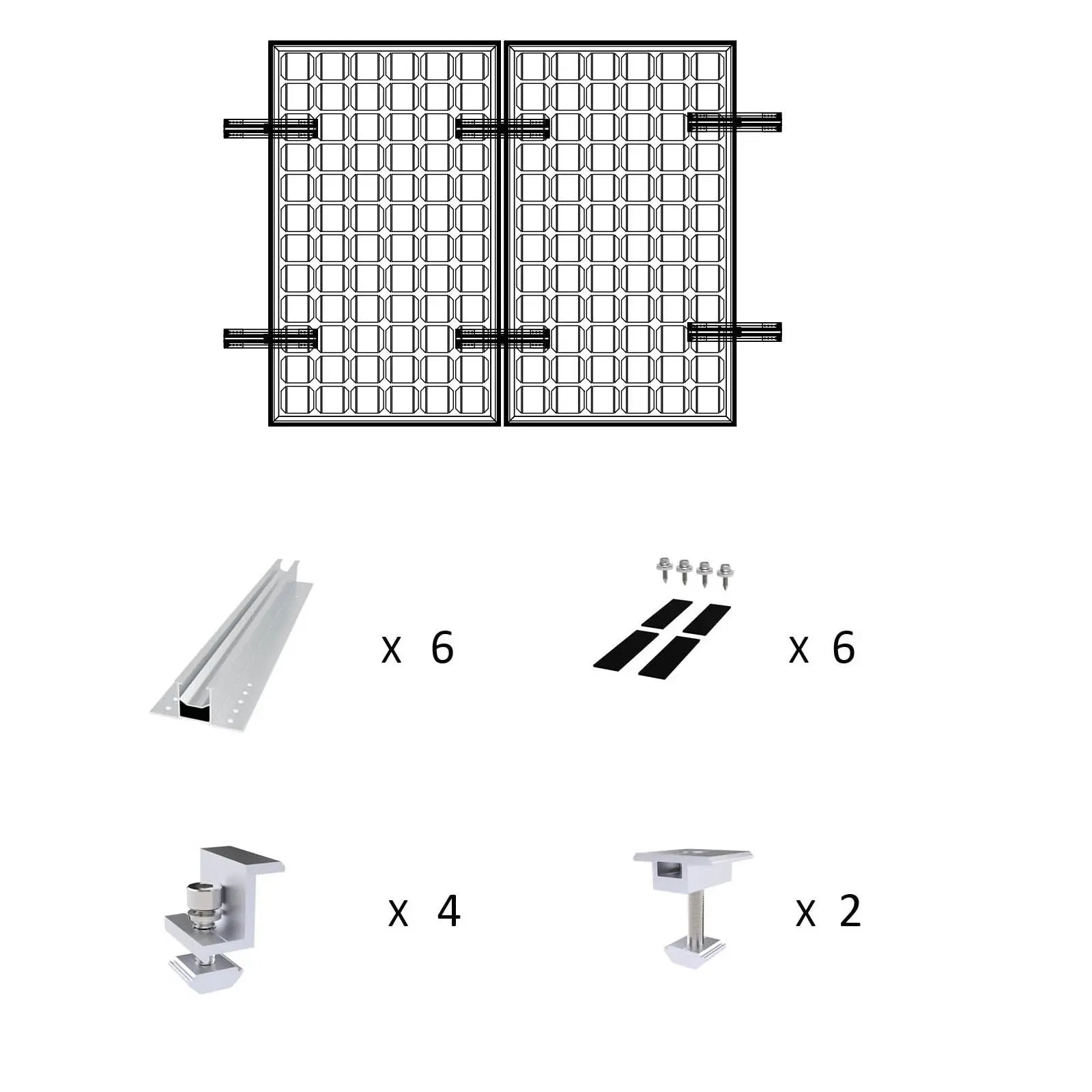

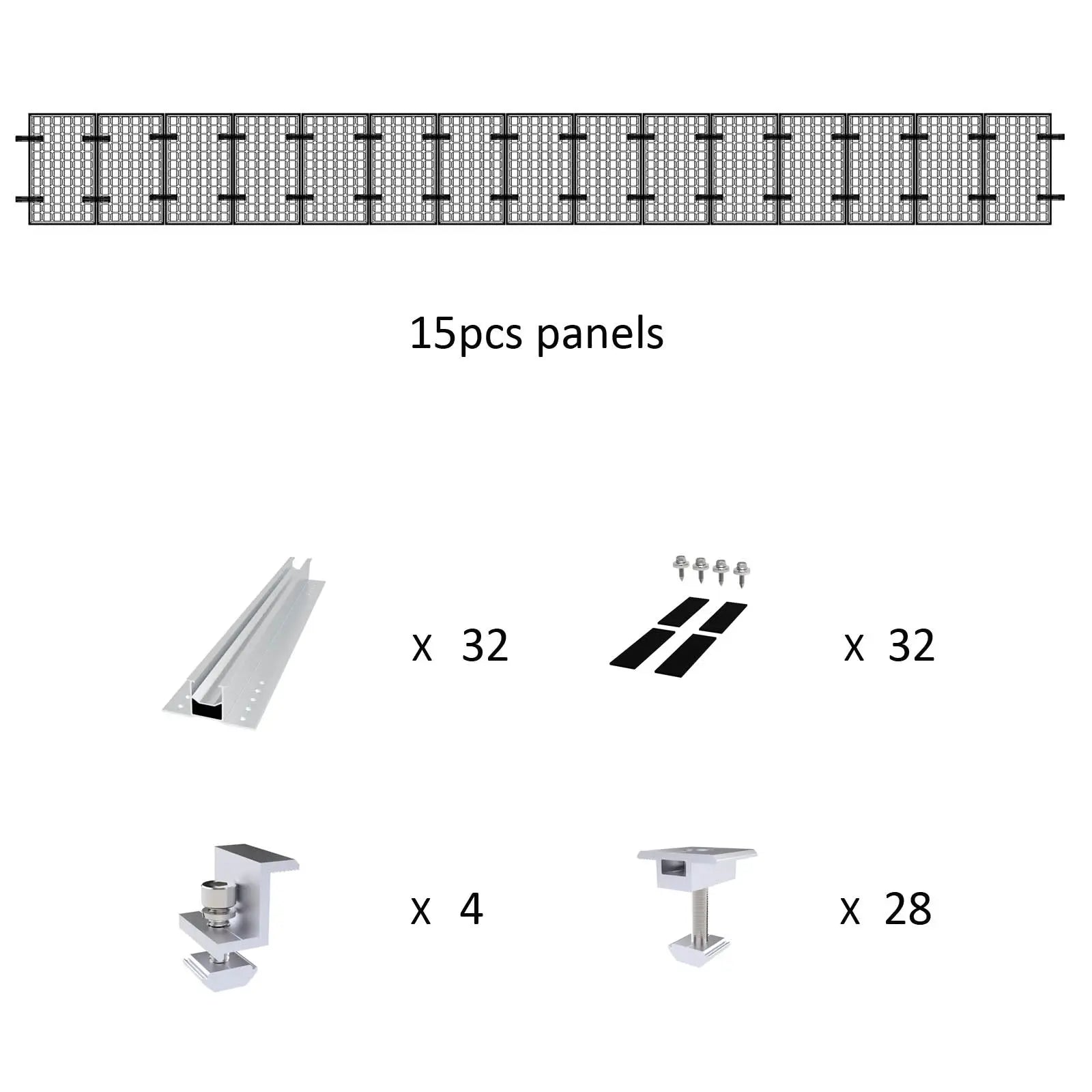

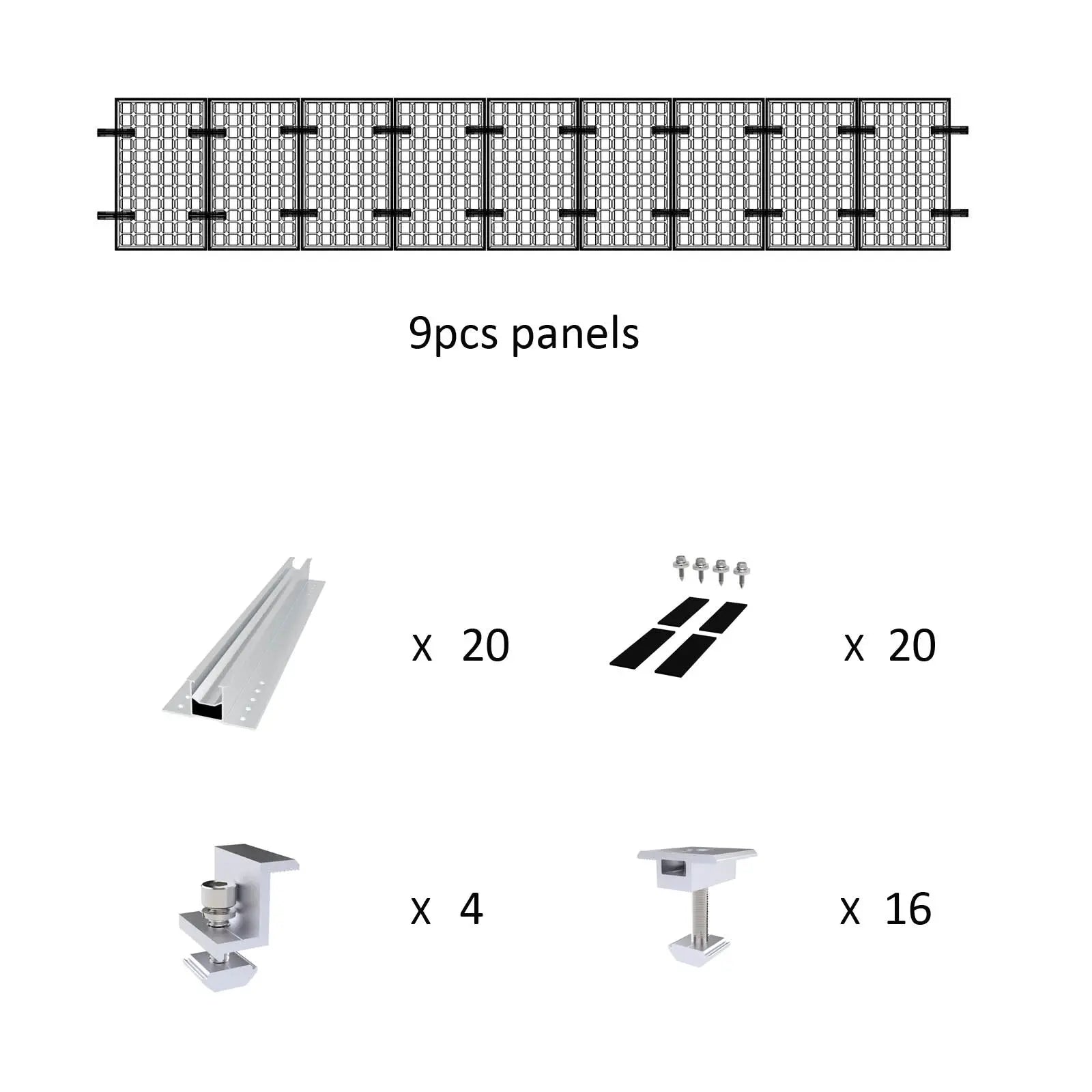

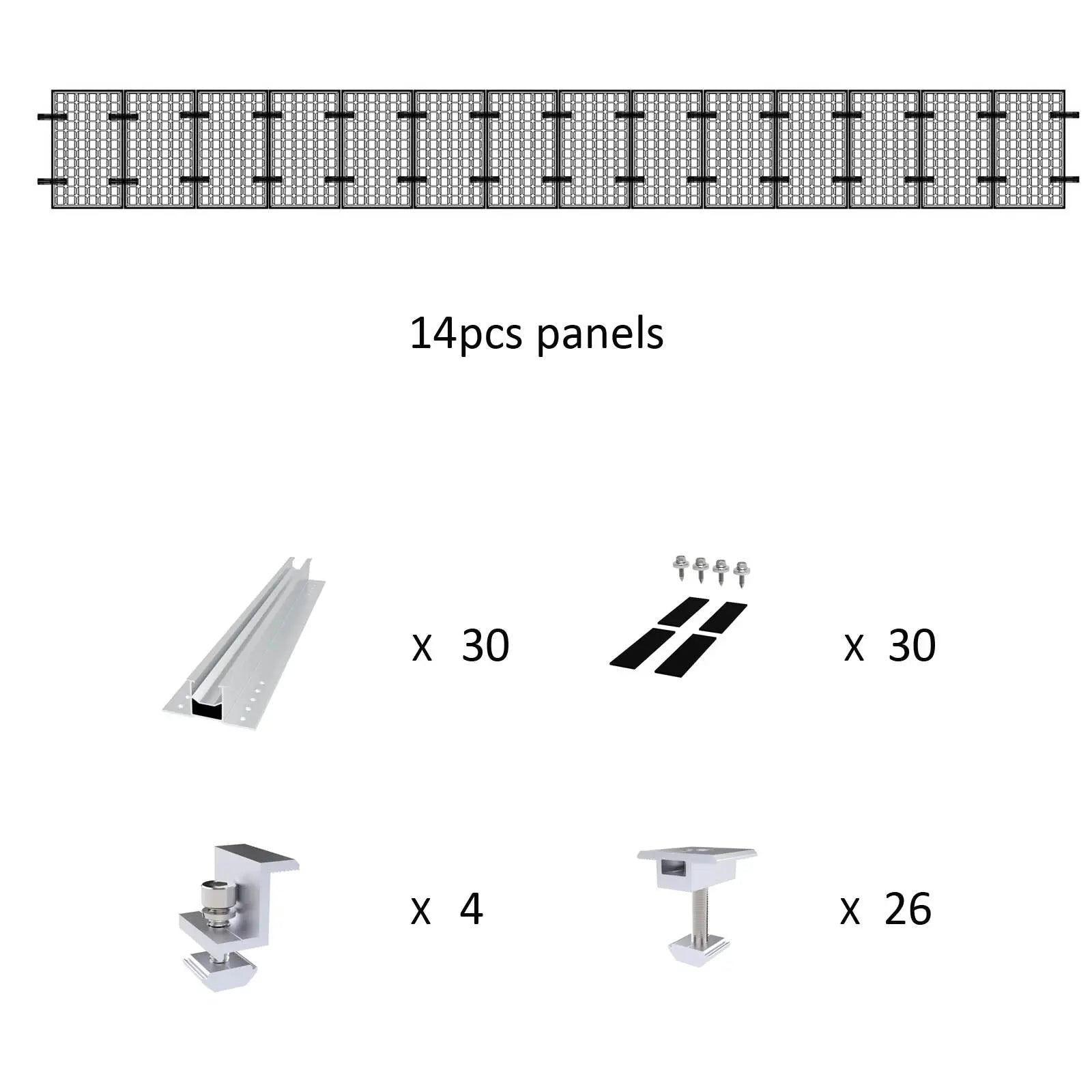

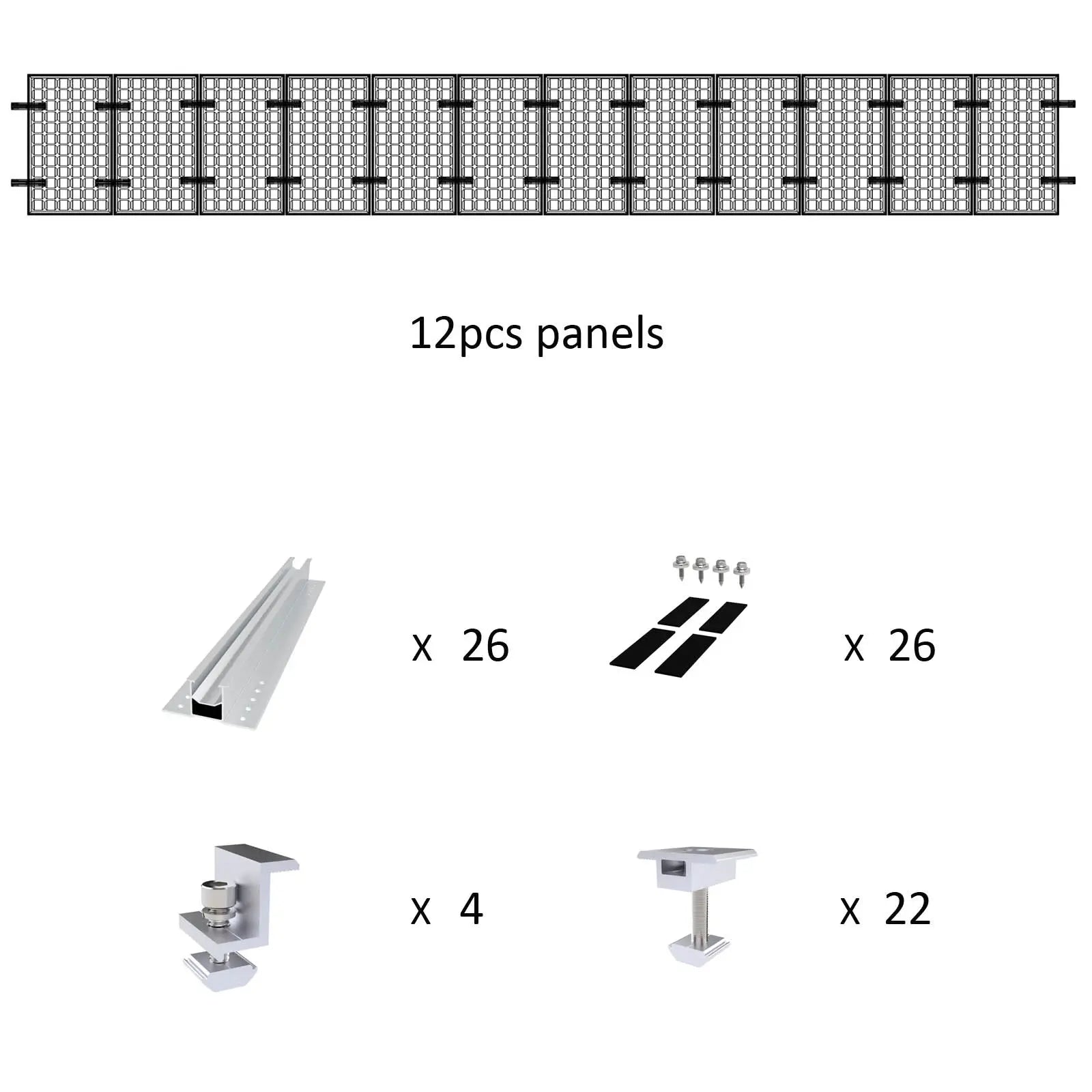

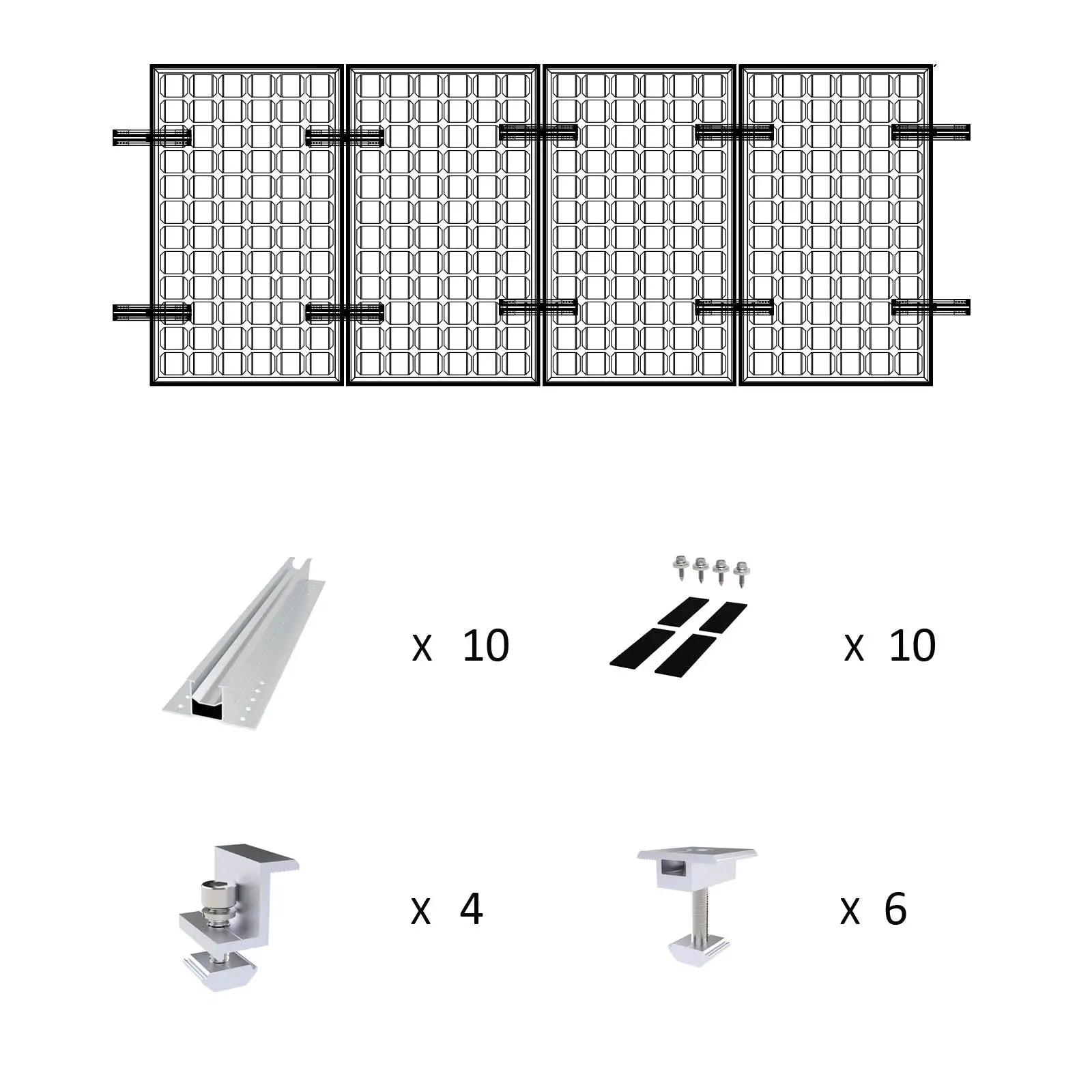

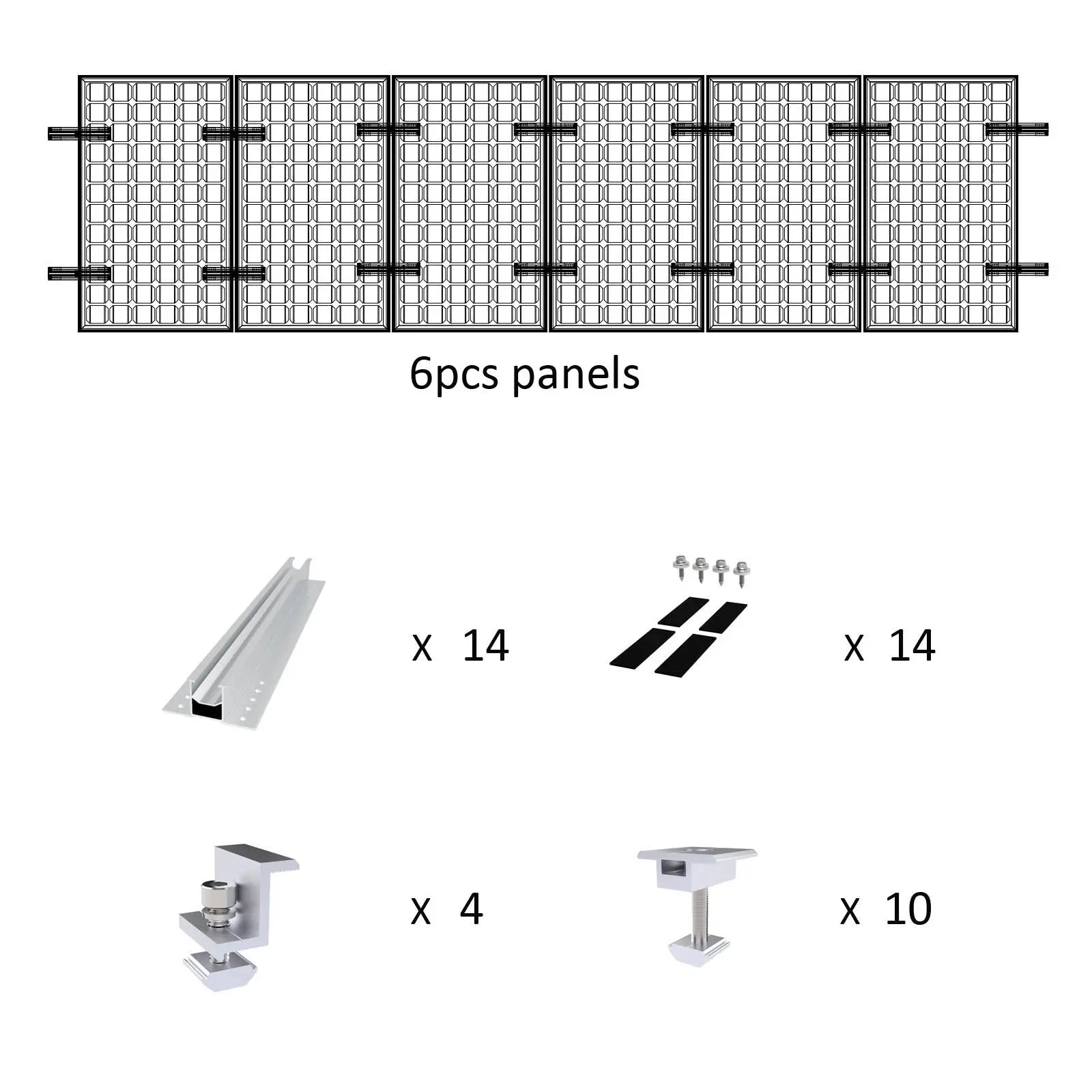

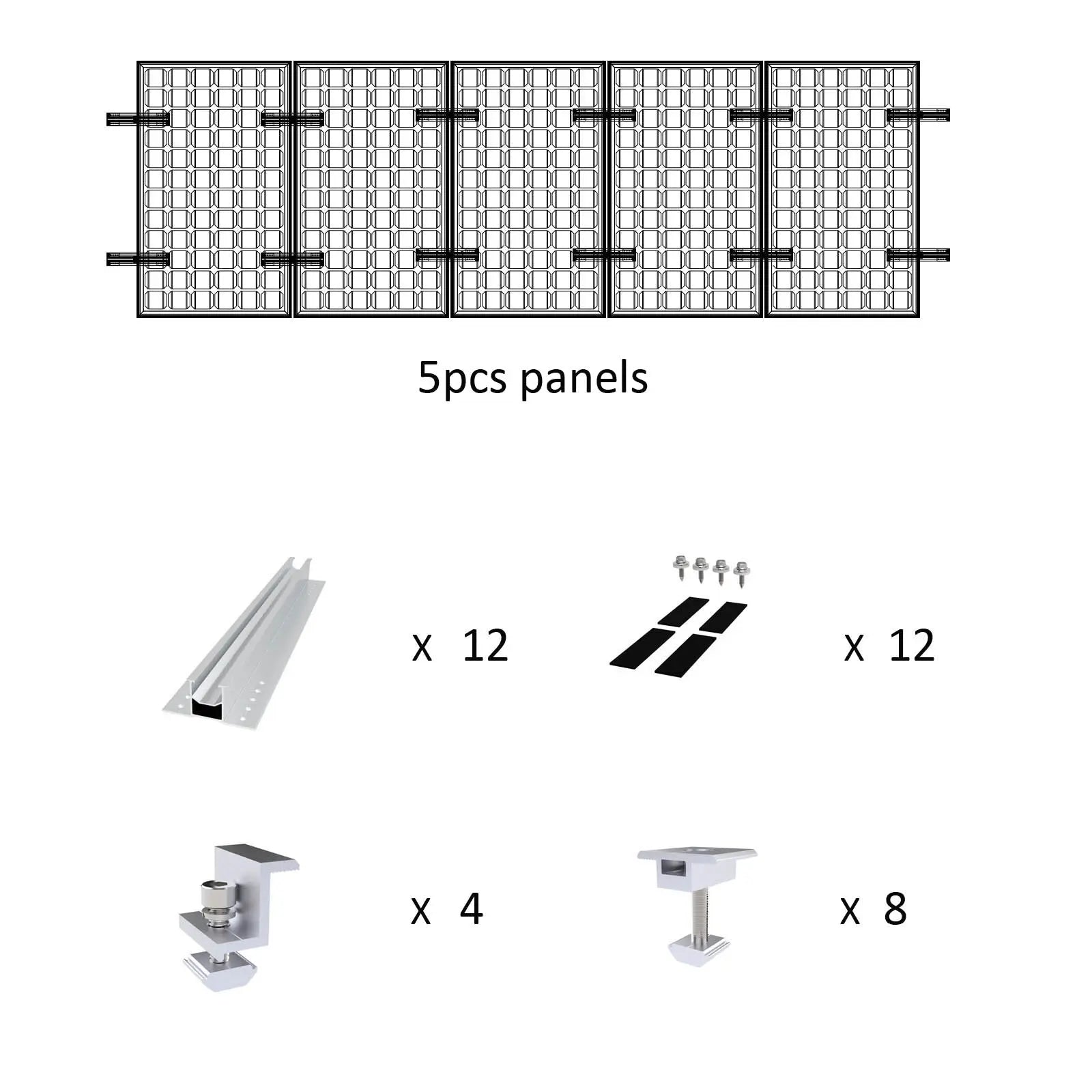

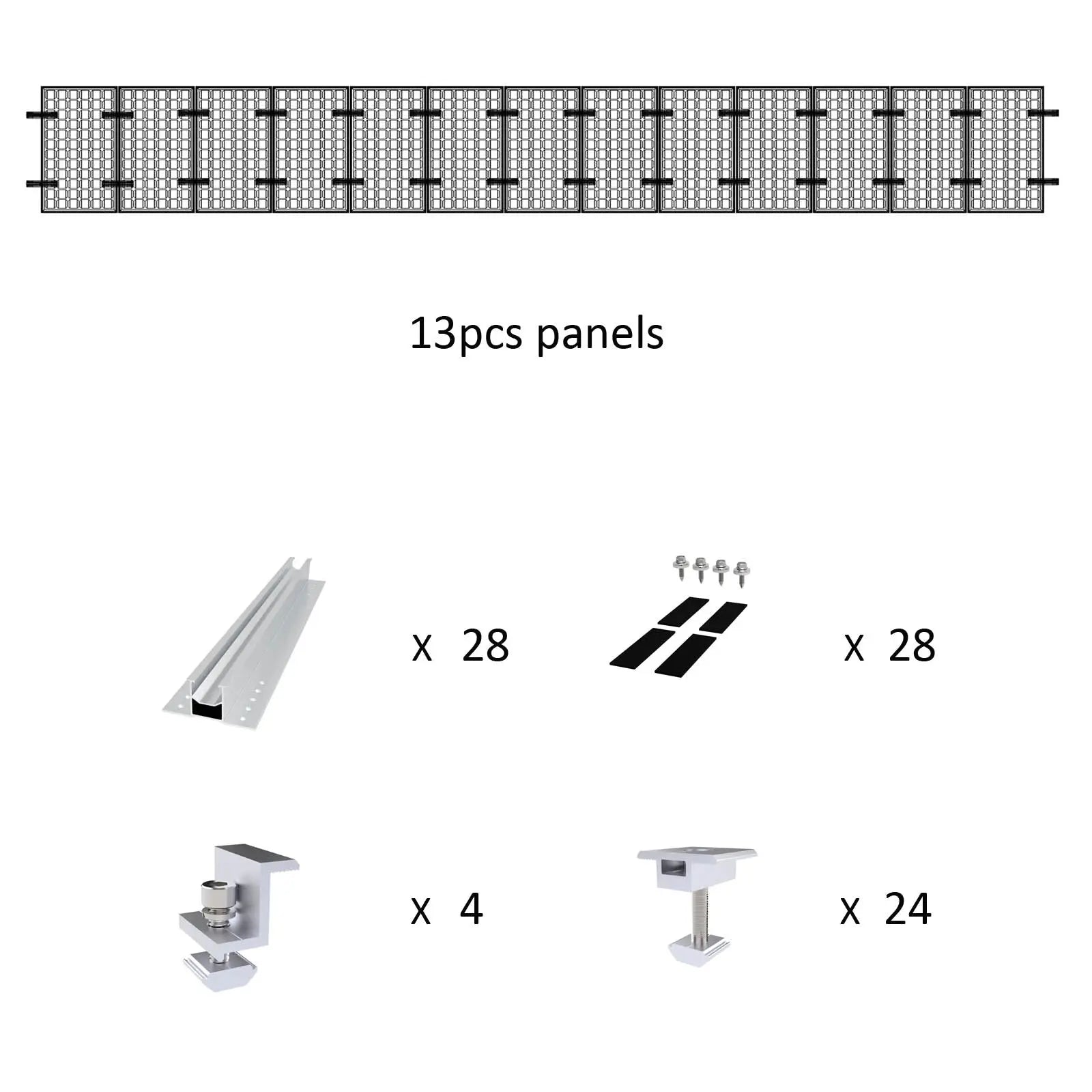

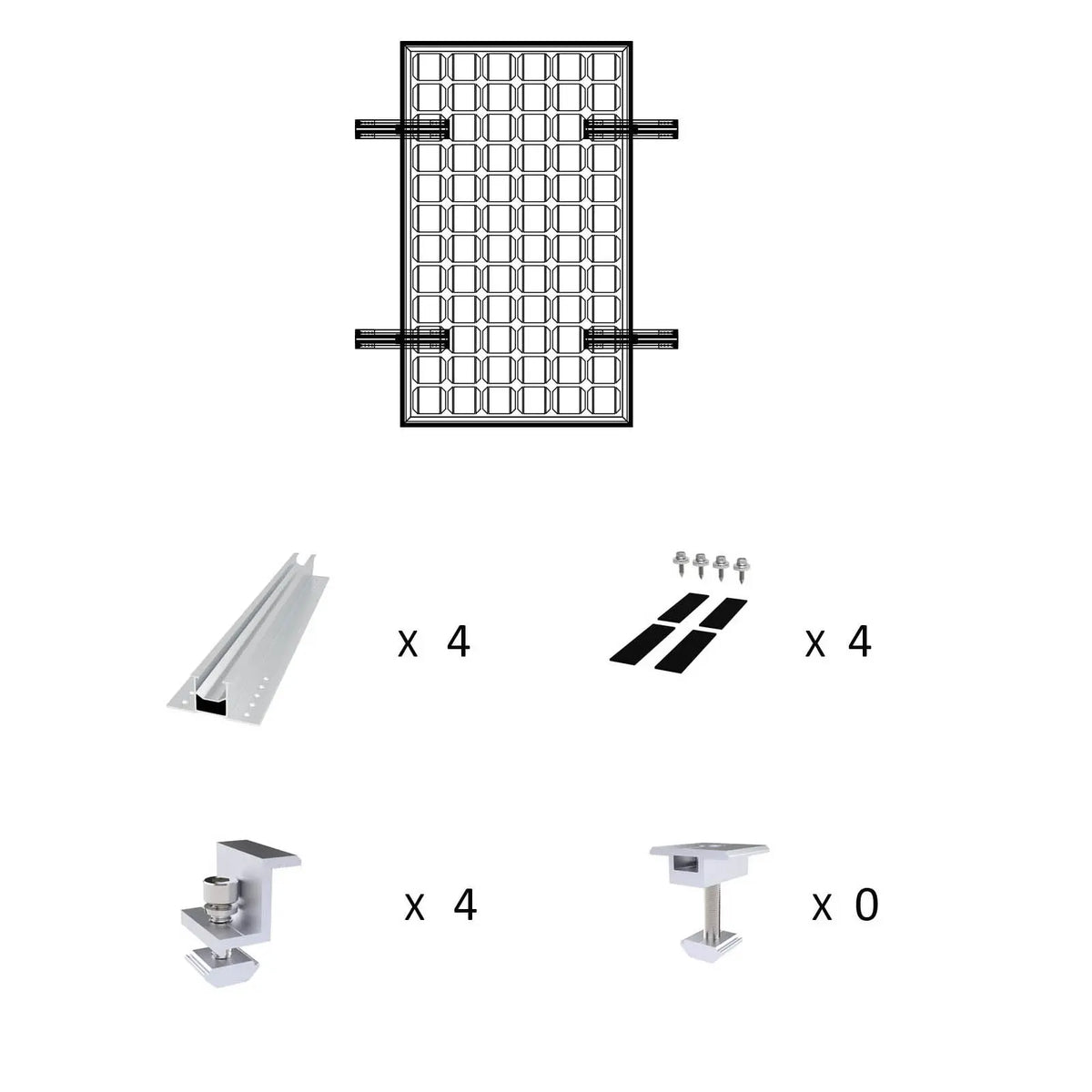

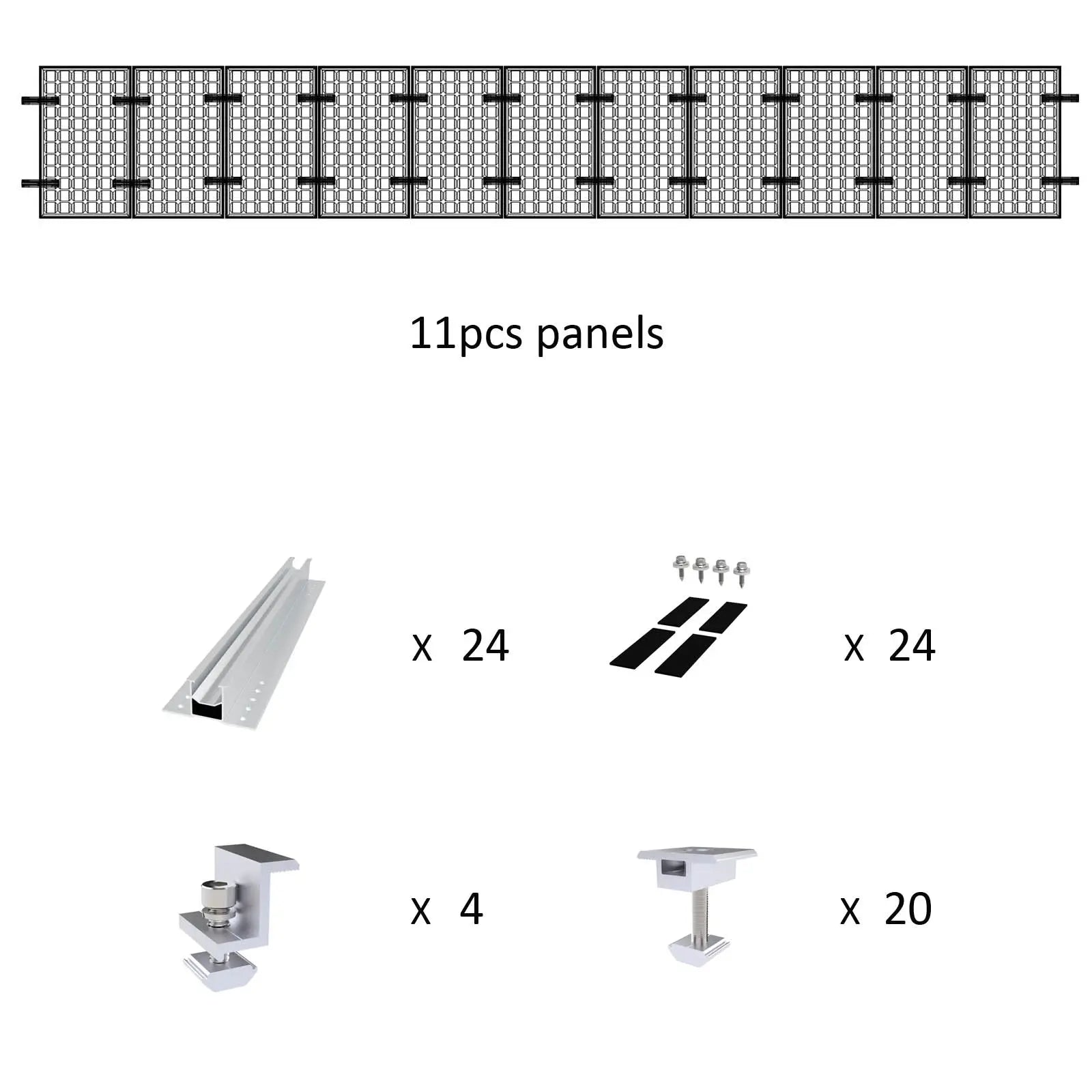

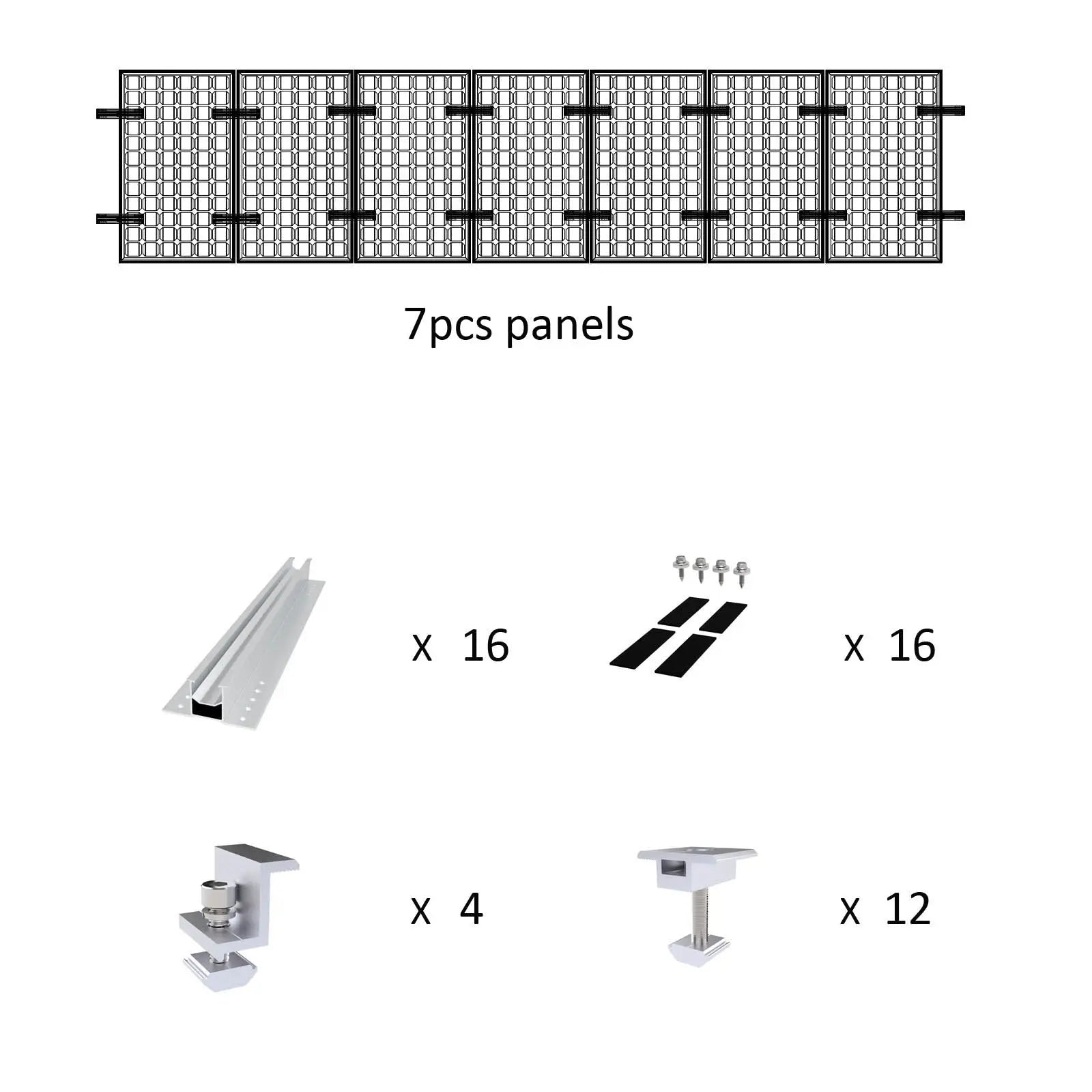

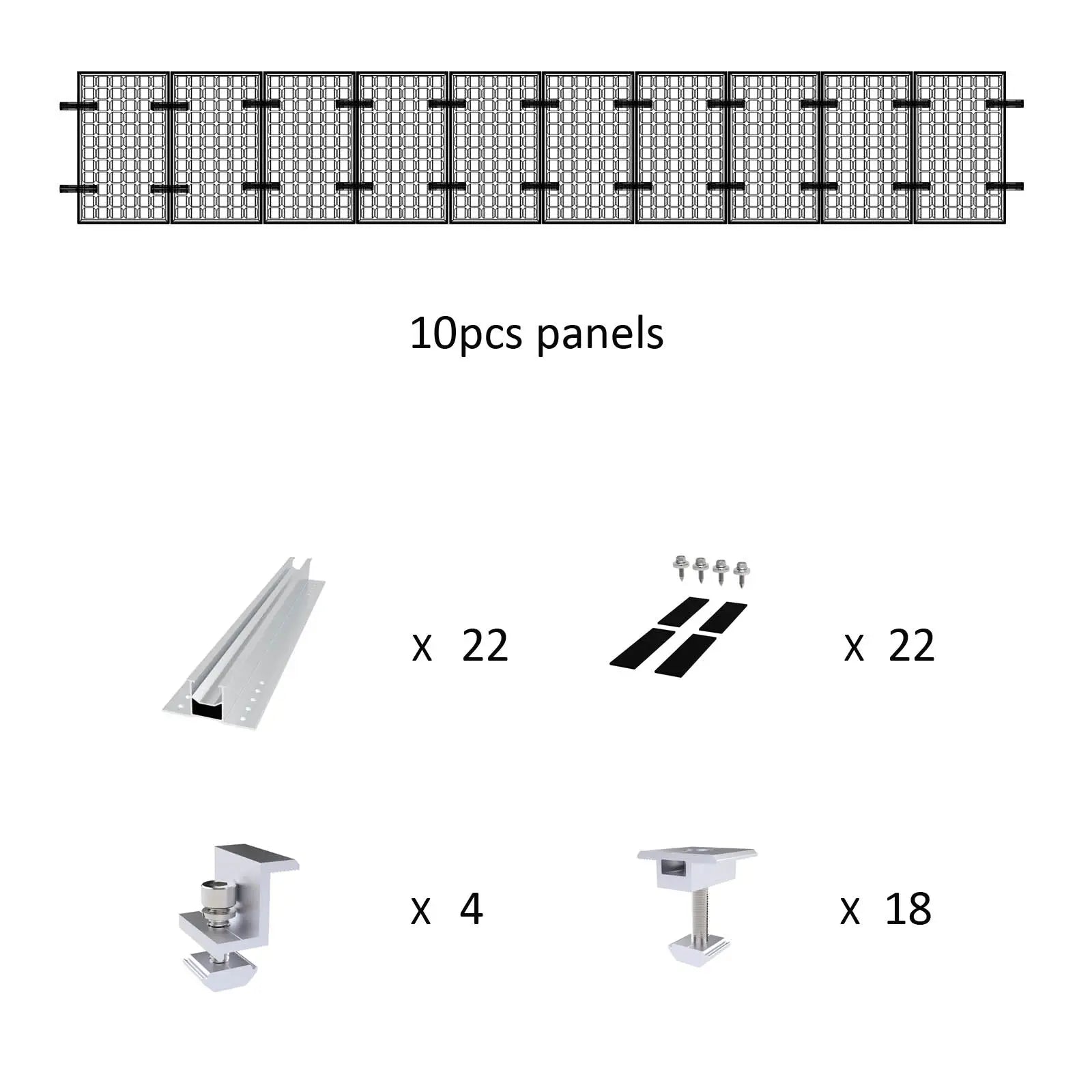

What Is Included (per module)

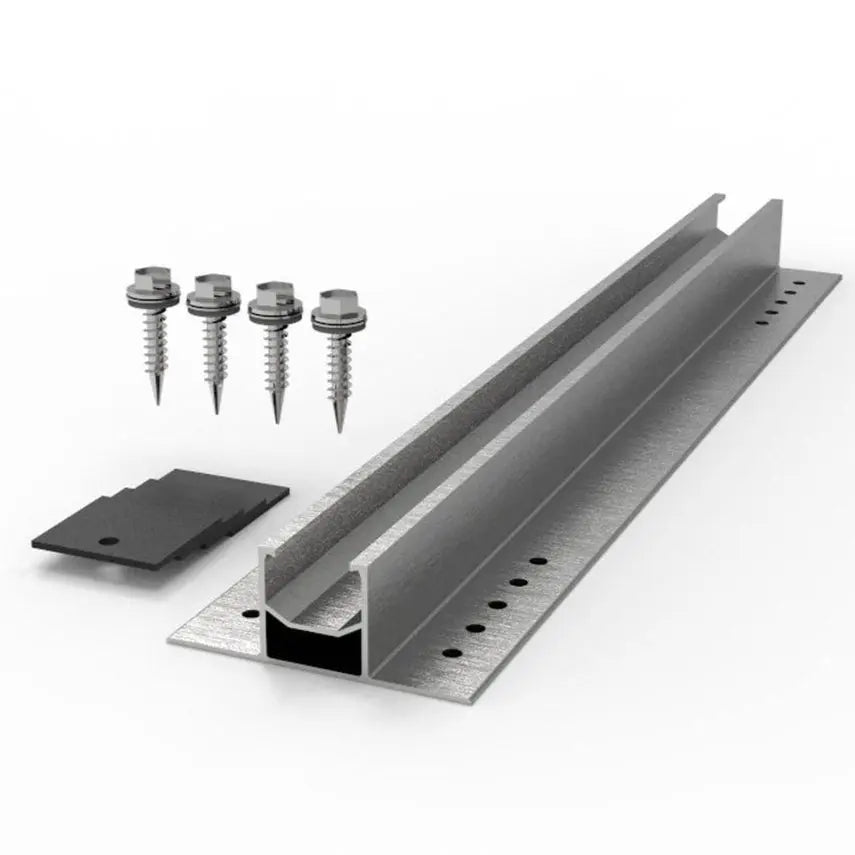

- 400mm aluminium mounting profile
- 4x stainless steel fixing screws
- 4x EPDM rubber weatherproof pads
- End and middle clamps (scaled to order quantity)
Applications
- Solar PV on trapezoidal steel sheet roofing: industrial units, warehouses, agricultural buildings
- Corrugated metal and tin roof installations
- Flat metal roof arrays where a lightweight solution is preferred
Installation and Safety Notes
Must be installed by a qualified solar installer. All fixing screws must penetrate into a structural purlin or sub-frame below the roof sheet. Verify purlin spacing before ordering and planning panel layout. Wind uplift must be assessed for the site. Do not fix into roof sheet alone without structural backing.
