Description
xSolar flexible cables with high cross-sections serve large-scale photovoltaic plants, with high voltage and current especially at long distances. Prices per 10 meter.
HELUKABEL has the appropriate solutions for photovoltaic applications. In the early 90‘s they developed the first PV cables that are marketed today under our leading SOLARFLEX® trademark with global approvals from TÜV and VDE. Together with our state-of-the-art PV connectors, we offer our customers in the photovoltaic industry pre-assembled PV cables and wires for quick plug-and-play on-site installation.
Cables with high cross-section areas are ideal for transferring power in long distances in photovoltaic installation. To optimize the performance of your solar installation and increase the revenue the maximum voltage must reach the terminal of the inverter. If the voltage drop is high the MPPT algorithm of the inverter or battery charger will not function properly.
The right diameter of the solar cable will provide a reliable connection by transferring the highest energy yield from your solar panels.
Country of Origin: Made in Germany
TECHNICAL DATA:
- Cables for PV systems acc. to EN 50618
- Temperature range -40°C to +90°C
- Permissible operating temperature at the conductor +120°C
-
Nominal voltage
AC 1,0/1,0 kV DC 1,5/1,5 kV - Maximum permissible DC voltage 1.8 kV
- Test voltage AC 6,5 kV
- Minimum bending radius fixed installation 5x outer Ø
CABLE STRUCTURE
- Tinned copper conductor, fine wire acc. to
DIN VDE 0295 cl.5 / IEC 60228 cl.5 - Core insulation: special cross-linked compound, black
- Sheath: special cross-linked compound

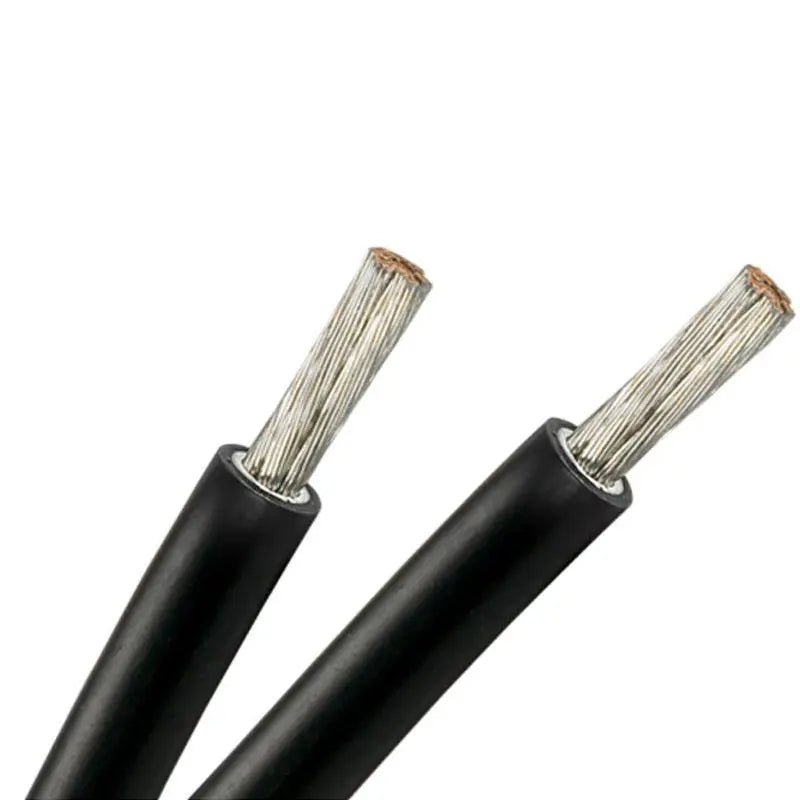

Solar cable 10,0 mm2, black, outer-Ø 7,1 mm (PU 500m) H1Z2Z2-K, EN 50618:2014, TÜV R 60148037 Weight: 115,000 kg per 1000 meters.
SOLARFLEX®-X H1Z2Z2-K 1x10 mm² BK Part no. 713532
