xSolar Photovoltaic Combiner Enclosure 9Ways / 2Ways - Surge & Fuse Protection
A fully wired box with surge protection for each output, fuses with LED indicator, and surge protection options from 100V to 1000VDC
Configuration: 9Ways Input. 3 Independent Ways Out

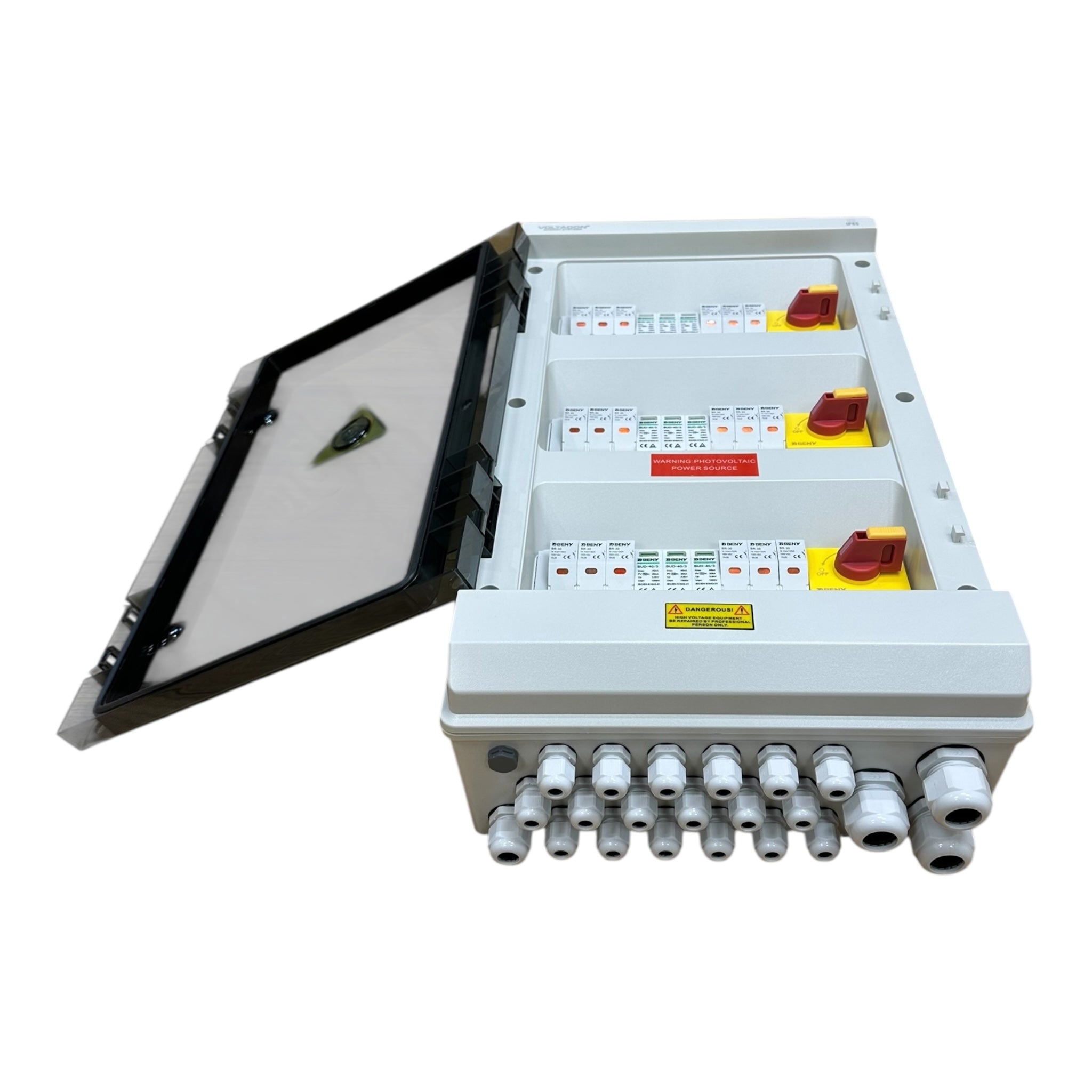

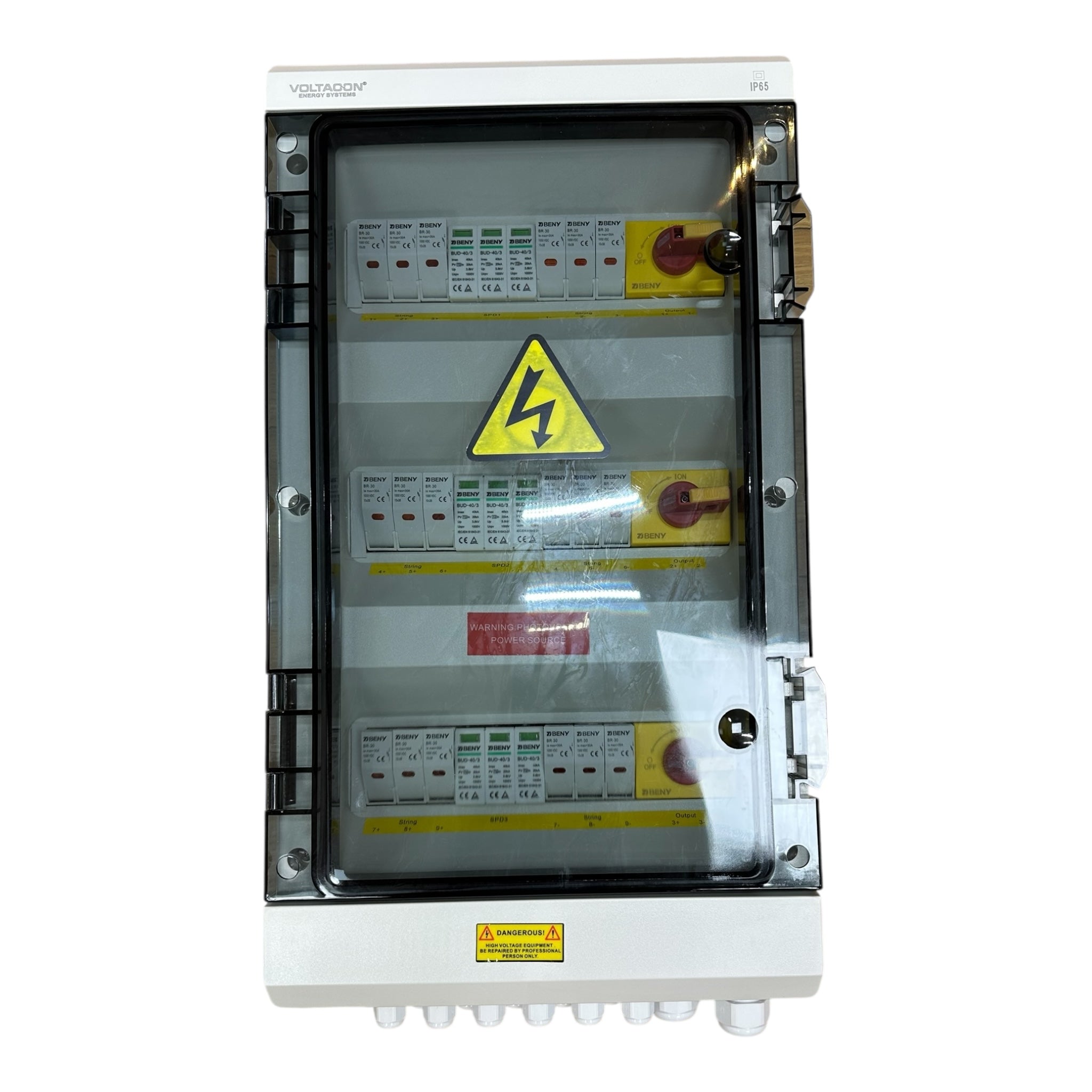

This is a three-row plastic enclosure (IP65) with three independent outputs that can power a single inverter or three individual ones. It works with off-grid, hybrid and grid-tied systems with a maximum PV string voltage of 1000VDC.
- 9 Independent Inputs MPPT up to 1000Vdc
- 2 Independent Outputs MPPT up to 1000Vdc
- Each input is fused at 20A

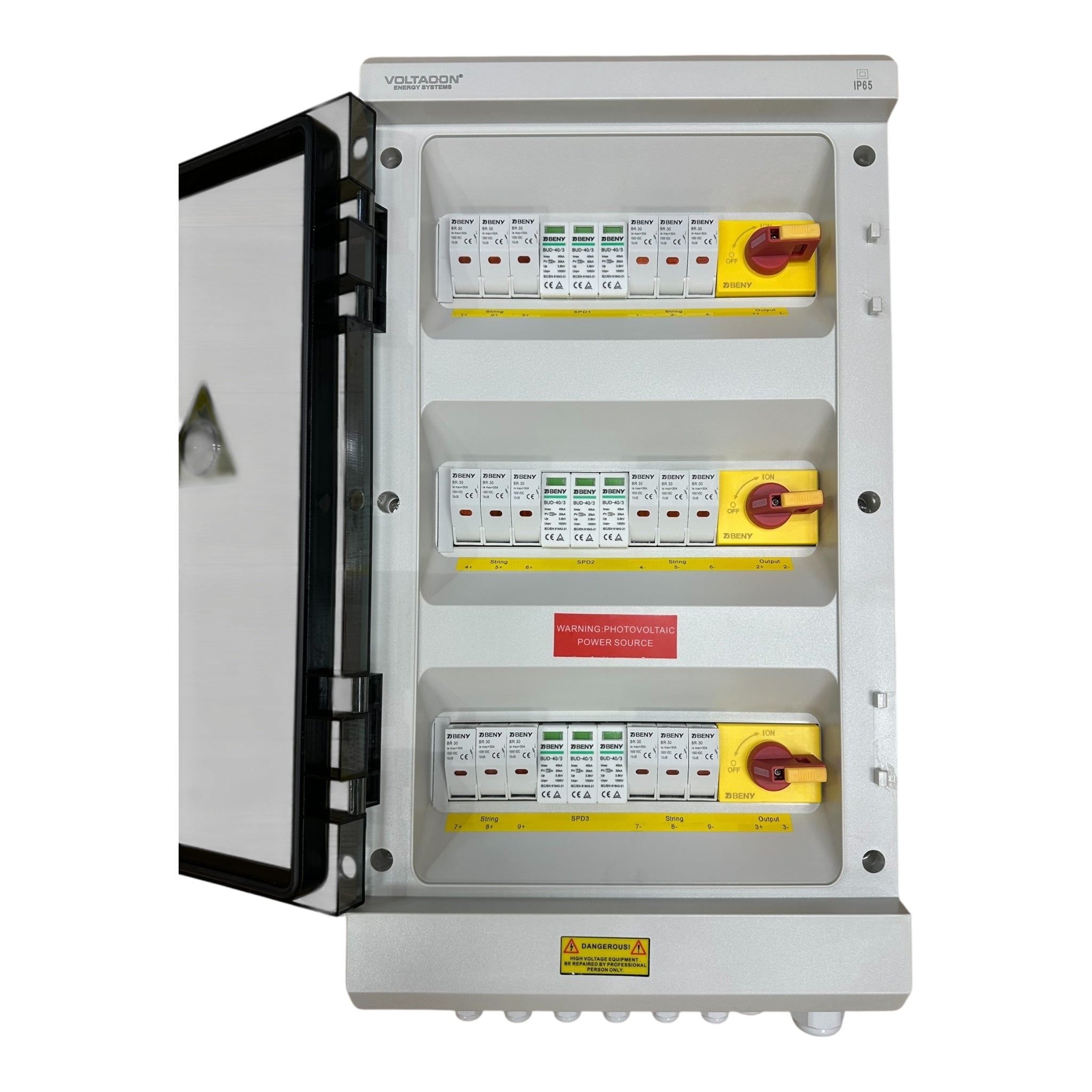

- Fuse holders with LED indicators
- Surge protection on each PV Input.
- 63A DC Isolators
- Cable glands for each input and output.
- IP65 water proof plastic box.
The selection of the SPD is available in the drop-down menu.
The DC inputs are fused with 12A, 15A or 20A fuses, the choice depends on the short circuit current of the photovoltaic panels.
Looking at the LED indicator it is easy to diagnose if the fuses have blown up and require replacement.
