Description
xThe intelligent MPPT controller optimises the performance of the panels by generating electricity from a start up voltage of 60V. The development of the Solis 1000 has made it possible for smaller solar installations, consisting of just a few panels, to contribute to a durable energy provision. Design life over 20 years
Solar technology enables us to use renewable power sources such as the sun to an increasing extent. With the development of the Solis 700, Mastervolt has made it possible for smaller solar installations, consisting of just a few panels, to contribute to a durable energy provision.

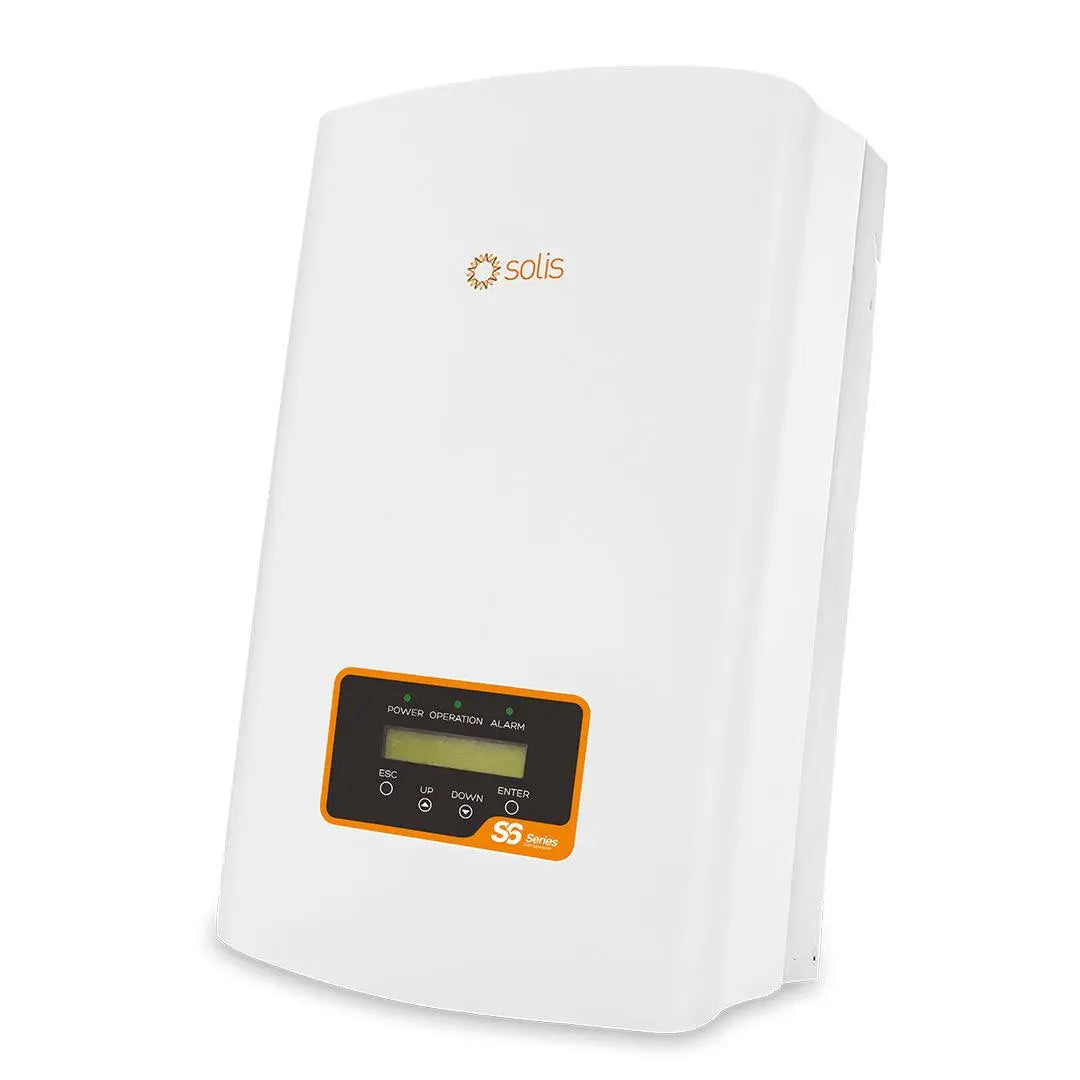

WORKING PRINCIPLE OF THE SOLIS 1KW 4G
The most important functionality of the Solis is converting direct current, generated by the solar panels, into a standard 230 V/50 Hz electric power. The Solis uses the electricity grid as an energy reservoir to which generated energy is sold back. In case the electricity provision is cut off, the Solis will automatically shut down.
PLUG & PLAY
The Solis 1kW converter is very compact and equipped with easily accessible 230 V and DC connections. MultiContact connections have been included for the positive and negative connection of the PV array. The plug can be connected to a socket connection and makes the system ready to use. A clear LED indication gives information about the energy produced, the status of the system, and the Solis converter.
DYNAMIC MPP TRACKER
Solar panels have a certain voltage at which they supply maximum energy: the so-called ‘maximum power point’ (MPP). This point varies in any make and kind of panel, and is determined by a combination of voltage, current, irradiation and temperature. The Solis 700 is equipped with a dynamic MPP tracker, which makes it possible to reach > 99% MPP output under virtually any circumstances. The Solis 700, therefore, does not have any restrictions with regards to connecting any kind of solar panel and always provides optimum performance of your solar system.
ENTRY RANGE
The Solis 1000W has a wide working area and this makes it possible to connect almost all systems up to 1200 Wp. With a max. voltage of 600 V DC, configurations of 36, 54 as well as 72 cells can be connected to it. The current range from 0 to 8 A making the Solis 1kW suitable for the latest high-power panels.
- Products developed for countries where an ENS circuit is not required.
- Fitted with QNS anti-islanding as standard.
KEY FEATURES
- High-frequency switching technology
- Compact and lightweight
- Ultra-low startup voltage of 60V
- IP65 for external installation
- DRM integrated
- 5-year standard warranty
TECHNICAL INFORMATION
- Max. DC Power: 1200W
- Max. Input Voltage: 600V
- MPPT Voltage Range: 50-500V
- Rated Power: 1000W
- Max. Efficiency / European Weighted Efficiency: 97.2% / >96.5%
- Protection: IP65
- Dimensions : 310x373x160mm
- DC Terminal: MC4
- Communication: WiFi (optional)
- Warranty: 5 years, available for extension to 10 years and 20 years
Specifications
x| Operating temperature |
0 °C to 40 °C |
| Enclosure | plastic (ABS) |
| Safety class | class II |
| Dimensions, hxwxd |
310WX373HX160D (mm) |
| Weight |
7.4kg |
| Protection degree | IP20 |
| Product warranty | 5 years |
| Technical specifications | |
| Relative humidity | max. 85%; non condensing |
| Grid output (AC) specifications | |
| Grid voltage | 230 V (160-285VAC) |
| Max. output current | 4.4A. |
| Frequency | 49,8-50,2 Hz |
| Power factor | 0.8... 1 ... 0.8 |
| Standby power | < 0,05 W |
| EU efficiency | 96.5 % |
| Max. efficiency | 97.2 % |
| Rated Output Power | 1000Watt |
| Fuse | 3.15 A slow |
| Transformerless | |
| Regulations & directives | |
| CE conformity | yes |
| Nat. grid requirements | EMC89/336/EEG; EN50081-1; EN61000-3-2; EN50082-2; LV73/23/EEC; EN60950; EN62109-1 |
| Communication & monitoring | |
| Display | two LED’s: yellow and red; correct working = yellow (speed of flashing is in relation to the power generated); malfunction = red (6 different flashing codes) |
| Safety regulations | |
| Island protection | monitoring of voltage and frequency frame, disconnects within 100 ms |
| Temperature protection | reducing the power in case of a higher temperature of the converter; will disconnect > 80 ºC |
| Protection of peak capacity | automatic control, dependent on the temperature of the converter, by raising the Vmpp; it is impossible to damage the converter with too much power |
| DC polarity protection | DC connection is protected (MC connectors can be damaged) |
| Solar input (DC) specifications | |
| Max. input power | 1200 Watt |
| PV power range | 160-700 Wp |
| Nom. input power | 535 W |
| Start-up power | 1 W |
| MPP voltage range at nom. power | 50-500V |
| Max. voltage | 600V |
| Number of inputs | 1x MultiContact 4mm² |
| Number of MPP trackers | dynamic MPP tracker 1X |
| Nom. input current | 11 A |
