Description

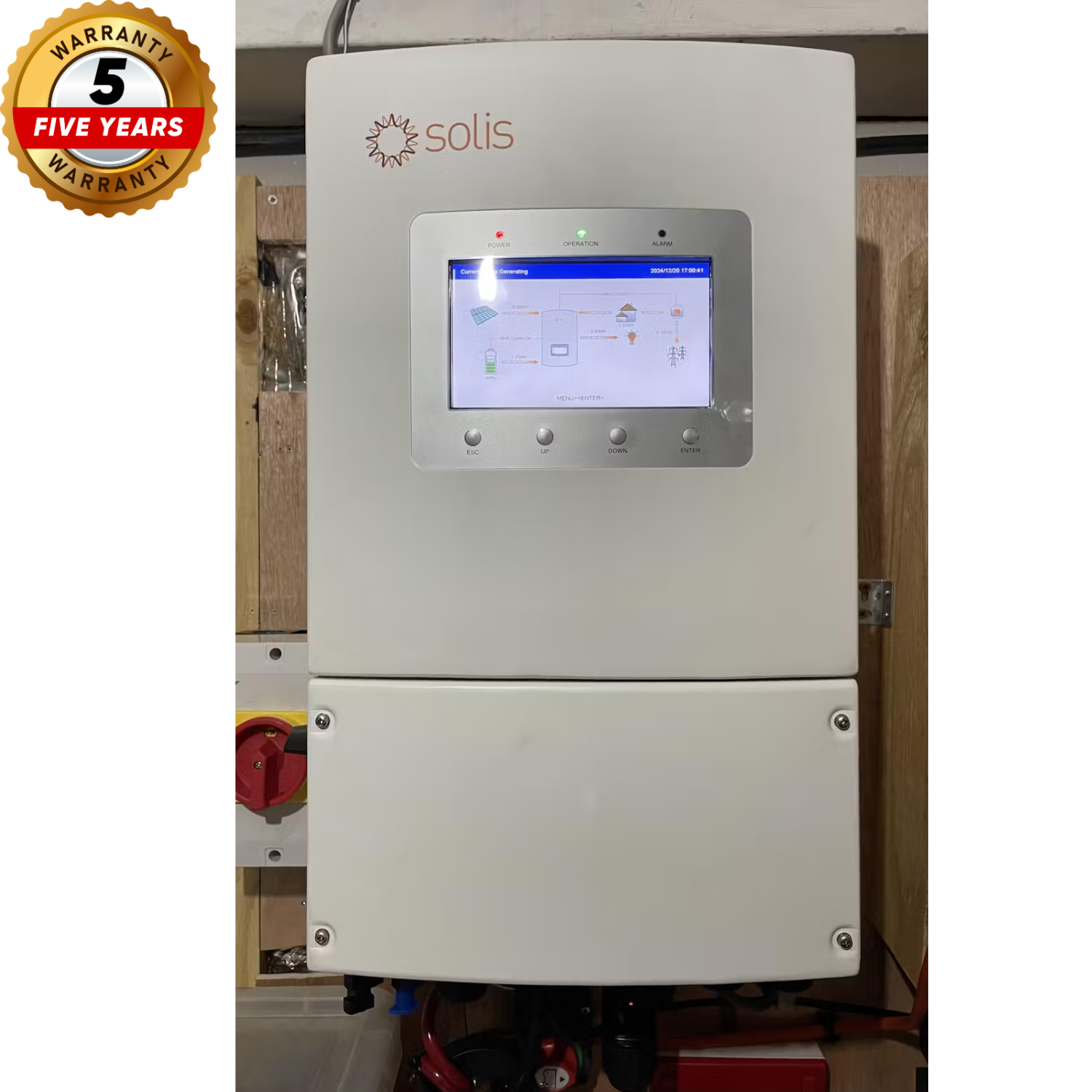

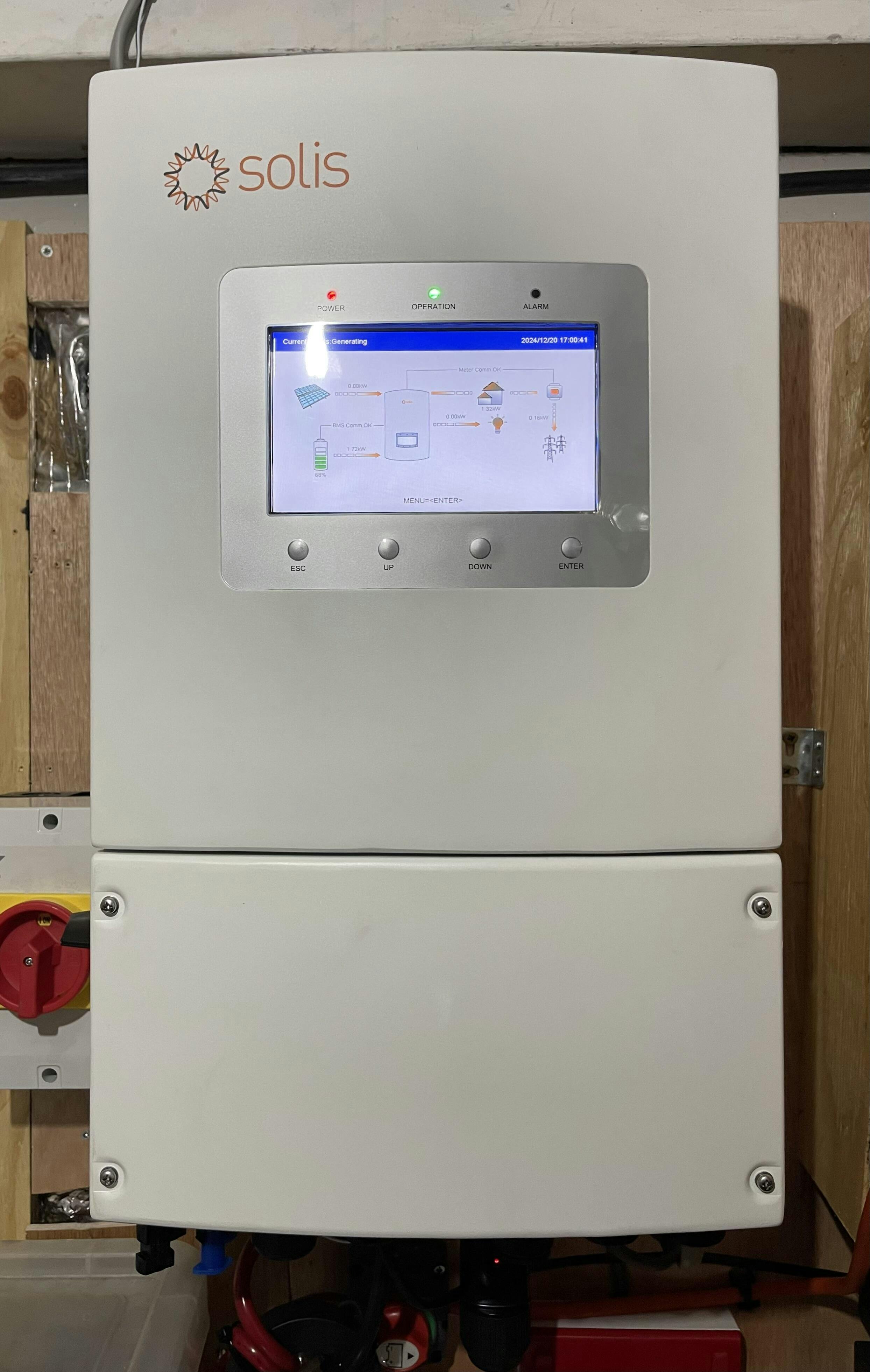

xThe S6-EH1P8K-L-PLUS series energy storage inverter sounds like a robust and versatile option for residential photovoltaic (PV) energy storage systems. Here's a breakdown of its key features:
-
High MPPT Current Input: Supports up to 32A MPPT current input, making it compatible with a wide range of high-power PV panels. This means you can maximize energy harvest from your solar array.
-
6-Stage Timed Charge and Discharge Function: This feature allows for precise control over the charging and discharging processes, optimizing battery life and performance.
-
Integrated Battery Protection: Includes built-in battery treatment and protection functions, which help ensure the longevity and safety of your battery system.
-
Parallel Operation: Can be connected in parallel to form either a single-phase or three-phase system, with a total maximum power capacity of 48kW. This flexibility is useful for scaling up your energy storage system as needed.
-
UPS Switching: Incorporates uninterruptible power supply (UPS) functionality, ensuring that your critical loads remain powered during grid outages.
-
Independent Generator Interface: Provides a dedicated interface for connecting a generator, enhancing the reliability and flexibility of your energy setup.
Overall, this inverter is designed to handle demanding power scenarios and provide a reliable and efficient energy storage solution for residential applications. Its features suggest a focus on both high performance and user-friendly operation, making it a solid choice for homeowners looking to optimize their solar energy systems.
Leading Features
-
10 seconds of 200% overload capability
-
Multiple inverters can operate together to form a microgrid
-
Generator-compatible to extend backup duration during grid power outage
-
Supports dual backup ports for intelligent control of critical and non-critical loads
-
Automatic switchover time is <4ms, providing seamless transitions from grid to backup
-
Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
Specifications
x| MODEL | S6-EH1P8K-L-PLUS | |
| Input (DC) | Recommended max. PV power | 16 kW |
| Rated voltage | 330 V | |
| MPPT voltage range | 90-550 V | |
| Max. short circuit current | 40 A / 40 A | |
| Max. input strings number | 2 | |
| Max. input voltage | 600 V | |
| Start-up voltage | 120 V | |
| Max. input current | 32 A / 32A | |
| MPPT number | 2 | |
| Output AC | Rated AC output power | 8kW |
| Max. output power | 8kVA | |
| Rated grid frequency | 50 Hz / 60 Hz | |
| Max. output current | 36.4 A | |
| THDi | <3% | |
| Max. apparent output power | 8kVA | |
| Rated grid voltage | 1/N/PE, 220 V / 230 V | |
| Rated grid output current | 36.4 A / 34.8 A | |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | |
| Efficiency | Max. efficiency | 96.2% |
| EU efficiency | 96.1% | |
| Protection | DC reverse-polarity protection | Yes |
| Output over current protection | Yes | |
| Grid monitoring | Yes | |
| Temperature protection | Yes | |
| Integrated DC switch | Optional | |
| Short circuit protection | Yes | |
| Surge protection | Yes | |
| Anti-islanding protection | Yes | |
| Integrated AFCI (DC arc-fault circuit protection) | Yes (Activation required.) | |
| General Data | Dimensions (W*H*D) | 335*560*227 mm |
| Weight | 22.2 kg | |
| Topology | Transformerless | |
| Self-consumption (night) | <1 W | |
| Operating ambient temperature range | -25~+60ºC | |
| Topology | Transformerless | |
| Relative humidity | 0-100% | |
| Ingress protection | IP66 | |
| Cooling concept | Natural convection | |
| Max. operation altitude | 4000 m | |
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3 | |
| Grid connection standard | G98(G98 for 2.5K-3.6K) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | |
| Features | DC connection | MC4 connector |
| AC connection | Quick connection plug | |
| Display | LCD | |
| Communication | RS485, Optional: Wi-Fi, GPRS | |
