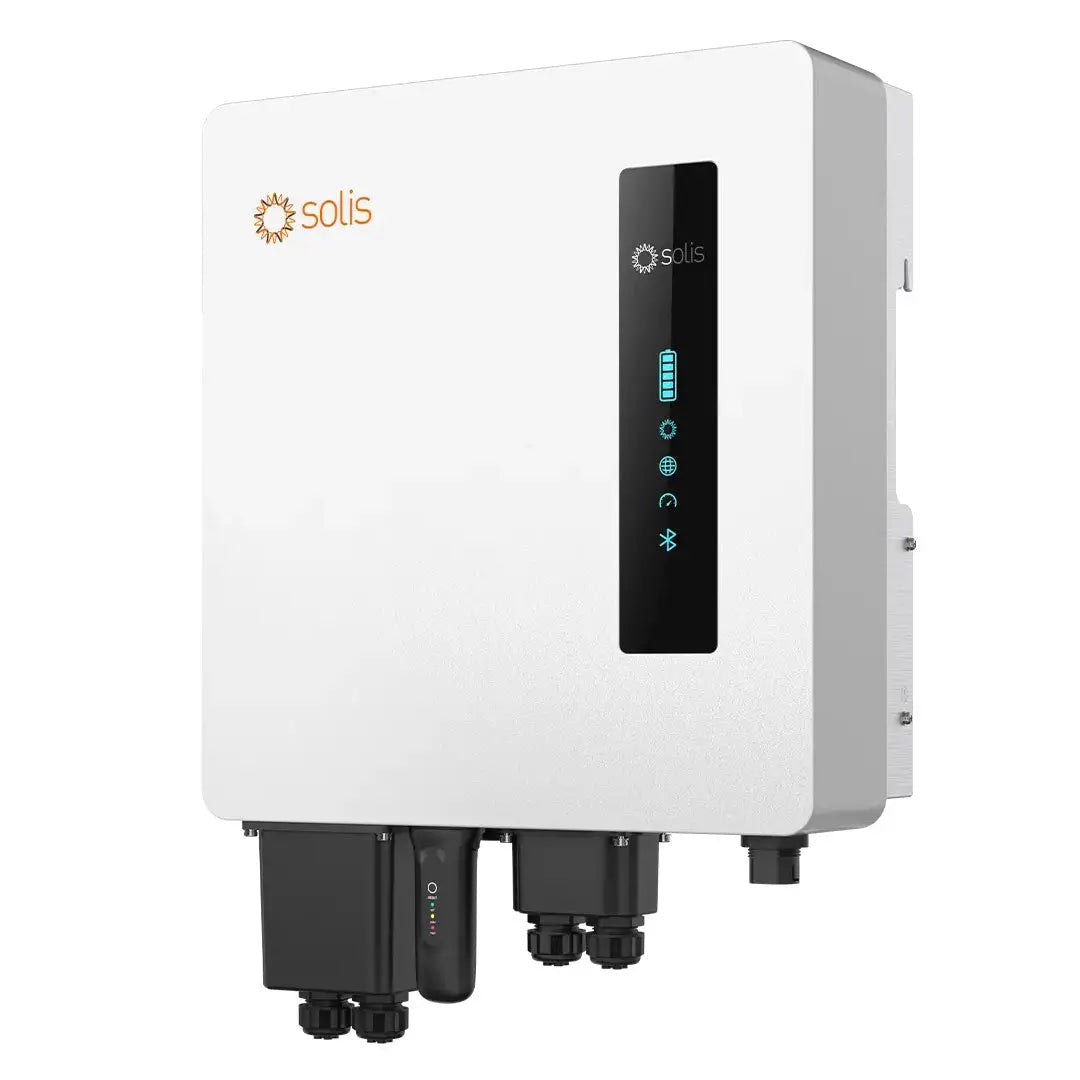

Solis S6-EA1P(3.6-6)K-L Series: Your Solar Energy Storage Solution - S6-EA1P5K-L
Upgrade your solar power system with the S6-EA1P5K-L Solis S6-EA1P(3.6-6)K-L series, the next generation of AC-coupled inverters designed to bring cutting-edge energy storage and backup power capabilities to your grid-tied photovoltaic system. Whether you're looking to add storage to an existing solar setup or build a new energy-efficient solution, this inverter ensures enhanced safety, reliability, and efficiency, while being compatible with lead-acid and lithium-ion batteries from any brand.
Why Choose Solis for Solar Energy Storage?
Solis offers a seamless energy storage upgrade for any solar photovoltaic (PV) system, delivering optimized performance and cost-saving benefits. With its emergency power supply features, you'll enjoy uninterrupted power even during grid outages.
Key Features of the Solis S6-EA1P Series
Peak Shaving Technology
Maximize savings by leveraging peak shaving features in both "self-use" and "generator" modes, allowing you to store excess solar energy and reduce energy consumption during peak hours.
Low-Power Standby Mode
Efficiently manage your power with the low-power standby mode, minimizing system energy use during idle times, further boosting your overall efficiency.
Lithium Battery Compatibility
The S6-EA1P series supports non-communicating lithium batteries, providing flexible configuration options for different battery setups while optimizing your energy storage potential.
Advanced Battery Management
With real-time battery monitoring, remote firmware upgrades, and a battery healing function, this inverter prolongs the lifespan of your batteries while ensuring continuous peak performance.
Time of Use (TOU) Settings
Take control of your energy costs with six customizable battery charging and discharging TOU settings. These settings are designed to lower electricity bills by efficiently managing energy consumption based on peak and off-peak hours.
Why Solis Inverters?
Solis is a global leader in solar inverters, known for creating highly reliable and compatible products that deliver long-term energy savings. The S6-EA1P(3.6-6)K-L series is no exception, offering robust protection, high efficiency, and versatile compatibility to meet all your solar energy storage needs.
Specifications
x| Parameter | Specification |
|---|---|
| Battery | |
| Battery Type | Li-ion |
| Battery Voltage Range | 40-60 V |
| Max. Charge/Discharge Current | 105 A |
| Communication | CAN |
| Input AC (Grid side) | |
| Input Voltage Range | 187-253 V |
| Max. Input Current | 22.8 A / 21.8 A |
| Frequency Range | 45-55 Hz / 55-65 Hz |
| Output AC (Grid side) | |
| Rated Output Power | 5 kW |
| Max. Apparent Output Power | 5 kVA |
| Operation Phase | 1/N/PE |
| Rated Grid Voltage | 220 V / 230 V |
| Grid Voltage Range | 187-253 V |
| Rated Grid Frequency | 50 Hz / 60 Hz |
| Rated Grid Output Current | 22.8 A / 21.8 A |
| Max. Output Current | 22.8 A / 21.8 A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| Efficiency | |
| BAT Charged/Discharged to AC Max. Efficiency | >93.5% |
| Protection | |
| Protection Class | I |
| Over Voltage Category | DC II / AC III |
| Battery Reverse Protection | Yes |
| Battery Over and Under Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| Temperature Protection | Yes |
| General Data | |
| Dimensions (W*H*D) | 440*465*192 mm |
| Weight | 19.9 kg |
| Topology | High frequency isolation |
| Operating Ambient Temperature Range | -25°C ~ +60°C |
| Ingress Protection | IP66 |
| Cooling Concept | Natural convection |
| Max. Operation Altitude | 4000 m |
| Grid Connection Standard | C10/11, 50549, G98, G99, VDE4105, AS4777.2, France |
| Safety/EMC Standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
| Features | |
| DC Connection | Terminal Block |
| AC Connection | Quick connection plug |
| Display | LED + APP |
| Communication | RS485, CAN, Optional: Wi-Fi, LAN |
