Description

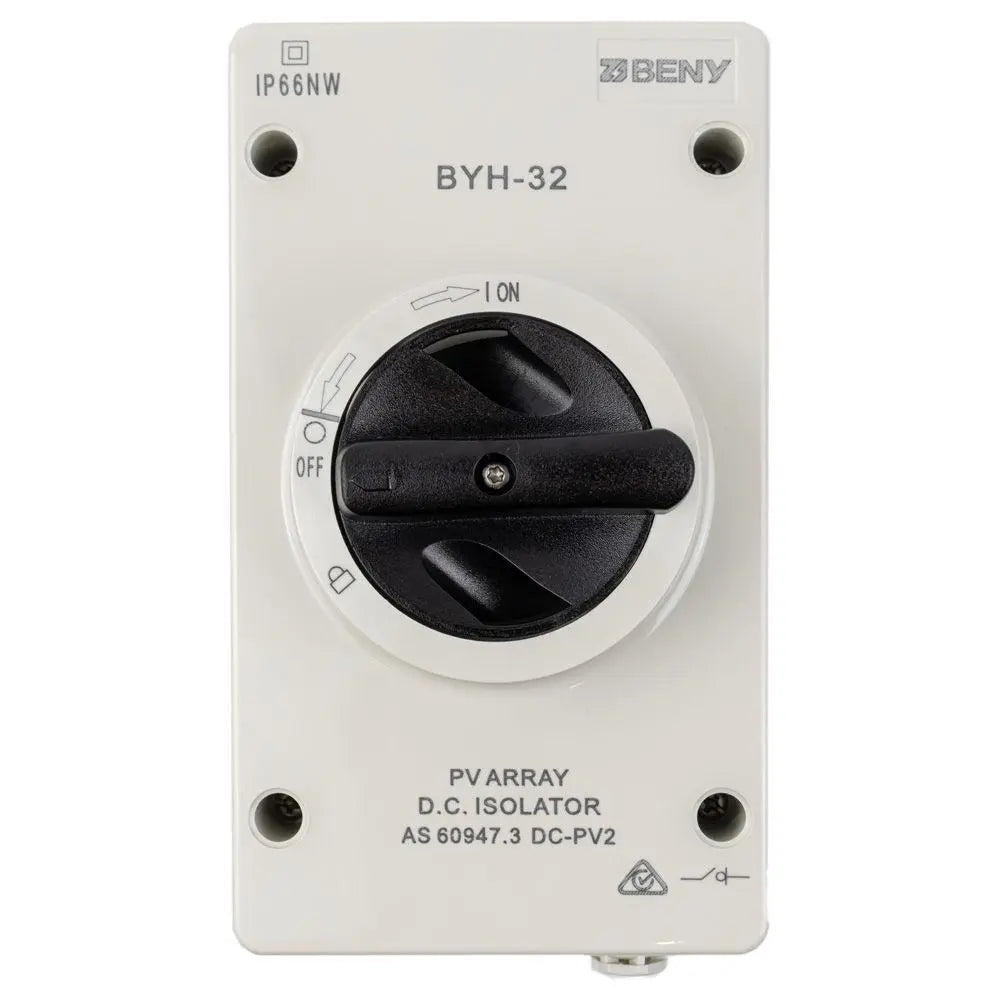

xSolar PV DC-Isolator for Safe Isolation up to 1000V / 32A
The V-Switch DC Isolator is a robust solution for residential and commercial photovoltaic (PV) systems, designed to ensure safe DC power isolation. This high-quality isolator complies with IEC60947-3 and AS 60947.3:2018 standards, supporting voltages up to 1000V and currents up to 32A. The switch is encapsulated in an IP66-rated enclosure for protection against water, dust, and UV exposure, ensuring long-lasting performance in any environment.
As a vital part of any PV installation, the V-Switch isolator should be connected between the solar panels and the inverter to maintain reliable isolation and system protection. With options for single and double string configurations, it’s both versatile and essential for optimising PV safety.
Key Features:
-
IP66 Waterproof Enclosure with UV Resistance
Built to endure outdoor conditions, the enclosure resists both UV and moisture, keeping the isolator safe and functional over time. -
Fast Arc Suppression
Patented arc-extinguish chamber reduces arcing time to less than 3ms, enhancing safety for high-voltage DC applications. -
Compliant with International Standards
Meets IEC60947-3 and AS60947.3:2018 standards, ensuring reliable performance for PV systems in Australia, New Zealand, and worldwide. -
Configurable Options
Available in 2-pole and 4-pole configurations, making it suitable for both single and double string solar setups. -
High Capacity and Longevity
Supports PV string voltages from 300V to 1000V, with a current rating of 32A, backed by a 5-year warranty for dependable operation. -
Earth Connection for Additional Safety
Includes an earth terminal to ensure safe grounding and protection within the installation.
Important Recommendations:
When installing the DC isolator, ensure that it is rated to withstand:
- 1.15x the string open-circuit voltage (Voc)
- 1.25x the string short-circuit current (Isc)
Specifications:
| Model | V-Switch BYH-32 |
|---|---|
| Poles | 2P / 4P Options |
| Standards | IEC60947-3, AS60947.3:2018 |
| Utilisation Category | DC-PV2 / DC-21B |
| Voltage Rating | 300V - 1000V |
| Current Rating | 32A |
| Protection Rating | IP66 (Enclosure), IP20 (Switch Body) |
| Polarity | No Polarity |
| Warranty | 5 Years |
| Certifications | TUV, CB Certified |
Recommended by Solar Professionals
Used globally by solar installers, the V-Switch DC Isolator provides reliable safety and performance, making it an essential component in any PV system. Trust the V-Switch for secure, efficient isolation in your solar setup.
Wiring Diagram
Below is the wiring diagram for the V-Switch DC Isolator, providing guidance on proper installation and configuration:
Specifications
x| Model | BYH-32 |
| Poles | 2P 4P |
| Standard | AS60947.3:2018,IEC60947.3 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 500V,600V,800V,1000V |
| Rated Current | 9A-40A |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CB |
