Description

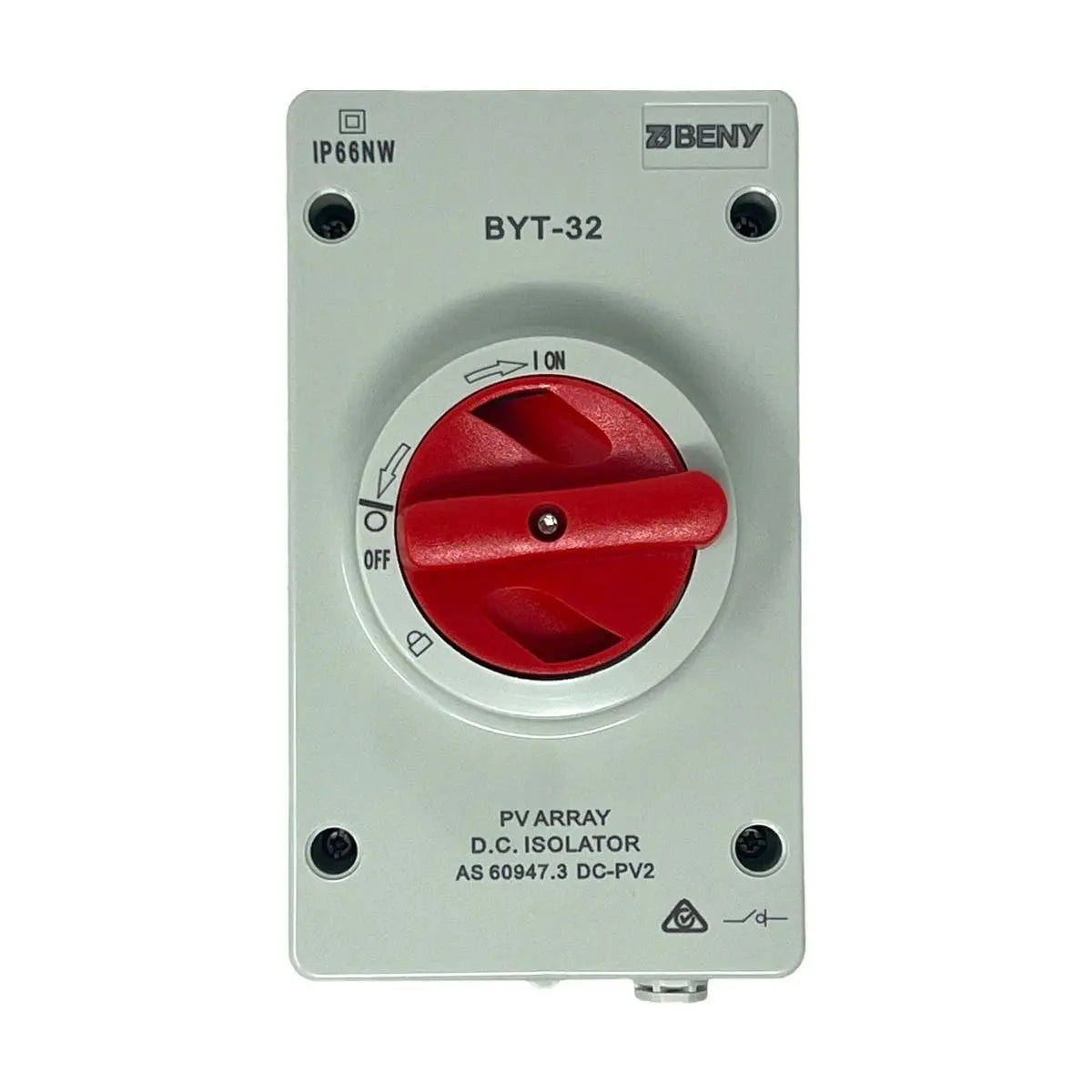

xSolar PV DC-isolator that is compliant with IEC60947-3 and AS 60947:3:2018. The switch is encapsulated in the IP66 enclosure and provides safe isolation for voltages up to 1200V at 32A. Suitable for commercial and residential photovoltaic systems
BYT Series DC Isolator Switch in plastic enclosure is applied to a 1~20KW Residential or Commercial Photovoltaic system, placed between photovoltage modules and inverters. Arcing time of less than 3ms, which keeps the solar system more safe to ensure its stability and long service life, our products are made of components with optimum quality. Max voltage up to 1200V DC It holds a safe lead among similar products.
FEATURES
- IP66, UV Resistance
- Arcing Time < 3ms
- Earth Terminal
- IEC60947-3, AS60947.3
- 2 Pole, 4 Poles Available(Single | Double String)
- DC-PV2 / DC-21B: 32A up to 1200VDC
Important Recommendation: A DC isolator should be able to stand the 1.15x the string open-circuit voltage (Voc) and 1.25x the string short-circuit current (ISC)
Specifications
x| Model | BYT-32 |
| Poles | 2P 4P |
| Standard | AS60947.3:2018,IEC60947.3 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 500V,600V,800V,1000V,1200V |
| Rated Current | 9A-40A |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CB |
