Description

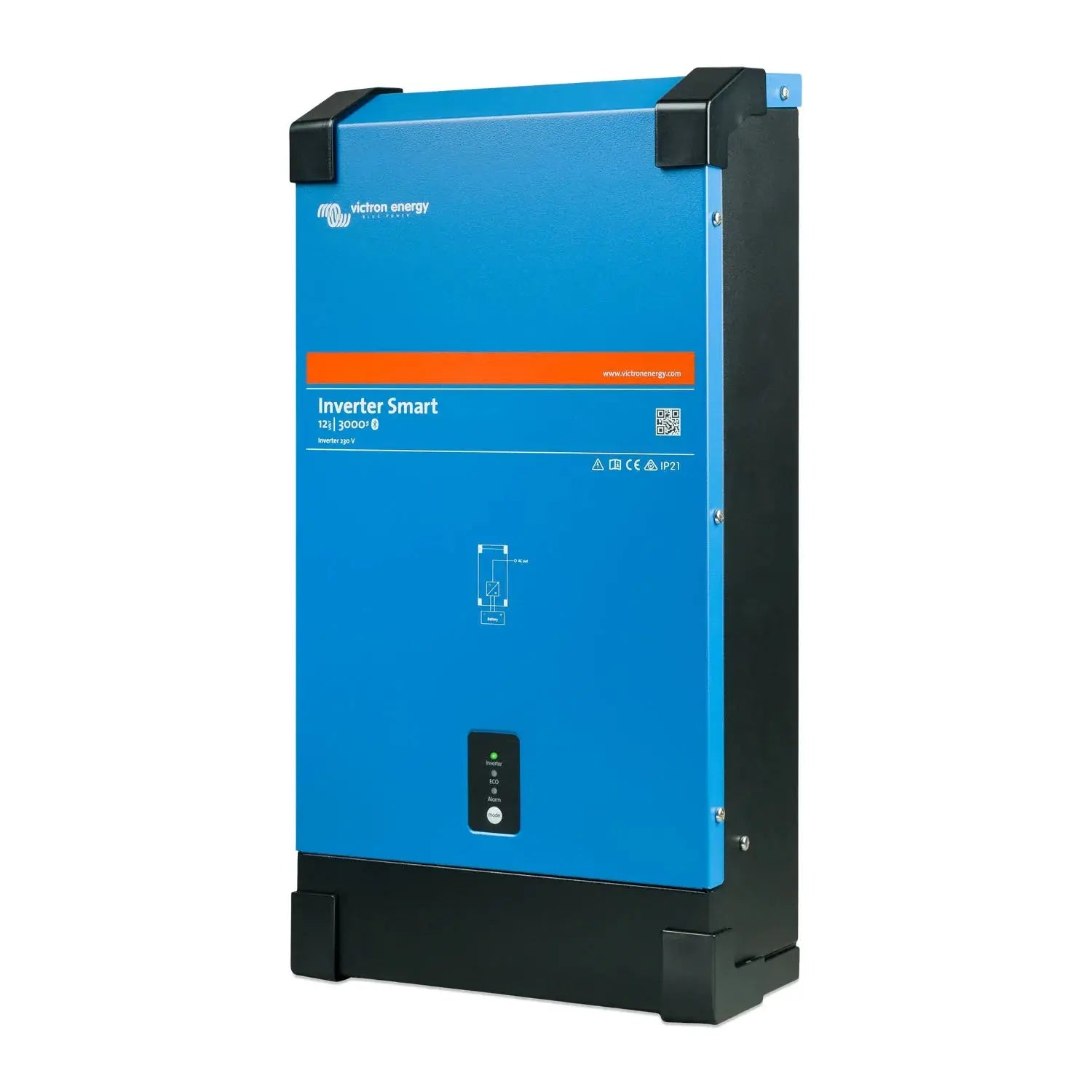

xVictron Inverter 12/3000 230V Smart - PIN122300000
Discover the Victron Inverter 12/3000 230V Smart, engineered for high-performance energy conversion in cars, boats, caravans, and homes. This efficient inverter features a modern, slimmer design encased in a durable full metal body, making it suitable for both mobile and stationary applications.
With models available in capacities ranging from 1600VA to 5000VA for systems of 12, 24, or 48 volts, each unit includes a high-quality toroidal transformer. This ensures stable voltage and frequency, providing a clean and reliable sine-wave output, crucial for safely powering sensitive electronic devices.
Enhanced Functionality and User-Friendly Features
- Bluetooth connectivity for wireless setup and configuration via the VictronConnect app.
- Customizable alarms, voltage settings, and frequency adjustments to meet diverse energy requirements.
- Dynamic cut-off levels that adjust based on the load, enhancing efficiency and extending battery life.
- ECO mode to minimize energy usage when the load is low, improving overall energy efficiency.
Installation has been made simpler with the redesign of the terminals, now more accessible for a streamlined and professional setup. This improvement aids installers in achieving a clean and efficient installation without sacrificing quality or performance.
Safety and Reliability
The Victron Inverter 12/3000 230V Smart includes comprehensive safety features such as short-circuit, overload, and overheating protection. These safeguards ensure reliable operation even under demanding conditions.
The high start-up power capability enables the handling of high inductive loads such as power converters for LED lamps, halogen lamps, and electric tools, providing versatility and reliability.
Advanced Monitoring and Control
Monitor system performance via the integrated VE.Direct communication port, which connects to a computer (VE.Direct to USB interface cable required) for detailed settings configuration and real-time data on input and output voltage, load levels, and alarms.
For optimal functionality, pair this inverter with the recommended Filax Automatic Transfer Switch for low power models, featuring a very short switchover time to ensure that sensitive electronics continue to operate smoothly during power source transitions.
Explore the benefits of efficient power management and robust functionality with the Victron Inverter 12/3000 230V Smart, a leading choice for modern energy needs. Embrace the reliability and performance delivered by Victron technology for enhanced energy independence.
Specifications
x| Inverter Smart 12/3000, 24/3000, 48/3000 | |||
|---|---|---|---|
| Parallel and 3-phase operation | No | ||
| INVERTER | |||
| Input voltage range | 9.3 – 17 V 18.6 - 34 V 37.2 - 68 V |
Output | Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ±0.1 % (1) |
| Cont. output power at 25°C | 3000 VA | Cont. output power at 25°C | 2400 W |
| Cont. output power at 40°C | 2200 W | Cont. output power at 65°C | 1700 W |
| Peak output power | 6000 W | Dynamic (load dependent) DC low shut down (fully configurable) | Dynamic cut-off, see website |
| Max. efficiency 12 / 24 / 48 V | 93 / 94 / 95 % | Zero load power 12 / 24 / 48 V | 12 / 13 / 15 W |
| Zero load power in ECO mode | 1.5 / 1.9 / 2.8 W | ||
| GENERAL | |||
| Programmable relay | Yes | Stop & start power ECO-mode | adjustable |
| Protection | a - g | Bluetooth wireless communication | For remote monitoring and system integration |
| VE.Direct communication port | For remote monitoring and system integration | Remote on-off | Yes |
| Operating temperature range | -40 to +65°C (fan assisted cooling) | ||
| Humidity (non-condensing): max 95 % | |||
| ENCLOSURE | |||
| Material & Colour | Steel (blue RAL 5012, and black RAL 9017) | Protection category | IP21 |
| Battery-connection | 12 V/24 V: M8 bolts 48 V: M8 bolts |
230 VAC-connection | Screw terminals |
| Weight | 18 kg | Dimensions (hxwxd) | 533 x 285 x 150 mm (12 V) 485 x 285 x 150 mm (24/48 V) |
| STANDARDS | |||
| Safety: EN 60335-1 | |||
