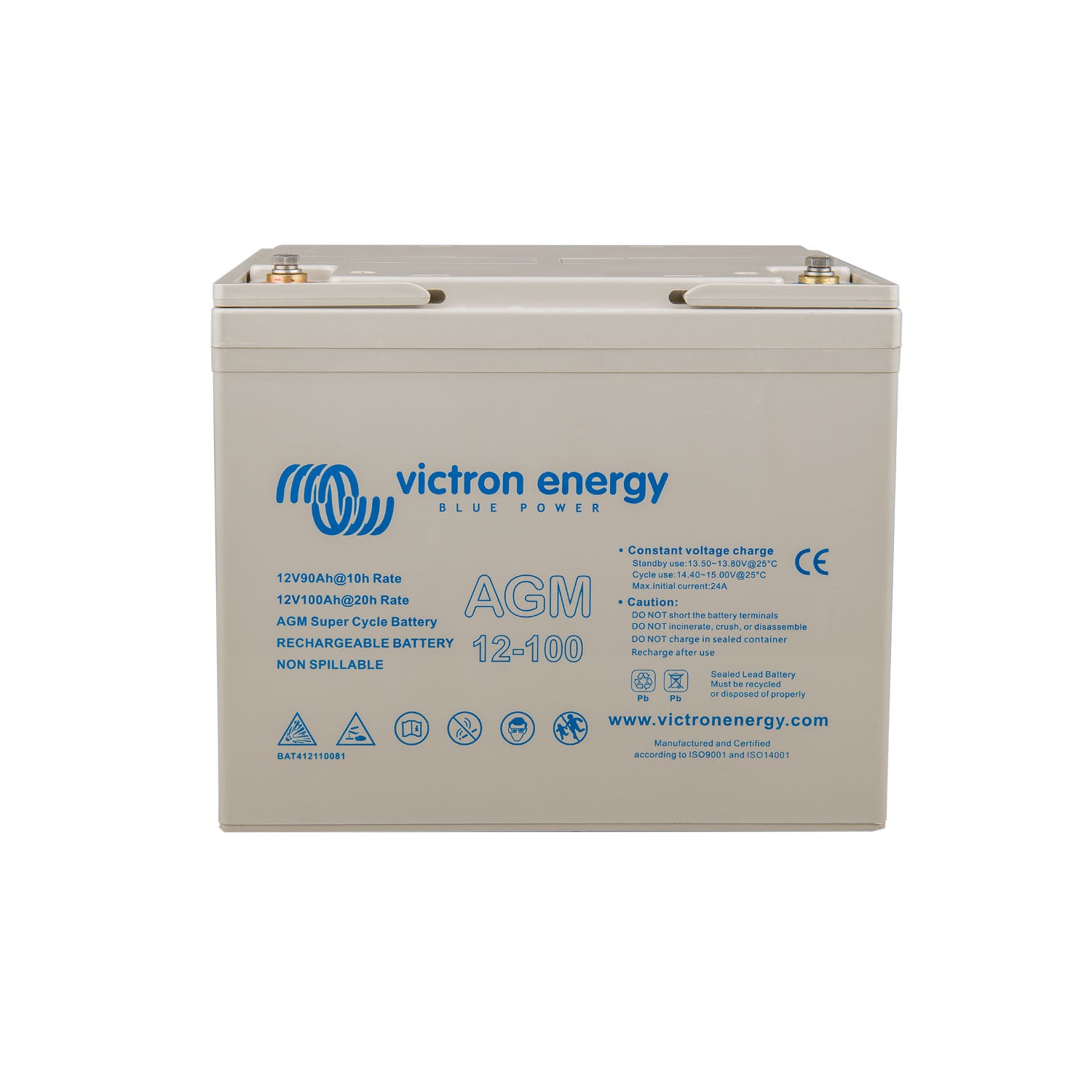

xVictron 12V 100Ah AGM Super Cycle Deep Cycle Battery – BAT412110081
The Victron 12V/100Ah AGM Super Cycle Battery is built for systems where the battery is discharged regularly and deeply. Improved plate chemistry gives it better resistance to sulphation and plate softening compared with standard AGM deep cycle batteries, which is what actually kills batteries in daily cycling applications.
Victron’s own testing shows at least 300 cycles at 100% depth of discharge, 700 cycles at 60% DoD and 1000 cycles at 40% DoD. For a system that discharges to 60% every day, that is roughly two years of daily cycling before capacity drops below the rated threshold. Comparable standard AGM batteries typically manage 150–200 cycles at similar depths.
Key Features
- 12V nominal, 100Ah at C20 (90Ah at C10, 82Ah at C5)
- M6 insert terminals for secure, low-resistance connections
- At least 300 cycles at 100% DoD
- At least 700 cycles at 60% DoD
- At least 1000 cycles at 40% DoD
- Improved resistance to sulphation during deep discharge
- Reduced positive plate softening under repeated full discharges
- Lower internal resistance than standard deep-cycle AGM batteries
- VRLA sealed design, maintenance free
- Temperature compensation: -24mV per °C for 12V battery (centre point 25°C)
Product Overview
Standard AGM batteries are designed for standby use with occasional discharges, not daily deep cycling. The Super Cycle range is specifically developed for applications where the battery works hard every day. The positive plate paste is formulated to be less sensitive to softening under repeated full discharges, and special electrolyte additives reduce sulphation buildup during deep discharge rest periods.
This makes a measurable difference in real installations. A standard AGM battery installed in an off-grid solar system or a campervan will typically show significant capacity loss within 18 months of daily cycling. The Super Cycle battery is engineered to last considerably longer under the same conditions.
Technical Specifications
| Parameter | Value |
| Article number | BAT412110081 |
| Nominal voltage | 12V |
| Capacity at C20 | 100Ah |
| Capacity at C10 | 90Ah |
| Capacity at C5 | 82Ah |
| Terminals | M6 insert |
| Dimensions | 260 x 168 x 215mm |
| Weight | 26kg |
| Battery type | VRLA AGM, sealed maintenance-free |
| Temp. compensation | -24mV/°C (12V battery, centre 25°C) |
Cycle Life
| Depth of Discharge | Minimum Cycle Life |
| 100% DoD | 300 cycles |
| 60% DoD | 700 cycles |
| 40% DoD | 1000 cycles |
Applications
- Off-grid solar battery storage
- Marine and sailing vessel house batteries
- Campervan and motorhome leisure batteries
- Backup power installations
- Mobile and portable power systems
- Systems with regular daily deep discharge cycles
What Is Included
- 1 x Victron 12V/100Ah AGM Super Cycle Battery (BAT412110081)
Installation Notes
Install in a well-ventilated space. AGM batteries are sealed but should not be enclosed in airtight compartments. Ensure correct fusing and cable sizing for the installation current. Do not mix AGM and lithium batteries on the same bus without appropriate protection. Apply temperature compensation to the charge voltage when operating consistently below 10°C or above 30°C.
