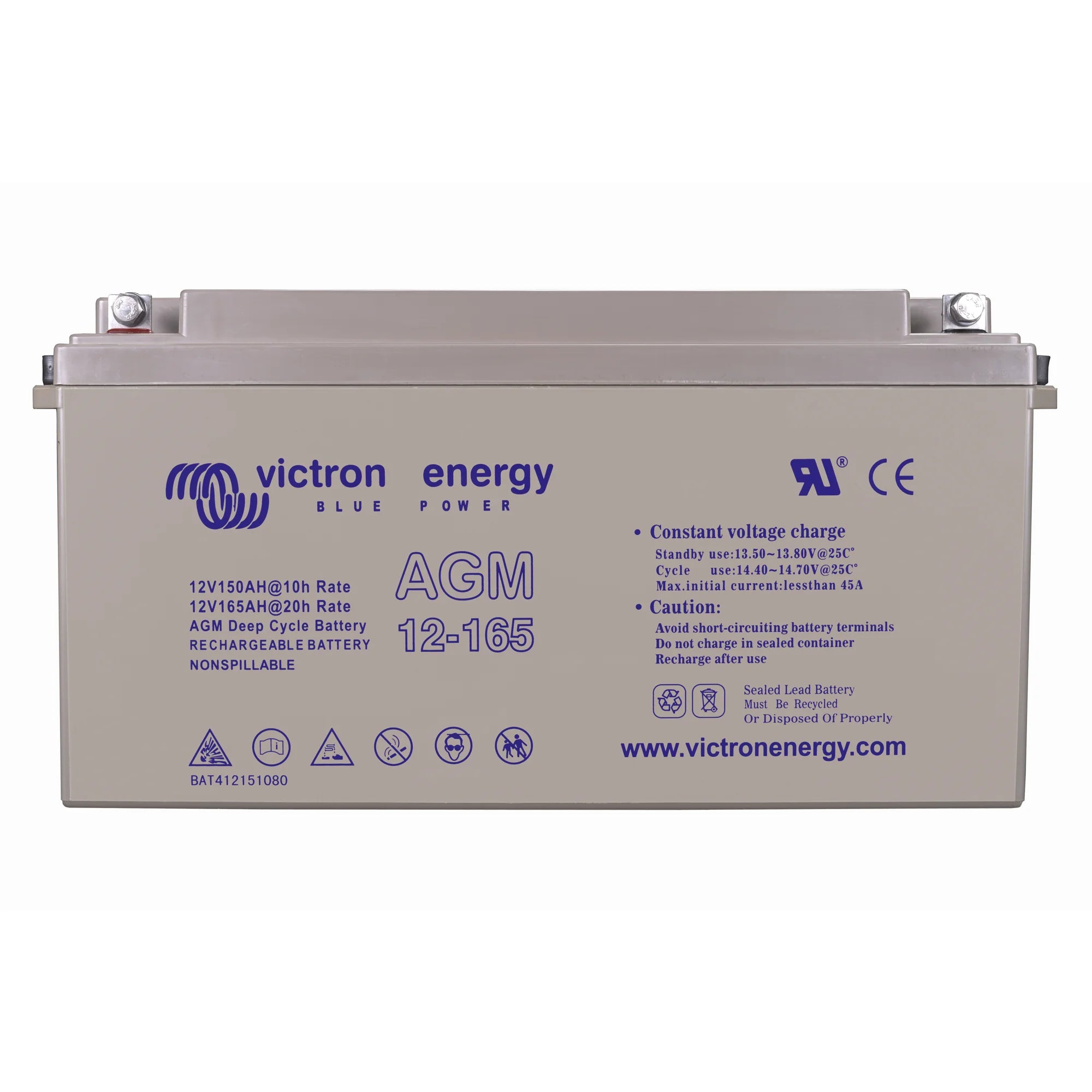

xVictron Energy 12V 165Ah AGM Deep Cycle Battery (M8 Threaded Terminals)
The Victron Energy 12V 165Ah AGM Deep Cycle Battery is a sealed, maintenance-free lead-acid battery designed for cyclic applications in solar, off-grid, marine and backup power systems. With M8 threaded insert terminals, it is suited to professional installations where secure, bolt-down connections are required.
Key Features
- 12V nominal voltage with 165Ah capacity, providing substantial energy storage for deep cycle use.
- AGM (Absorbent Glass Mat) construction: sealed, valve-regulated and maintenance-free with no acid spillage risk.
- M8 threaded insert terminals allow secure, torqued bolt connections rather than clamp-style terminals.
- Deep cycle design tolerates repeated charge and discharge cycles, making it suitable for daily solar cycling.
- Victron Energy manufacture, compatible with the full range of Victron charge controllers, inverter/chargers and battery monitors.
- Weight of 44.5 kg reflects the high lead content associated with genuine deep cycle AGM construction.
Product Overview
AGM batteries use a glass mat separator to hold the electrolyte in place, eliminating free liquid acid. This makes them safe to install in enclosed spaces, cabinets and vehicle compartments where a flooded battery would not be appropriate. The valve-regulated design means no topping up is required and gas emissions under normal operation are minimal.
The 165Ah capacity at 12V gives a nominal 1.98kWh of stored energy. In practice, usable capacity depends on depth of discharge: AGM batteries are typically cycled to 50% depth of discharge to preserve cycle life, giving approximately 82Ah or around 985Wh of usable energy per cycle. For deeper cycling or longer cycle life, Victron's lithium battery range should be considered instead.
The M8 threaded insert terminals are a key practical detail. They accept M8 bolts directly into the battery case, providing a mechanically secure connection that resists vibration and loosening over time. This is particularly relevant in mobile, marine and generator-backed installations. Ensure correct torque is applied during installation to avoid terminal damage.
Specifications
- SKU: BAT412151085
- Nominal Voltage: 12V
- Capacity: 165Ah
- Battery Type: AGM Deep Cycle, Valve-Regulated (VRLA)
- Terminal Type: M8 threaded insert
- Weight: 44.5 kg
- GTIN: 8719076037040
Applications
- Off-grid solar storage systems with daily charge and discharge cycling.
- Marine house battery banks where sealed construction is required.
- Motorhome and vehicle leisure battery installations.
- UPS and backup power systems requiring a maintenance-free sealed battery.
- Generator start and support applications.
- 12V battery banks (single unit or wired in series/parallel for higher voltage or capacity).
What Is Included
- 1 x Victron Energy 12V 165Ah AGM Deep Cycle Battery (M8 threaded terminals)
Installation Notes
This battery should be installed by a qualified electrician or experienced installer familiar with lead-acid battery systems. Ensure adequate ventilation even with VRLA batteries, as hydrogen gas can be released under fault or overcharge conditions. Use the correct M8 bolt length and apply the manufacturer-specified torque to avoid cracking the terminal insert. When wiring multiple batteries in series or parallel, use cables of equal length and cross-section to balance the bank. Charge parameters must be set correctly on the charger or inverter/charger: use Victron's published AGM charge profile to avoid undercharging or overcharging, both of which reduce cycle life significantly.
