Description

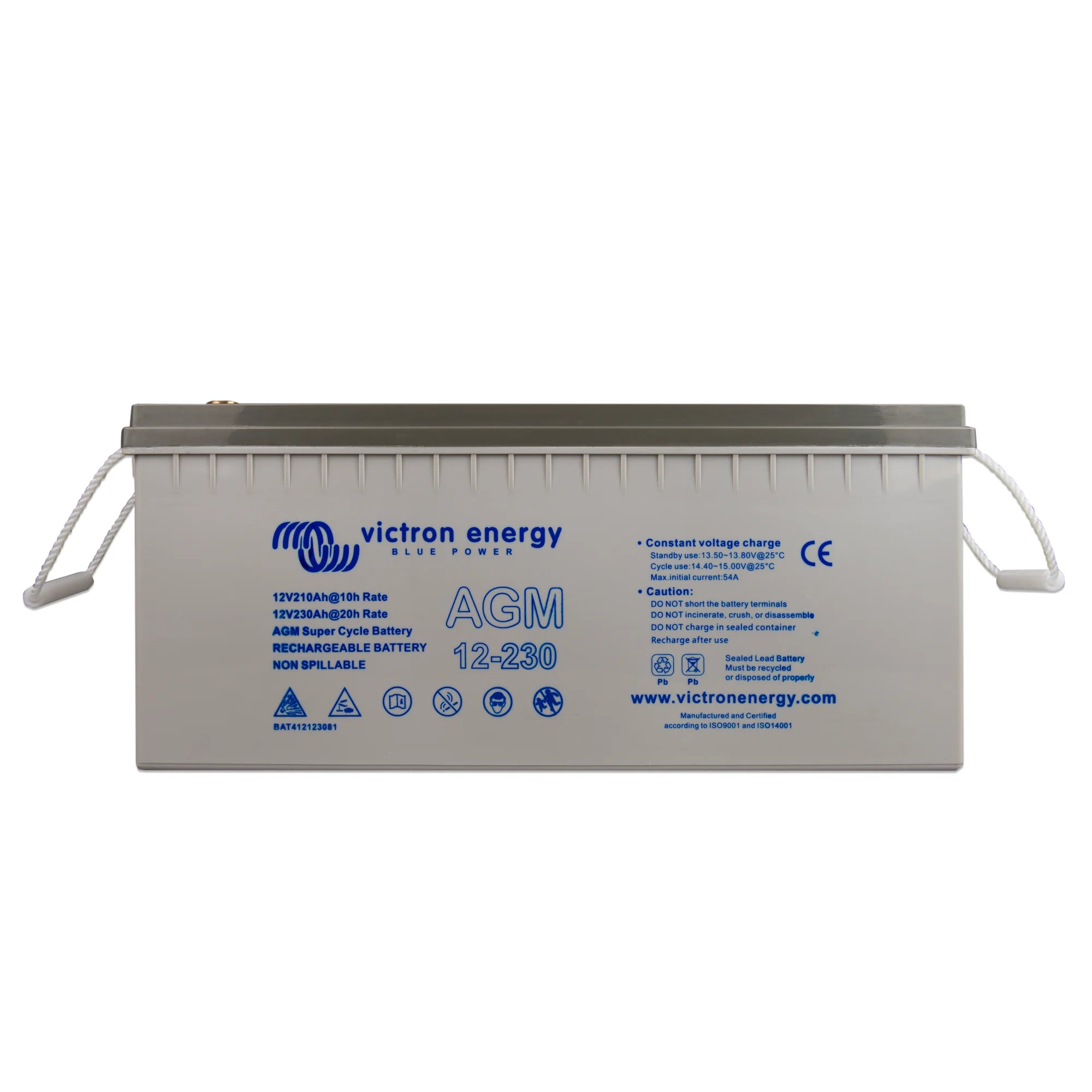

xVictron Energy 12V 230Ah AGM Super Cycle Battery (M8 Terminals)
The Victron Energy AGM Super Cycle 12V 230Ah battery is a deep-cycle lead-acid battery designed for applications where regular deep discharge is unavoidable. It is built for solar storage, marine, and off-grid systems where conventional AGM batteries would degrade prematurely under repeated heavy cycling. The M8 threaded insert terminals provide a secure, bolt-down connection suited to professional installations.
Key Features
- 12V nominal voltage with 230Ah capacity, offering substantial energy storage in a single unit.
- AGM Super Cycle chemistry tolerates deeper and more frequent discharge cycles than standard AGM batteries, extending service life in demanding applications.
- M8 threaded insert terminals allow bolt-down connections, reducing the risk of loose contacts and simplifying cable termination in professional installations.
- Valve-regulated, sealed construction means the battery is maintenance-free and can be installed in enclosed or ventilated compartments.
- Compatible with Victron chargers and inverter/chargers, including full support for Victron charge profiles optimised for Super Cycle chemistry.
- 61 kg weight reflects the high-capacity lead-acid construction; mounting position and structural support must be considered during installation planning.
Product Overview
Standard AGM batteries are designed primarily for standby or shallow-cycle use. When regularly discharged below 50% state of charge, their cycle life drops sharply. The AGM Super Cycle range addresses this directly. Victron's Super Cycle batteries use a modified plate design and electrolyte formulation that allows repeated discharge to 80% depth of discharge without the accelerated plate degradation seen in conventional AGM products. For solar off-grid systems where daily cycling is the norm, this translates to a meaningfully longer service life.
At 230Ah, this battery provides a usable capacity of approximately 184Ah when cycled to 80% DoD. In a 12V system, that equates to around 2.2kWh of usable energy per battery. Multiple units can be connected in parallel to increase capacity, or in series pairs to build a 24V bank. Victron recommends using identical batteries from the same production batch when paralleling to ensure balanced charging and discharge behaviour.
The M8 threaded inserts are a practical advantage over standard bolt-on or push-on terminals. They accept M8 bolts directly into the terminal body, giving a firm, repeatable connection that suits high-current cabling and reduces the risk of terminal damage during installation or maintenance. This terminal format is common in professional marine, vehicle and off-grid battery installations.
Specifications
- SKU: BAT412123081
- Nominal voltage: 12V
- Capacity: 230Ah
- Terminal type: M8 threaded insert
- Battery type: AGM Super Cycle (VRLA, sealed, maintenance-free)
- Weight: 61 kg
- GTIN: 8719076039570
Applications
- Off-grid solar storage systems with daily deep-cycle discharge.
- Marine house battery banks where regular deep discharge is expected.
- Motorhome and vehicle leisure battery installations requiring high capacity.
- UPS and backup power systems with frequent discharge events.
- Remote telecoms or monitoring installations with solar charging.
What Is Included
- 1 x Victron Energy 12V 230Ah AGM Super Cycle Battery (M8 terminals)
Installation Notes
At 61 kg, this battery requires appropriate lifting equipment and a structurally sound mounting surface. Batteries must be installed in a ventilated area in accordance with BS EN 50272 or equivalent local regulations, even though the sealed AGM construction produces minimal gas under normal conditions. All wiring should be sized for the maximum discharge current of the system and protected with an appropriately rated fuse or circuit breaker as close to the battery terminal as practicable. Connection to solar charge controllers, inverters or inverter/chargers should be carried out by a qualified electrician or accredited installer. For grid-connected systems incorporating battery storage, compliance with G98 or G99 and relevant DNO requirements applies.
