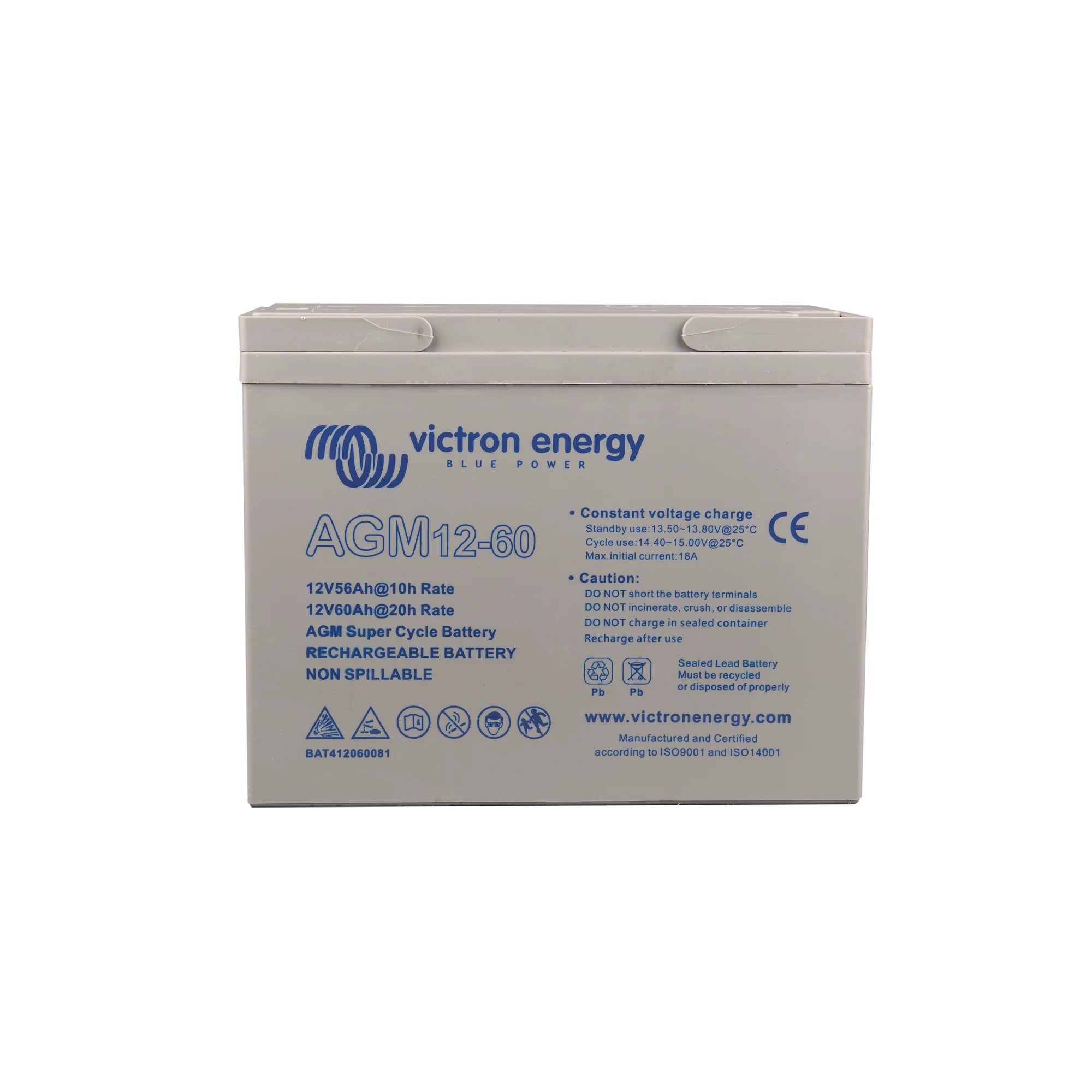

xVictron Energy 12V 60Ah AGM Super Cycle Battery (M6 Terminals)
The Victron Energy AGM Super Cycle battery is a 12V 60Ah valve-regulated lead-acid battery designed for applications where deep, repeated cycling is a regular requirement. Unlike standard AGM batteries, the Super Cycle range is engineered to tolerate deeper discharge without the accelerated plate degradation that limits conventional AGM designs. It is suited to solar storage, marine, and off-grid installations where daily cycling is expected.
Key Features
- 12V nominal voltage with 60Ah capacity, suitable for a wide range of off-grid and backup applications.
- AGM Super Cycle construction tolerates deeper discharge cycles than standard AGM batteries, extending usable service life in cycling applications.
- M6 threaded insert terminals provide a secure, vibration-resistant connection and allow the use of standard M6 bolts without risk of post damage.
- Valve-regulated sealed design requires no water topping and can be installed in enclosed or poorly ventilated spaces with appropriate precautions.
- Compatible with Victron chargers, MPPT solar charge controllers, and MultiPlus inverter-chargers when programmed with the correct AGM battery profile.
- 14.2 kg weight is consistent with the battery's lead-acid construction and full electrolyte absorption.
Product Overview
Standard AGM batteries are designed primarily for standby or float applications. When cycled deeply on a regular basis, the positive plates suffer progressive sulphation and shedding, which shortens service life considerably. The Super Cycle range addresses this by using a modified plate alloy and a higher-density paste formulation that maintains capacity through a greater number of deep discharge events. This makes the 12V 60Ah Super Cycle a more appropriate choice than a standard AGM where the battery will be discharged to 50% or below on a frequent basis.
The M6 threaded insert terminals are a practical detail worth noting for installation. Unlike bolt-through or standard post terminals, the threaded inserts accept M6 bolts directly into the battery casing, which prevents the terminal from rotating or cracking under torque. This is particularly useful in mobile or marine environments where vibration is a factor, and in any installation where the battery may need to be disconnected and reconnected regularly.
As a sealed VRLA battery, the Super Cycle does not require electrolyte maintenance. It can be mounted in any orientation except inverted. Charging must be carried out with a charger set to the correct AGM voltage profile. Overcharging is the primary cause of premature failure in sealed lead-acid batteries, so a temperature-compensated charger or charge controller is recommended where ambient temperatures vary significantly.
Specifications
- SKU: BAT412060082
- Nominal voltage: 12V
- Capacity: 60Ah
- Terminal type: M6 threaded insert
- Battery type: AGM Super Cycle (VRLA, sealed)
- Weight: 14.2 kg
- GTIN: 8719076063285
Applications
- Solar off-grid systems with daily charge and discharge cycles.
- Marine house battery banks where deep cycling is routine.
- Motorhome and caravan leisure battery installations.
- UPS and backup power systems with regular discharge testing or outage events.
- Small off-grid cabins, sheds, and remote monitoring installations.
- Trolling motor and electric auxiliary propulsion systems.
What Is Included
- 1 x Victron Energy 12V 60Ah AGM Super Cycle Battery (M6 terminals)
Installation Notes
This battery should be installed by a competent person familiar with lead-acid battery systems. Ensure the charging source (solar charge controller, inverter-charger, or standalone charger) is configured for AGM battery chemistry with the correct absorption and float voltages. Do not charge with a profile intended for gel or lithium batteries. The battery must not be installed in a fully sealed, airtight enclosure as VRLA batteries can vent gas under fault or overcharge conditions. For solar PV systems, a qualified or MCS-accredited installer should be engaged for the full system design and commissioning.
