Description

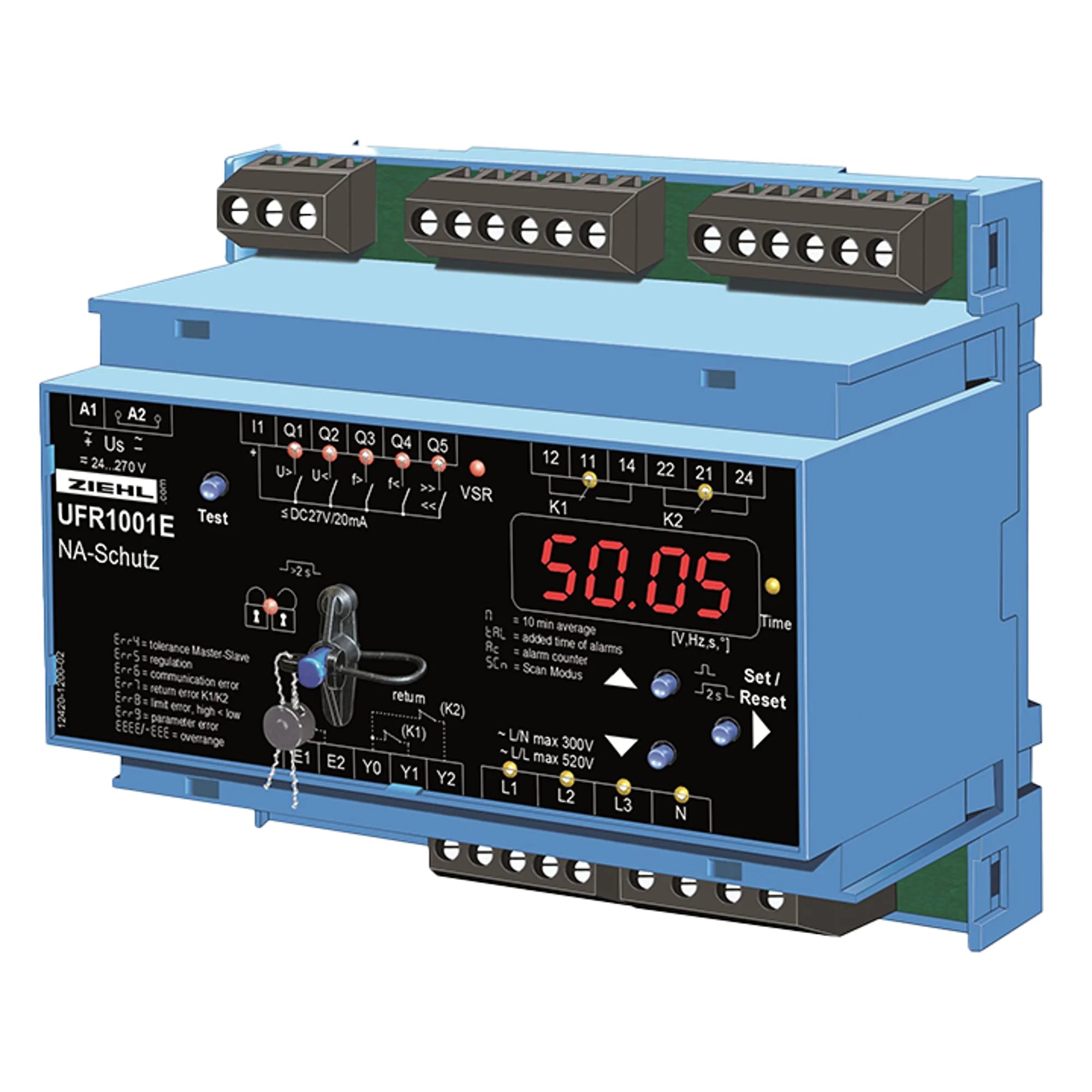

xAnti-Islanding Relay UFR1001E
The Victron UFR1001E is an anti-islanding relay designed for grid-connected solar and inverter installations in the UK. It monitors grid frequency and voltage, disconnecting the inverter from the grid when parameters fall outside safe limits. It is intended for use by qualified electrical installers working on systems that require G98 or G99 compliance.
Key Features
- Monitors grid frequency and voltage continuously, tripping the relay when thresholds are exceeded.
- Supports G98 and G99 compliance requirements for UK grid-connected solar PV systems.
- Compact and lightweight at 0.23 kg, suitable for installation within standard enclosures.
- Designed to work with Victron inverters and inverter/chargers in grid-tied configurations.
- Provides automatic disconnection to prevent back-feeding into a de-energised grid, protecting utility workers and equipment.
- SKU: REL100100000 | GTIN: 8719076024408
Product Overview
Anti-islanding protection is a mandatory requirement for grid-connected inverter systems in the UK. When the grid goes down, an inverter without anti-islanding protection can continue to energise the local network, creating a hazard for utility engineers working on what they believe to be a de-energised line. The UFR1001E addresses this by monitoring both frequency and voltage at the point of connection and opening the relay contact when either parameter moves outside the permitted window.
The UFR1001E is a dedicated external relay unit rather than a software-only function. This matters in installations where the Distribution Network Operator (DNO) or local authority requires a physical disconnect device as part of the G98 or G99 application. It integrates into the AC wiring of the installation and operates independently of the inverter's own internal protection, providing an additional layer of hardware-level disconnection.
At 0.23 kg, the unit is compact enough to fit within most distribution board or inverter enclosure arrangements. Installation must be carried out by a qualified electrician familiar with grid-tied solar PV wiring and DNO notification requirements.
Technical Specifications
- SKU: REL100100000
- GTIN: 8719076024408
- Weight: 0.23 kg
- Compliance: G98 / G99 (UK grid connection)
Applications
- Grid-connected solar PV systems requiring G98 or G99 DNO notification and compliance.
- Victron inverter and inverter/charger installations where a physical anti-islanding disconnect is specified.
- Commercial and residential solar installations where the DNO requires a dedicated hardware relay.
- Retrofit anti-islanding protection for existing grid-tied systems.
What Is Included
- 1 x Victron UFR1001E Anti-Islanding Relay
Installation Notes
This device must be installed by a qualified electrician with experience in grid-connected solar PV systems. G98 or G99 notification to the relevant DNO is required before energising a grid-tied system in the UK. The relay must be wired into the AC circuit in accordance with the manufacturer's wiring diagram and any DNO-specific requirements. Do not attempt installation without the appropriate qualifications and knowledge of current UK wiring regulations.
